Dongfeng 12cbm Sand Suction Truck
Truck brand: Dongfeng 6X4
Horsepower: 380hp
Equipped with two-stage anti-overflow valve
Sandwich PTO
Chinese Seismic resistant vacuum gauges
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 12cbm sand suction truck in China. If you're going to buy high quality dongfeng 12cbm sand suction truck, welcome to get more information from our factory. For price consultation, contact us.

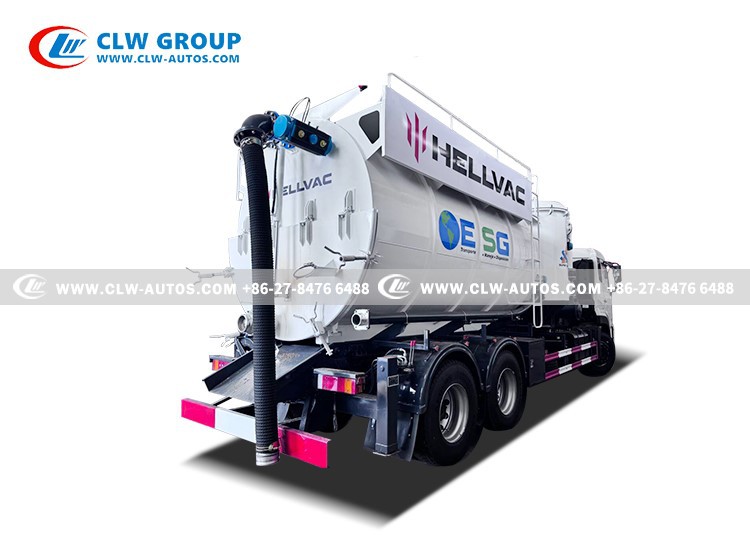

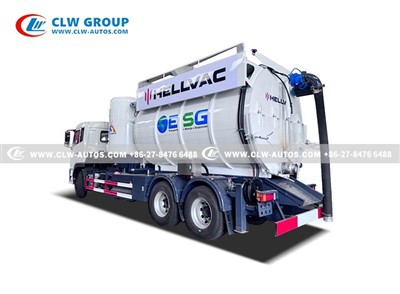

Dongfeng 6X4 12cbm 15cbm Sand-Suction Truck
Products Description
The Dongfeng 6x4 Sewer Vacuum Truck is a high-performance, professionally engineered solution for modern sewage and waste management needs. Designed with durability and operational efficiency in mind, this model combines robust power with intelligent features to deliver outstanding performance across a wide range of applications.
Our Key Features and technical highlights
Powerful 380 HP Engine
Equipped with a high-torque, fuel-efficient engine that ensures strong suction power and reliable operation in demanding conditions.
Large Cyclone Dust Collector
Features an oversized conical cyclone separator that enhances debris and dust filtration, improving air quality and reducing wear on the vacuum pump.
Advanced Safety & Control Systems
Two-Stage Anti-Overflow Valve: Prevents spills and overflows, enhancing operational safety.
Spring-Loaded Safety Valve: Offers added protection against over-pressurization.
User-Friendly Operation
Clear operational instructions and workflow guides are displayed on the vehicle for quick reference.
Simplified controls make it easy to train operators and reduce human error.
Sandwich-Type PTO (Power Take-Off)
Ensures smooth and efficient power transmission between the engine and the vacuum system, increasing overall productivity.
Durable Cab Design
The extended sleeper cab provides comfort for operators during long shifts, supporting efficiency in extended operations.
Products Specification
|
Configurations |
||||
|
Dimensions
|
Approx. Overall Dimensions |
8900*2500*3600 mm |
||
|
Wheelbase |
4300+1350 mm |
|||
| Tank volume |
Sludge |
12cbm/15cbm |
||
|
Performance
|
Max. Engine Power |
280 kW/ 380 hp |
||
|
Engine Displacement |
7.7 L |
|||
|
Max. Vacuum Flow |
750 m³/h |
|||
|
Working Temperature |
-20 to +40 ℃ |
|||
|
Chassis |
||||
|
Condition |
Factory New |
|||
|
Brand |
DONGFENG |
|||
|
Engine
|
Model |
Dongfeng engine |
||
|
Max. Power |
380 hp |
|||
|
Max. Torque |
1250 N·m |
|||
|
Gearbox |
9JSD135T-B Manual, 9 forwards & 1 reverse |
|||
|
Suspension |
Heavy duty leaf spring 10/10 |
|||
|
Axles
|
Axle Configuration |
6x4 |
||
|
Front |
5 tons |
|||
|
Rear |
13 tons*2, speed ratio 4.875 |
|||
|
Tire |
Size |
12R22.5-16PR |
||
|
|
Quantity |
11 pcs including 1 spare |
||
|
Fuel Tank |
400 L |
|||
|
Other Features |
Power windows, central lock, AC, power steering, air brake Multi-function steering wheel & dashboard, ABS |
|||
|
(3)Superstructure & Equipment |
||||
|
Overall Tank Dimensions
|
Total Capacity |
16 m³/ 20,000 liters |
||
|
Material |
Carbon steel |
|||
|
Thickness |
6 mm for shell & head |
|||
|
Vacuum System
|
Vacuum Pump |
Model |
SK-12 |
|
|
Max. Flow |
750 m³/h |
|||
|
Suction Depth |
≥7 meters |
|||
|
Fully open hydraulic rear head |
||||
|
DN150 Drain Valve |
||||
|
Rear hydraulic loading boom with remote control |
||||
|
DN150 suction hose |
||||
|
Automatic overflow valve |
||||
Factory Real Shot Video For You
Built on a robust 6x4 chassis and powered by a reliable 380HP engine, this vehicle is engineered for challenging sewage and sludge handling applications.
Its specially designed large cyclone dust collector enhances filtration efficiency while protecting critical components.

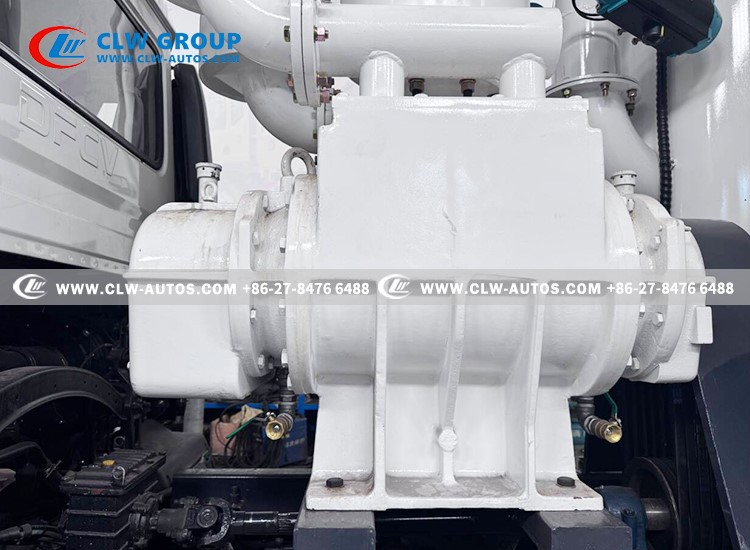

Powerful Suction Capacity: Efficient handling of thick sludge, viscous fluids, and solid debris
Continuous Operation Capability: Suitable for long-duration cleaning projects
Reduced Maintenance: Robust construction minimizes downtime and operating costs
Adaptable Performance: Effective across various waste consistencies and environmental conditions

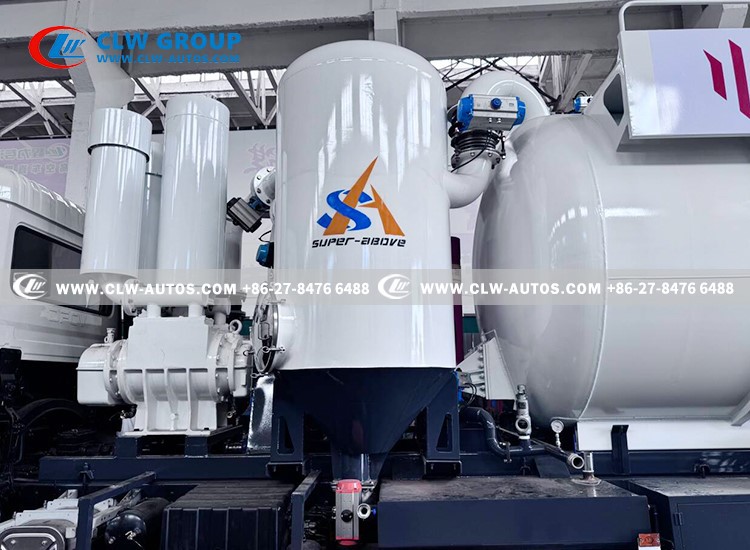

Primary Prevention: Automatically detects and prevents tank overfilling during operation
Secondary Protection: Serves as a backup safety layer for maximum operational security
Spill Prevention: Effectively contains waste materials within the tank system
Environmental Protection: Minimizes the risk of ground contamination and environmental hazards

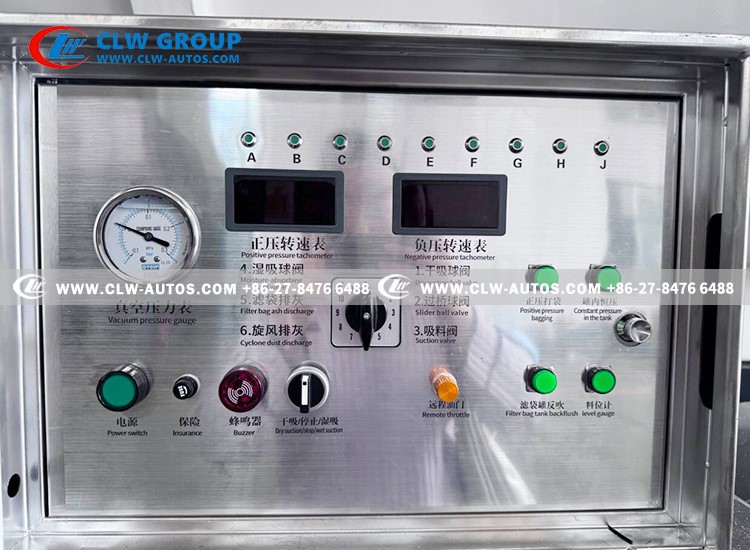

Vacuum/Pressure Gauges: Including the renowned Hongqi seismic-resistant vacuum gauge for accurate reading under working vibrations
Positive Pressure Gauge: Monitors pressure buildup during discharge cycles
Negative Pressure Gauge: Tracks vacuum levels during suction operations
Spring-loaded Safety Valve: Provides additional protection against pressure extremes

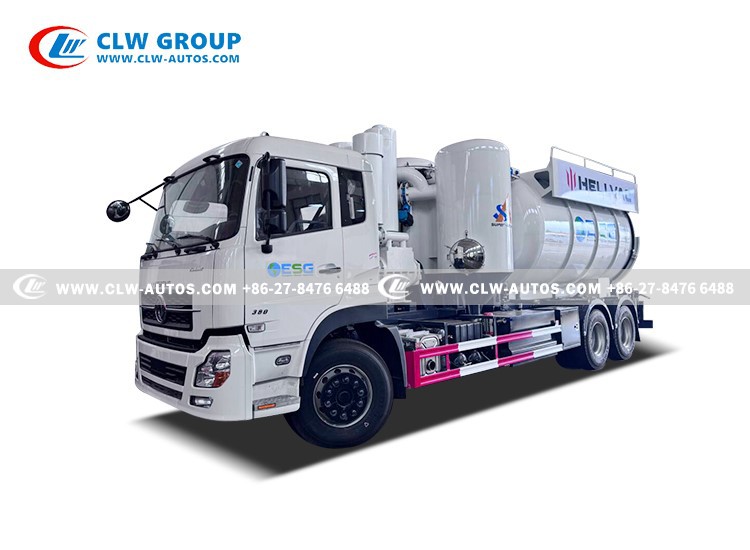

The Dongfeng 6x4 Sewer Vacuum Truck represents heavy-duty excellence in waste management equipment.
The truck comes with comprehensive operational instructions and workflow guides mounted onboard, ensuring straightforward operation and minimal training requirements.

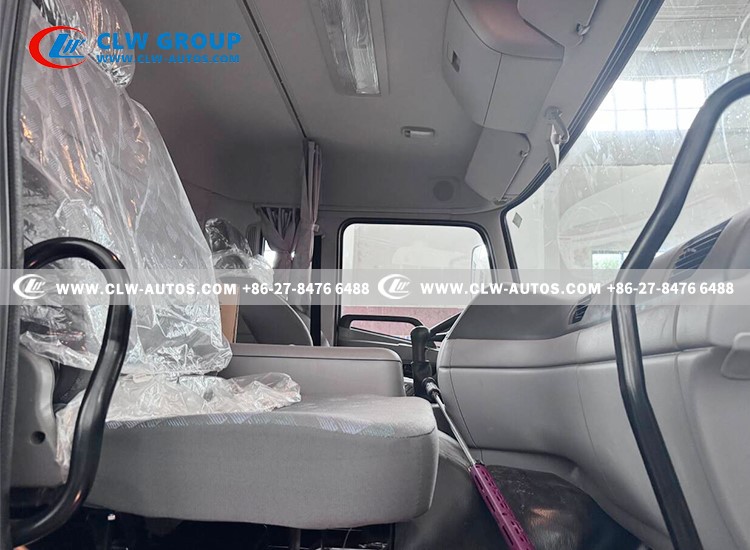

Operator Comfort: Spacious interior for reduced fatigue during extended operations
Practical Layout: Easy access to controls and excellent visibility
Durability: Built to withstand rigorous daily use in demanding environments
Climate Control: Ensures comfortable working conditions in various weather conditions
Primary Applications and use cases
This versatile vacuum truck is indispensable across numerous industries:
Municipal sewer and sludge cleaning
Industrial waste suction and transportation
Emergency cleaning of septic tanks and drainage systems
Construction site liquid and semi-solid waste handling
Environmental sanitation projects in urban and rural areas
Hubei CHENGLI Automobile Group is a large automobile manufacturing enterprise designated by the Ministry of Industry and Information Technology of China for producing various special vehicles.
The company is located in SUIZHOU City, HUBEI Province, and has employs over 7,000 people, including more than 500 technical personnel and over 1,800 skilled workers.
The company has an annual production capacity of 7,000 special vehicles.
Through professional vocation technical training, it annually provides society with over 500 automotive talents, making it a well-deserved incubator in the domestic special vehicle field.
