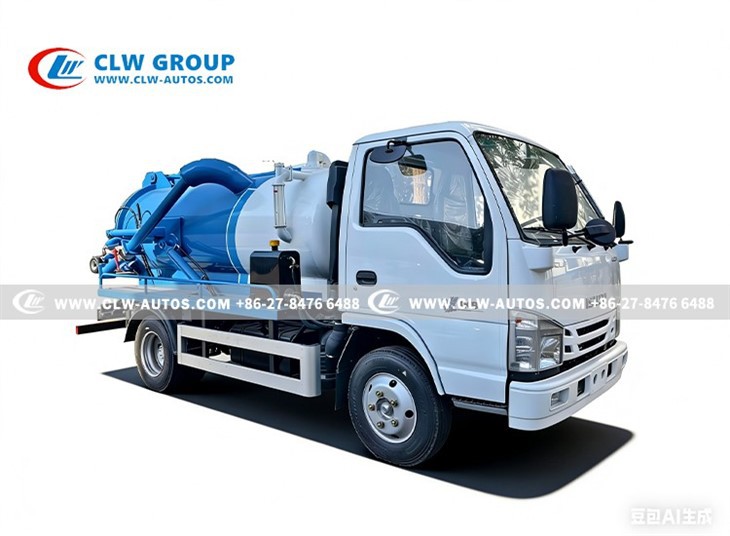

3,000L Sludge Suction Truck ISUZU
3CBM Vacuum Sewage Truck
ISUZU 4×2 Sludge Suction Truck 3000L Vacuum Tanker
Vacuum Tank Truck for Wastewater Removal
Vacuum Sewage Suction Tanker Truck 3CBM
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 3,000l sludge suction truck isuzu in China. If you're going to buy high quality 3,000l sludge suction truck isuzu, welcome to get more information from our factory. For price consultation, contact us.

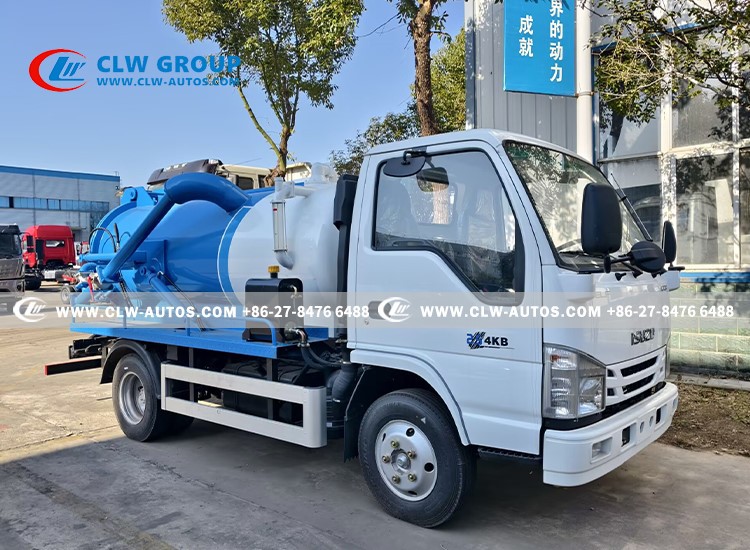

ISUZU 3,000L Vacuum Sewage Tank Truck | 4×2 Sludge Suction Truck
We are professional sewage vacuum truck manufacturer in China since 2004
Products Description
Isuzu sewage tank truck is equipped with sk-6 Water-circulating vacuum pump, which has strong air pumping capacity. The maximum air pumping capacity reaches 800 cubic meters/hour and the maximum vacuum degree can reach 93%, providing strong support for efficient sludge treatment. . In addition, it is equipped with a heavy-duty spiral sewage suction pipe with a diameter of 4 inches and a length of 3 meters. It is equipped with quick-connect joints and male and female couplers to facilitate sewage suction operations.
Main specification
The Isuzu vacuum tank truck is also equipped with an anti-backflow device to effectively prevent sludge backflow and ensure operational safety. Overall, this Isuzu NKR vacuum tank truck is an efficient, stable and safe sludge treatment equipment suitable for various sewage treatment scenarios.
✔ Original ISUZU chassis – stable and reliable
✔ Strong suction capacity up to 800 m³/h
✔ 3,000L reinforced sludge tank (6mm thickness)
✔ Compact size for narrow streets and residential areas
✔ Anti-backflow safety protection
✔ Easy operation and maintenance
✔ Competitive export price
Key Specifications
Chassis: ISUZU 100P
Drive Type: 4×2 Left-Hand Drive
Engine: ISUZU 2.999L Turbocharged Diesel
Power: 130HP (94kW)
Emission: Euro 5
Transmission: 5 Forward + 1 Reverse (Manual)
Tank Capacity: 3,000 Liters
Overall Dimensions: 5,900 × 1,950 × 2,400 mm
GVW: 4,495 kg
For quick Inquiry
Wechat/Whatsapp: +86 15037170872
Email: Laura@clw-autos.com
Products Parameters
|
GENERAL |
|
|
Brand |
ISUZU |
|
Drive Type |
4×2 Left-Hand Drive |
|
Overall Dimension(L x W x H) |
5,900×1,950×2,400 (mm) |
|
Gross Vehicle Weight |
4,495kg |
|
Curb Weight |
3,720kg |
|
Wheelbase |
3,360mm |
|
Chassis Designed |
ISUZU 100P |
|
Cabin |
Hydraulic power steering type.1 driver+2 passengers |
|
Drive wheel(Tires ) |
4+2 and one spares (total of 7 wheels) |
|
Tire Size |
7.00R16 |
|
ENGINE |
|
|
Brand |
ISUZU |
|
Type |
4 cylinders in line, 4 strokes direct injection, water cooling, Intercooled Turbocharged |
|
Displacement |
2.999L |
|
Nominal Power |
130HP (94kw) |
|
Peak Torque |
290N.m@1,700rpm |
|
Emission Standard |
Euro 5 |
|
TRANSMISSION |
|
|
Make / Model |
ISUZU/MSB |
|
Type |
Diesel |
|
Operation |
Manual |
|
Number of Speeds |
5F+1R |
|
CONSTRUCTION |
ISUZU chassis; Body; Tailgate (rear hopper); Ejection/discharging Plate; Compaction Plate; Slide Plate |
|
CAPACITY |
3,000L |
|
Sludge Tank |
|
|
Tipping |
The tank is mounted with an arrangement for the rear tipping |
|
Thickness |
6mm |
|

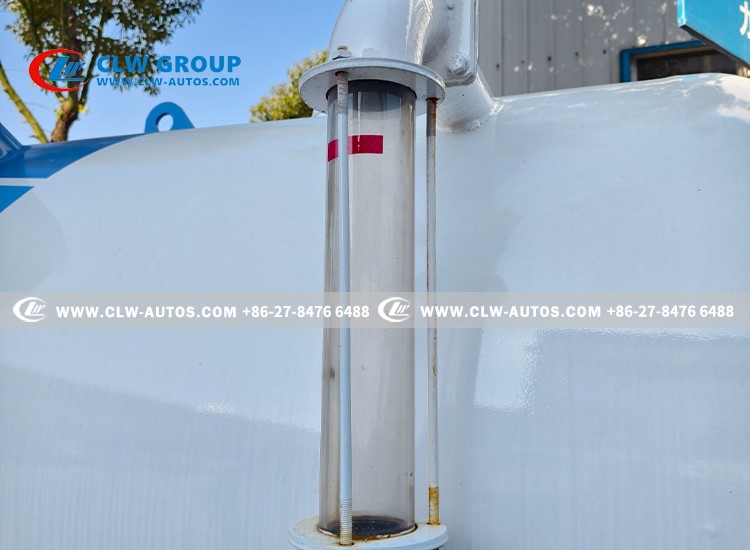

Level Indicators |
Material: Transparent acrylic tubing with thick wall |
|
Rear Door |
Fully open-able type It is reinforced for structural integrity. Raised to the angle of 80°to the vertical. Locking and sealing (no leakage) are done by hand wheel-operated bolts, which are a robust design located circumferentially on the tank's rear end of the shell. The liquid is tight by means of a self-compensating seal and is locked by means of manual latches. |
|
Vacuum Pump |
|
|
Make/Model |
Sk-6 Water-circulating vacuum pump Chinese well-known brands |
|
Pump Capacity |
800m3/h |
|
Speed |
1460r/min |
|
Maximum Vacuum |
93% |
|
Type |
Water-cooled vacuum pump, heavy duty/multi-cylinder type, strong high-pressure, continuous duty. |
|
Max. Exhaust Power |
<=11kw |
|
Hose |
|
|
Heavy Duty Spiral Suction Hoses |
Provided with five heavy Duty spiral suction hoses, 4″ diameter. The hose is 3 meters in length with aluminum or galvanized steel light and easy-to-handle PVC hose along with quick-connect fittings on each end and provided with male-female couplings for the suction application |
|
Safety Device |
Equipped with anti-flow devices |
Detailed Photos

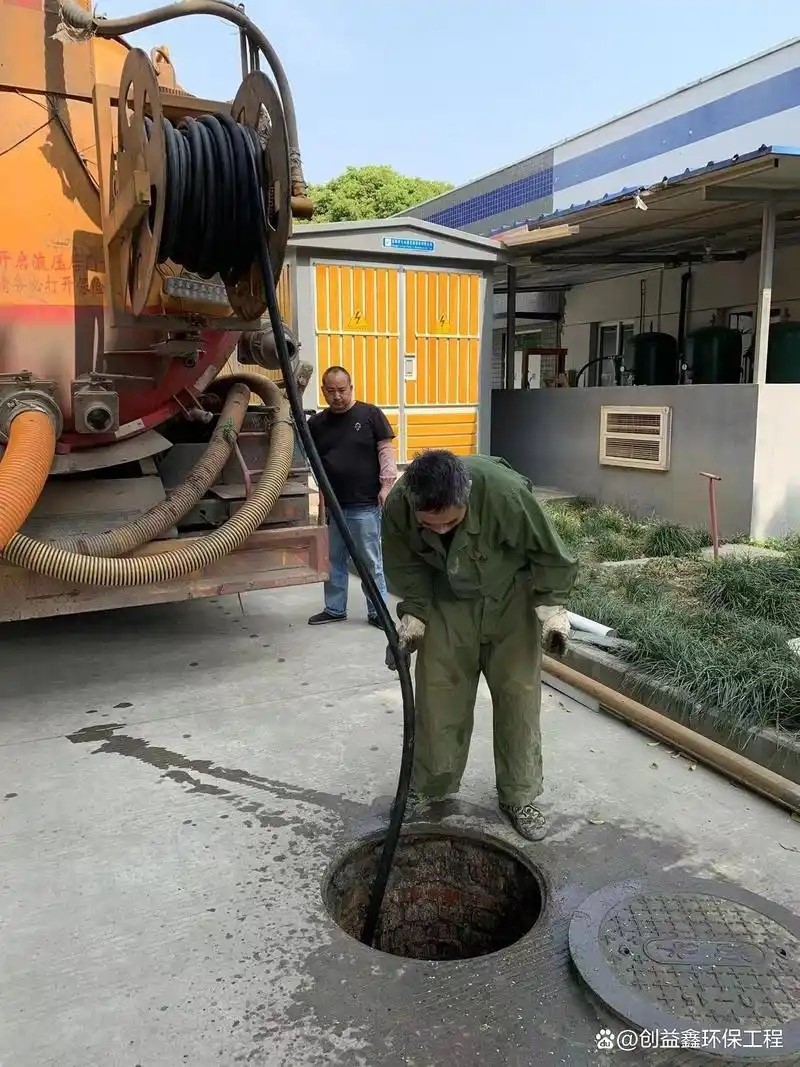

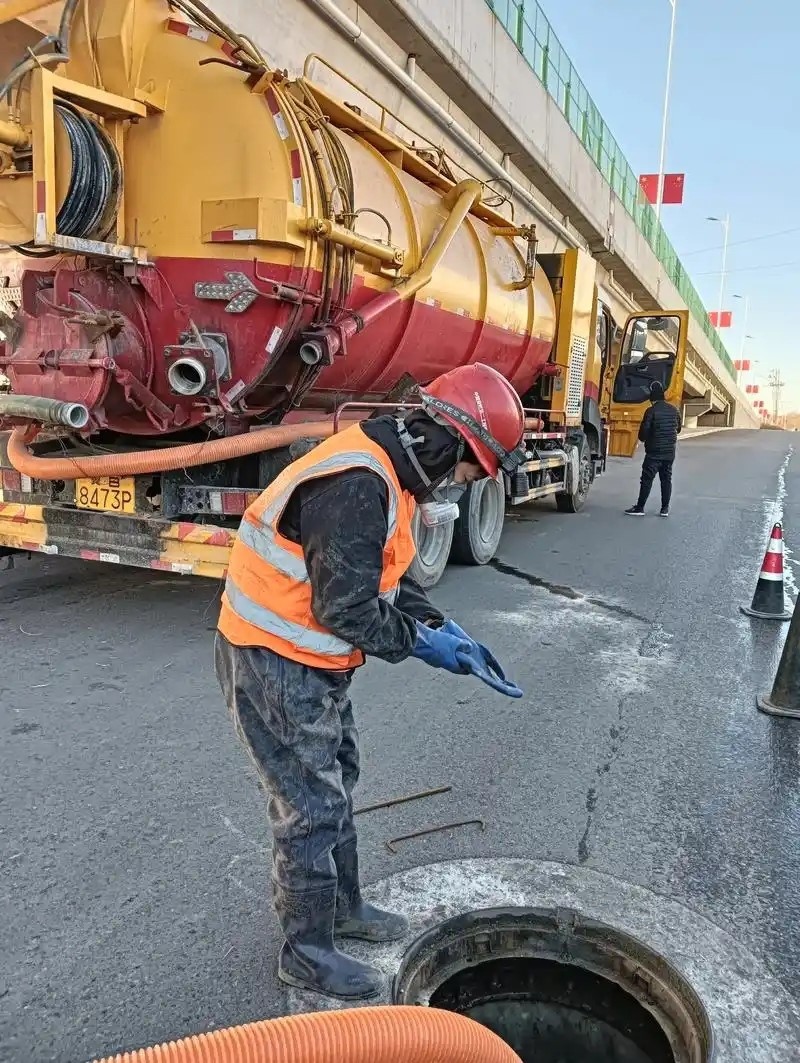

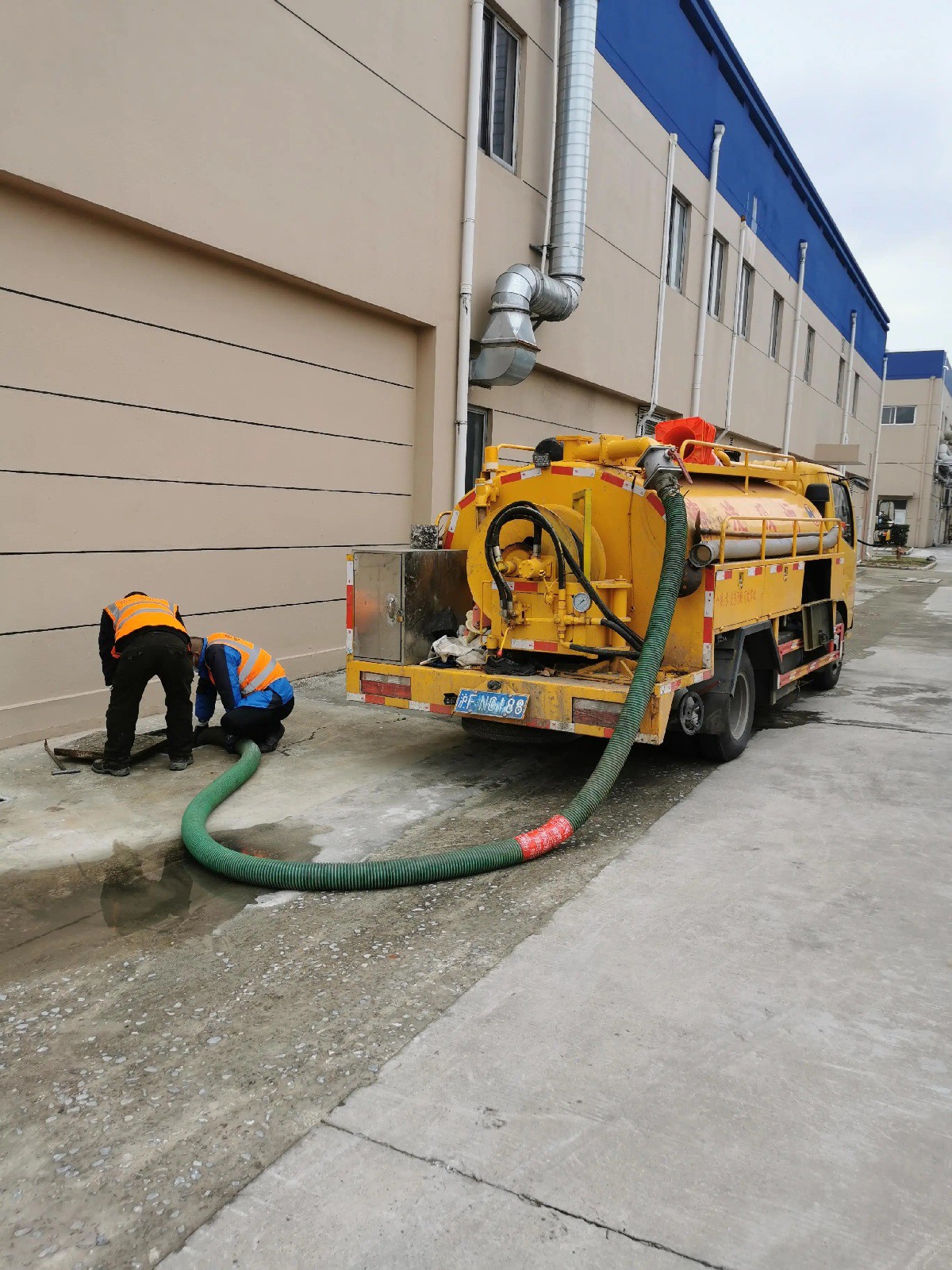

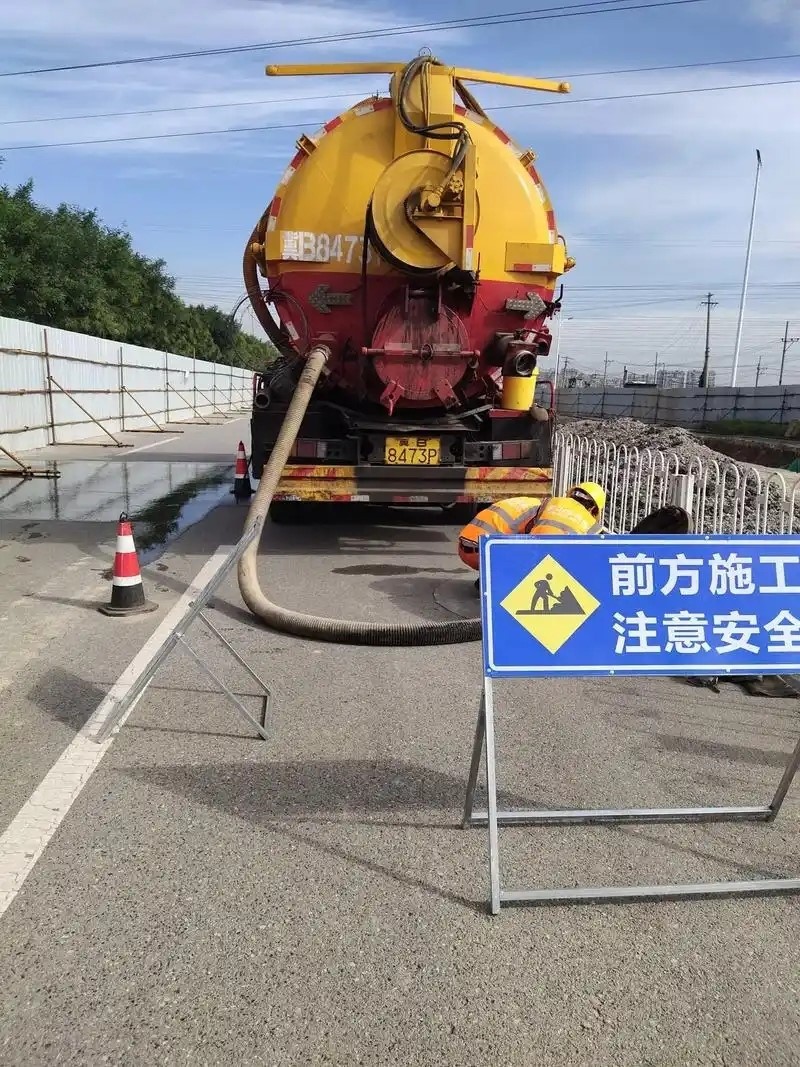

Sewage suction truck working scene
Applications
Municipal sewage cleaning
Septic tank pumping
Industrial sludge removal
Drain and pipeline maintenance
Construction site wastewater removal
Emergency drainage operations
Customization Options
We can customize according to customer requirements:
Different tank capacities (3CBM–20CBM available)
Right-Hand Drive configuration
Vacuum pump brand selection
Stainless steel tank option
Additional toolboxes or hose reels
