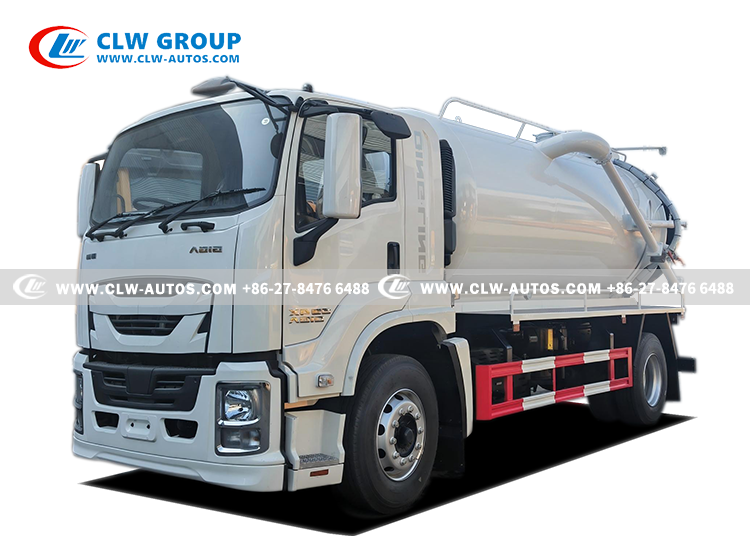

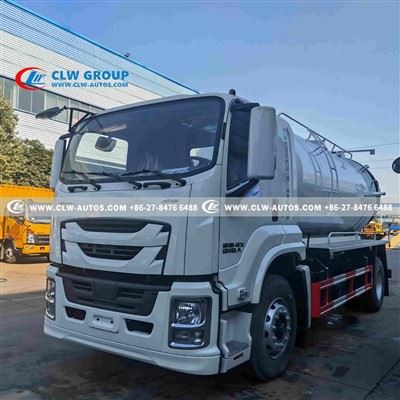

ISUZU GIGA 12Tons Vacuum Suction Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu giga 12tons vacuum suction truck in China. If you're going to buy high quality isuzu giga 12tons vacuum suction truck, welcome to get more information from our factory. For price consultation, contact us.



------ Before everything: what is a vacuum truck?



         A vacuum suction truck (also called a vacuum tanker, sewer jet vac, or hydro-excavation truck) is a specialized vehicle equipped with a powerful vacuum system and storage tank, designed to safely suction and transport liquids, sludges, and solid debris.



Key Features & Functions



• Vacuum Pump System

High-pressure fan or positive displacement pump creates strong suction.

Typical capacity: 500–3,000+ CFM (cubic feet per minute).



• Storage Tank

Made of steel or reinforced polyethylene.

Capacity: 1,000–10,000+ gallons (3,800–38,000+ liters).

Often includes baffles to stabilize liquids during transport.



• Applications

Municipal: Sewer cleaning, storm drain maintenance, septic tank pumping.

Industrial: Hazardous waste removal (e.g., oil, chemicals), spill recovery.

Construction: Hydro-excavation for non-destructive digging.

Emergency: Floodwater removal, disaster cleanup.



• Attachments & Tools

Hoses: Flexible or rigid pipes (2–12 inches diameter) for suction.

Nozzles: Jet nozzles for breaking up blockages.

Debris Separators: Filters to isolate solids from liquids.



Types of Vacuum Suction Trucks

• Combination Sewer Cleaners: integrate high-pressure water jets + vacuum for pipe cleaning.
• Liquid-Only Vacuum Trucks: designed for oil, wastewater, or chemical transport.
• Hydro-Excavation Units: use pressurized water to loosen soil, then vacuum debris.
• Explosion-Proof Models: for flammable material handling (e.g., fuel spills).



---

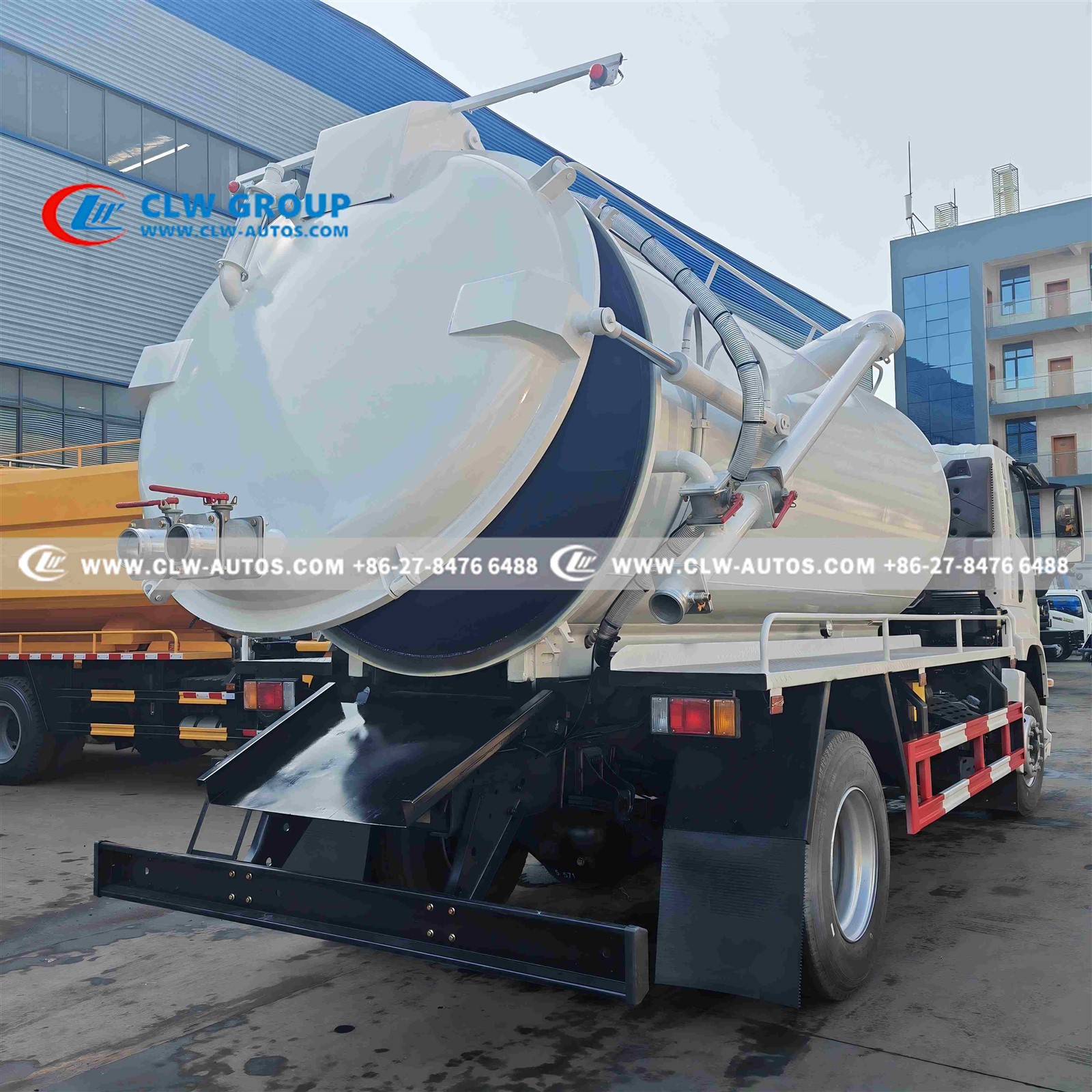

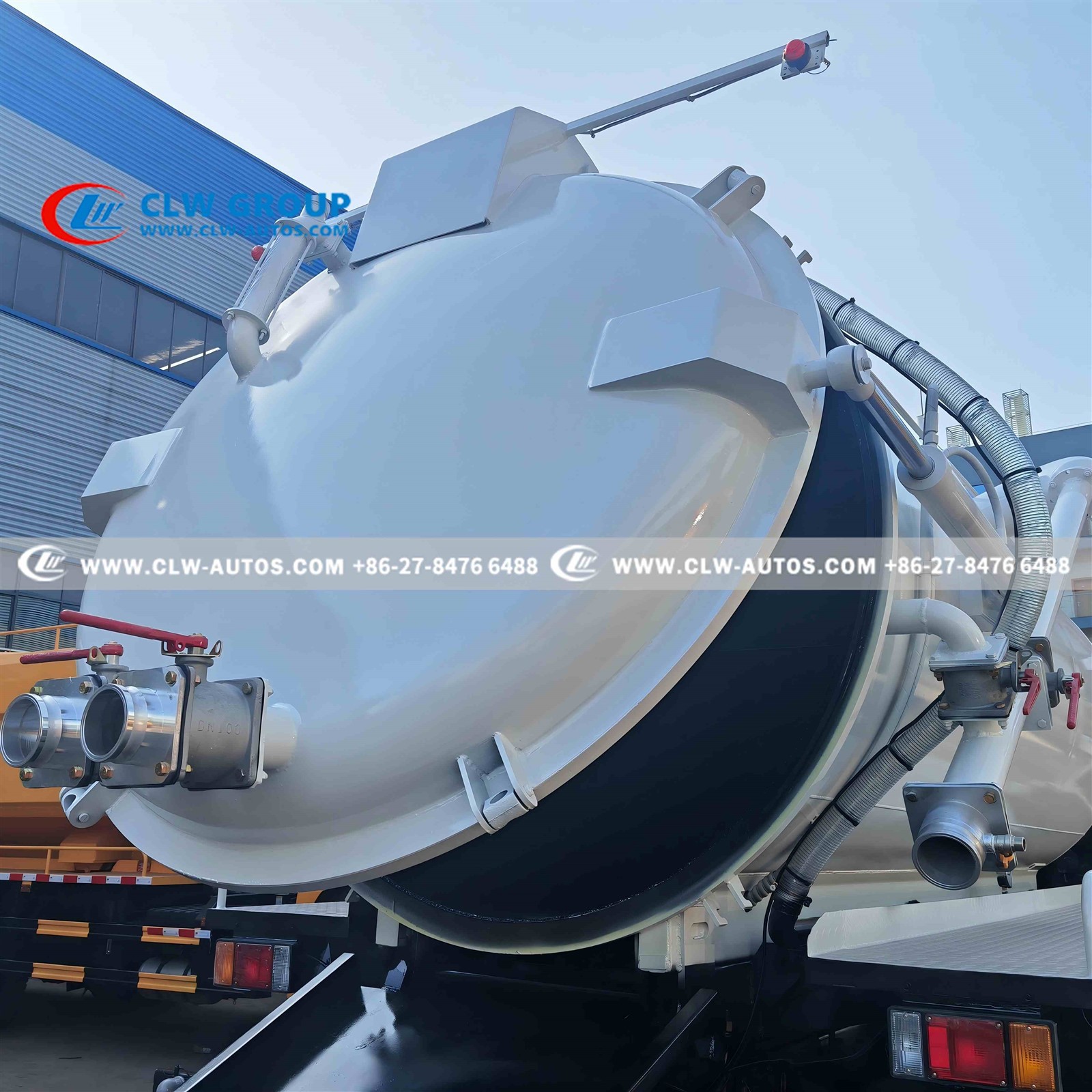

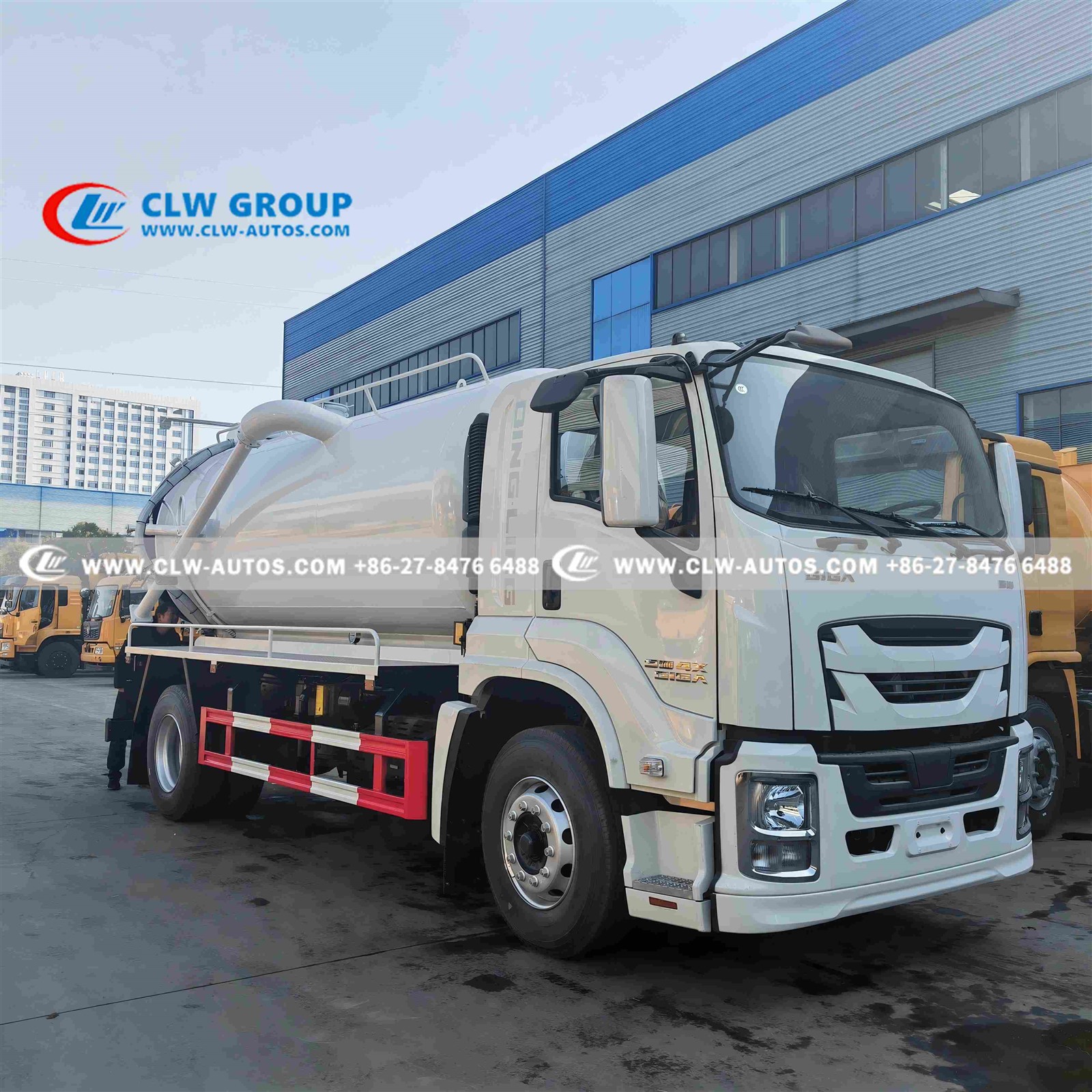

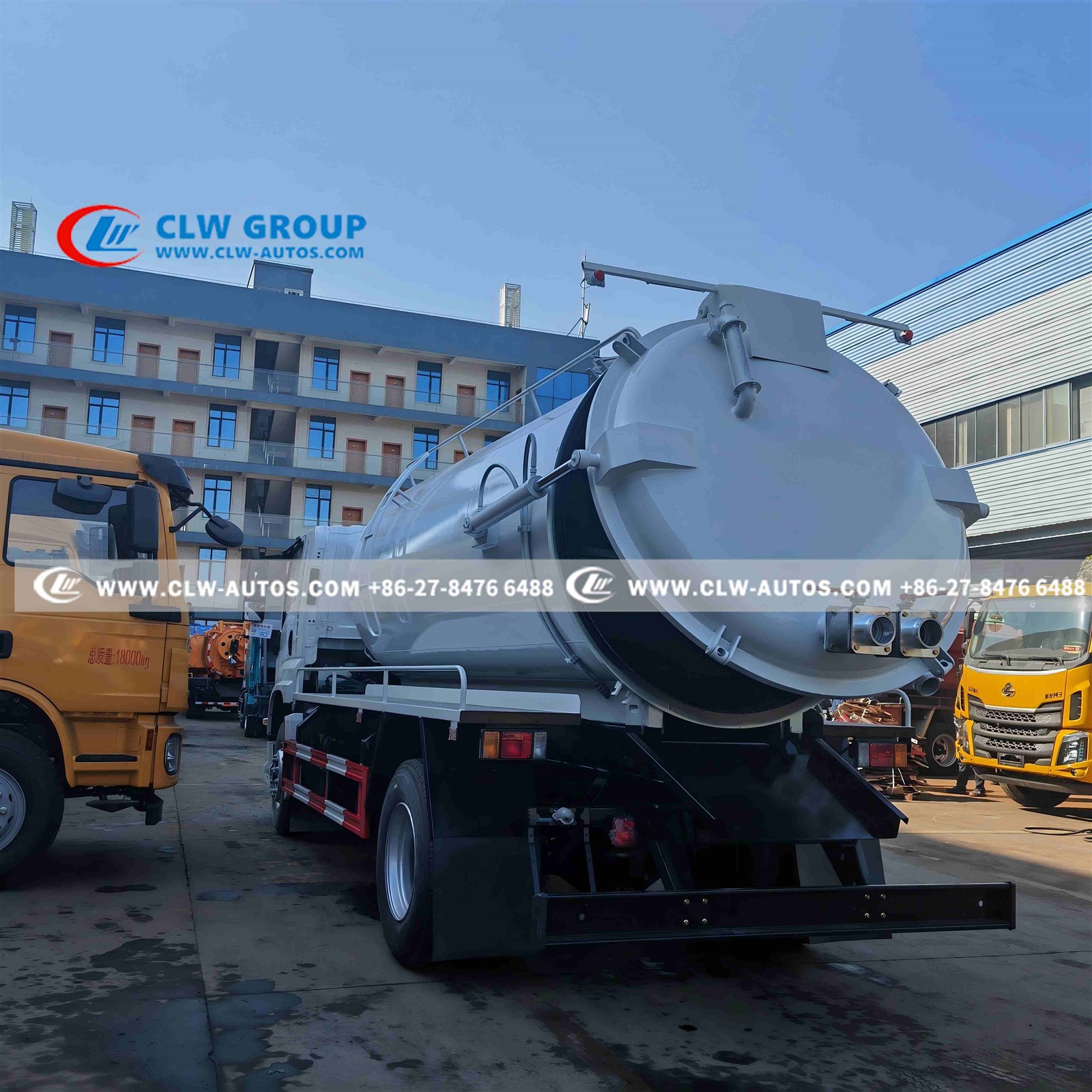

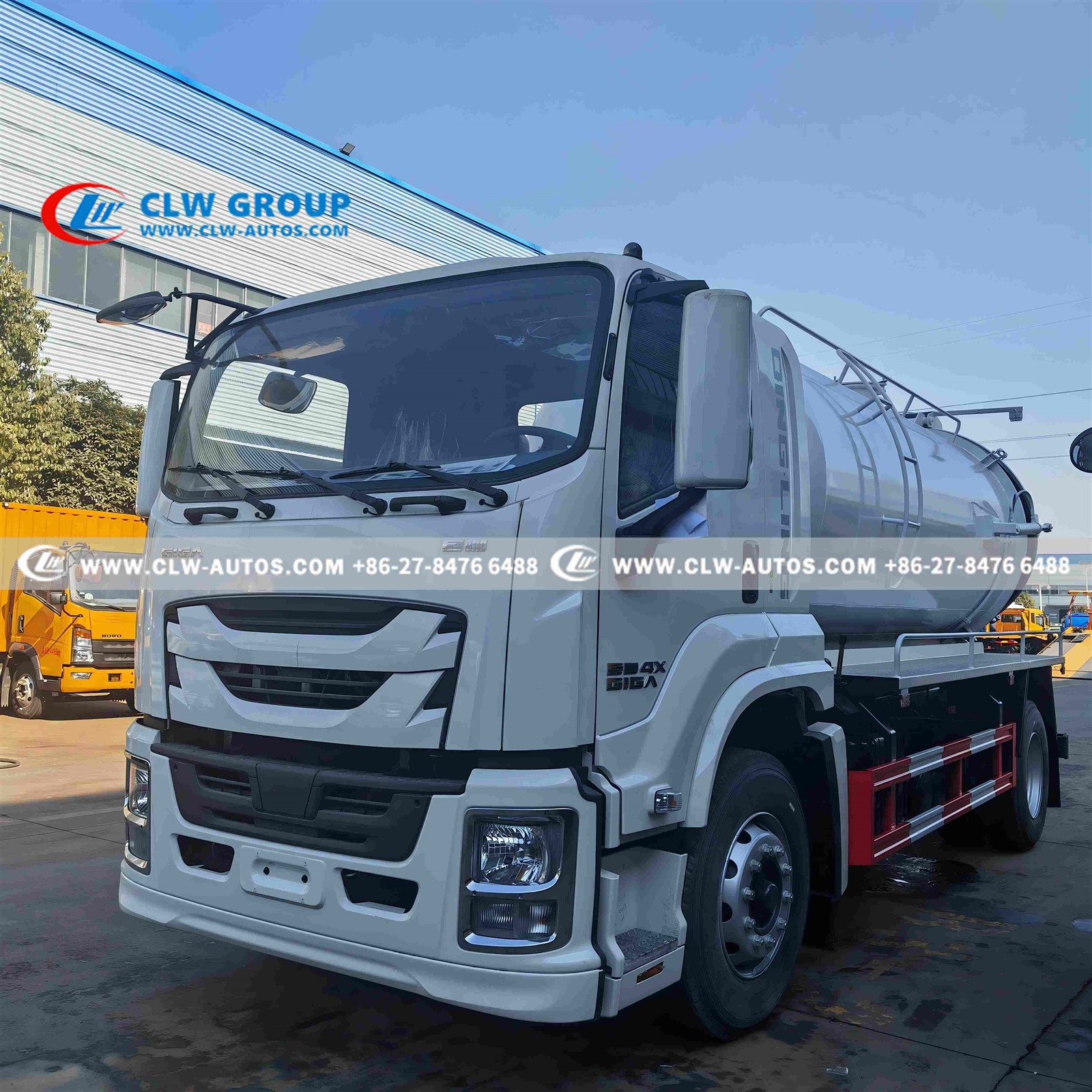

Reference Pictures for 8CBM 12 Tons ISUZU Vacuum Suction Truck



---



------ What are the advantages of 8CBM ISUZU vacuum suction truck?



         The 8m³ ISUZU vacuum suction truck offers a balanced combination of efficiency, durability, and versatility, making it ideal for municipal, industrial, and emergency applications. Here are its key advantages:



• Optimal Capacity & Compact Design

8-cubic-meter tank (≈2,100 gallons) provides a perfect balance between payload and maneuverability.

ISUZU chassis ensures agility in urban areas (narrow streets, crowded spaces) while maintaining robust performance.



• Powerful Vacuum System

High suction capacity (typically 360–500 CFM) for rapid waste removal.

Deep vacuum level (≥25 inHg/85 kPa) to handle thick sludge, liquids, and solids.

Optional jetting system (100–150 bar pressure) for breaking up blockages.



• ISUZU Chassis Reliability

Fuel-efficient engine: 4HK1/6HK1 diesel engines (150–300 HP) meet Euro V/VI emissions.

Low maintenance: Known for durability in harsh conditions (e.g., construction sites, sewers).

Adaptability: Compatible with both left- and right-hand drive configurations.



• Safety & Compliance

Explosion-proof options for hazardous environments (ATEX-certified models available).

Anti-overflow sensors and pressure relief valves to prevent tank overloading.

Compliance with DOT, ADR, and OSHA standards for waste transport.



• Versatile Applications

Municipal: Sewer cleaning, storm drain maintenance, septic tank pumping.

Industrial: Oil sludge recovery, chemical spill cleanup.

Construction: Hydro-excavation for utility line digging (non-destructive).



• Cost-Effectiveness

Lower operational costs due to ISUZU's fuel efficiency and parts availability.

High resale value from ISUZU's global reputation for reliability.



---



Configurations
(1)Overall Parameters
Dimensions	Approx. Overall Dimensions	7750*2520*3600 mm
	Wheelbase	4475 mm
	Front/Rear Overhang	1350/2840 mm
	Approach/Departure Angle	17/7°
Performance	Tank Capacity	10 CBM/ 10,000 Liters
	Vacuum Pump	PN 155, Italian Jurop
	Max. Driving Speed	90
(2)Chassis
Condition	Factory New
Brand	ISUZU
Cabin	Model	VC61(3X)
	Configurations	Air Conditioner
		Power Windows
		Multi-function Steering Wheel
		Multi-function Instrument Panel
		Central Lock
Engine	Model	4HK1-TCG61
	Emission Standard	Euro 5
	Structure	Inline-4
	Displacement	5.19 L
	Max. Power	139 kW/ 189 hp
	Max. Torque	507 N.m
Transmission	MLD manual, 6 Forwards & 1 Reverse
Brakes	Air Brakes
Suspension	Reinforced leaf Spring
Axles	Configuration	4x2
	Front Axle	4 Tons
	Driving Axle	7 Tons
Tire	Model	235/75R17.5 18PR
	Quantity	7 nos including 1 spare
Safety Features	Emergency Braking System	Electronic Stability Control
	Lane Departure Warning System	Front Collision Warning
	Tire Pressure Monitoring System	Run Stability Control
(3)Superstructure & Major Equipment
Tank	Capacity	16 CBM/ 16,000 Liters
	Material	Q235 Carbon Steel
	Thickness	6 mm shell, 8mm head
Vacuum Pump	Brand	Jurop, Italian Brand
	Model	PN155
	Flow	2470m3/h
	Max. Vacuum	93%
	Suction Depth	≥18m
Baffles	2 nos, to keep balance while driving under heavy load
Manhole	1 nos, DN500 with cover
Ladder	1 nos, access to the manhole
Maintenance Platform	On either side of both chassis and tank top, made of anti-slip perforated metal
Suction Hose	2 nos, 8m, DN100 with quick-release joint, at either side of tank
Tank Attachment to Chassis	Rubber damper fixed with tie traps
Other Accessories	Water-gas separator ; 2. Oil-gas separator 3. Four way valve; 4. Safety valve 5. Anti overflow valve ; 6. Anti overflow warning device 7. Tube Flow Meter
Remarks	The color and LOGO is optional



---
