Off-Road Aluminum Alloy Fuel Truck Dongfeng

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of Off-Road Aluminum Alloy Fuel Truck Dongfeng in China. If you're going to buy high quality Off-Road Aluminum Alloy Fuel Truck Dongfeng, welcome to get more information from our factory. For price consultation, contact us.

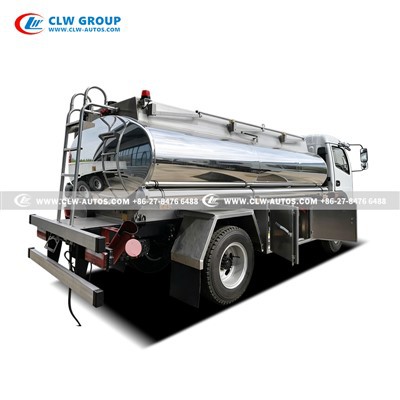

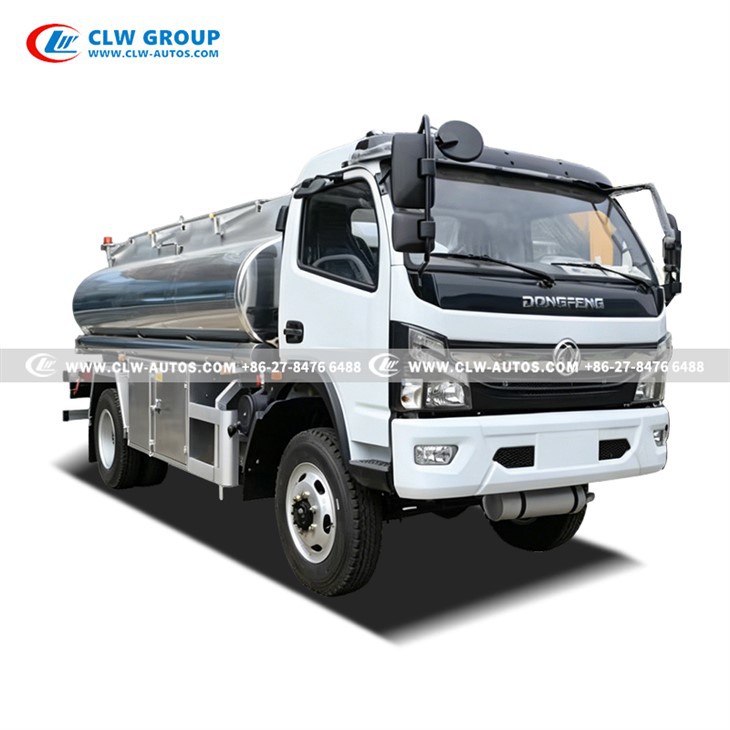

OFF-ROAD 4x4 Aluminum Alloy 8,000 Liters Fuel Tank Truck Dongfeng Dolly

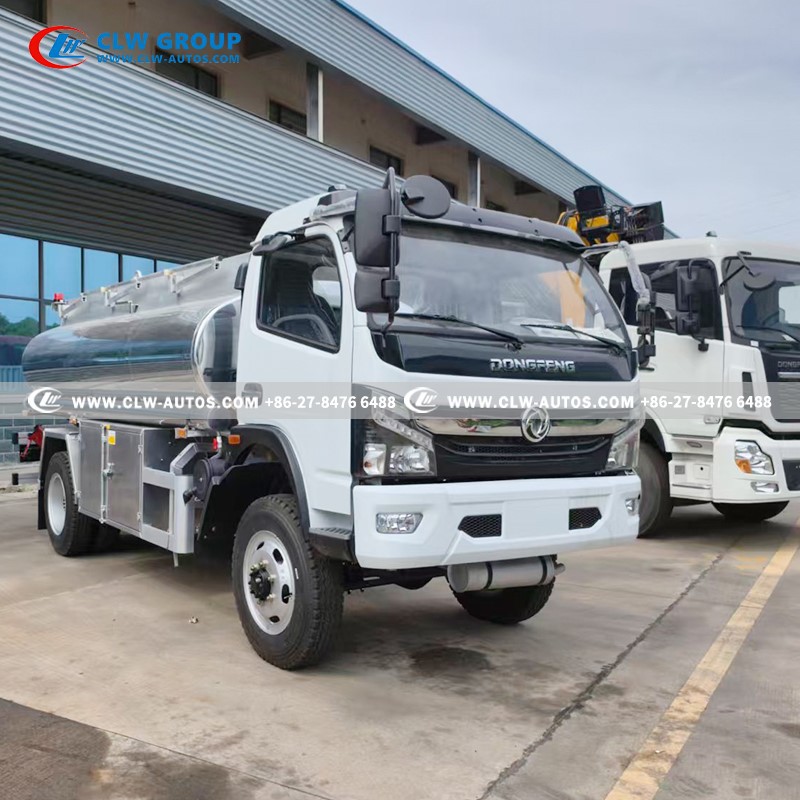

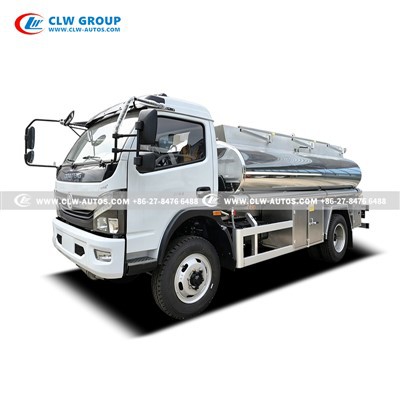

OFF-ROAD 4x4 8,000 Liters Dongfeng Fuel Tank Truck

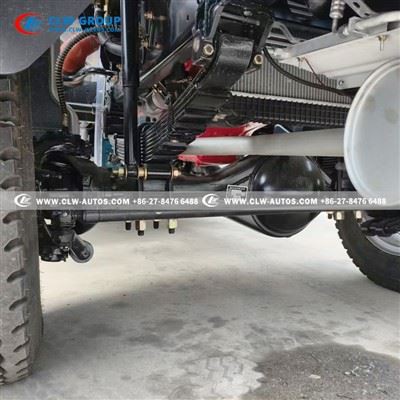

    1.4x4 Chassis

       Excellent off-road capacity: Mobility,Better traction on slippery surfaces,Higher payload access to remote areas– The 4x4 drive system allows the vehicle to navigate rough terrain, muddy roads, or construction sites where standard 4x2 trucks would get stuck.



    2.Upper Parts

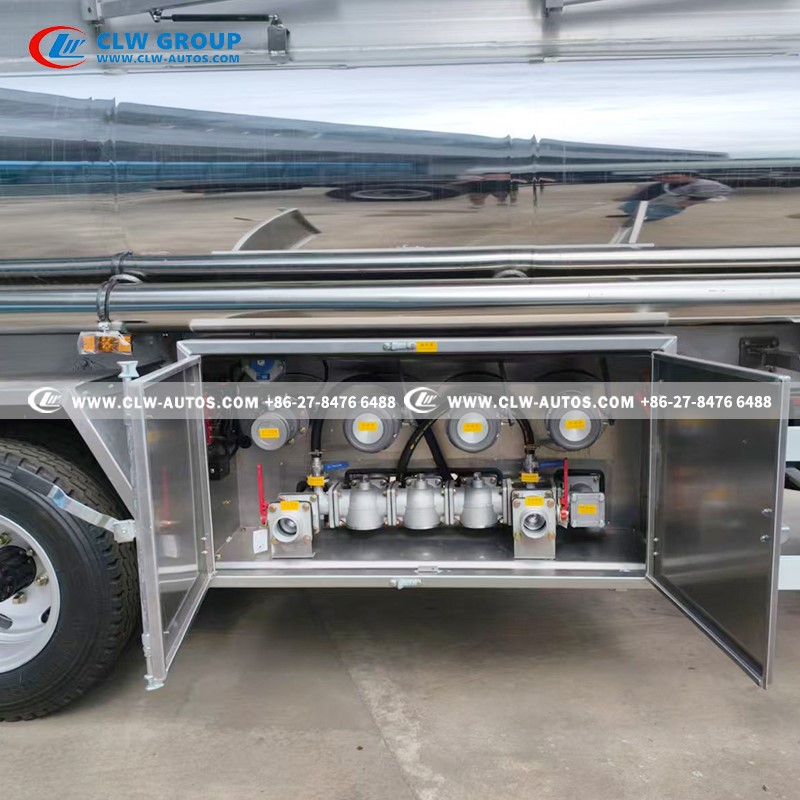

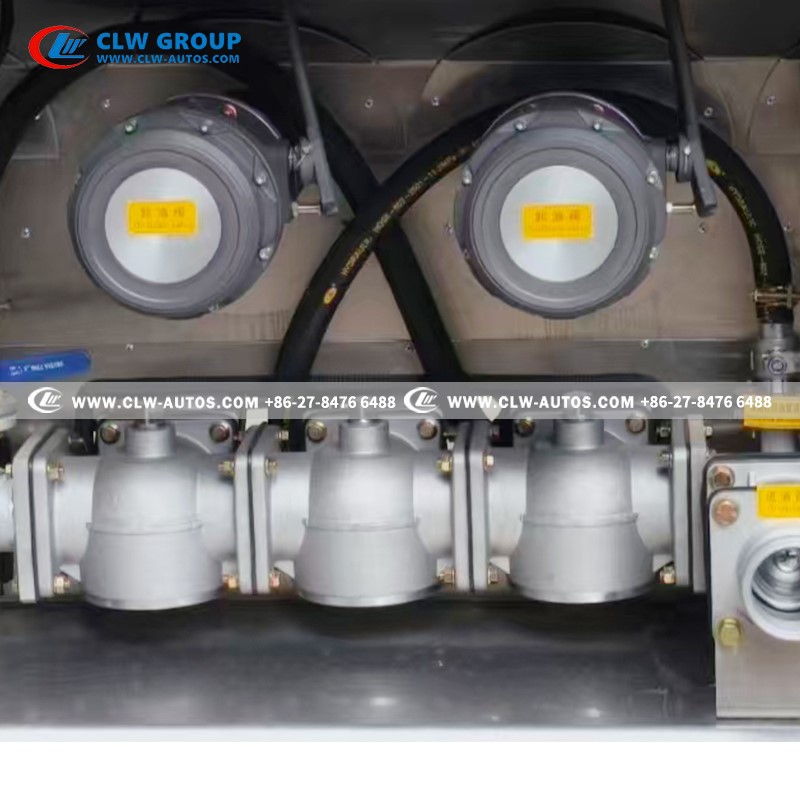

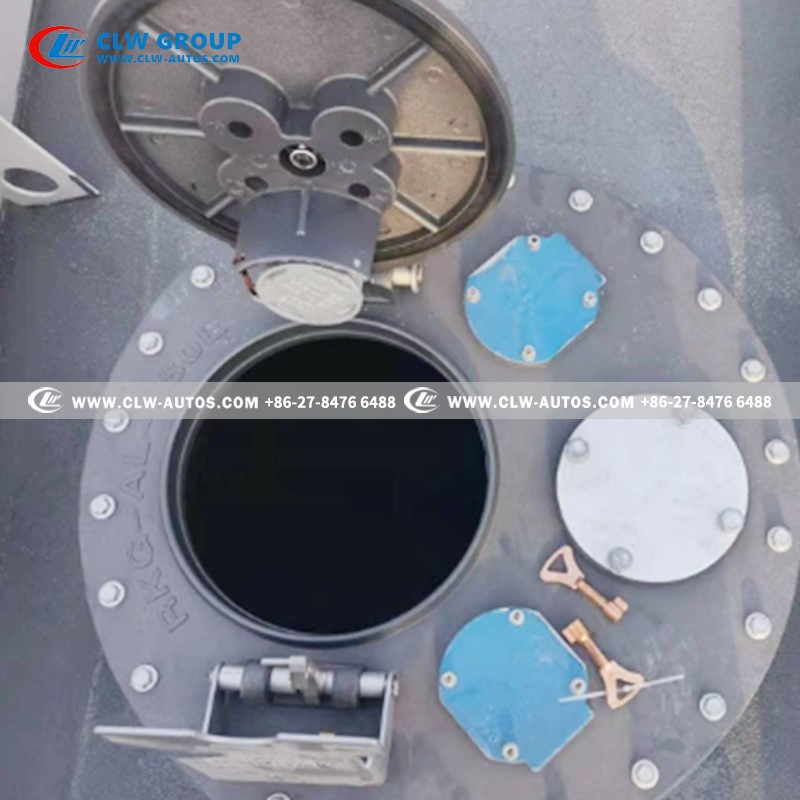

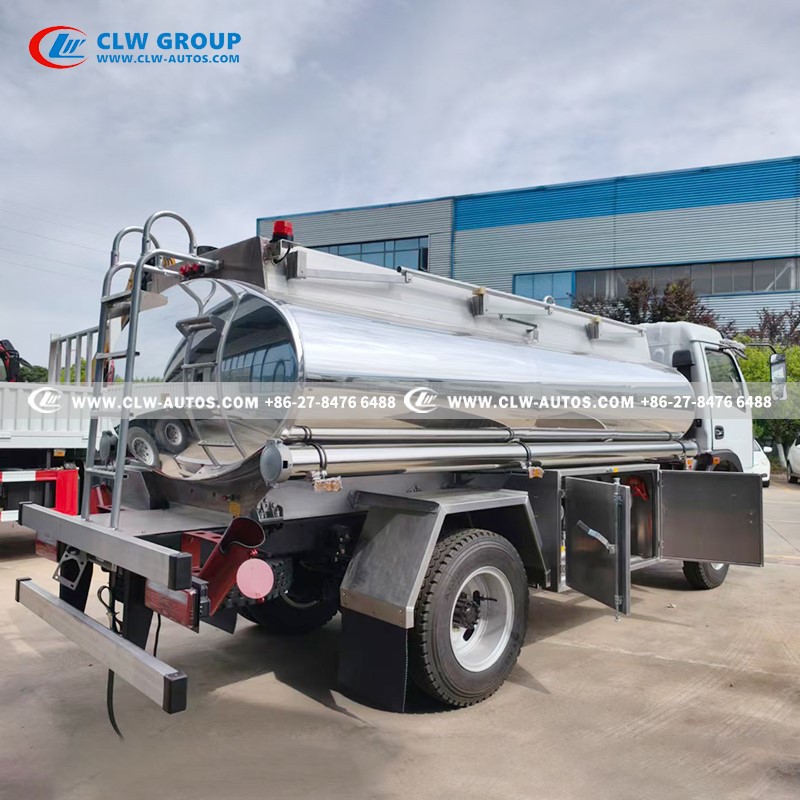

       Aluminum Alloy 8,000Liters Tank: Designed for long service life&reliable seal, this fuel tank features a 8,000Liters aluminum alloy tank with a single compartment and 3-internal baffles to ensure loading stability and enhance safety. The tank is also equipped with a top-mounted European standard API manhole, meeting high requirements for seal and operational compliance. Integrated fuel valve with both input and output connections enables efficient loading and unloading.



    3. Safety

      Well Protection: The vehicle comes standard with an emergency shut-off valve and a conductive grounding strap to prevent leakage and static electricity risks. It also includes dual fire extinguishers, a rear access ladder, top guardrails, and a side-mounted tool box, providing comprehensive support for daily operations and emergency handling.



    4.Engine

      Powerful Engine: The truck is powered by a Yuchai EURO II Emission Standard diesel engine, it's ideal for diesel, petrol, and kerosene delivery in urban and remote sites.



    5.Export To

       Succeeded Countries: Nigeria,Egypt,Senegal,Togo,Benin,Indonesia.





Recent Exported Fuel Tank Truck







Specification







Details Photos











Technical Data Chart



Specification of Truck Chassis
Driving Model		4 X 4
Chassis model		Dolly D7
Cabin		D7 type cabin Left Hand Driving Power assistance One row 2 passengers with air conditioner
Wheel Base		3800 mm
Loading Weight		6,500kg
Axle Loading (front/rear)		2700/7000 kg
External Dimensions (L x W x H)		6995x2230x2320mm
Overhang (front/rear)		1150/2400mm
Wheel track (front/rear)		1130 /1970mm
Max. driving speed		90 km/h
Engine	Model	Yuchai diesel engine YC4E160-33
	Type	4-cylinders in a line, turbo-charging and inter-cooling
	Horse Power	160Hp
	Max output power	118kW
	Emission standard	Euro III
	Displacement	4257ml
	Rated Speed	2600rpm
	Min. Fuel consumption at full load	≤200 g/kw.h
Gearbox		Manual type,FAST 8JS75T 8 forwards & 2 reverses
Clutch		Reinforced diaphragm clutch
Tire		8.25R16, 6 pieces with 1 spare tire.
Fuel box		160L /Steel Material

Upper parts
Fuel tank	Volume: 5, 000~8, 000 Liters Tank material: Carbon steel Q235 Filing medium: Gasoline or diesel or other loading medium Manhole: 3 units, European standard API manhole. Aluminum Alloy 8,000Liters Tank
Fuel pump	1 unit, China local brand

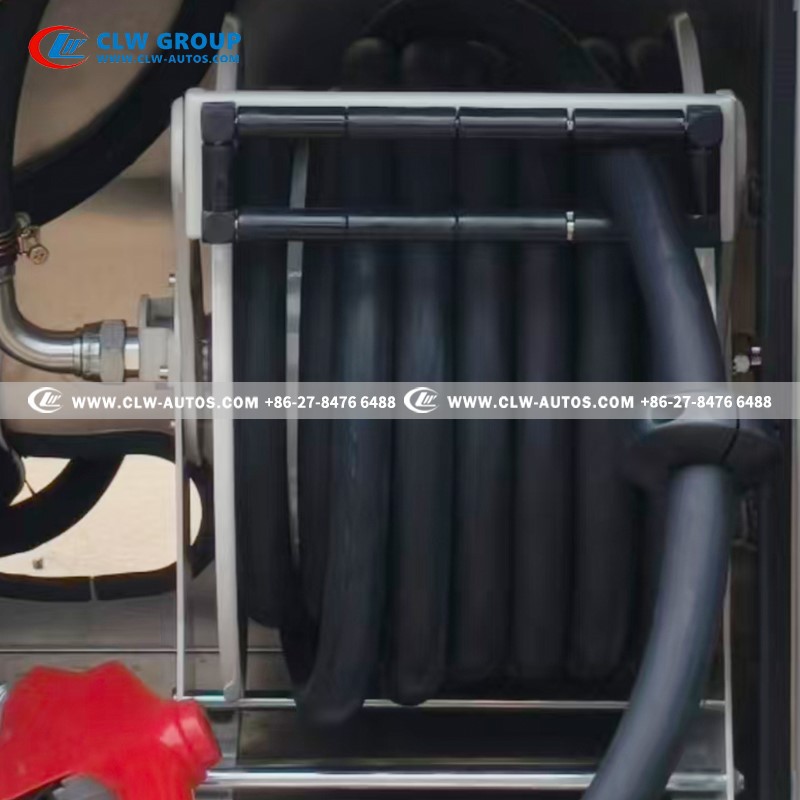

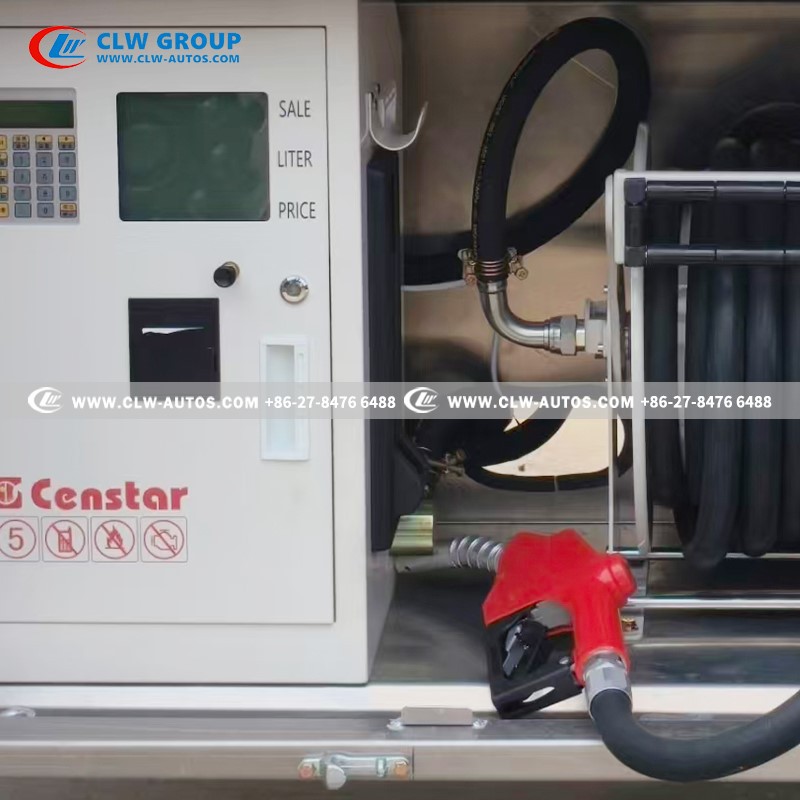

Refilling system (Optional)	Fuel dispenser (50-80L/min) with 15m refilling hose
Others(Standard)	Aluminium alloy safety valve Two fire extinguisher holder Rear ladder Top guardrail Side bumper Grounding static belt Spare tire carrier with 1 spare tire Color is optional with client logo

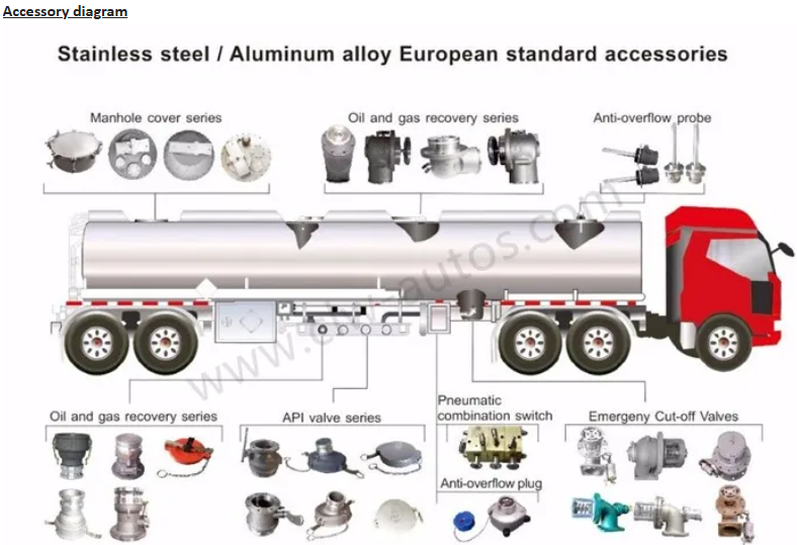

Structure
