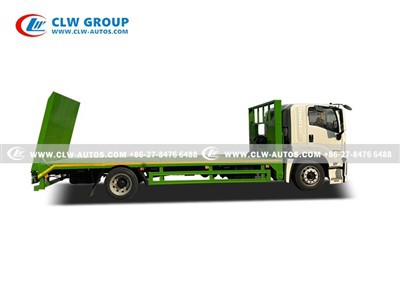

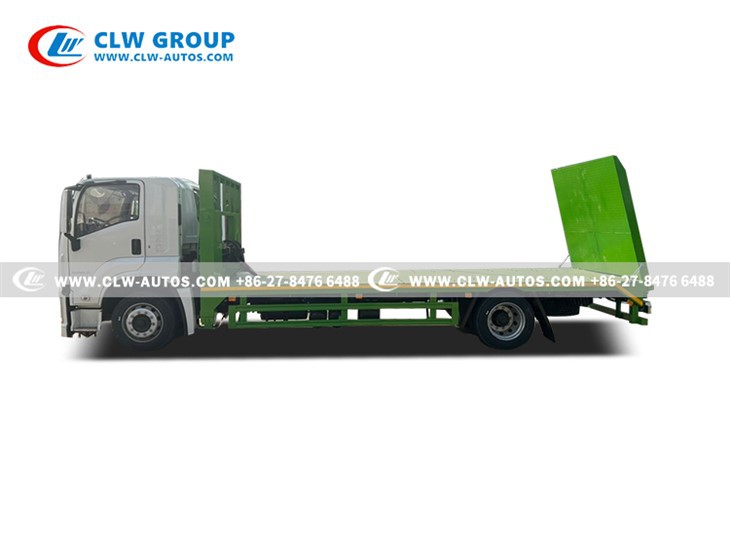

ISUZU FTR 10Ton Flatbed Truck
Platform Loading Capacity: 10,000kg
Engine Power: 205HP
With Hydraulic Flipping Plate
With 8Ton Winch
With Front Outrigger Lift
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu ftr 10ton flatbed truck in China. If you're going to buy high quality isuzu ftr 10ton flatbed truck, welcome to get more information from our factory. For price consultation, contact us.
ISUZU FTR 4X2 6 Wheels 10Tons Flatbed Truck
With Hydraulic Flipping Plate/8Ton Winch/Front Outrigger Lift
Products Description-Isuzu FTR 10-ton Flatbed Truck Technical Features
1. Powertrain & Performance
- Engine: 205HP Isuzu 4HK1-TCG61 turbocharged diesel engine (Euro VI-b compliant)
- Torque: 700Nm@1,500rpm low-speed high-torque output
- Transmission: 68-speed synchromesh manual gearbox with overdrive
- Gradeability: 30% max slope climbing capability
2. Chassis & Loading System
- Frame Structure: Reinforced ladder frame with 8mm thick high-tensile steel
- Suspension: Front 9-leaf parabolic springs + Rear 10+8 multi-leaf spring suspension
- Payload Capacity: 10-ton design with 12-ton GVW rating
- Deck Dimensions: 6,800×2,450mm (L×W) flatbed with stake pockets
3. Flatbed Configuration
- Deck Material: 5mm thick anti-slip steel plate with reinforced crossmembers
- Sideboards: Removable 600mm high steel side panels (3+1 configuration)
- Loading Features: Rear folding gate + stake pockets for securing cargo
- Ground Clearance: 280mm for off-road loading capability
4. Operational Advantages
- Maneuverability: 6.5m turning radius for urban operations
- Braking System: Dual-circuit air brakes + ABS + exhaust brake
- Fuel Efficiency: 19-22L/100km with ECO mode switch
- Service Interval: 20,000km maintenance cycles
Products Pictures

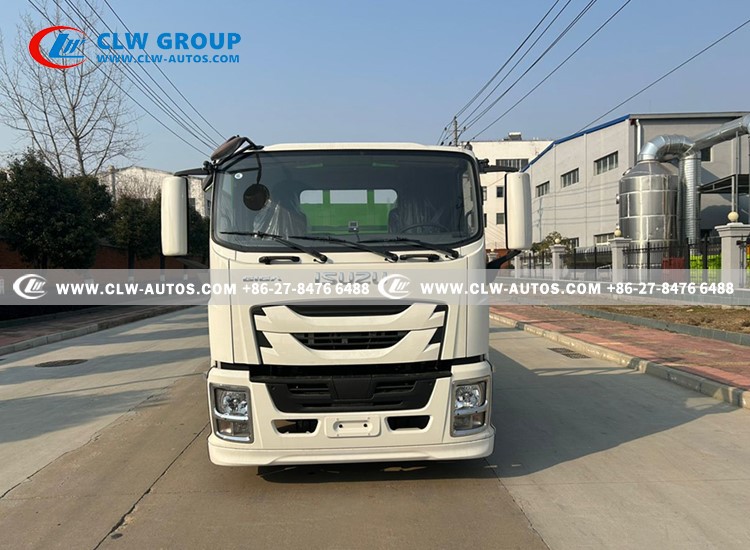

Driver Cabin & Safety
-
Ergonomics: Wide-body cab (2,080mm) with air suspension seat, tiltable steering column, and multi-function LCD display
-
Braking: Dual-circuit air brakes with ABS + exhaust brake for downhill control
-
Lighting: LED headlights with auto-leveling and fog lamp configuration
8-Ton Winch
-
High-capacity towing capability, with a rated pulling force of 8 tons, suitable for heavy-load dragging or recovery operations.
-
Electric or hydraulic drive, ensuring stable operation even in challenging conditions (e.g., mud, slopes).
-
Equipped with high-strength steel cable or synthetic rope, offering wear and corrosion resistance.
Front Support Leg Lifting System
-
Hydraulically operated front support legs stabilize the front section of the vehicle and allow height adjustment of the deck's front end.
-
Independent operation, working in coordination with the tilting deck for optimal loading/unloading angles.
-
Typically features a manual or electric hydraulic pump for convenient operation.

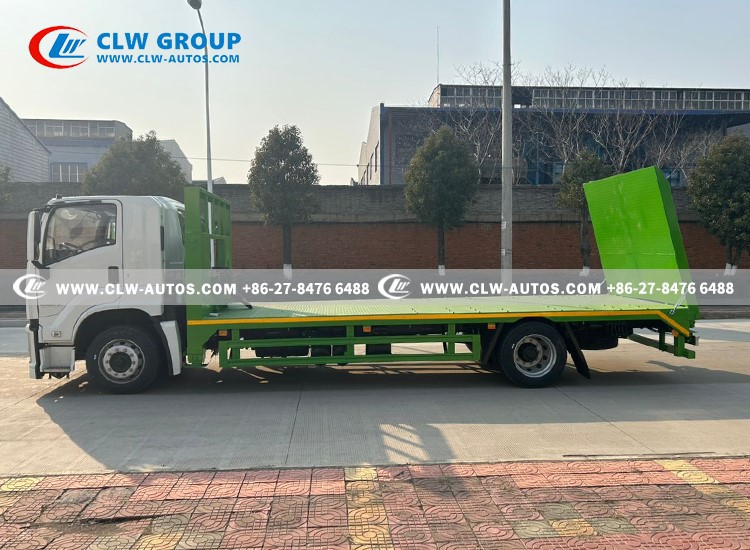

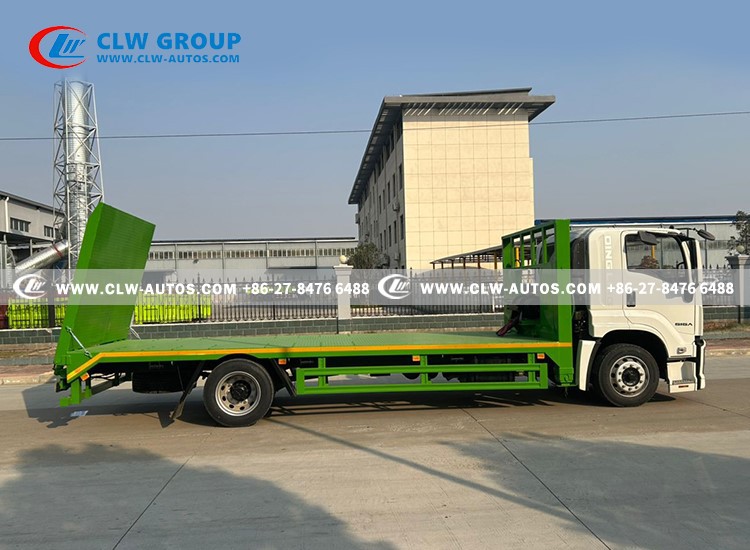

Single-Section Hydraulic Tilting Deck
-
Integrated hydraulic tilting mechanism, using cylinders to lift the entire deck in a single motion.
-
Tilting angle of up to 45° or more, with anti-slip grooves or corrugated plate design for enhanced traction.
-
Hydraulic system integrated into the chassis, saving space and simplifying maintenance.
Products Specification
|
ISUZU FTR CARGO TRUCK |
|
|
Chassis Specification |
|
|
Chassis Model |
QL118 |
|
Driving Model |
4x2 |
|
Dimension |
9000 x 2500 x 3000 mm |
|
Cab |
|
|
Wheelbase |
5000 mm |
|
Gross vehicle Weight |
18000 kg |
|
Curb Weight |
9650 kg |
|
Front Axle Loading Capacity |
6300 kg |
|
Rear Axle Loading Capacity |
13000 kg |
|
Axle Number |
2 |
|
Tire |
295/80R22.5 18PR |
|
6pcs with 1 spare tire |
|
|
Engine |
ISUZU diesel engine 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start. |
|
Model: 4HK1-TC60 |
|
|
Horse power: 205 HP |
|
|
Displacement: 5200ml |
|
|
Emission standard: Euro 6 |
|
|
Transmission |
Model: ISUZU |
|
6 Forwards & 1 Reverse |
|
|
Upper Parameters |
|
|
Flatbed |
|
|
Size (L*W*H) |
6500 X 2300 X 2500 mm |
|
Loading Capacity |
10 Tons |
|
Material |
5mm checked plate |
Products Video
WhatsApp/Wechat Number
+86 188 2740 1066
hedy@clw-autos.com
Products Description
1. 8-Ton Winch
Features:
- High-capacity towing with a rated pulling force of 8 tons, suitable for heavy-load recovery or cargo handling.
- Electric or hydraulic drive for stable operation in harsh conditions (e.g., mud, slopes).
- Equipped with high-strength steel cable or synthetic rope for wear and corrosion resistance.
Advantages:
- Efficient Recovery: Enables autonomous loading of disabled vehicles or heavy cargo, reducing reliance on external equipment.
- Enhanced Safety: The high-tonnage design ensures smooth towing and prevents overload risks.
- Versatility: Applicable in logistics, construction rescue, and various other scenarios.
2. Front Support Leg Lifting Device
Features:
- Hydraulically operated front support legs adjust the tilt angle of the loading platform.
- Can be controlled independently or synchronized with the tilting deck for optimized loading.
- Manual or electric hydraulic pump options for convenient operation.
Advantages:
- Precise Loading/Unloading: Adjusts platform inclination for smooth movement of heavy machinery (e.g., construction equipment).
- Superior Stability: Distributes load during operations, preventing front-end lift and protecting chassis integrity.
- Wide Adaptability: Suitable for uneven terrain or confined workspaces.
3. Single-Section Hydraulic Tilting Deck
Features:
- Integrated hydraulic tilting mechanism with a single-section design, powered by robust cylinders.
- Tilting angle typically exceeds 45°, with anti-slip tread or corrugated surface for enhanced traction.
- Compact hydraulic system integrated into the chassis for easy maintenance.
Advantages:
- Rapid Loading/Unloading: One-touch hydraulic operation improves efficiency over manual alternatives.
- Durable Construction: Single-section design reduces failure rates and evenly distributes loads for 10-ton capacity.
- Space Efficiency: Eliminates multi-segment folding, simplifying structure and reducing weight.
Company Profile
Hubei ChengLi Special Automobile Co., Ltd. is a large automobile manufacturing enterprise designated by the Ministry of Industry and Information Technology of China for producing various special vehicles. The company is located in Suizhou City, Hubei Province, with production bases in the southern suburbs of Zengdu District and the Zengdu Economic and Technological Development Zone.
Hubei ChengLi Special Automobile Co., Ltd. currently has total assets of early 10 billion yuan, covering an area of over 1,000 acres, and employs over 7,000 people, including more than 500 technical personnel and over 1,800 skilled workers. The company has an annual production capacity of 70,000 special vehicles it has signed industry-university-research cooperation agreements with universities such as Huazhong University of Science and Technology, Wuhan University of Technology, and Wuhan University of Science and Technology. Through professional vocational technical training, it annually provides society with over 500 automotive talents, making it a well-deserved incubator in the domestic special vehicle field.
