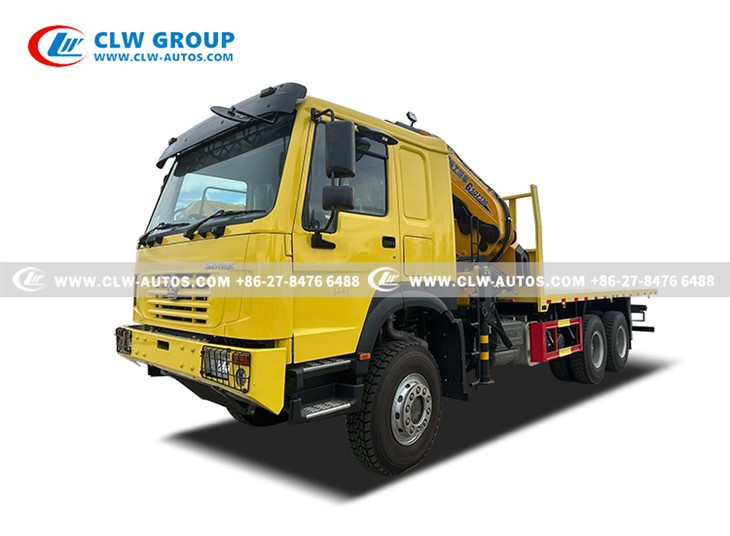

Sinotruk 6x6 16Ton Crane Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk 6x6 16ton crane truck in China. If you're going to buy high quality sinotruk 6x6 16ton crane truck, welcome to get more information from our factory. For price consultation, contact us.

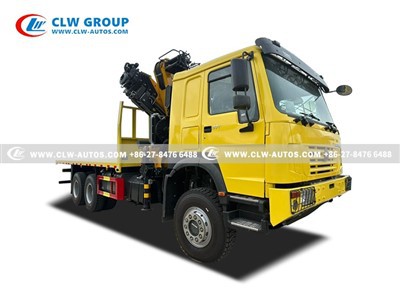

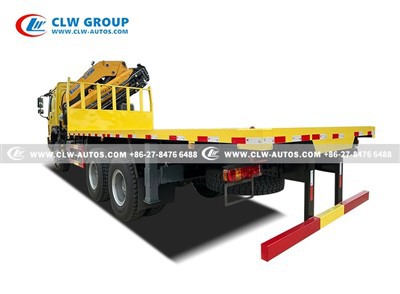

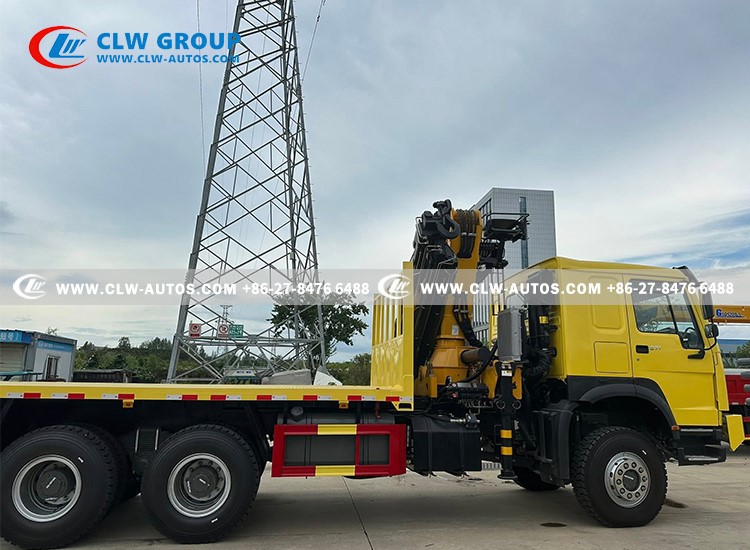

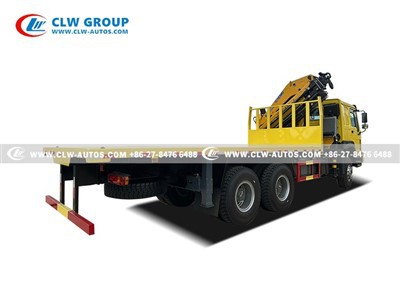

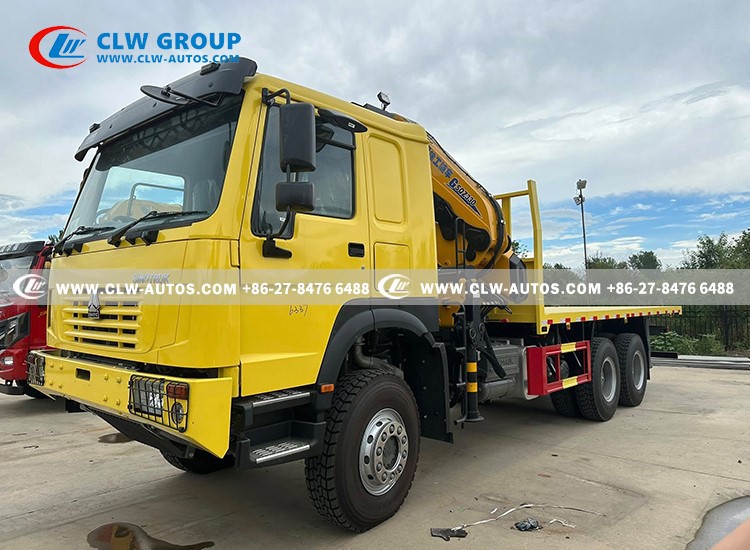

Sinotruk HOWO 6X6 Off-Road Flatbed Truck With XCMG 16Ton Folding Boom Crane





1. Integrated Transport and Lifting



• The flatbed provides cargo space for transporting construction machinery, building materials, or equipment, while the folding boom crane enables on-site lifting operations, reducing equipment deployment time and improving efficiency.
• Typical applications: Construction material handling, equipment installation, emergency rescue, logistics loading/unloading, etc.



2. All-Terrain Capability



• The all-wheel drive (AWD) design enhances off-road performance, making it suitable for harsh conditions such as mud, mountainous areas, or snowy terrain, ensuring stability in unpaved or rugged environments.



3. Flexible Operation



• The XCMG 16-ton folding boom crane features a compact folding arm structure, occupying minimal space while allowing multi-angle extension, making it ideal for precise lifting in confined or complex workspaces.





1. Power and Load-Bearing Performance



• 371 HP Engine: Delivers strong power, suitable for heavy-load climbing or long-distance transportation needs.
• High-Capacity Chassis: The HOWO chassis is renowned for its durability, combined with an all-wheel drive (AWD) system to balance load capacity and off-road performance.



2. Efficiency and Time-Saving



• The self-loading and unloading functionality reduces reliance on additional lifting equipment, lowers labor costs, and accelerates project progress.



3. XCMG Crane Technology Advantages



• 16-Ton Folding Boom Crane: Features a stable hydraulic system and precise operation; the folding boom design expands the working range (e.g., lifting over obstacles).
• Optional 360° rotation function enhances flexibility.



4. Reliability of AWD System



• All-wheel drive ensures more balanced torque distribution, preventing slippage, making it particularly suitable for challenging environments like mines and construction sites.



5. Cost-Effectiveness



• The multi-purpose design reduces equipment procurement costs, while HOWO's proven chassis technology minimizes maintenance expenses.

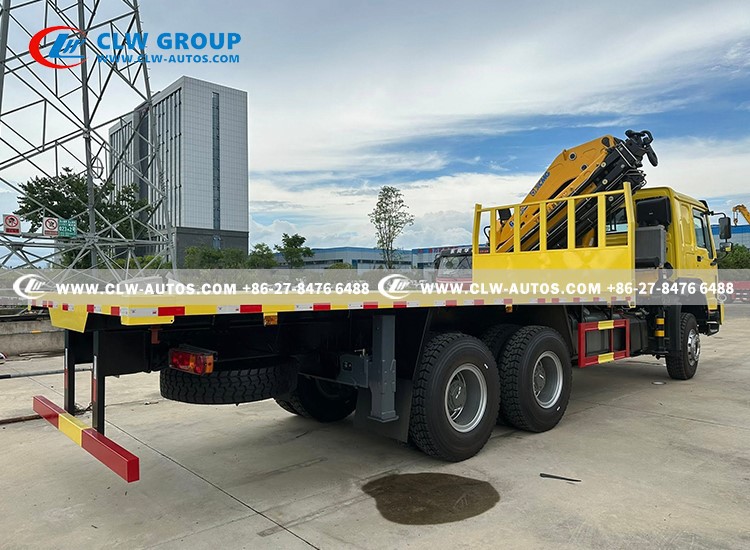

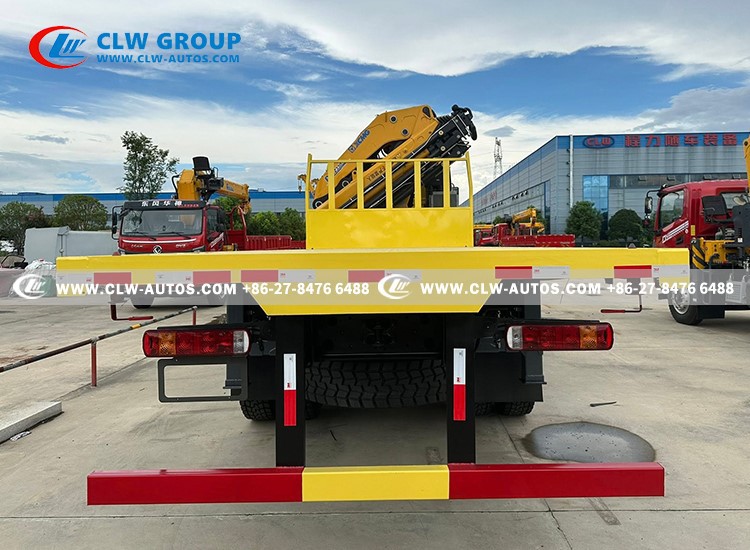

Sinotruk Flatbed Tow Truck With Crane
Chassis Specification
Chassis Model	ZZ225
Driving Model	6X6
Dimension	12200×2500×3950 mm

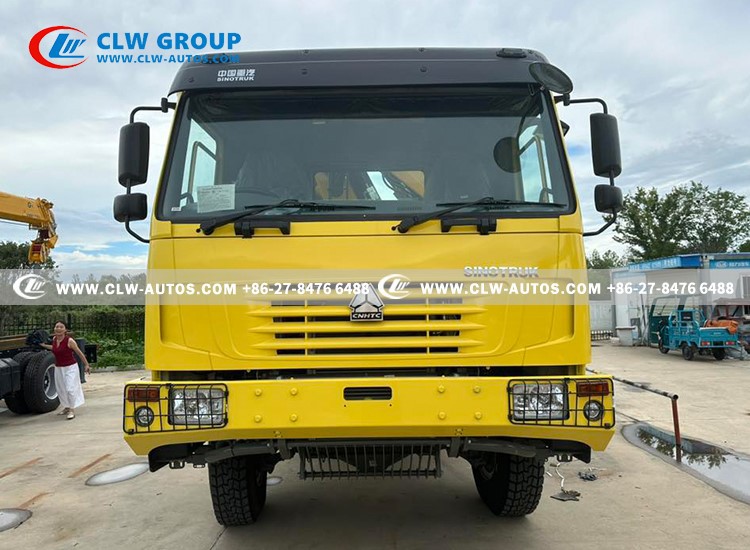

Cab	Original Sinotruk HW cabin Single Row Left Hand Driving With air conditioner Central lock Steer Assistance Electric Window
Overall Weight	25000 kg
Net Weight	21550 kg
Wheelbase	5800+1350 mm
Axle No.	3
Axle Loading (front / rear)	6500 / 16000 x 2 kg
Engine	Sinotruk, diesel engine 6 cylinders in a line, Water cooled, turbocharged, after cooled, cold start.
	Model: WD615.47
	Horse power: 371 HP
	Displacement: 9726 ml
	Emission standard: Euro 2
Transmission	Manual type, 10 Forward & 2 Reverse
Tire	12.00R20 10 Pcs with one spare tire

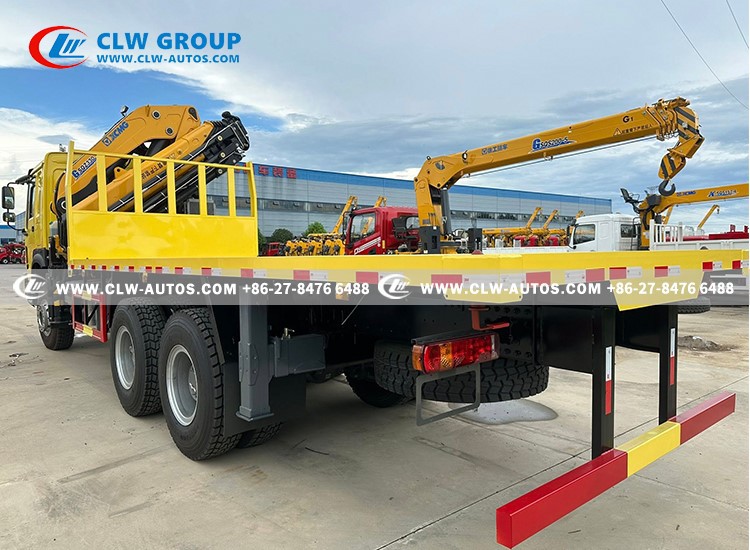

Upper Parameters
Flatbed	Ground Clearance: 1200 mm
	Flatbed Plate Size(length*width): 8500x2550 mm
	Min. Tilt Angle: 8°
	Moving Range: 3760 mm
	Max. Loading Capacity: 16000 kg
	Thickness: 8mm

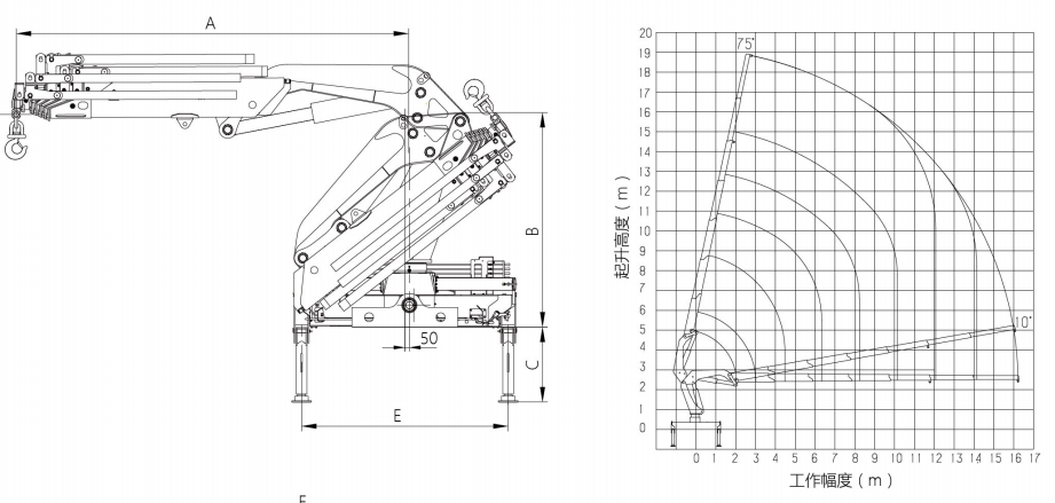

Crane Parameters
Model		XCMG - MSQZ330
Working Platform		360°turning (left or right), H-shape legs 360°
Extendable Boom Section		1 main boom + 4 extendable boom
Crane Type		Folding Boom Crane
Max. Lifting Capacity		Effectively: 16000 kg at 2.05 meters
Max. Working Radius		12 meters
Max. Lifting Height		19 meters
Max. Lifting Moment		338 T.m
Max. Oil Flow of Hydraulic System		63 L/min
Max. Pressure of Hydraulic System		31 Mpa
Crane Weight		4775 kg
Landing Leg		4 Pcs hydraulic handing leg
