20MT LPG Tanker Truck Sinotruk HOWO



HOWO 20MT LPG Tanker Truck | Built for West Africa



We are professional LPG Bobtail Truck manufacturer in China since 2004 | Brand New Truck Factory Price For Sale

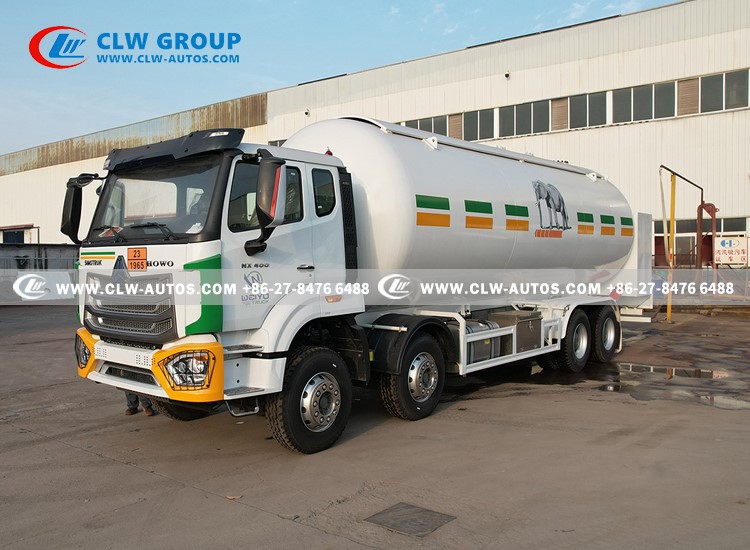

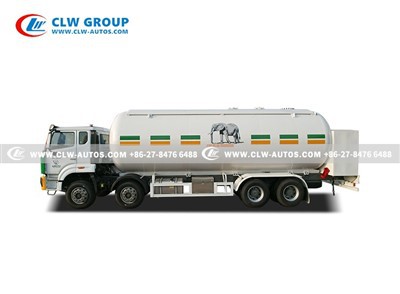

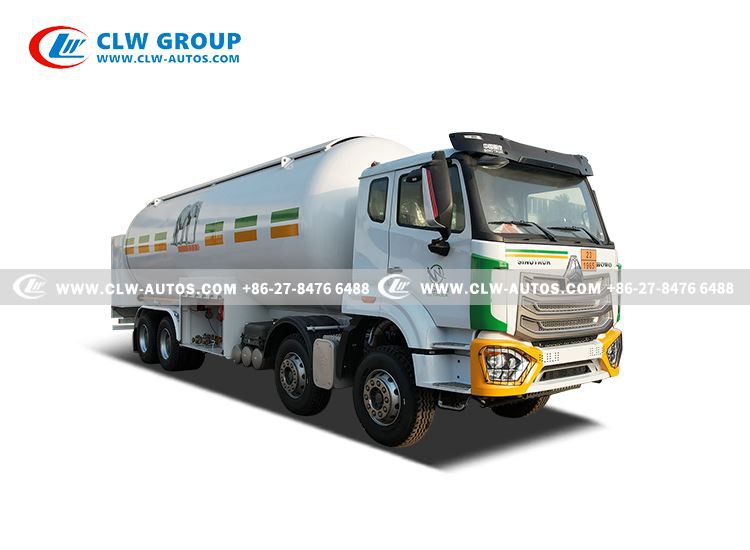

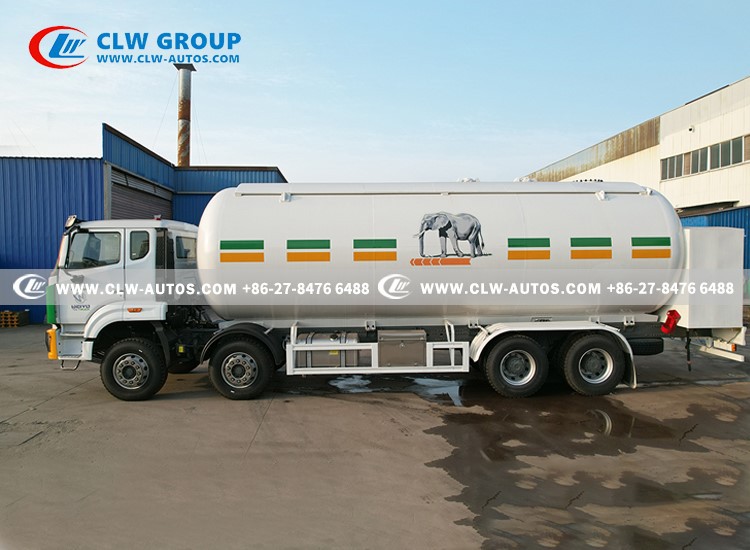

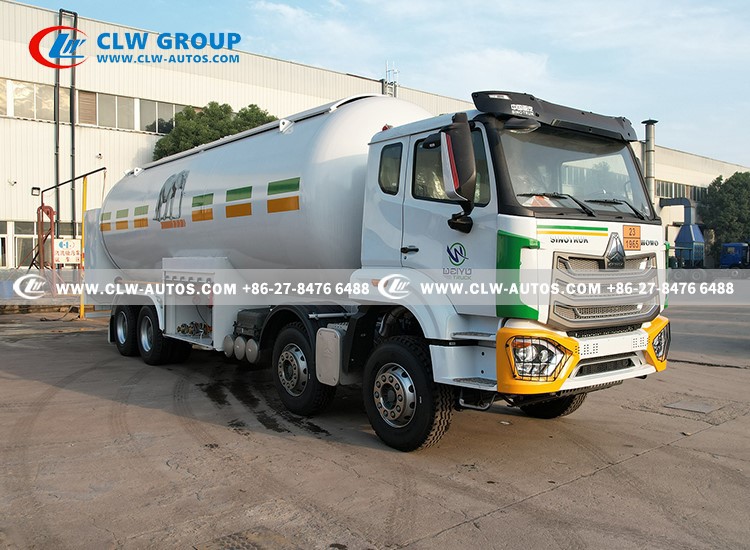

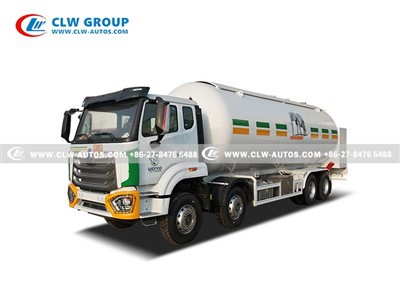

This robust HOWO NX 20mt 40m3 LPG tanker truck, also known as LPG Bobtail Truck 40m³ for West Africa,40cbm LPG dispenser truck, 20mt propane butane tanker truck with Corken pump, is engineered for reliability and performance in the West African market. Built on a durable double-layer frame (8+8/300) with a reinforced front & rear suspension (11/11/12 leaf springs), it ensures superior strength on challenging roads.

Key Features & West Africa-Specific Upgrades:

High-Capacity LPG Transport & Dispensing: 40m³ tank, designed for 1.61 Mpa working pressure, paired with a 2" Corken pump and 15-meter hose reel for efficient LPG transfer.

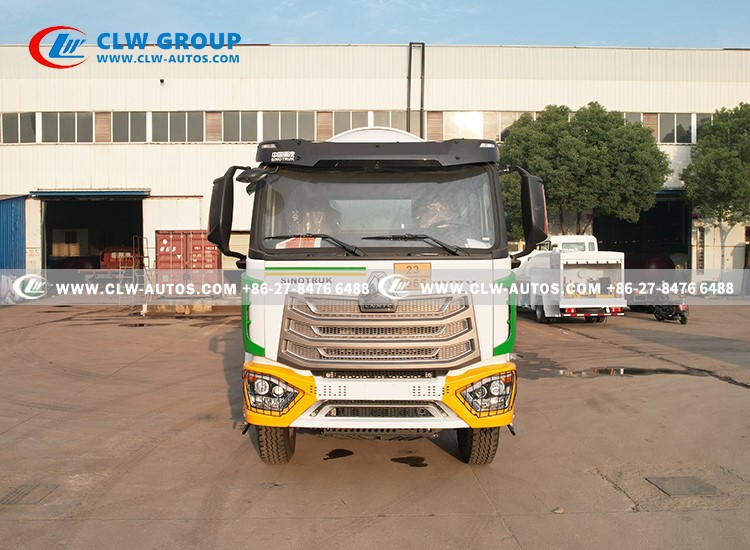

Enhanced Security & Durability: Features a high-mounted metal bumper, battery box anti-theft device, and strengthened components like triple-strapped air storage tanks and FRP step plates to withstand rigorous use.

Proven Powertrain: Powered by a reliable WEICHAI WP12S400E201 400 HP engine and a HOWO HW19710 10-speed transmission, ensuring powerful performance.

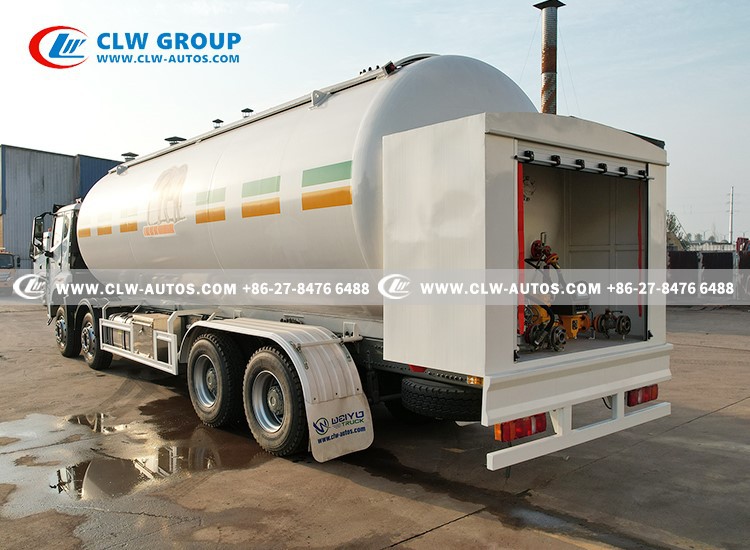

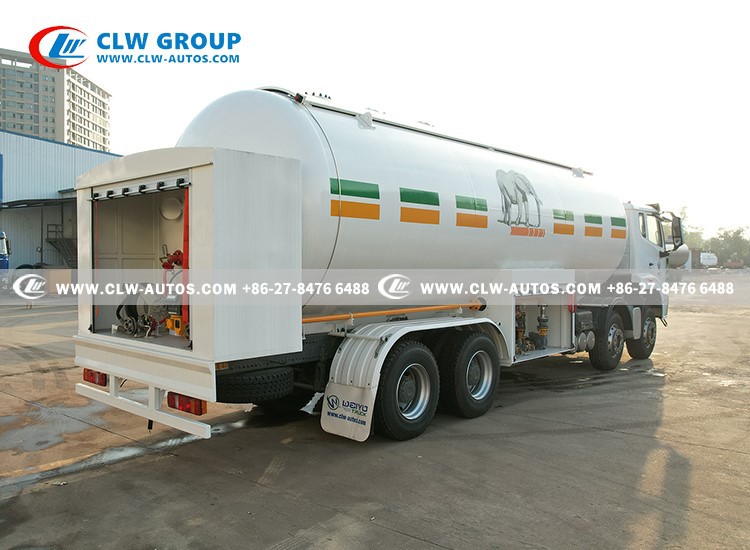

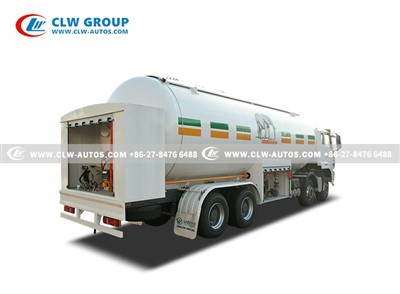

Regional Configuration: Equipped with a cab-mounted sun visor, side and rear valve boxes with roll-up doors, and a corrosion-resistant stainless steel toolbox.

Tank Specifications:

Volume: 40 m³

Material: Q345R Steel (12mm shell/14mm heads).

Valves: 2 1/4" Rego threaded interfaces with safety caps.

Gauging: Domestic percentage level gauge.

Ideal for LPG distribution and mobile refueling operations, this truck is your dependable partner for the West African LPG supply chain.

Qiuck Inquiry,contact Juniper:

 Whatsapp: +86 139 2570 3918

 Email: juniper@clw-autos.com









Truck Chassis
Overall Dimension	12000x2510x3845mm (LxWxH)
GVW	31000kg
Curb weight	21000kg
Cab	Sinotruk HOWO NX Left hand drive 2 or 3 seats One sleeper Heating and Cooling AC
Engine	Diesel fuel Weichai Weichai 400HP, Euro 2 6 Cylinder in Line, Watering Cooling, Four Stroke, Direct Injection
Gearbox	Manual transmission 10 forward and 2 reverse gear
Axle Loading	Front axle 9500kg/9500kg Rear axle 16000kg/16000kg
Tire	315/80R22.5 12+1 pcs
LPG Tanker
Tank capacity	40m3 (20mt)
Filling medium	Liquefied petroleum gas (LPG)
Tank material	Q345R, Tanker body 12mm, End plate 12mm
Design pressure	1.61MPa
Corrossion allowance	1mm
Stress relief	Heat treatment
Hydraulic test pressure	2.1MPa
LPG Pump	USA CORKEN 2"
Others	Valve box at the reat of the truck Chinese brand Level Gauge, Pressure Gauge, Thermometer Volume Flow Meter in Liters Liquid phase and Vapour phase with Rego connector and Rego cap 15m filling hose and Rego filling gun
