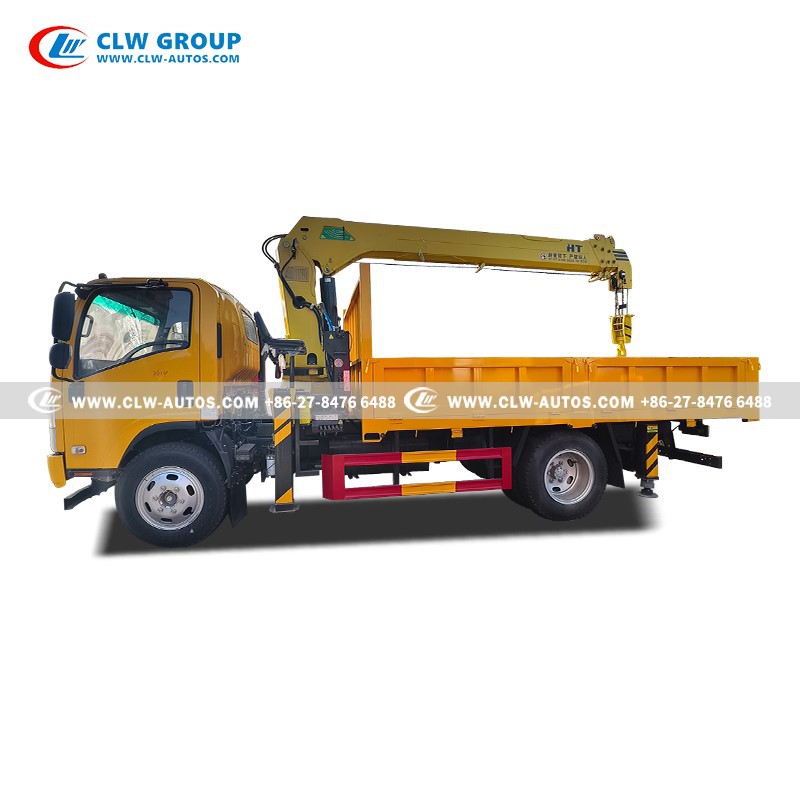

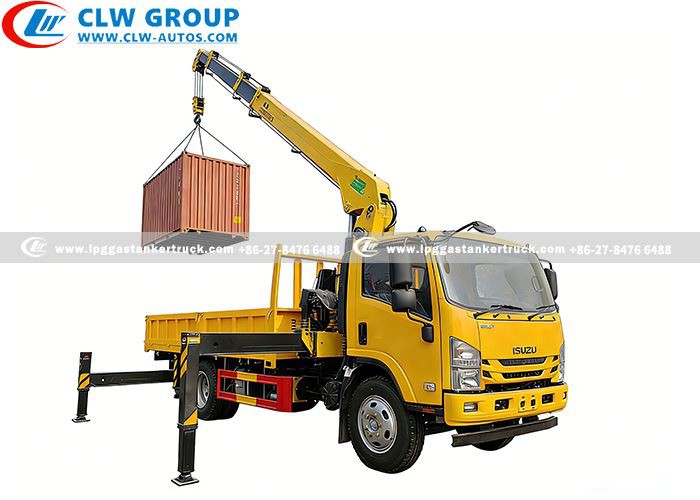

ISUZU NPR 7 Ton Truck Mounted Crane
Isuzu 190HP 7-ton Telescopic Truck Crane
NPR Isuzu 700P right hand driver
XCMG SQS175-4 Crane

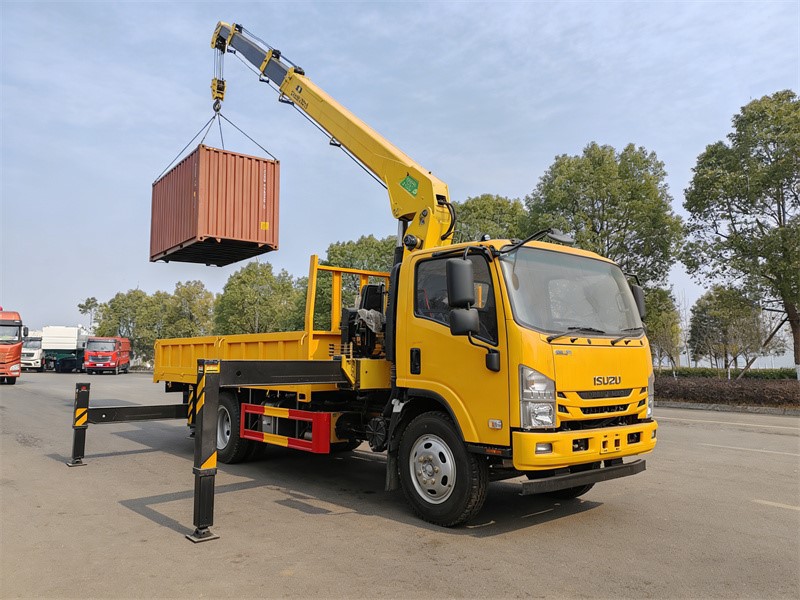

Isuzu 4HK1-TCG61 engine
6-speed manual transmission gearbox

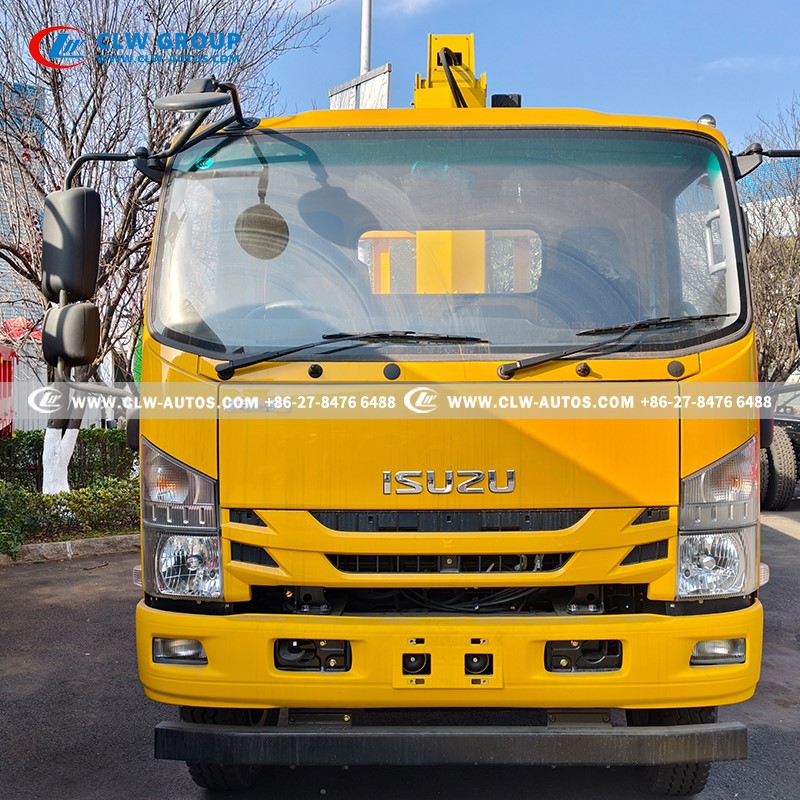

Straight boom truck crane
XCMG Crane 7-Ton 4-Sections
Four-Quadrant Operation

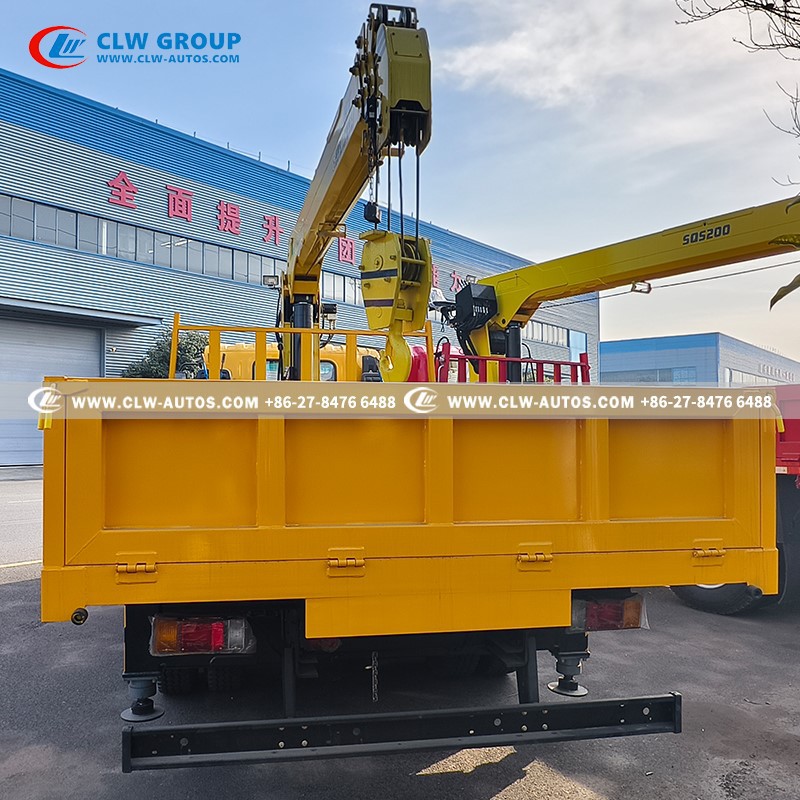

Dual Operating Seats (Left & Right)

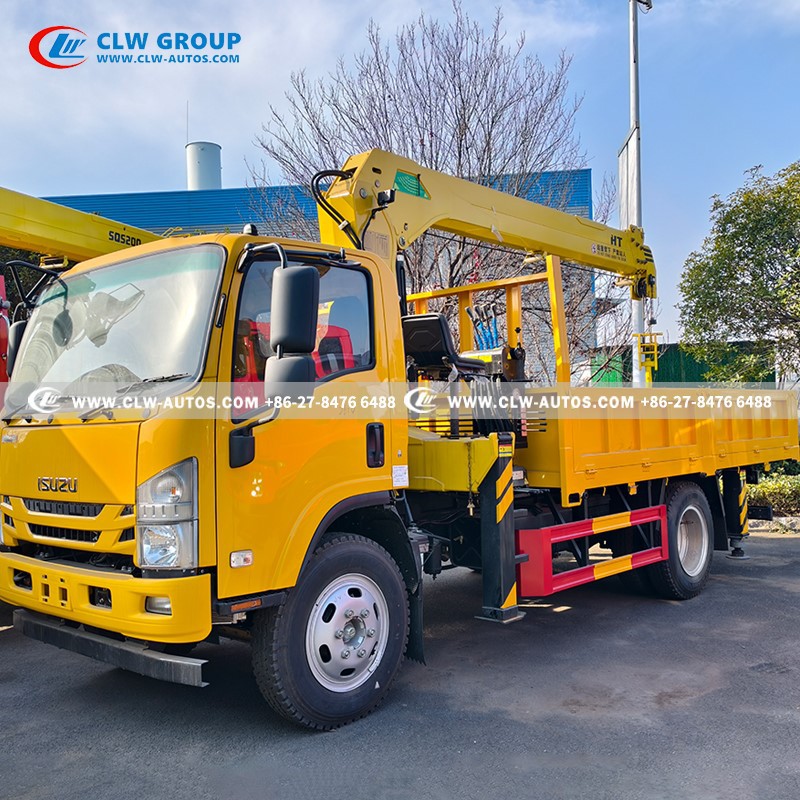

Remote Engine Throttle Control
360° Continuous Slewing
Full Hydraulic Controls
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of ISUZU NPR 7 Ton Truck Mounted Crane in China. If you're going to buy high quality ISUZU NPR 7 Ton Truck Mounted Crane, welcome to get more information from our factory. For price consultation, contact us.
Isuzu NPR 7-ton Telescopic Truck Crane
Built on Isuzu Reliability, Engineered for All-Round Performance.Unlimited Access !
Products Description
The ISUZU 700P RHD 7-Ton Truck, masterfully integrated with a powerful SQS175-4 Straight Boom Crane. Engineered for maximum productivity and robust performance, this powerful combo is ready to conquer your toughest jobs.
1.Power & Performance at Its Core:
- Reliable Powertrain: Powered by the formidable ISUZU 4HK1-TCG61 engine, delivering unwavering strength and fuel efficiency.
- Precision Handling: Paired with the smooth MLD 6-Speed Manual Transmission for optimal control and power delivery in all conditions.
- Stable Foundation: Built on a 3815mm wheelbase chassis for superior stability and balanced load distribution.
2.Dominant Crane Capabilities:
- Heavy-Duty Lifting: A massive 7-ton maximum lifting capacity tackles the biggest challenges.
- Impressive Reach & Height: Achieve a 13-meter maximum working radius and extend to a 13.54-meter maximum lifting height with the 4-section straight boom.
- Superior Power & Control: 175 kN.m maximum lifting torque ensures powerful, controlled lifts. Enjoy full 360° continuous rotation for ultimate positioning flexibility.
- Safe & Efficient Operation: Featuring four hydraulic outriggers (front & rear) for a rock-solid base. Operate with precision from dual operator seats with manual hydraulic controls on both sides of the crane.
3.Practical & Durable Cargo Space:
- Spacious Body: A large, durable cargo body measuring 4500(L) x 2200(W) x 550(H) mm.
- Built to Last: Constructed with a robust 4mm thick floor and 3mm thick side walls for long-term durability and reliability. The ISUZU 700P with SQS175-4 Crane is more than just equipment; it's your dependable partner for construction, logistics, utilities, and any application demanding powerful, precise, and reliable lifting and transport.
Key Vehicle Specifications:
Overall Dimensions: 6750×2050×3040 mm
Brand: ISUZU 700P / RHD
Cab: Single row cabin, 1driver's seat +2 passenger seat
Wheelbase: 3815 mm
Engine: 4HK1-TCG61
Horsepower: 190HP
Emission standard: Euro VI
Gearbox: 6 Forwards and 1 reverse
Gross Vehicle Weight: 10550 kg
Curb weight: 3400 kg
Suspension: Front/Rear Multi-leaf Spring
Tires: 235/75R17.5, 6 pcs with one spare
Fuel Tank: 100L aluminum alloy
Related Operational Video
The Main Applications
Products Parameters
|
Cargo Box |
||||||||
|
Size (L*W*H) |
3300x1890x380mm |
|||||||
|
Loading Capacity (Tons) |
8~10 tons |
|||||||
|
Side Thickness (mm) |
3.0 mm |
|||||||
|
Buttom Thickness (mm) |
5.0mm |
|||||||
|
Material |
High quality carbon steel |
|||||||
|
|
With electrophoresis treatment |
|||||||
|
Crane |
||||||||
|
Brand/Model |
XCMG / SQS175-4 |
|||||||
|
Extendable Boom Section |
1 main boom + 4 extendable boom |
|||||||
|
Boom Type |
Straight boom / Telescopic boom |
|||||||
|
Max. Lifting Capacity (kg) |
Effectively: 7,000 kg at 2.5meters |
|||||||
|
Max. Lifting Moment (kN.m) |
175000 kN.m |
|||||||
|
Max Outreach (m) |
13 m |
|||||||
|
Slewing Angle (°) |
360° all rotation |
|||||||
|
Oil Tank Capacity (L) |
100 L |
|||||||
|
Crane Weight (kg) |
2700 kg |
|||||||
|
Installation Space (mm) |
800 mm |
|||||||
|
Outrigger Span (mm) |
2450-5500 mm |
|||||||
|
Landing Leg |
4 pcs hydraulic landing leg, H-shape legs |
|||||||
|
Lifting Capacity Comparison Table |
||||||||
|
Working Radius (m) |
2.5 |
4.0 |
6.0 |
8.0 |
10 |
12 |
13 |
|
|
Rated Load (kg) |
7000 |
3600 |
2150 |
1500 |
1150 |
770 |
700 |
|
Reference Picture
More details
Work Around the Clock, From Every Angle: True Four-Quadrant 7-Ton Mastery!

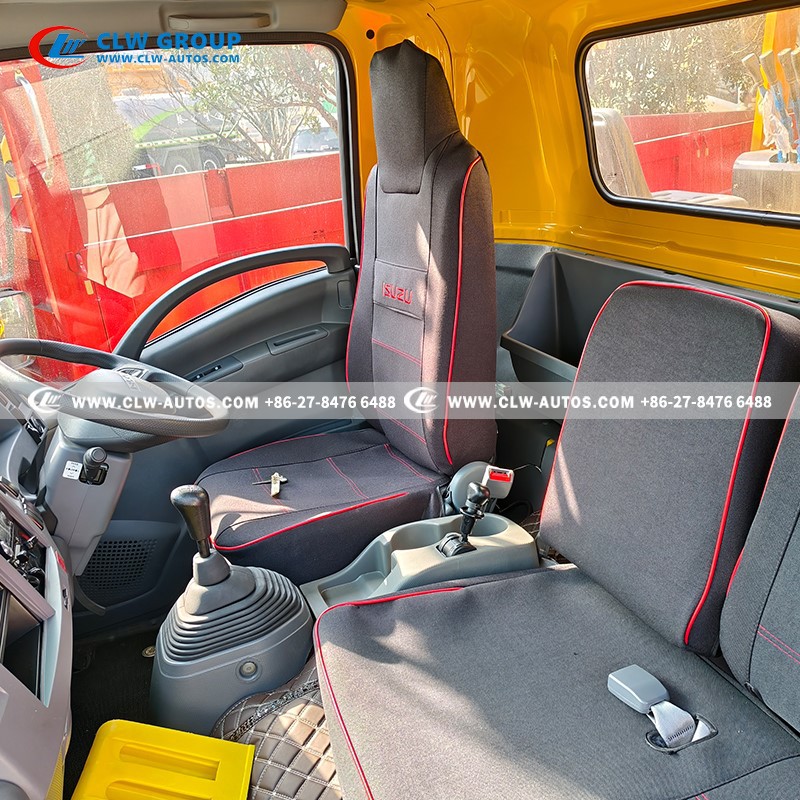

Cabin
1driver seat +2 passenger seat
Isuzu 700P right-hand drive chassis, 4/7-ton load capacity
Diesel engine: Isuzu 4HK1-TCG61 190HP Euro 6 emission standard
Transmission: MLD 6-Speed Manual
Wheelbase: 3815mm

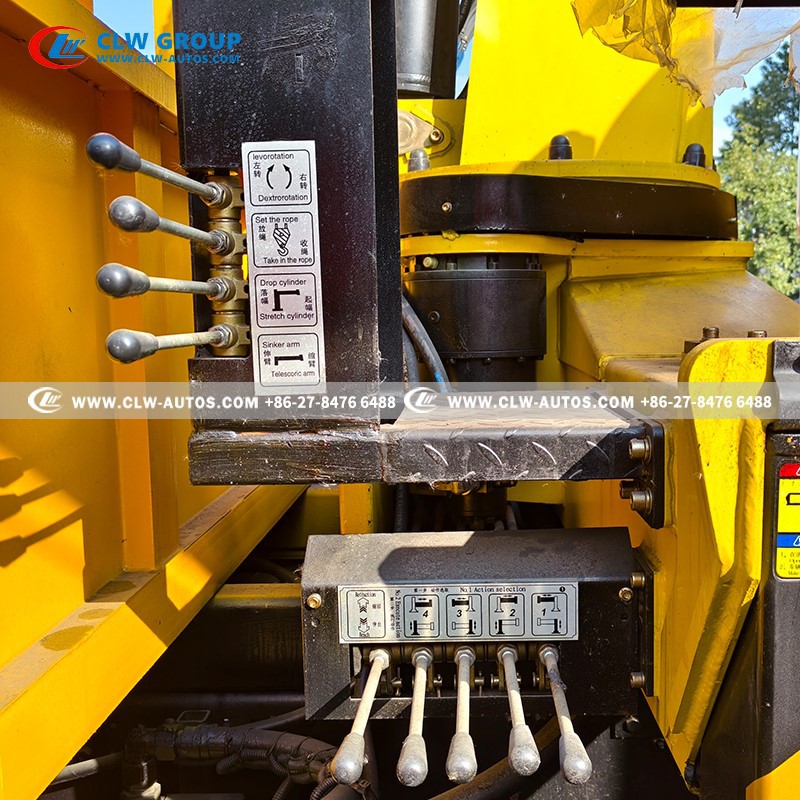

manual control
There are manual control levers on both the left and right sides of the vehicle.

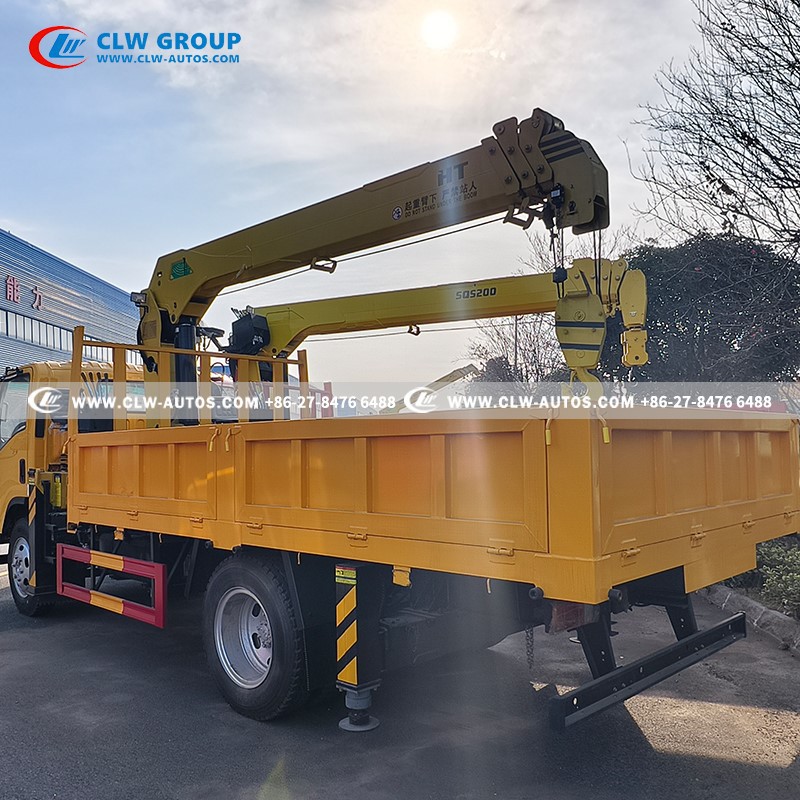

Boom crane: SQS175-4 4-Section Straight Boom Crane

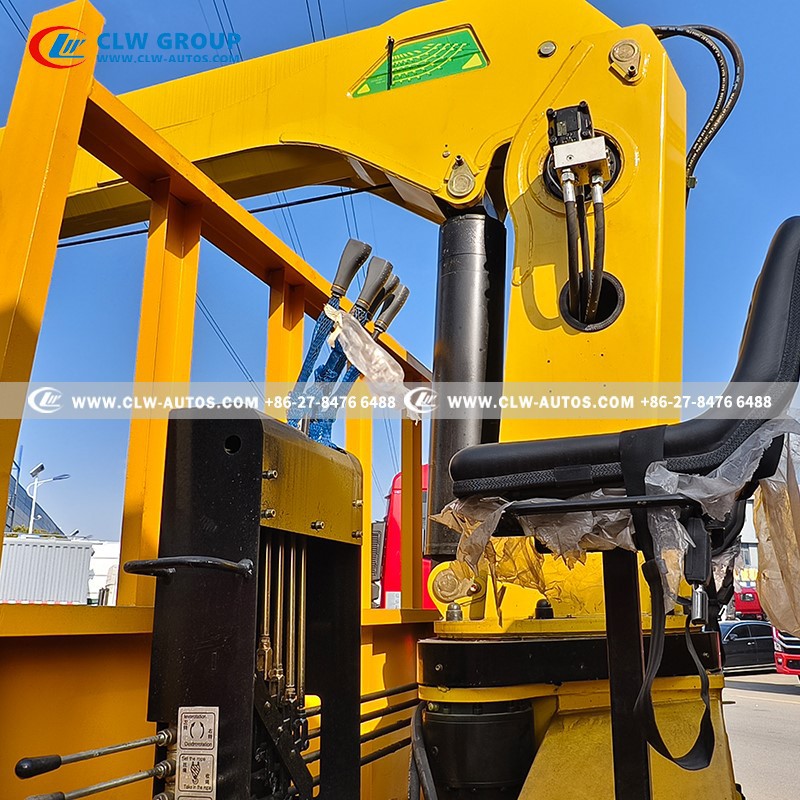

Right operating chair
There is an operating seat on each side of the crane.
Equipped with safety devices such as torque limiters and height limiters to prevent overloading

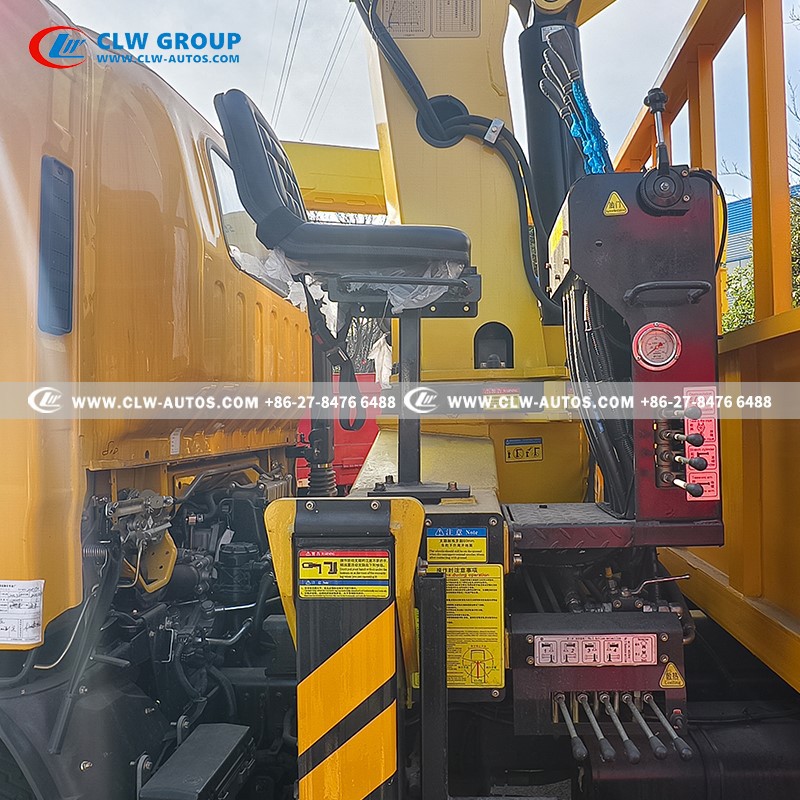

Left operating chair
The left side is equipped with a remote accelerator.
Dual-operation valve, supporting manual hydraulic handle operation from both sides of the crane.
Pre-shipment inspection
Before shipping this batch of Isuzu 700P telescopic crane trucks, we conducted performance tests, including battery endurance tests, compression tests, loading and unloading operations, to ensure that the vehicles were delivered to customers in perfect condition.
loading and unloading operations
Check all the operation buttons, control levers, etc. of each operation equipment.
Engine & transmission Test
Check instrument panel for warnings (oil pressure, temperature, etc.).
Test transmission by shifting through gears (stationary).
visual & mechanical Inspection check
Verify the overall paint and finish quality meets standards.
Ensure all decals, safety labels, and capacity charts are correctly applied over a properly painted surface and are clearly legible.
Application scenarios
Municipal Engineering:

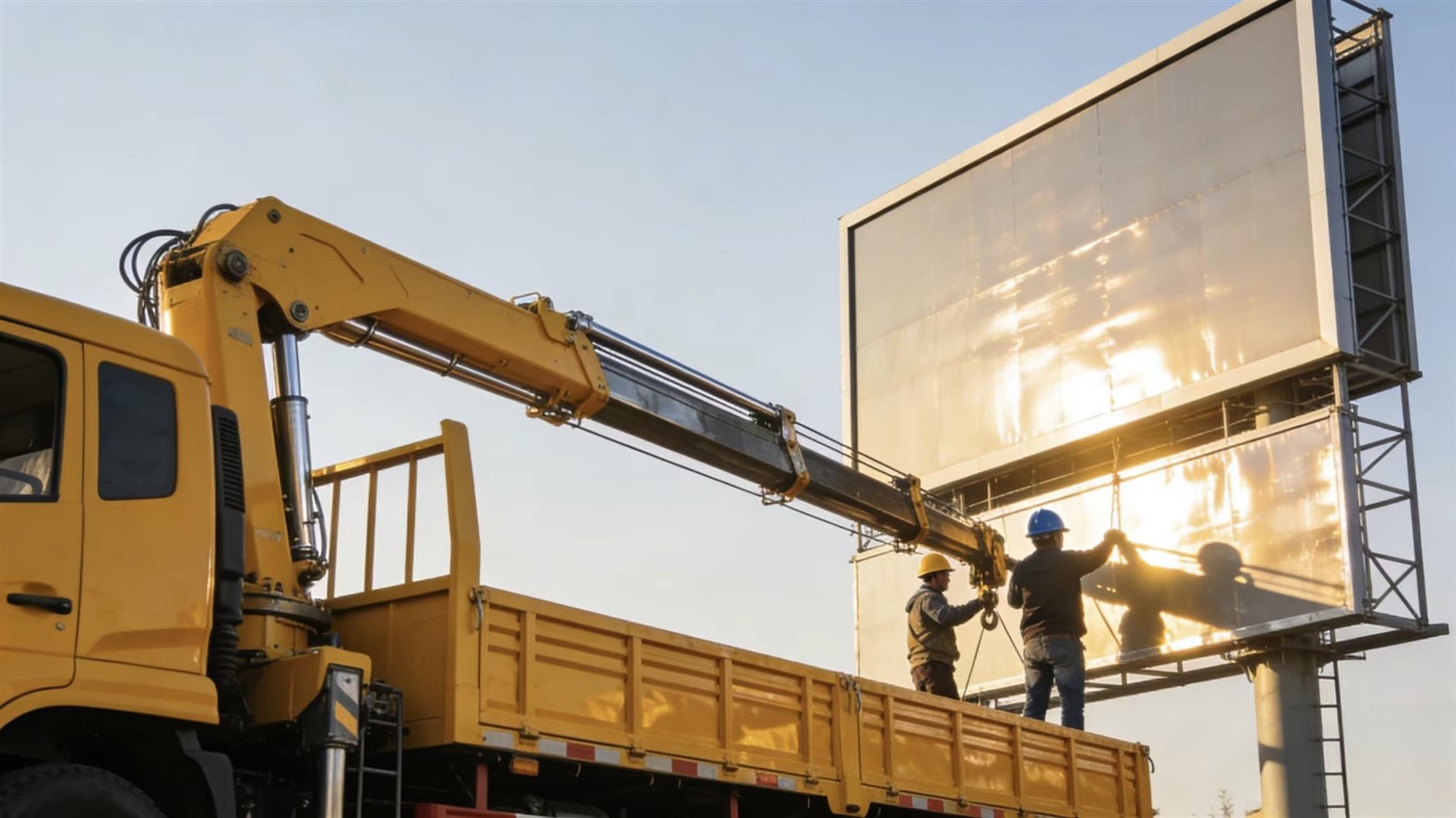

Streetlight repair, billboard installation, small bridge construction.
Construction Sites:
Hoisting steel bars, concrete components, formwork, and other building materials.
Logistics and Warehousing:
Loading and unloading large equipment and heavy goods.
Emergency Rescue:
Disaster site material hoisting, power restoration, temporary facility erection
Hubei Chengli Special Automobile Co., Ltd. is a leading manufacturer of special purpose trucks in China, specializing in garbage trucks, fire engine, water tank trucks, vacuum trucks, crane trucks and other engineered solutions for global industrial and municipal markets.
