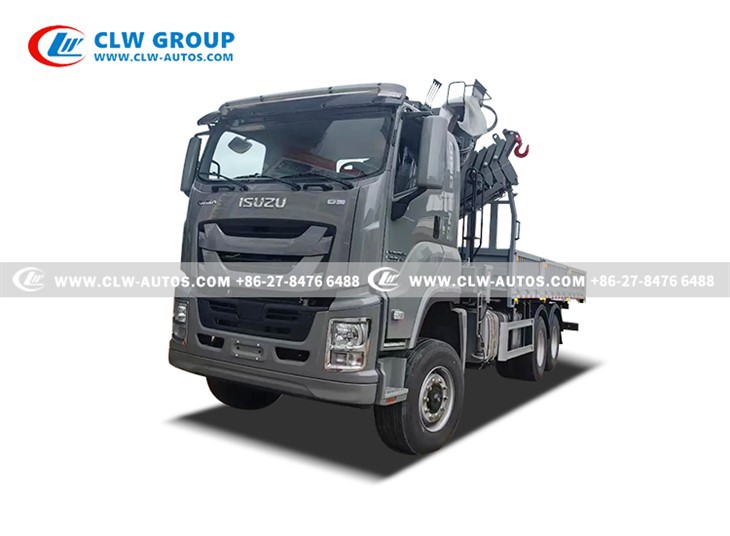

ISUZU Folding Boom Crane Truck
Drive Type: 6x4
Engine Power: 300 HP
Crane Max. Lifting Capacity: 10,000kg
Cargo Box Capacity: 15,000kg
Left Hand Drive
ISUZU FVZ Cabin
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu folding boom crane truck in China. If you're going to buy high quality isuzu folding boom crane truck, welcome to get more information from our factory. For price consultation, contact us.
ISUZU FVZ 10 Wheels 6x4 Mounted Truck With 10Ton Folding Boom Crane
product key technologies
ISUZU FVZ Chassis
- Designed for heavy loads: The FVZ's robust chassis structure provides an ideal foundation for installing a truck crane. Its frame offers high torsional rigidity, effectively distributing the immense pressure during lifting operations.
- Strong load capacity: As a medium-duty truck, its carrying capacity aligns well with the crane's lifting capability. It can handle lifting tasks while maintaining cargo transport function, achieving dual-purpose utility.
Folding Boom Crane
- Ideal for tight spaces: Excellent for height-restricted sites like warehouses and under bridges.
- Superior lifting capacity: Excels at close-range, low-height lifts by bearing pressure like a weightlifter.
- Precise positioning: Enables accurate cargo placement, even behind obstacles, with great flexibility.
Products Parameters
|
ISUZU Crane Truck With 10Tons Folding Boom Crane |
|
|
Chassis Specification |
|
|
Chassis Model |
QL118 |
|
Driving Model |
4x2 |
|
Dimension |
12000 x 2400 x 3800 mm |
|
Cab |
|
|
Wheelbase |
5700+1370 mm |
|
Gross vehicle Weight |
25000 kg |
|
Curb Weight |
8200 kg |
|
Front Axle Loading Capacity |
6300 kg |
|
Rear Axle Loading Capacity |
13000 kg x2 |
|
Axle Number |
2 |
|
Tire |
295/80R22.5 |
|
6pcs with 1 spare tire |
|
|
Engine |
|
|
Model: 6HK1-TCG60 |
|
|
Horse power: 300 HP |
|
|
Displacement: 7790ml |
|
|
Emission standard: Euro 6 |
|
|
Transmission |
Model: ISUZU |
|
9 Forward & 2 Reverse |
|
|
Fuel Tank Capacity |
220L |
|
Upper Parameters |
|
|
Cargo Box |
|
|
Size (L*W*H) |
6500 X 2300 X 550 mm |
|
Loading Capacity |
15 Tons |
|
Bottom Thickness |
5 mm |
|
Side Thickness |
3 mm |
|
Material |
High quality Q235 carbon steel |
|
Crane |
|
|
Model |
XCMG - SQZ200 |
|
Working Platform |
360°turning (left or right), H-shape legs 360° |
|
Extendable Boom Section |
1 main boom + 5 extendable boom |
|
Crane Type |
Folding Boom Crane |
|
Max. Lifting Capacity |
Effectively: 10000 kg at 2.0 meters |
|
Max. Working Radius |
12.8 meters |
|
Max. Lifting Height |
15 meters |
|
Max. Lifting Moment |
200 kN.m |
|
Max. Oil Flow of Hydraulic System |
40 L/min |
|
Max. Pressure of Hydraulic System |
28 Mpa |
|
Crane Weight |
2960 kg |
|
Landing Leg |
4 Pcs hydraulic handing leg |
|
Optional |
Hydraulic tipper box |
|
Box thickness as required |
|
|
Remote controller is optional |
|
|
Customized logo and color |
|

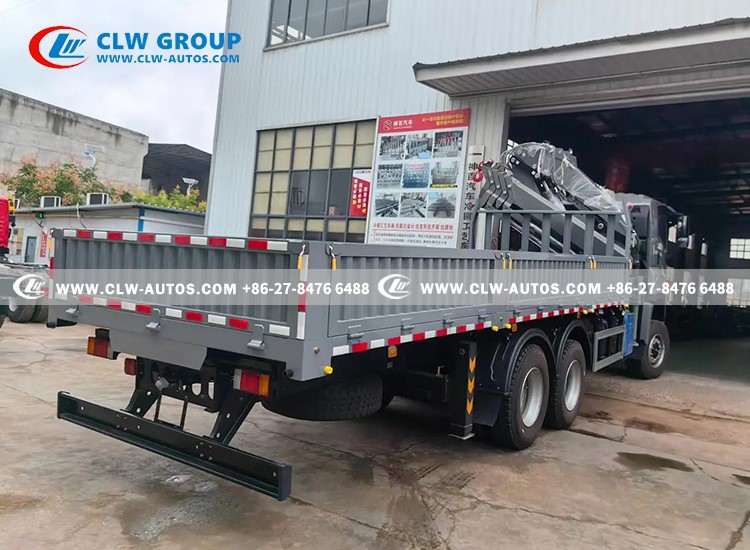

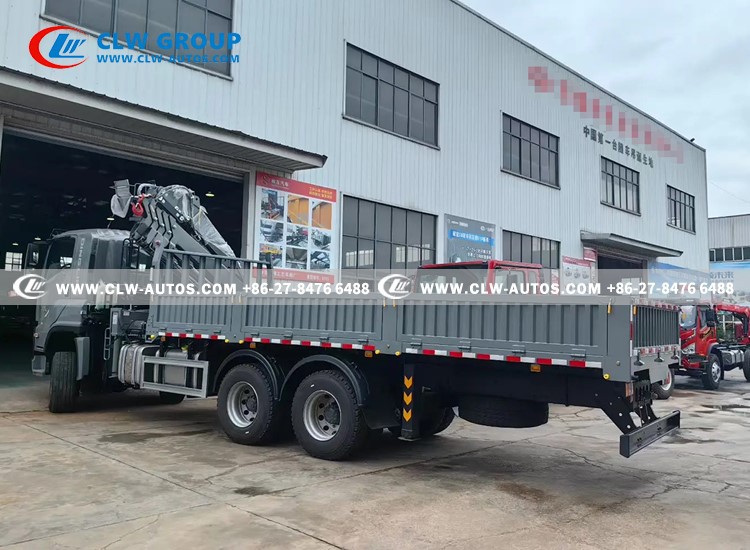

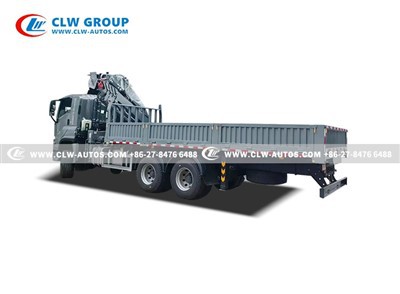

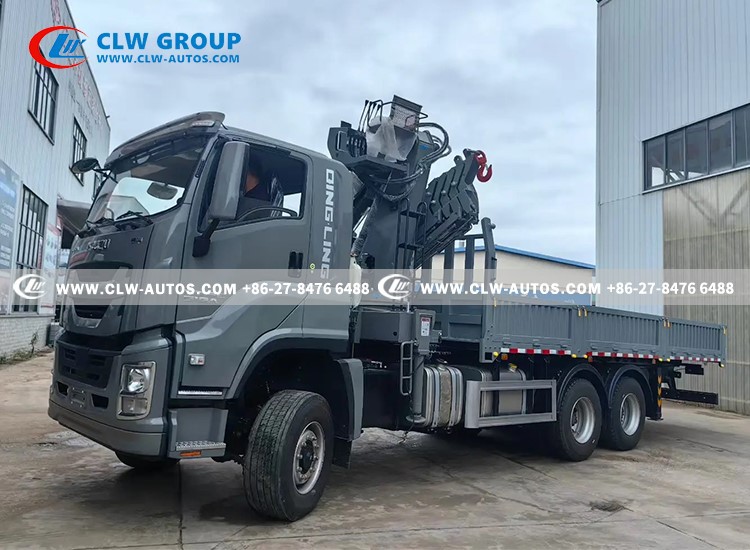

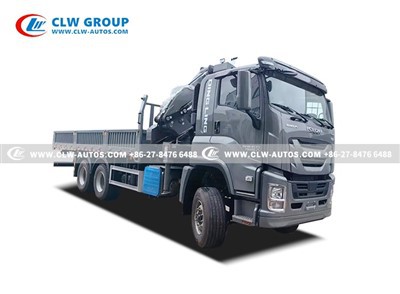

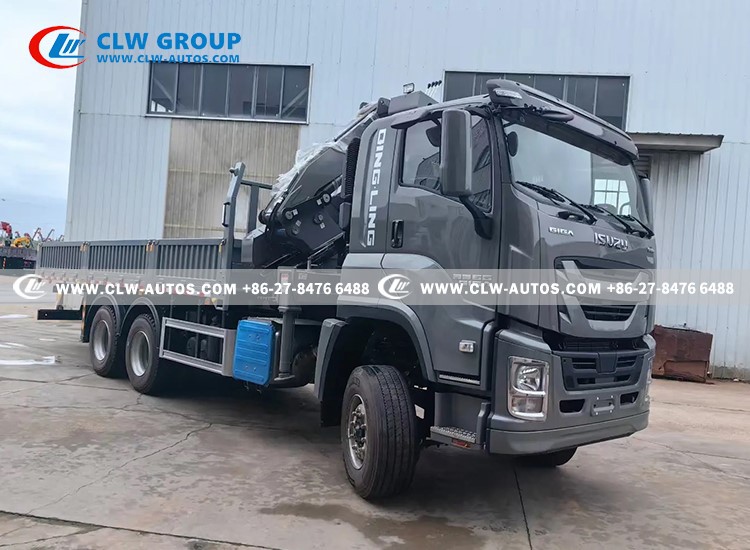

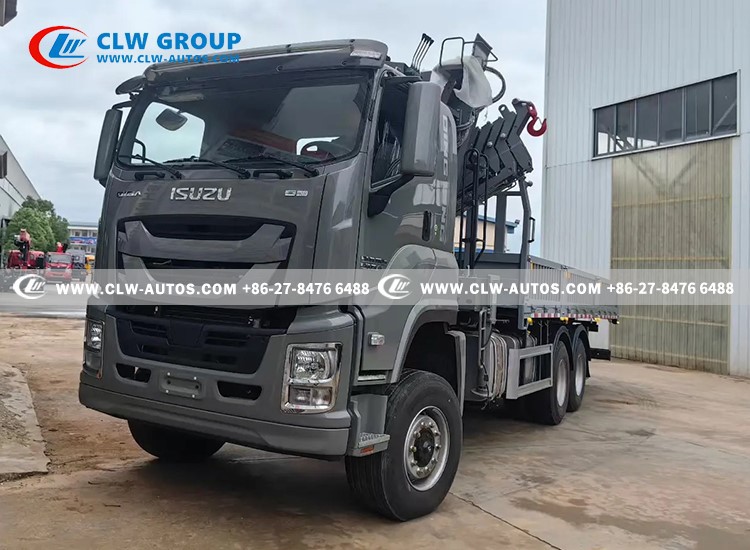

Chassis Pictures
Features Of ISUZU FVZ Crane Truck
ISUZU FV Chassis
- Mature Powertrain: Typically equipped with an Isuzu 6HK1-TCG61 high-pressure common rail turbocharged diesel engine, with a displacement of 7.9L, delivering robust power and complying with China's National VI emission standards. It is paired with a technologically mature Isuzu manual transmission, ensuring efficient and reliable power delivery.
- Professional Commercial Vehicle Chassis: The FVZ is a heavy-duty truck chassis built with a high-strength steel double-layer frame (beam), providing a solid foundation for mounting the superstructure. The 5700+1370 mm wheelbase is specifically designed as an ideal size for 10 ton class truck-mounted cranes.
- Excellent Driving Comfort and Safety: The cab is designed with a human-centric approach, offering a wide field of vision, excellent sealing, and low noise levels. Standard safety features include ABS and exhaust brakes, while some higher-end models are equipped with air brakes, parking brakes, power steering, and other features, ensuring easy and safe driving.
XCMG - 10Ton Straight Boom Crane
- Powerful Lifting Capacity: As a globally leading construction machinery manufacturer, XCMG's cranes boast robust performance parameters. The 8-ton straight-arm crane typically features a large-section pentagonal or hexagonal boom with high bending resistance, strong lifting capacity, and a large working radius (maximum reach exceeding 15 meters).
- Flexible and Efficient Operating System: Hydraulically driven, the crane is operated via manual levers or more advanced electro-hydraulic proportional remote controls, offering fine control, precise handling, and smooth operation. The outrigger configuration, often front H-type and rear double or quadruple box, ensures stable support on various terrains.
- Comprehensive Safety Features: Standard safety measures include relief valves (to prevent hydraulic system overload), balance valves (to prevent accidental boom descent), and wire rope overwind protection devices, ensuring safe and reliable lifting operations.
Advantage of Crane Truck
- Power Performance: A lighter body allows the 205-horsepower engine to propel the vehicle more effortlessly, resulting in better acceleration and climbing performance, with a greater sense of power reserve.
- Braking and Handling: Reduced mass means lower inertia during braking, improving braking effectiveness to some extent and enhancing safety. Additionally, the vehicle becomes more agile and easier to maneuver.
- Tire Wear: Reduced pressure on tires helps extend their service life.
