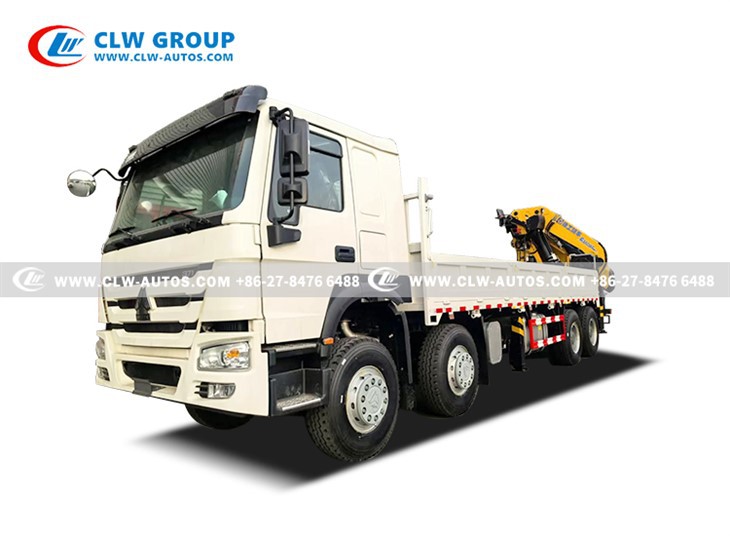

Sinotruk 33Ton Folding Boom Crane Truck
Drive Type: 8x4
Engine Power:371 HP
Cargo Box Capacity: 35Tons
Cargo Box Material: carbon steel
Crane Max. Lifting Capacity: 33 Tons
Tail With Crane
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk 33ton folding boom crane truck in China. If you're going to buy high quality sinotruk 33ton folding boom crane truck, welcome to get more information from our factory. For price consultation, contact us.

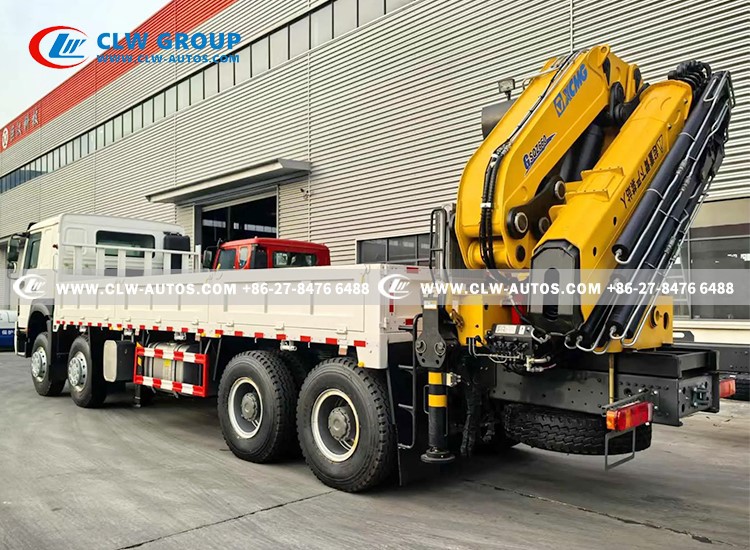

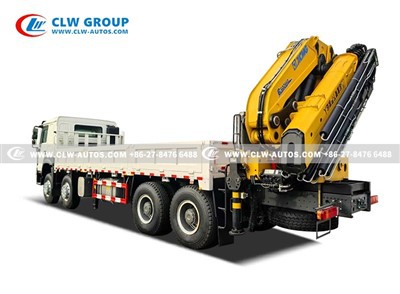

Sinotruk HW 8X4 33Ton XCMG Folding Boom Crane Truck Mounted Crane / Tail With Crane

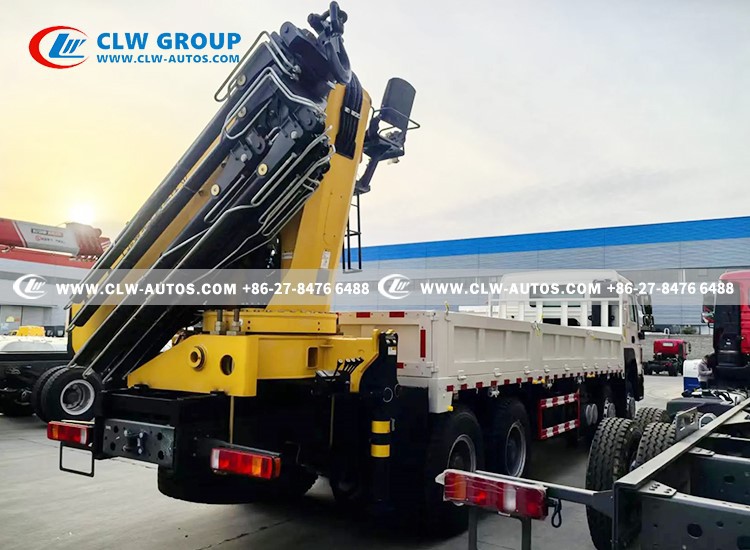

Advantages and Functions of Rear-Mounted Crane Design
1. Optimized Vehicle Stability
- Balanced Weight Distribution: Mounting the crane at the rear balances the front and rear axle loads during cargo handling, reducing the risk of front-end sagging and improving driving stability.
- Reduced Overhang Moment: Compared to center or side-mounted installations, the rear-mounted crane has a shorter force arm, lowering stress on the chassis and extending the frame's service life.
2. Enhanced Operational Flexibility
- Unobstructed Rotation: The open rear space allows the boom to rotate 360° without interference from the cab or cargo compartment, making it ideal for confined spaces (e.g., alleys, warehouses).
- Compatibility with Various Cargo Beds: Does not affect cargo bed length (e.g., flatbeds, box trucks), eliminating frequent repositioning during loading/unloading.
3. Maximized Loading/Unloading Efficiency
- Direct Access to Transport Vehicles: A rear-mounted crane enables quick handling of its own cargo or adjacent vehicles, reducing reliance on auxiliary equipment (e.g., forklifts).
- Integrated Operations: Combined with dump functions (e.g., truck-mounted cranes with dump bodies), it achieves unified "lifting + dumping" operations.
4. Safety and Maintenance Convenience
- Clear Visibility: Operators behind the cab can monitor lifting processes directly, minimizing blind spots.
- Easy Maintenance: Hydraulic lines and power units are centrally located at the rear, simplifying routine servicing and troubleshooting.
5. Typical Applications
- Logistics: Rapid handling of pallets and containers.
- Construction: Material lifting and pipe installation at job sites.
- Emergency Response: Recovery of disabled vehicles or obstacle clearance.
Products Description
Products Parameters
|
SINOTRUK Crane Truck With 33Tons Folding Boom Crane |
|
|
Chassis Specification |
|
|
Chassis Model |
New Addition |
|
Driving Model |
8 x 4 |
|
Dimension |
12000 x 2540 x 3900 mm |
|
Cab |
|
|
Wheelbase |
1850+4600+1370 mm |
|
Gross vehicle Weight |
31000 kg |
|
Curb Weight |
10350 kg |
|
Front Axle Loading Capacity |
9500 x2 kg |
|
Rear Axle Loading Capacity |
13000 x2 kg |
|
Axle Number |
4 |
|
Tire |
12.00R20 18PR |
|
12pcs with 1 spare tire |
|
|
Engine |
|
|
Model: WD615.47 |
|
|
Horse power: 371 HP |
|
|
Displacement: 9726 ml |
|
|
Emission standard: Euro 2 |
|
|
Transmission |
Model: Munal |
|
12 Forward & 2 Reverse |
|
|
Upper Parameters |
|
|
Cargo Box |
|
|
Size (L*W*H) |
8000 X 2400 X 550 mm |
|
Loading Capacity |
35 Tons |
|
Bottom Thickness |
5 mm |
|
Side Thickness |
3 mm |
|
Material |
High quality Q235 carbon steel |
|
Crane |
|
|
Model |
XCMG - SQZ660 |
|
Working Platform |
360°turning (left or right), H-shape legs 360° |
|
Extendable Boom Section |
1 main boom + 6 extendable boom |
|
Crane Type |
Folding Boom Crane |
|
Max. Lifting Capacity |
33000 kg |
|
Max. Working Radius |
22 meters |
|
Max. Lifting Moment |
607 kN.m |
|
Max. Oil Flow of Hydraulic System |
80 L/min |
|
Max. Pressure of Hydraulic System |
33 Mpa |
|
Crane Weight |
7100 kg |
|
Landing Leg |
4 Pcs hydraulic handing leg |
|
Optional |
Hydraulic tipper box |
|
Box thickness as required |
|
|
Remote controller is optional |
|
|
Customized logo and color |
|

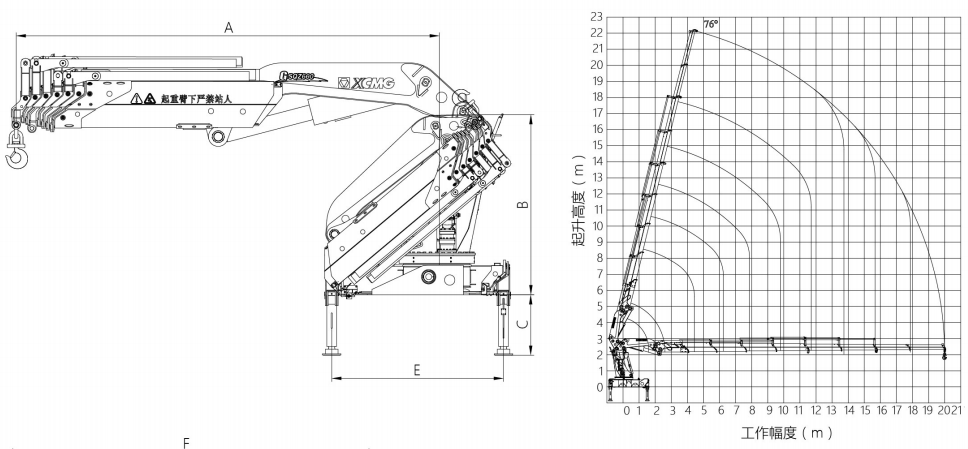

| Crane Rated Lifting Load | |

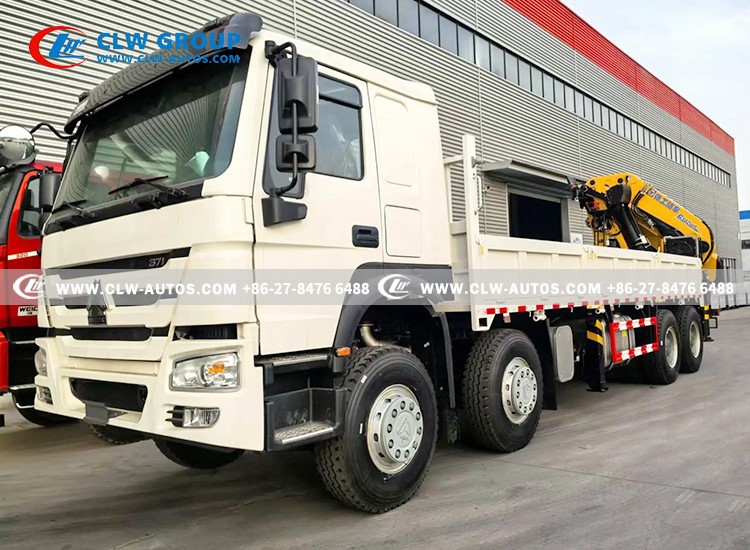

SINOTRUK HOWO Crane Truck detailed Decription
Features of the Sinotruk howo Chassis
- Engine: Equipped with a 371-horsepower, China II emission-compliant diesel engine, featuring mature technology and high low-speed torque, making it suitable for heavy-duty and challenging road conditions.
-
Load Capacity: The 8x4 drive configuration (dual front steering axles + dual rear drive axles) offers strong load-bearing capability, with optimized axle load distribution, ideal for transport scenarios exceeding 30 tons.
-
Transmission: Typically paired with multi-gear transmissions (e.g., 10-speed or 12-speed) from Sinotruk's in-house brands or Fast Gear, ensuring optimal performance for heavy-load starting and climbing.
-
Suspension: Front multi-leaf spring (or optional fewer-leaf spring) and rear multi-leaf spring suspension provide enhanced stability under heavy-duty conditions. Some models offer optional balanced axle suspension for improved load distribution.
Advantages of the Sinotruk howo chassis
- Reliability: The simple mechanical structure ensures easy maintenance, making it well-suited for high-load transportation (e.g., gravel, steel, etc.).
- Durability: Designed for ruggedness and robustness, capable of withstanding intensive use.
-
Typical Applications: Ideal for heavy-duty and harsh-environment operations such as mining, construction dump trucks, concrete mixer trucks, and oversized cargo transport.
-
Spare Parts: High localization rate ensures low maintenance costs.

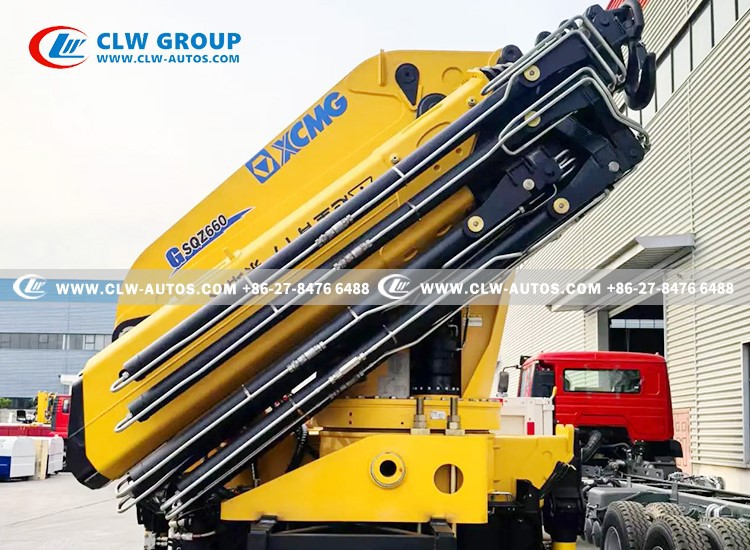

The role of XCMG G series 33-ton crane
1. Efficient Loading & Unloading
- Suitable for rapid handling of bulk cargo (e.g., steel, timber, pipes), equipment (e.g., electromechanical modules, containers), and construction materials, reducing labor and auxiliary machinery costs.
2. Precision Lifting
- The articulated boom design offers superior operational flexibility, enabling precise lifting in confined spaces (e.g., warehouses, construction sites, freight yards) while minimizing working radius.
3. Versatile Integration
- Can be mounted on truck chassis to achieve integrated "transport + lifting" operations, making it ideal for logistics hubs, emergency repairs, and similar scenarios.
