ISUZU 28Ton Folding Boom Crane Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 28ton folding boom crane truck in China. If you're going to buy high quality isuzu 28ton folding boom crane truck, welcome to get more information from our factory. For price consultation, contact us.

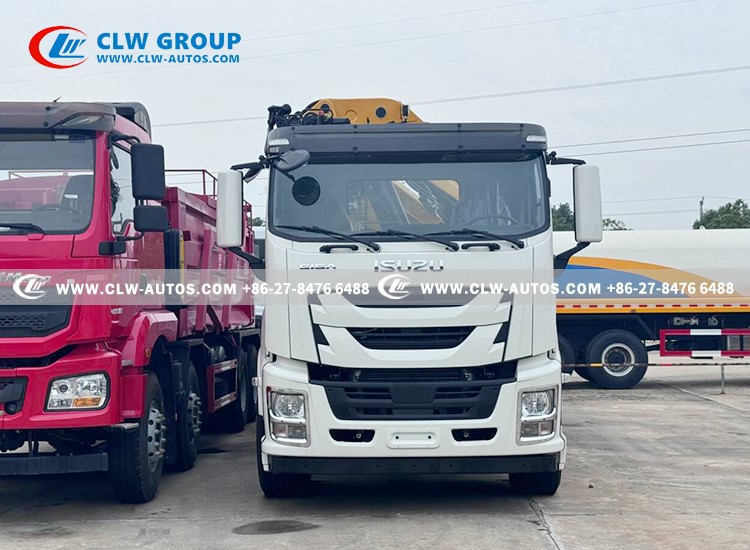

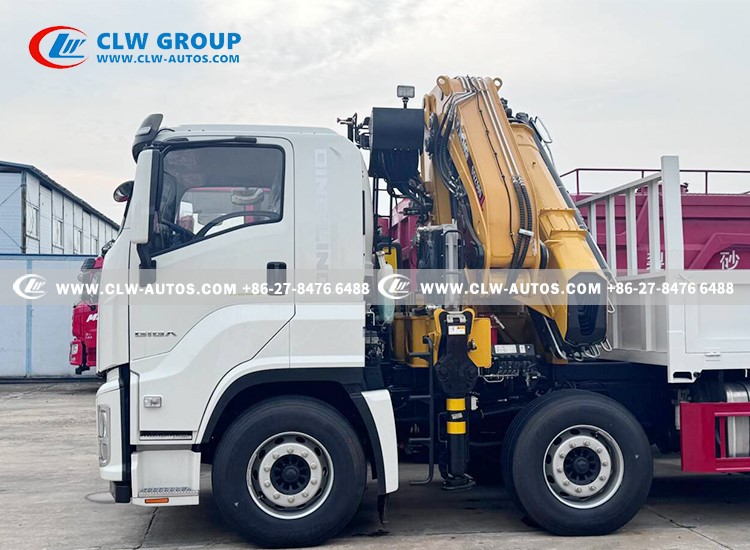

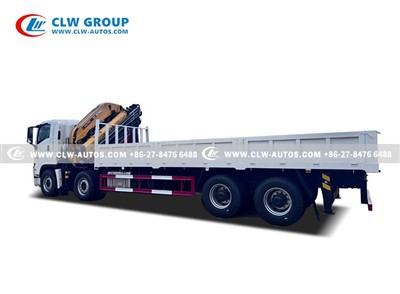

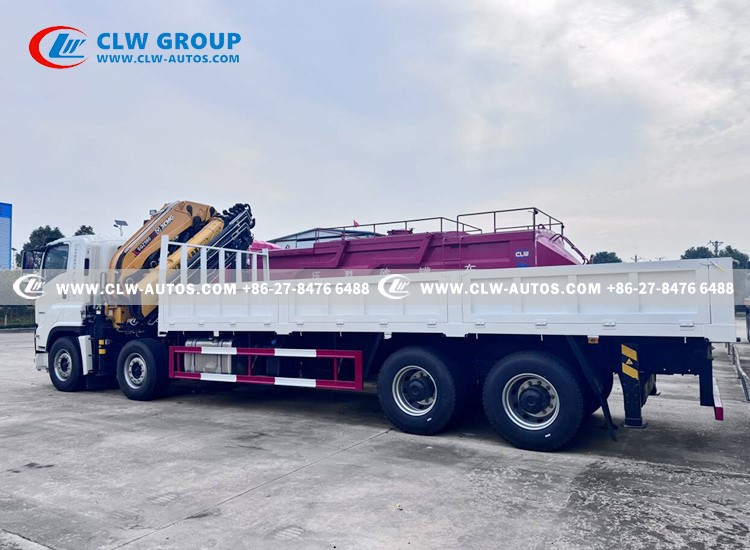

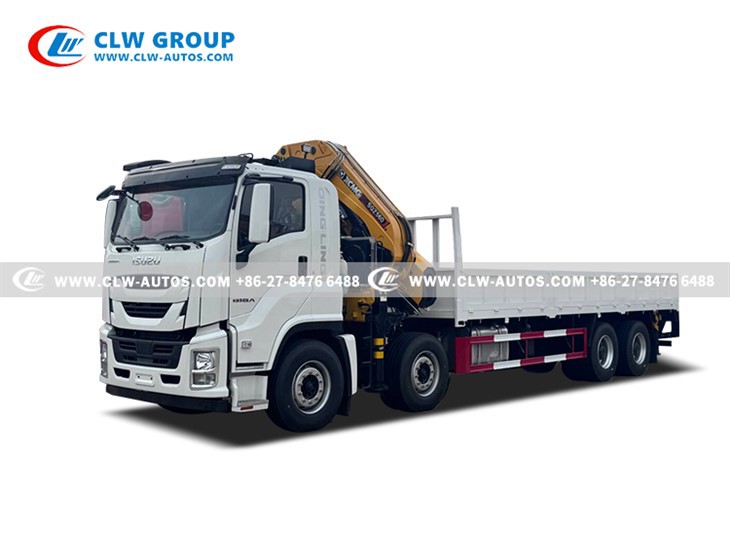

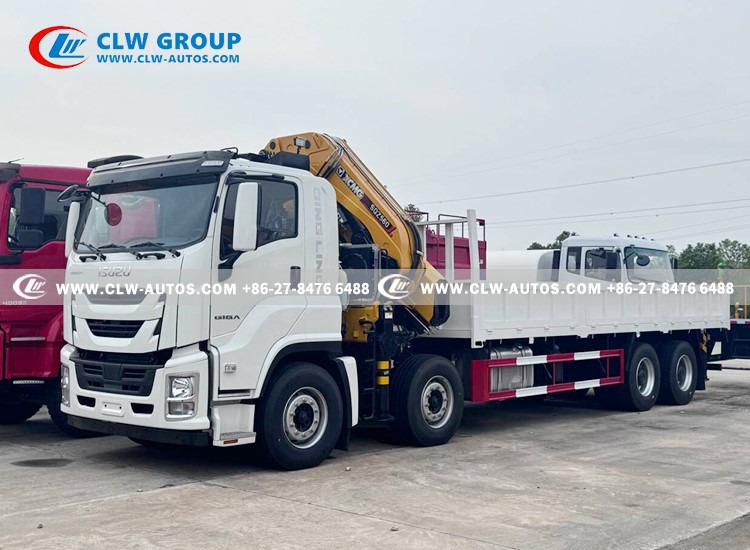

ISUZU 8X4 GIGA VC66 Crane Truck With 28Ton Folding Boom Crane

Outstanding Chassis and Powertrain

• Reliable and Efficient: Equipped with Isuzu's mature and reliable 6UZ1 series large-displacement diesel engine, offering ample power reserves, relatively economical fuel consumption, and compliance with China's National VI emission standards.
• Strong Load-Bearing Capacity: The 8x4 drive configuration, combined with a robust frame, provides excellent load-bearing capacity, offering a stable foundation for crane operations and cargo transportation.
• High Comfort and Low Failure Rate: The spacious and comfortable cabin features excellent ergonomics, while Isuzu's quality control ensures high operational availability and relatively low maintenance costs.



Unique Advantages of the Knuckle Boom Crane

• High Operational Flexibility: The compact knuckle boom structure operates more like a traditional crane, enabling "load-handling luffing" and more precise "insertion" operations, making it particularly suitable for space-constrained environments (such as inside factories, dense construction sites, or near obstacles).
• Compact Structure, Excellent Transport Configuration: The folded boom is short in length, optimizing the overall vehicle dimensions for better road passability and stability during transit.
• Strong Secondary Operational Capability: Typically equipped with various attachments (such as grapples, clamps, and personnel baskets), it allows quick function switching, enabling "one machine for multiple purposes." It is suitable for handling bulk materials, plates, equipment installation, and various other scenarios.



Core Value of the 28-Ton Crane Capacity

• Ideal Tonnage, Wide Coverage: The 28-ton knuckle boom crane's lifting capacity falls within the medium-to-high range, covering most requirements for heavy equipment installation, building material loading/unloading, and engineering component lifting. It serves as a versatile "all-rounder" and a mainstream tonnage in the engineering field.
• Balanced Working Radius and Height: It provides an ideal operational coverage range, meeting medium to long-distance lifting needs while maintaining strong load-handling capacity.



Vehicle Matching and Comprehensive Efficiency

• Efficient Coordinated Operation: The powerful chassis and high-performance crane are well-matched, enabling integrated lifting and transport. This reduces reliance on additional lifting equipment, enhances single-operator efficiency, and lowers overall costs.
• High Return on Investment: Although the initial investment is relatively high, its outstanding reliability, versatility, and high operational availability ensure continuous value creation across various engineering projects, offering strong economic benefits over its entire lifecycle.









ISUZU Crane Truck With 28Tons Straight Boom Crane
Chassis Specification
Chassis Model	QL131
Driving Model	8 x 4
Dimension	12000 x 2540 x 3900 mm
Cab	Original ISUZU VC66 Cabin with air conditioner
Wheelbase	1850+4575+1370 mm
Gross vehicle Weight	31000 kg
Curb Weight	10350 kg
Front Axle Loading Capacity	7500 x2 kg
Rear Axle Loading Capacity	13000 x2 kg
Axle Number	4
Tire	295/80R22.5 / 12R22.5 18PR
	12pcs with 1 spare tire
Engine	ISUZU diesel engine 6 cylinders in a line, Water cooled, turbocharged, after cooled, cold start.
	Model: 6UZ1
	Horse power: 350 HP
	Displacement: 9839 ml
	Emission standard: Euro 6
Transmission	Model: ZF8
	8 Forwards & 1 Reverse
Upper Parameters
Cargo Box
Size (L*W*H)	7900 X 2400 X 550 mm
Loading Capacity	25 Tons
Bottom Thickness	5 mm
Side Thickness	3 mm
Material	High quality Q235 carbon steel
Crane

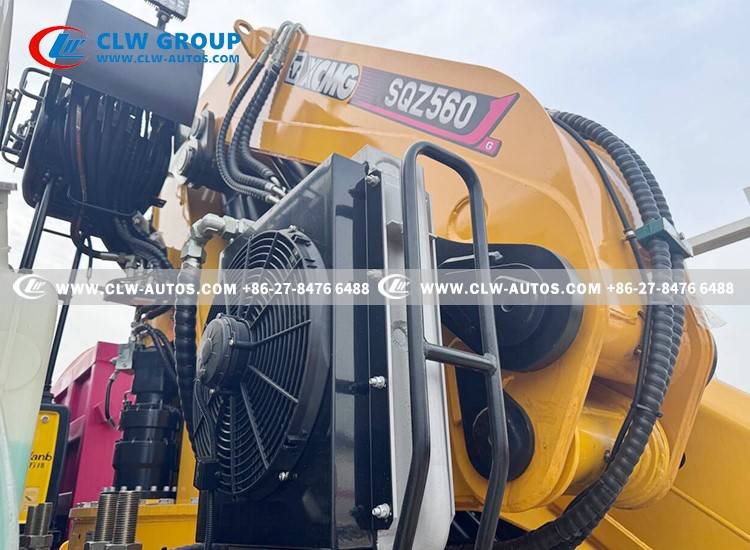

Model	SQZ560
Working Platform	360°turning (left or right), H-shape legs 360°
Extendable Boom Section	1 main boom + 8 extendable boom
Crane Type	Folding Boom Crane
Max. Lifting Capacity	Effectively: 28000 kg at 1.75 meters
Max. Working Radius	20.8 meters
Max. Lifting Moment	490 kN.m
Max. Oil Flow of Hydraulic System	80 L/min
Max. Pressure of Hydraulic System	32 Mpa
Crane Weight	7350 kg
Landing Leg	4 Pcs hydraulic handing leg
Optional	Hydraulic tipper box
	Box thickness as required
	Remote controller is optional
	Customized logo and color
