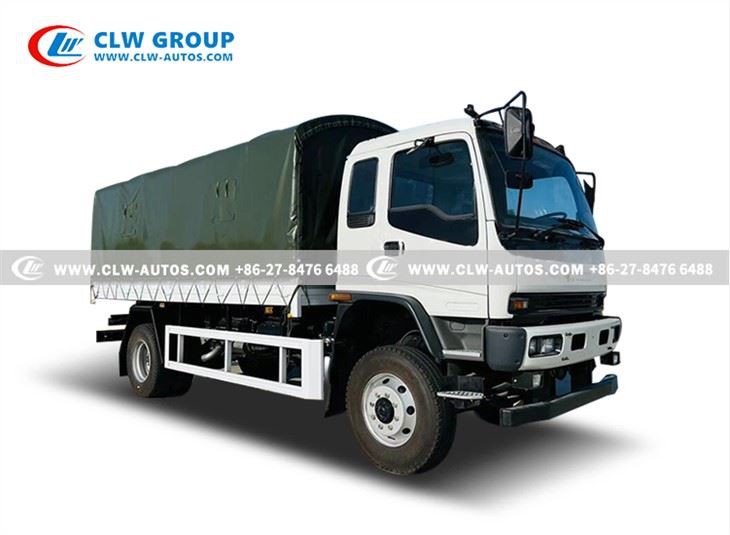

ISUZU FVR 240HP Army Use Troop Carrier With Tarpaulin
ISUZU FVR cabin military truck
Off road troop carrer
Diesel Engine 240HP cargo truck
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu fvr 240hp army use troop carrier with tarpaulin in China. If you're going to buy high quality isuzu fvr 240hp army use troop carrier with tarpaulin, welcome to get more information from our factory. For price consultation, contact us.
Troop carrier(also called army use personnel transport truck,army soldier delivery truck,20-person military personnel transport truck,4WD troop carrier) is designded and used for transporting,delivering military soldiers. We can design accoding to your request with ISUZU/HOWO/SHACMAN 4X4/6x6/8x8 truck chassis with detachable two row bench.
Feature
Japanese brand ISUZU FVR truck chasis
ISUZU 6HK1-TCL 240 hp
Strong cargo box with Tarpaulin cover
Two rows of benches with safety belt
Pictures

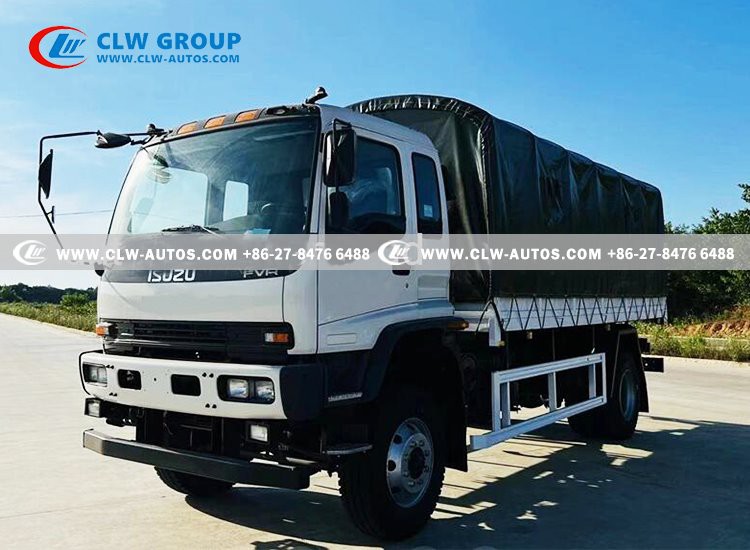

ISUZU FVR with one row and a half cabin

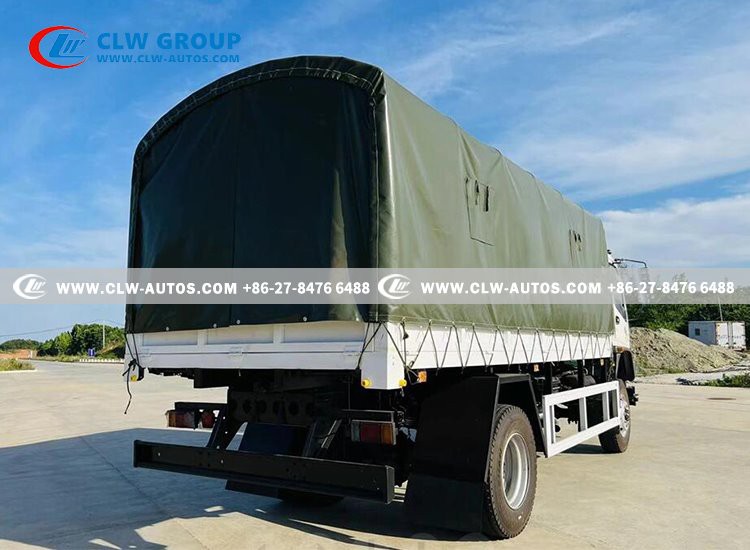

Strong cargo box with military green Tarpaulin cover for troop carrer
Technical details
Vehicle parameters | |||||
Vehicle Model | CLW5180YBC | Vehicle Brand | CLW Brand | ||
Overall dimensions | 7800x2500x3450mm | Curb weight | 6300kg | ||
Van dimensions | 5300*2470*362+650mm | Loading capacity | 10000-15000kg | ||
Chassis parameters | |||||
Chassis model | QL1180XMFRY | Chassis brand | ISUZU | ||
Overall dimensions | 7800x2500x3450mm | Wheel base | 4500mm | ||
Front/rear wheel track | 1960/1855mm | Front/rear suspension | 1335/1735mm | ||
Approach/departure angle | 15/17° | Maximum speed | 105km/h | ||
Chassis Manufacturer | QingLing Motors (Group) Co., Ltd. | ||||
Cab | Configuration | ISUZU FVR flat roof single sleeper cab | |||
Color | White,other color is optional | ||||
Engine | Model | 6HK1-TCL | |||
Emission | Euro 5 | ||||
Type |
| ||||
Rated power | 240hp,rated power speed 2400rpm | ||||
Displacement | 7790ml | ||||
Manufacturer | Isuzu Engine (Chongqing) Co., Ltd. | ||||
Tire | Size | 295/80R22.5 | |||
Number | 6+1 nos | ||||
Front axle | 6.3 tons | ||||
Rear axle | 13 tons | ||||
Drive form | 4X4 | ||||
Suspension | Multi leaf springs | ||||
Rated voltage | 24V,DC | ||||
Transmissions | MLD 6Q speed transmission, 6 speed forward 1 reverse. | ||||
Steering device | Power assisted steering | ||||
Steering wheel | Left hand drive | ||||
