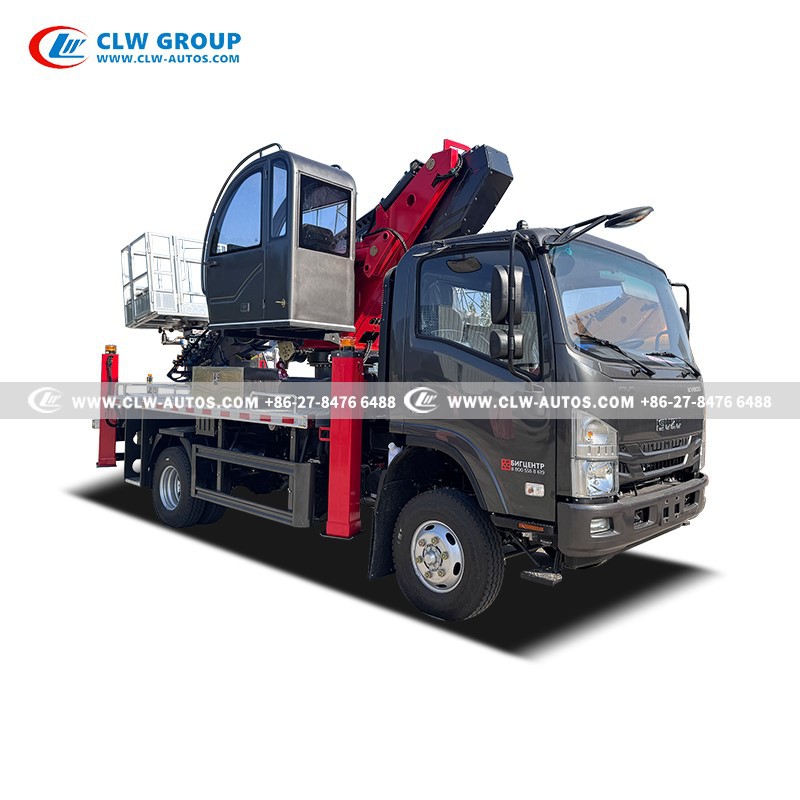

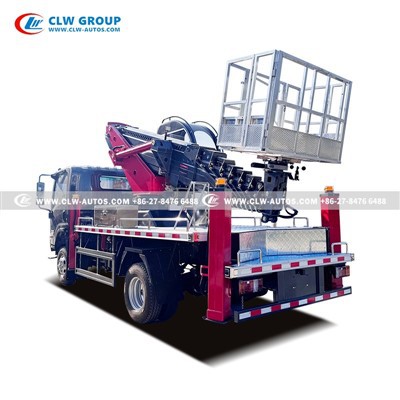

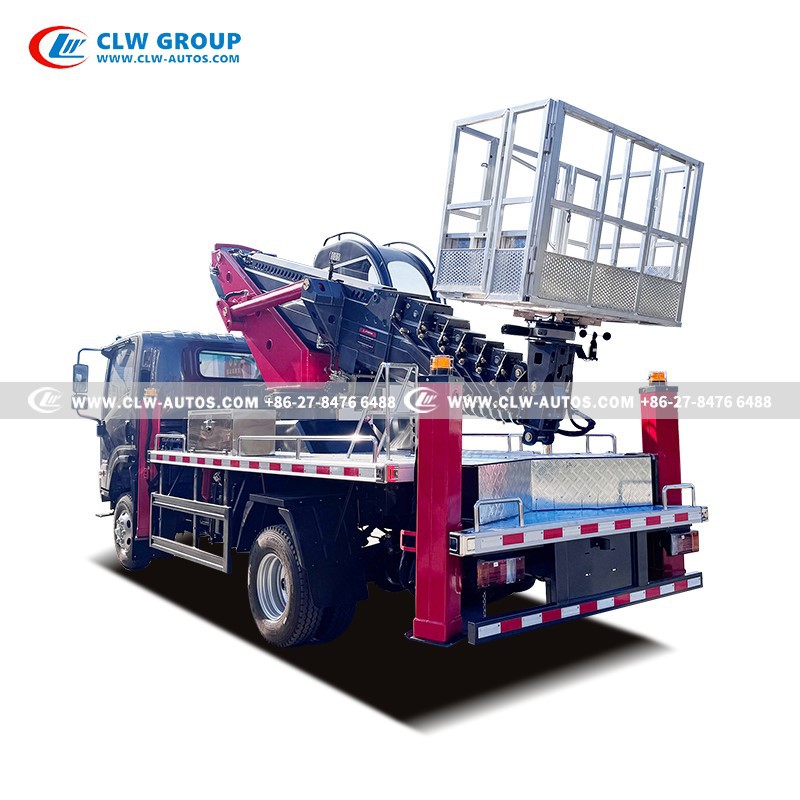

ISUZU 30m Telescopic Arm Skylift Truck
Truck brand: Japanese brand ISUZU
Skylift height: 30meters
Wheelbase: 3815m
Horsepower: ISUZU 4KB1-TCG60 130hp
Platform capacity: 200kg(suitable for 2 workers+tools)
With control operation panel
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 30m telescopic arm skylift truck in China. If you're going to buy high quality isuzu 30m telescopic arm skylift truck, welcome to get more information from our factory. For price consultation, contact us.

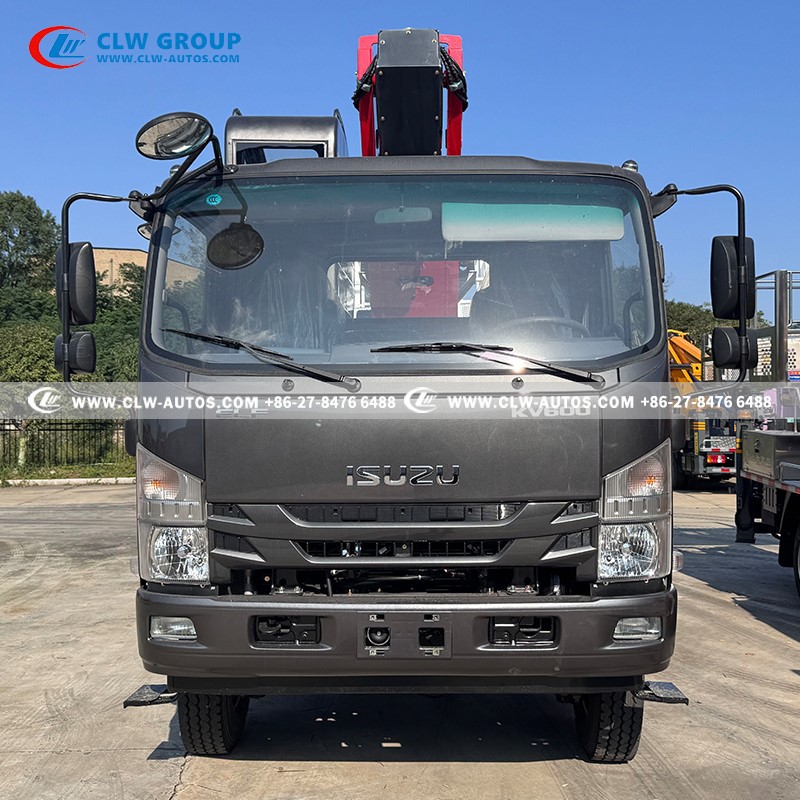

4X2 ISUZU KV600 30m Aerial Work Platform Truck
Products Description
Elevate Your Operations with the Power of Isuzu
The Isuzu KV600 30m Aerial Work Platform Truck represents the pinnacle of engineering in the special vehicle industry. Combining the legendary reliability of an Isuzu light truck chassis with a state-of-the-art, high-altitude hydraulic system, this vehicle is designed to provide a safe, stable, and efficient solution for reaching heights of up to 30 meters (approx. 100 feet) . Whether you are involved in electrical maintenance, construction, municipal services, or telecommunications, this Isuzu bucket truck transforms challenging (high-altitude tasks) into simple, routine operations.
Also known as an Isuzu aerial platform truck, cherry picker, or man lift truck, this model is purpose-built for professionals who demand uncompromised safety and durability. Built on the robust Isuzu KV600 4x2 truck chassis, it features a heavy-duty 7-section synchronized telescopic boom. The upper work platform, or bucket, allows workers to access elevated areas with precision and confidence.
This specific model expertly combines a compact chassis design, ideal for navigating narrow urban streets, with an impressive vertical reach and horizontal range, making it one of the most versatile mobile aerial work platforms available on the market today.
Technical Specification
| Telescopic Skylift Truck 30-Meters | |||
| Overall dimensions | 7450mm x 2250mm x 3800mm | ||
| Gross vehicle weight | 8950kg | ||
| Wheel base | 3815 mm | ||
| F/R track base | 1110/1990mm | ||
| Approach/departure angle | 21/12° | ||
| Cabin | ISUZU Single Row Cabin, 2 Passenger Allowed, | ||
| Engine | Isuzu Engine, 4 Stroke, 4 Cylinders in line, Turbocharged, Inter cooling | ||
| Displacement/ HP | 130HP | ||
| Max speed | 95 km/h | ||
| Tire specification | 7.00R16, 6 Pieces with 1 Spare | ||
| Traction system | 4x2 | ||
| Number of axles | 2 | ||
| Bucket | Max. work height: 30 meters | ||
| Max. bucket floor height: 30meters | |||
| Max. work range: up to 19 meters | |||

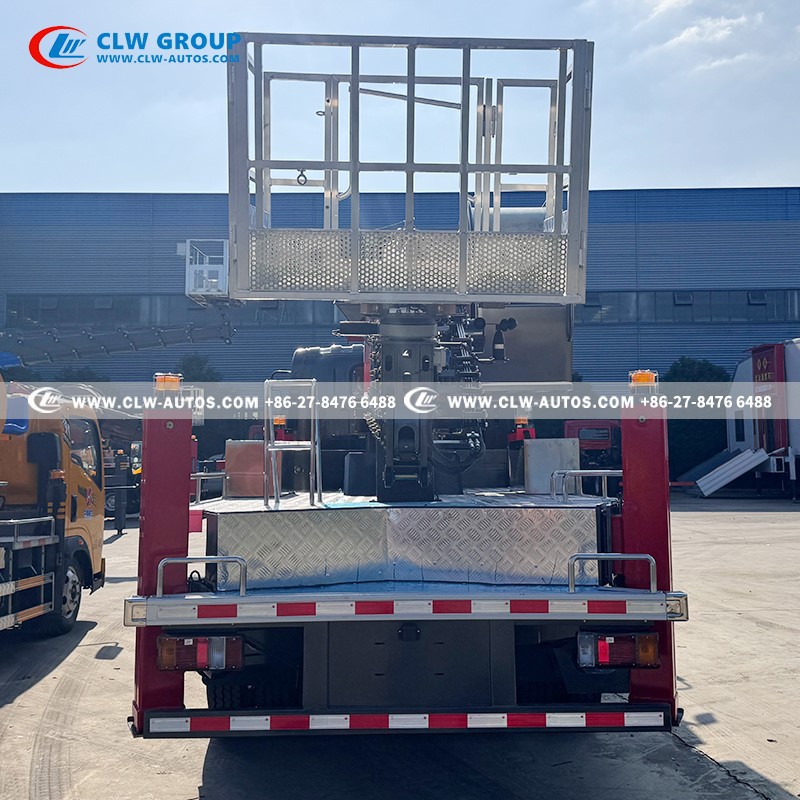

| Rated load: 200kg | |||
| Dimension (L*W*H) 1200*750*1100 (mm) | |||
| Boom | Type Four-section telescopic synchronously | ||
| Rotation angle 360° | |||
| Elevation angle -12°~80° | |||
| Outriggers | Type: H | ||
| 4000x4000mm | |||
| Major Feature | Outrigger | computer controlled system, one key to stretch out & balance the level of the truck | |
| Balancing | Automatically Balancing system with Tilting Angle Sensor & level detector | ||
| Getting on & off Lock | Computer control system, | ||
| Telescopic Arm Control | Controlling system in the bucket, with manual control. | ||

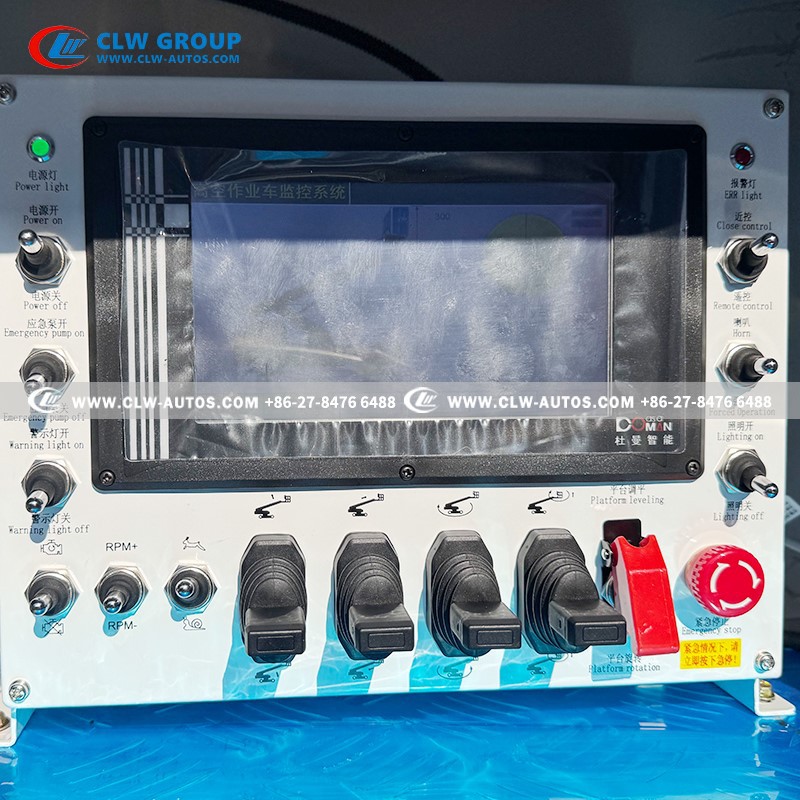

| Platform Control System | LED Screen Display with Button control | ||
| Range Control | Large Angle Sensor to Detect the Arm Length & Rotation Range | ||
| Walkie-Talkie | Included | ||
Products Reference Pictures
1. Unmatched Reach and Flexibility
Exceptional Height: Achieve a maximum working height of 30 meters, allowing you to access high-rise building facades, tall trees, and overhead power lines with ease.
Extended Working Range: With a maximum working range of up to 19 meters horizontally, you can easily clear obstacles and position the platform exactly where it is needed without constantly moving the truck.

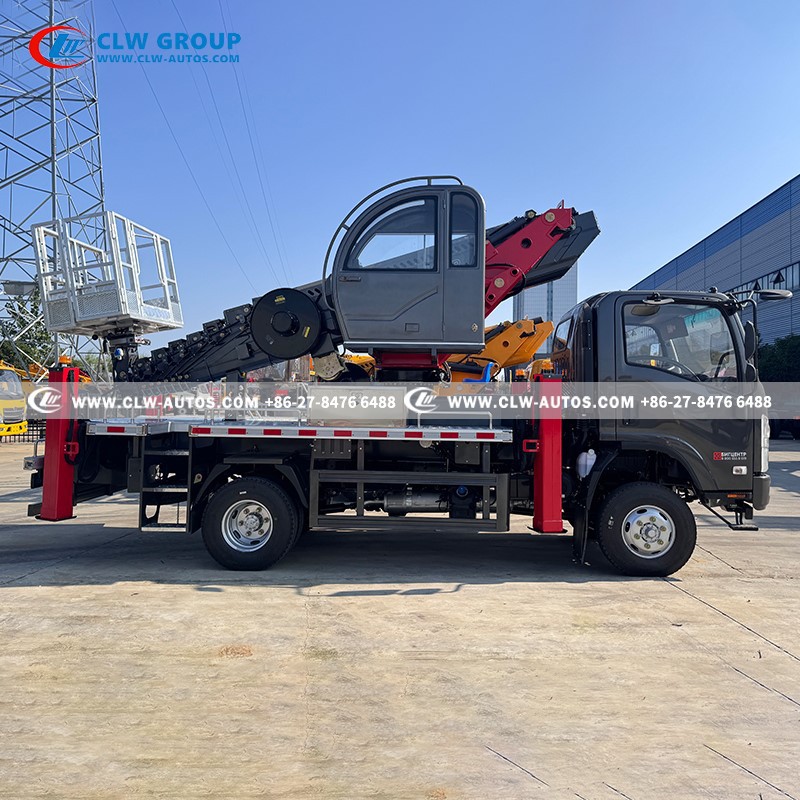

Superior Boom Design: The vehicle utilizes a 7-section synchronized telescopic boom with a unique polygonal arm design (often 14 or 18-sided). This structure provides superior strength, reduces weight, and minimizes sway during operation, ensuring a steady platform.
2. Precision and Stabilit
360° Continuous Rotation: The turntable and platform both feature bi-directional 360° continuous rotation, offering maximum maneuverability without blind spots.

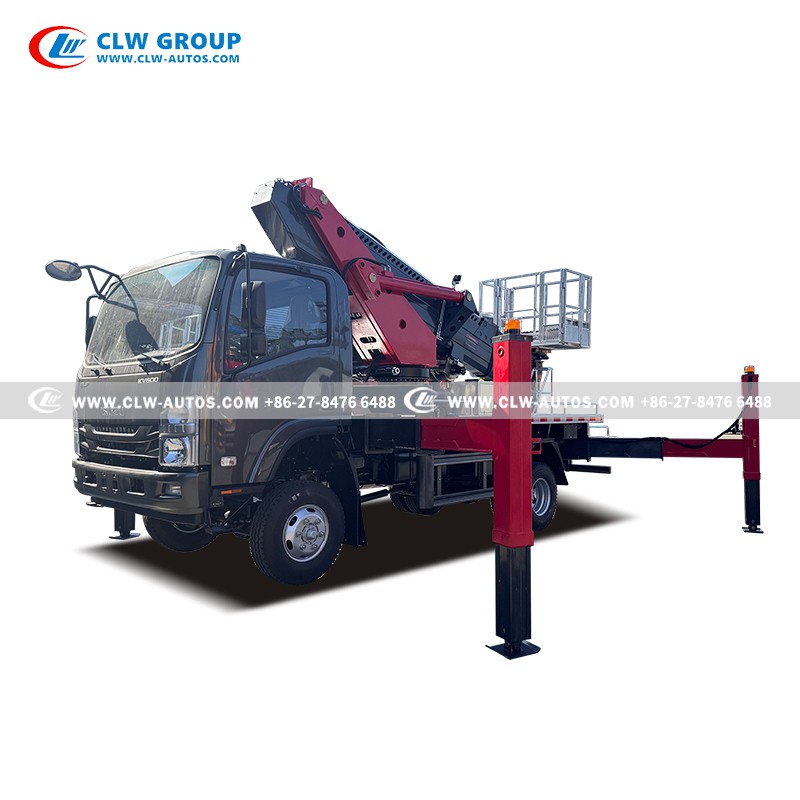

Advanced Outrigger System: Stability is guaranteed by a Front V / Rear H-type outrigger configuration. Each of the four hydraulic outriggers is individually adjustable and equipped with (bi-directional hydraulic locks) to prevent settling or movement, even on uneven terrain. The outrigger span (up to 5370mm front / 4975mm rear) creates a rock-solid base.

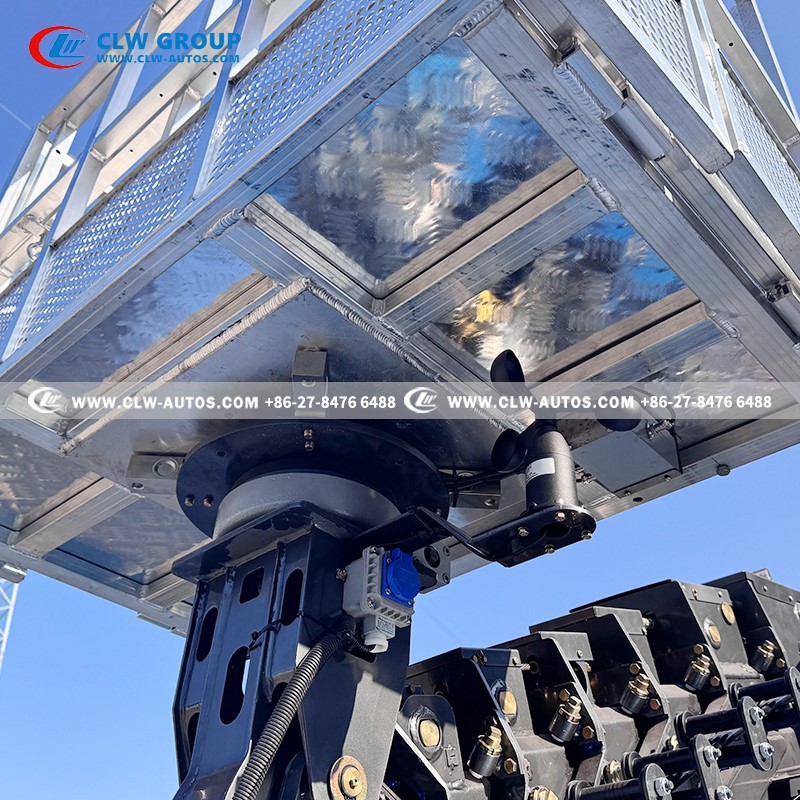

Hydraulic Auto-Leveling: The platform utilizes a hydraulic automatic leveling system to keep the bucket floor perfectly horizontal at all times, regardless of the boom angle.
3. Robust and Reliable Powertrain
Isuzu Engine: Powered by a fuel-efficient Isuzu 4KB1-TCG60 diesel engine (130 HP / 96 kw) or similar high-performance variants, meeting Euro 6 emission standards. This ensures the vehicle is both powerful enough for demanding jobs and environmentally friendly.
Smooth Transmission: Paired with an Isuzu MSB 5-speed manual transmission, it offers smooth gear changes and reliable power delivery in all driving conditions.
4. Multi-Position Control System for Ultimate Convenience
This Isuzu man lift truck features a triple-control system for maximum operational flexibility:
Wireless Remote Control: Operate all functions, including outrigger deployment and boom movement, from a safe distance for the best vantage point.

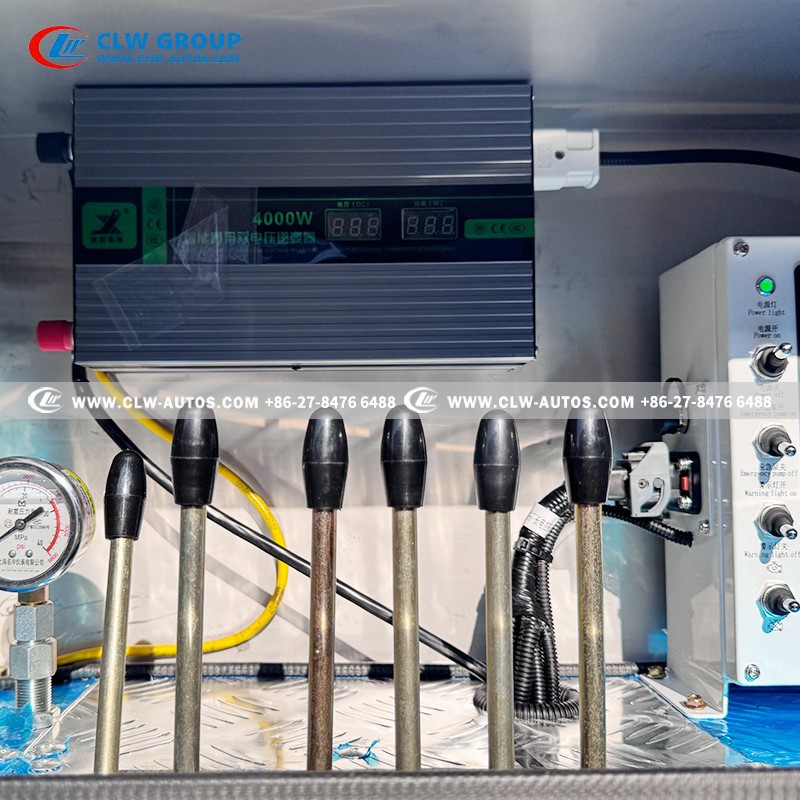

Turntable Controls: A control panel on the rotating turntable allows for precise, on-site adjustments.
Ground Control Box: A secondary panel on the chassis allows a ground operator to control the system, ideal for setup, emergency situations, or fine-tuning
Diverse Application Scenarios
The versatility of the Isuzu 30m (aerial work vehicle) makes it an indispensable asset across multiple industries:
- --Power & Utility Maintenance: Safely repair high-voltage lines, transformers, and telecom infrastructure. The insulated boom options and safe working protocols make it ideal for this sector.
- --Municipal & City Services: Perfect for maintaining streetlights, traffic signals, and CCTV cameras. Its compact size allows it to operate in congested city centers without blocking traffic.
- --Construction & Building: Ideal for exterior building installation, facade cleaning, painting, and installing signage or glass panels on high-rise structures.
- --Landscaping & Arboriculture: Easily reach great heights for tree trimming, pruning, and hazardous tree removal in parks and residential areas.
- --Emergency Services: Can be deployed for rapid rescue operations, firefighting support, and disaster relief in multi-story buildings.
Key features and advantages
Why should you choose this particular Isuzu aerial lift truck over competitors? Here are the distinct advantages:
The "Isuzu" Advantage: Unbeatable Reliability
Chassis Trust: Isuzu (Isuzu chassis) are globally renowned for their longevity, fuel economy, and robust construction. Starting with a quality chassis ensures your aerial platform has a long and trouble-free service life.
Lower Maintenance: Genuine Isuzu parts are readily available worldwide, reducing downtime and maintenance costs.
Safety First: A Non-Negotiable Standard
Automatic Interlocks: Prevent operation unless the outriggers are correctly set.
Emergency Manual Pump: Allows for safe retraction of the boom in case of engine or hydraulic pump failure.
Hydraulic Safety Locks:Bi-directional balance valves and hydraulic locks prevent hose burst accidents and boom drift.
Superior Maneuverability
Compact Footprint: Despite its 30m reach, the vehicle maintains a compact overall size, allowing it to navigate narrow alleys, construction sites, and busy urban environments where larger trucks simply cannot go.
Stepless Speed Control: The electro-hydraulic proportional system provides smooth, vibration-free movement, allowing for precise positioning of the platform, which is crucial when working near sensitive equipment.
Customization and Quality Assurance
Factory Direct Expertise: As a leading manufacturer of special purpose vehicles, we offer customization options to meet specific job requirements, such as insulated booms, hydraulic winches, or specialized tool mounts.
100% Tested: Every vehicle undergoes rigorous testing before delivery to ensure all hydraulic, electrical, and safety systems perform to the highest standards.
