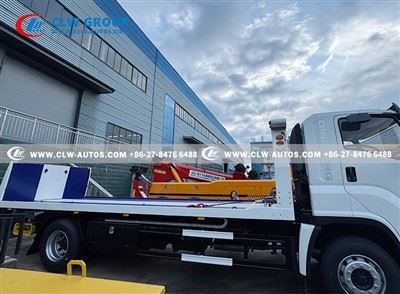

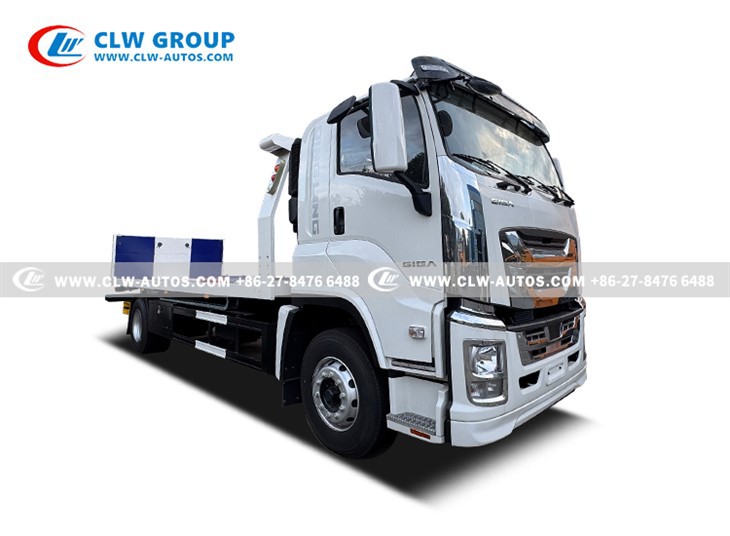

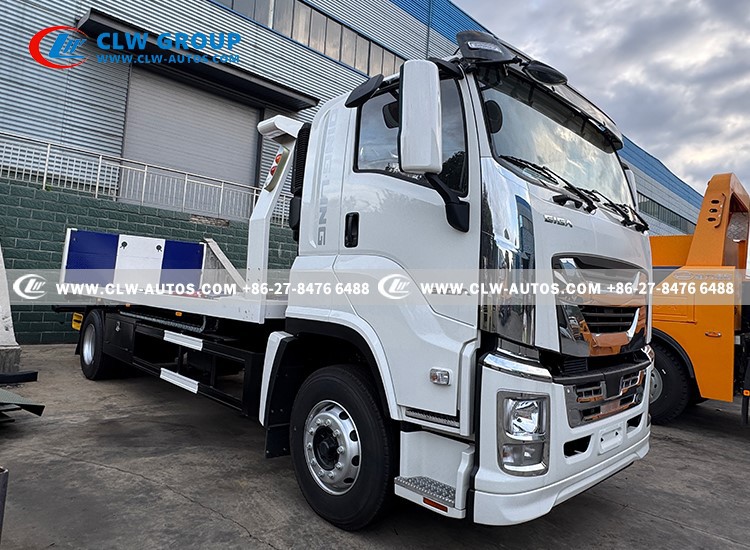

ISUZU 10Ton Recovery Truck
Drive Type:4x2
Engine: 240hp
Flatbed Length:8m
Flatbed Width:2.5m
Flatbed Loading Capacity:10~15Tons
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 10ton recovery truck in China. If you're going to buy high quality isuzu 10ton recovery truck, welcome to get more information from our factory. For price consultation, contact us.
ISUZU FVR 4X2 15Tons Flatbed Tow Truck / One Tow Two
Products Description
- The Isuzu GIGA 4x2 recovery towing truck features a 5,550mm wheelbase, ensuring superior stability and handling performance. This wheelbase configuration enhances the vehicle's ability to navigate challenging road conditions while maintaining excellent maneuverability.
- For propulsion, the truck is equipped with the Isuzu 6HK1 engine-a high-performance, highly reliable diesel engine delivering a maximum output of 240 HP. Paired with a 8-speed manual transmission, it ensures smooth power delivery and responsive gear shifting, making it well-suited for demanding operational environments.

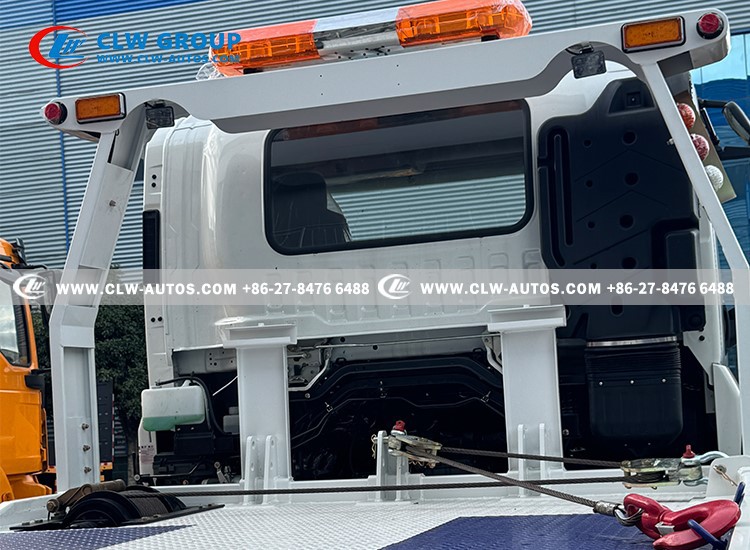

- Towing & Pulling: The winch drags disabled vehicles onto the flatbed or to safety.
- Precise Positioning: It maneuvers vehicles in tight spaces for optimal loading angles.
- Self-Recovery & Stability: The winch anchors the truck on slippery or unstable ground.
- Accident Clearance: It separates crashed vehicles or partially uprights overturned ones.

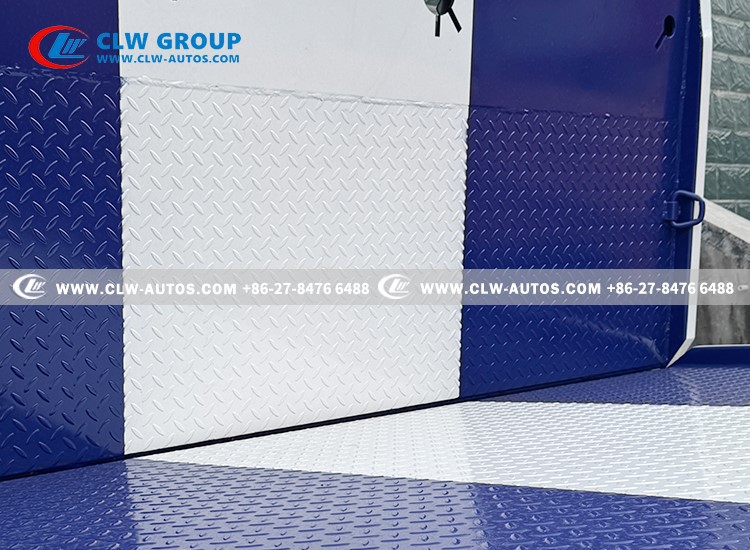

- Anti-slip & Wear-resistant: Increases friction to prevent tire slippage and ensures durability.
- Enhanced Strength: The pattern structure reinforces rigidity, preventing deformation under load.
- Drainage & Anti-rust: Drains water efficiently to reduce moisture and rust risks.
- Tire Protection: Provides stable grip to minimize abnormal tire wear during towing.
Products Parameters
|
Chassis Specification |
||
|
Chassis Model |
QL118 |
|
|
Driving Model |
4x2 |
|
|
Cab |
|
|
|
Dimension |
10000 x 2500 x 3000 mm |
|
|
Wheelbase |
5550 mm |
|
|
Gross vehicle Weight |
18000 kg |
|
|
Front Axle Loading Capacity |
6300 kg |
|
|
Rear Axle Loading Capacity |
13000 kg |
|
|
Axle Number |
2 |
|
|
Engine |
ISUZU diesel engine 6 cylinders in a line, Water cooled, turbocharged, after cooled, cold start. |
|
|
Model: 6HK1-TCG61 |
||
|
Horse power: 240 HP |
||
|
Displacement: 7790 ml |
||
|
Emission standard: Euro 6 |
||
|
Transmission |
Model: FAST Manual Type |
|
|
8 Forward & 1 Reverse |
||
|
Tire |
295/80R22.5 |
|
|
6 Pcs with one spare tire |
||
|
Fuel Tank Capacity |
200L |
|
|
Brakes |
Air brake, With ABS |
|
|
Upper Body Specifications |
||
|
Flatbed Platform |
Size: 7000 x 2500 mm |
|
|
Thickness : 6mm checked plate |
||
|
Loading Capacity: 15 Ton |
||
|
Frame: 16 mm Thick manganese plate |
||
|
Winch |
10 Ton |
|
|
Rear Lifting Arm |
10 Ton |
|
|
Box Plate |
Material: Aluminum Alloy |
|
|
Hydraulic Back Platform |
2400 x 2500 mm |
|
Products Video
For quick inquiry, please contact Ms. Hedy He:
WhatsApp/ Wechat: +86 188 2740 1066
Email: hedy@clw-autos.com.
Company Profile
Hubei ChengLi Special Automobile Co.,Ltd,one of branches of CLW group, which was appointed by the Development and Reform Committee of China. Hubei Chengli is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Our advantage
- Certificate: ASME, ISO, BV, SGS, CCC etc.
- More than 30 independents workshops for different trucks
- 1000 sets of equipment, 25 assemble lines.
- 8000 staffs including 300 senior engineers and technicians
- 800 kinds of trucks and semi-trailers covering different industry
- 20 years wholesale experience
- Export to 90 countries
- Cooperates with DONGFENG, SINOTRUK, ISUZU, FOTON,FAW,BEIBEN,etc.
Welcome to visit our factory!
