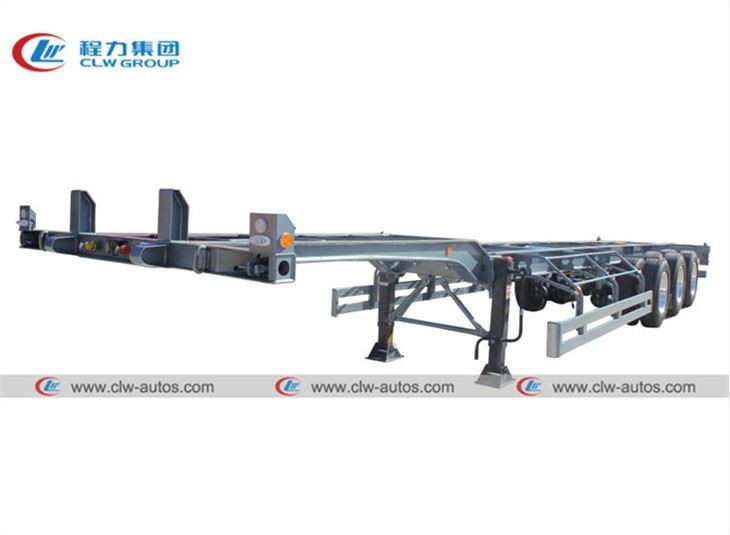

40FT 45T Container Flatbed Skeleton Trailer
40FT 45T Container Flatbed Skeleton Trailer For container loading, 2 * 20GP, 1 * 40HQ container
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 40ft 45t container flatbed skeleton trailer in China. If you're going to buy high quality 40ft 45t container flatbed skeleton trailer, welcome to get more information from our factory. For price consultation, contact us.
Product overview :
3 Axles 20/40FT Container Chassis Skeleton/Skeletal Semi Truck Trailer for sale Made in China from Chinese professional manufacturer
Light Tare Weight: Under the premise of the same weight of the box, it can load more goods, to achieve greater economic benefits for you.
Low Chasis: Adaptable to varieties of roads. But also the more important aspect .
safety! The carring surface is lowed, the center of gravity of the goods is reduced, and the vehicle runs more smoothly, especially in the case of high-speed turning or emergency, the risk can be effectively avoided.
Multifunction: This trailer has three ways to place the container.
1. Place a 20-foot container in the middle.
2. Place two 20-foot containers from front to back.
3. Place a 40-foot container from front to back. Meet your a variety of containers, transport more goods requirements.
Specification parameters for 40FT 45T Container Flatbed Skeleton Trailer:
| Terms: | 3 Axles 20/40FT Container Chassis Skeleton/Skeletal Semi Truck Trailer |
Application: | Port/dock transportation |
| Materila: | Q345/T700 |
Dump Style: | Non-self tipping |
Loading Capacity: | 40-60T |
Axles: | 3 Axles 13 T FUWA/BPW or 1/2/4Axles optional |
Length*Width*Height: | 12400X2550X1370.1400.1430.1450.1470.1500.1550.1600mm |
| Main Beam: | Material: BS800 |
| The height 450/500/550mm Upper plate 6/8/10/12mm Lower plate 10/12/14mm Middle plate 4/5/6mm | |
OEM/ODM: | Available |
Tire: | 11.00R20 12PR OR 12R22.5 12PR |
Suspension: | Mechanical/Air suspension |
| Brake Valve: | 80 tons automatic brake valve |
| Leaf Spring: | -4/4/4, or -10/10/10 |
Support Leg: | 28T Tongyi (double speed) |
King Pin: | JOST 2''(50#)/3.5''(90*) changeable |
Tool Box: | Steel/aluminum |
| Above Information are Standard Spec. We could customize it according to your requirements. | |

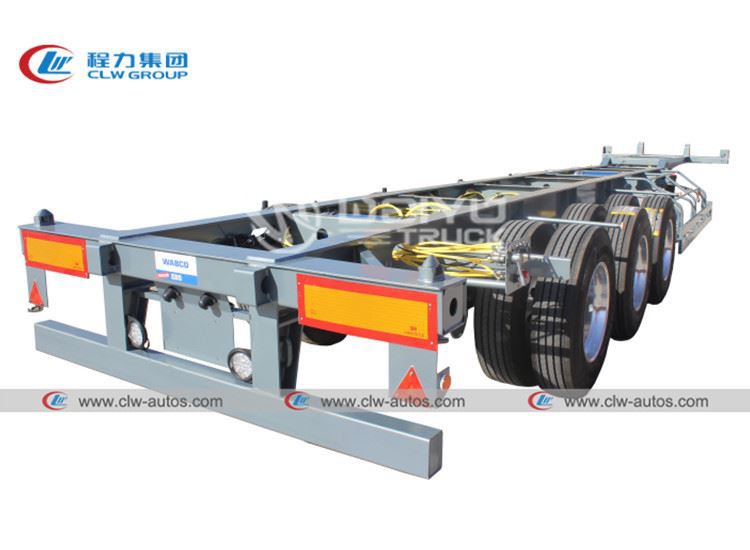

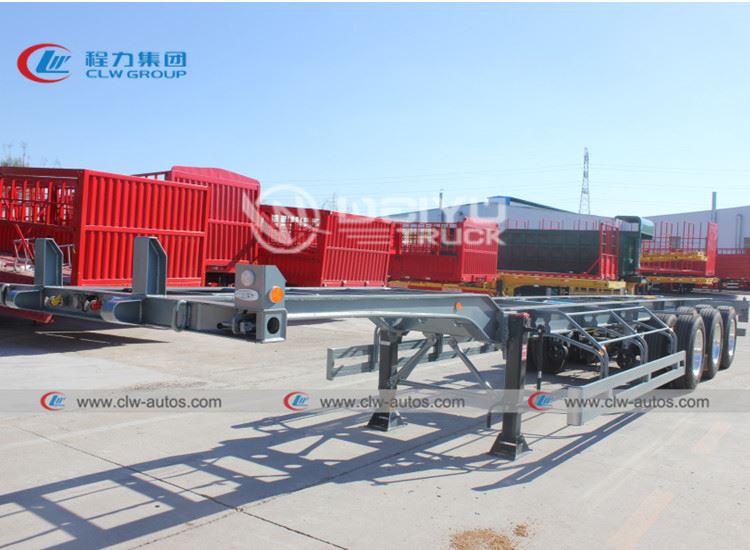

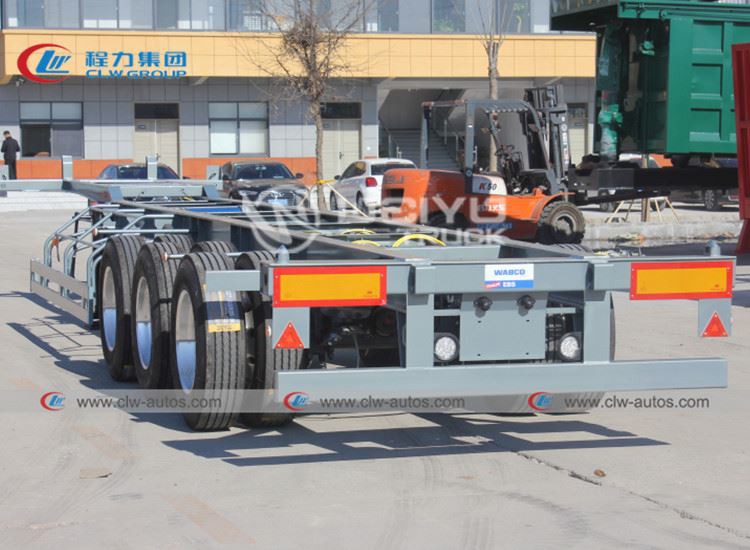

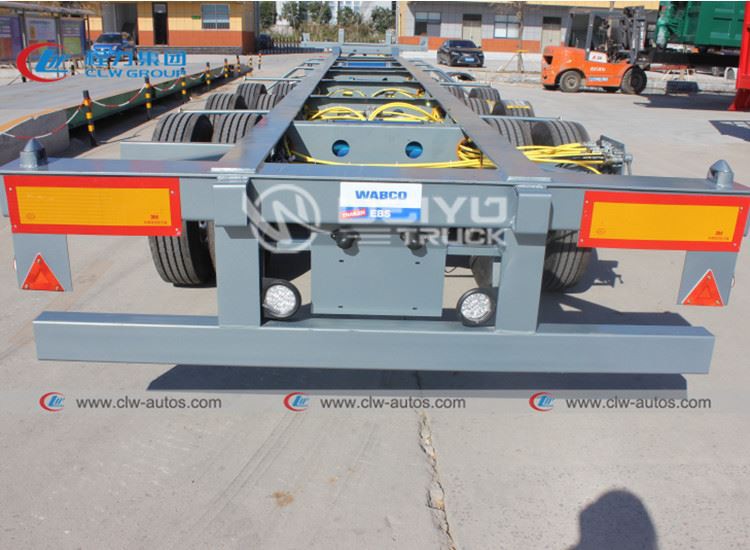

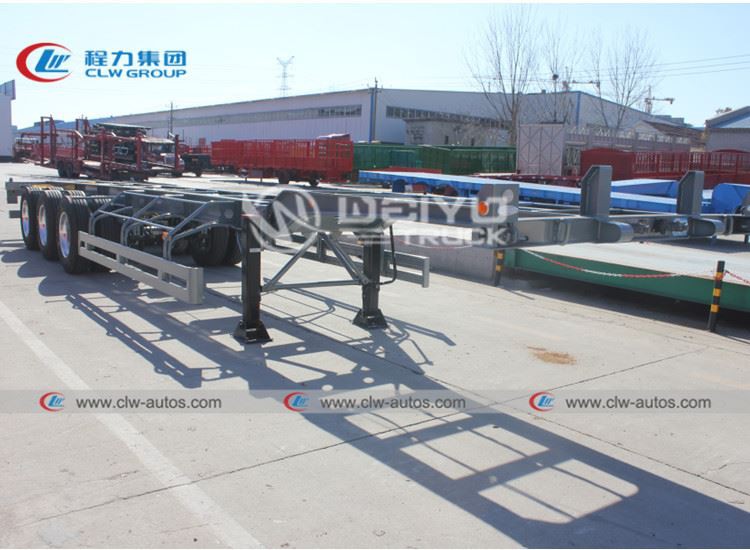

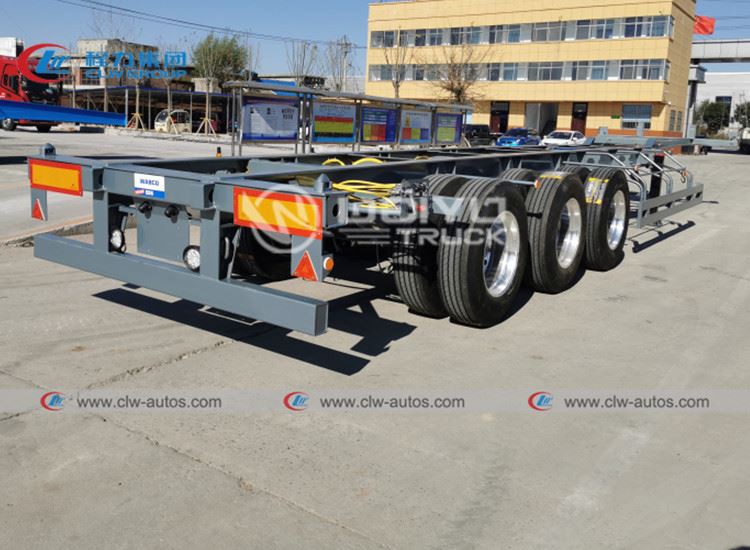

More pictures for 40FT 45T Container Flatbed Skeleton Trailer:
