Product Details
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 60m3 bulk feed truck trailer in China. If you're going to buy high quality 60m3 bulk feed truck trailer, welcome to get more information from our factory. For price consultation, contact us.
60m³ (30 Ton) Bulk Feed Semi Trailer – Heavy Duty 3‑Axle High Strength Steel Tanker with Electric Auger System
Export markets: Saudi Arabia, Senegal, Ghana, Bangladesh, Kenya, and other African & Asian regions 100% made in China
Products Description
- 60 cubic meter (approx. 30 metric tons) bulk feed semi trailer is designed for professional poultry/chicken/pig feed logistics.
- Built on a three‑axle high‑low design semi skeleton frame, the bulk feed tank uses high‑strength steel to ensure long life under heavy loads and harsh environments.
- The trailer is available in two independent discharge systems: electric (380V external power) or full hydraulic (PTO driven).
- With 5 internal compartments and 4 augers (two bottom horizontal, one rear vertical lifting, one top distributing auger of 9m reach), operators can control unloading sequence and speed for each compartment separately.
- The top auger hydraulically lifts and rotates 180° for precise positioning into storage silos or feed bins.
- Special attention has been given to high‑temperature, dusty, and rough road conditions common in the Middle East (Saudi Arabia) and Africa (Senegal, Ghana, Kenya) as well as high‑humidity regions like Bangladesh. The trailer features anti‑corrosion treatment, sealed electrical connections (for electric version), and reinforced suspension for unpaved roads.
Optional Part
- Generator set (diesel, mounted on the trailer chassis) for electric version.
- Backup hydraulic pump for hydraulic version (emergency manual / PTO bypass).
- Extended top auger (10m or 11m) available.
- Remote monitoring system (discharge rate, compartment status).
- Spare parts kit including extra auger sections, seals, and bearings.
Application of Bulk Feed Semi Trailer
- Poultry feed transport – from feed mills to broiler / layer farms (Saudi Arabia, Bangladesh).
- Swine feed delivery – pellets or mash with fast unloading.
- Dairy and beef cattle feed – TMR components, protein meals (Kenya, Senegal).
- Aquafeed – precise compartment control for different fish feed formulas.
- Grain by‑products – soybean meal, corn, DDGS, cottonseed meal.
- Compound feed distribution – for large integrators and cooperatives in Ghana and other West African countries.
Main Specification
| Parameter | Details |
|---|---|
| Model | CLW Bulk Feed Tanker |
| Volume | 60 m³ (approx. 30 tons feed) |
| Overall Dimensions (L×W×H) | 11600 × 2550 × 4000 mm |
| Tare Weight | 9,980 kg |
| Chassis Type | Three‑axle high‑low semi skeleton frame |
| Main Beam | Top plate 10mm / Bottom plate 10mm / Web 8mm |
| Kingpin | 90# |
| Landing Gear | 28 ton capacity |
| Axles | 3 axles, 13T Guangdong Fuqiao |
| Brake Shoes | 16 ton rating |
| Suspension | 8 leaf springs per axle |
| Tyres | Double Coin 12R22.5 |
| ABS | Equipped |
| Air Chambers | 4 large + 2 small |
| Additional Equipment | 1 toolbox, 1 spare tyre carrier |
| Tank Material | High‑strength steel |
| Number of Compartments | 5 (independent control) |
| Auger System | 2 horizontal bottom + 1 vertical rear + 1 top (9m) |
| Top Auger Rotation | 180° left/right, hydraulic lifting |
| Electric Option | 4 × 5.5kW motors, 380V external power, wireless remote, optional generator |
| Hydraulic Option | PTO-driven hydraulic pump & motors, full hydraulic, optional auxiliary system |
HOW MUCH IS A 60 CUBIC METERS BULK FEED TRUCK TRAILER?
CONTACT US BY EMAIL OR WHATSAPP TO GET A QUOTE.
--Shirley Fu
--Mobile:+86-135 4506 4324(whatsApp)--
--Email: shirley@clw-autos.com
Know More By Real Truck Video and Introduction
product Key Features
BULK FEED TRAILER
Large Payload & High Strength Steel Tank
Volume: 60 m³ (equivalent to ~30 tons of pelleted or mash feed, depending on density).
Tank material: High‑strength steel (yield strength ≥ 450 MPa) – thinner yet stronger than ordinary steel, reducing tare weight while increasing impact resistance.
Tare weight: 9,980 kg – excellent payload‑to‑tare ratio for maximum profit per trip.
5 Independent Compartments
- The tank is divided into 5 separate compartments, each with its own discharge gate.
- Independent control allows:Unloading different feed types (e.g., broiler starter vs. finisher) in one trip.
- Sequential unloading to avoid cross‑contamination.
- Flexible discharge speed per compartment.
4‑Auger High‑Efficiency Discharge System
- Two bottom horizontal augers – move feed from compartments to the vertical auger intake.

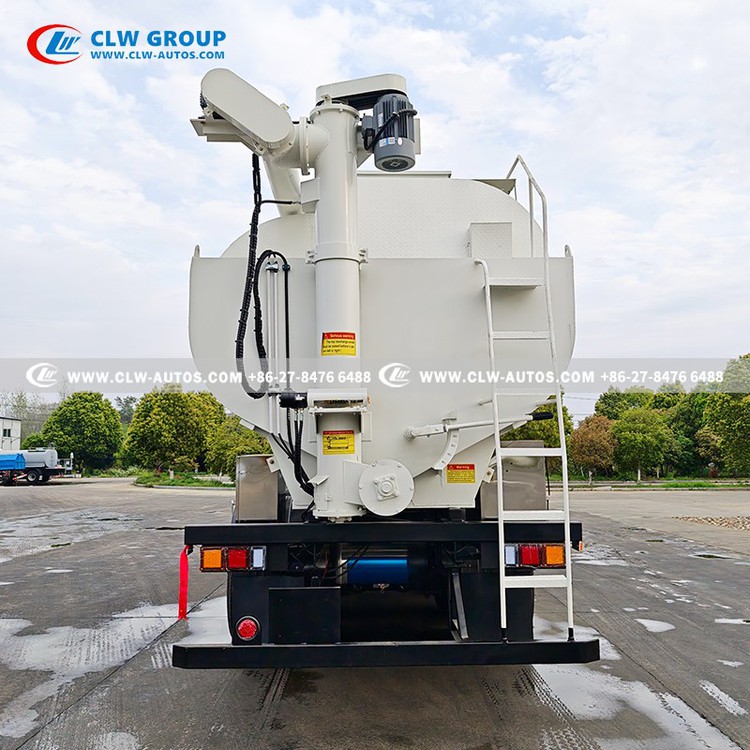

- One rear vertical lifting auger – elevates material to the top auger.
- One top distributing auger (9 meters total length) – hydraulically lifts and rotates 180° left/right, reaching high silo inlets.
- All augers are made of abrasion‑resistant steel, with sealed bearings to prevent dust ingress – essential for sandy environments (Saudi Arabia, Senegal).
Two Power Options for Discharge
A. Electric Version (External 380V Power)
- Powered by 4 independent 5.5 kW electric motors (380V / 50Hz, 3‑phase).
- Motors drive the augers via gearboxes – low maintenance, quiet operation.
- Wireless remote control for top auger rotation and lift – operator stands at safe distance.
- Hydraulic power unit for top auger lift & rotation (small electric‑driven hydraulic pump).

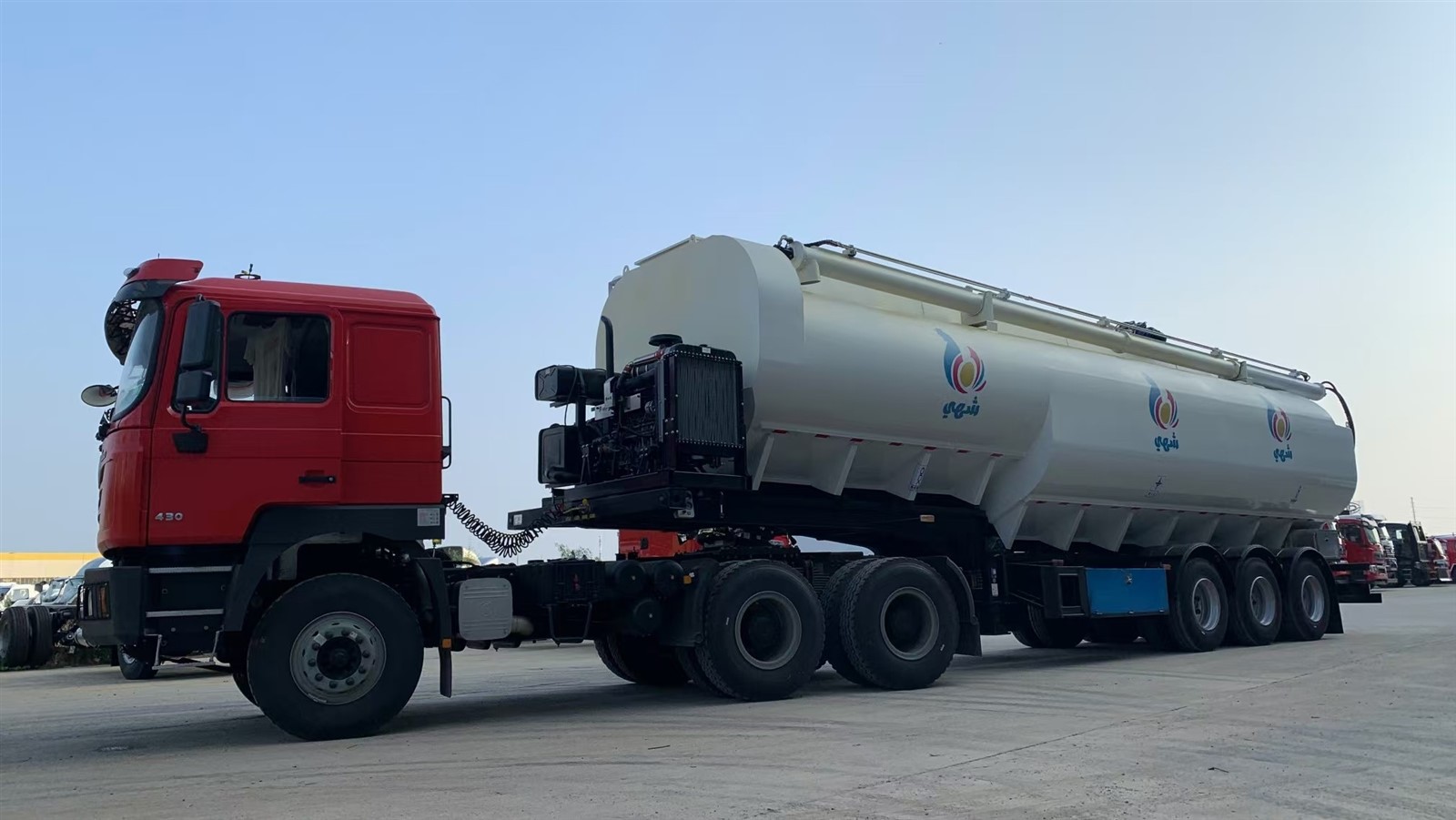

- Optional generator (mounted on trailer or separately) for sites without grid power.
- Ideal for fixed feed mills or farms with 380V supply.
B. Hydraulic Version (PTO Driven – Full Hydraulic)
- No external power needed – powered by the tractor's PTO (power take‑off).
- System includes: gearbox → PTO → hydraulic pump → hydraulic motors on each auger.
- Full hydraulic discharge – all four augers driven by hydraulic motors.
- Top auger lift & rotation also hydraulic – integrated system.
- Suitable for remote farms (Bangladesh, African rural areas) where electricity is unreliable.
- Optional auxiliary hydraulic system (reserve pump) available for redundancy.
Heavy‑Duty Chassis & Running Gear – Built for Rough Terrain
- Main frame beams: top plate 10mm, bottom plate 10mm, web plate 8mm – strong triple‑web design.
- Kingpin: 90# high tensile steel.
- Landing gear: 28‑ton capacity, double speed.
- Axles: 3 axles, 13‑ton capacity each (Guangdong Fuqiao brand) – proven reliability in Africa and Asia.
- Brake system: 16‑ton rated brake shoes, 4 large + 2 small air chambers, full ABS (anti‑lock braking system) – compliant with international standards.
- Suspension: 8 leaf springs per axle – robust for unpaved roads (common in Ghana, Kenya, Senegal).
- Tires: Double Coin 12R22.5 (steel radial) – high load capacity, heat resistant for desert climates.
- Additional equipment: 1 toolbox, 1 spare tyre carrier.
Detailed Pictures

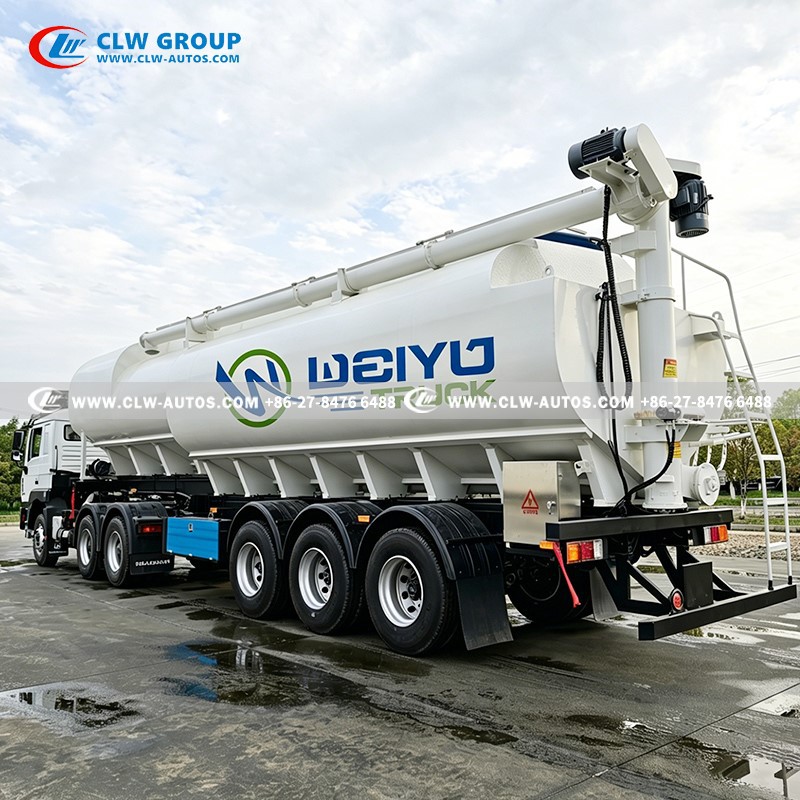

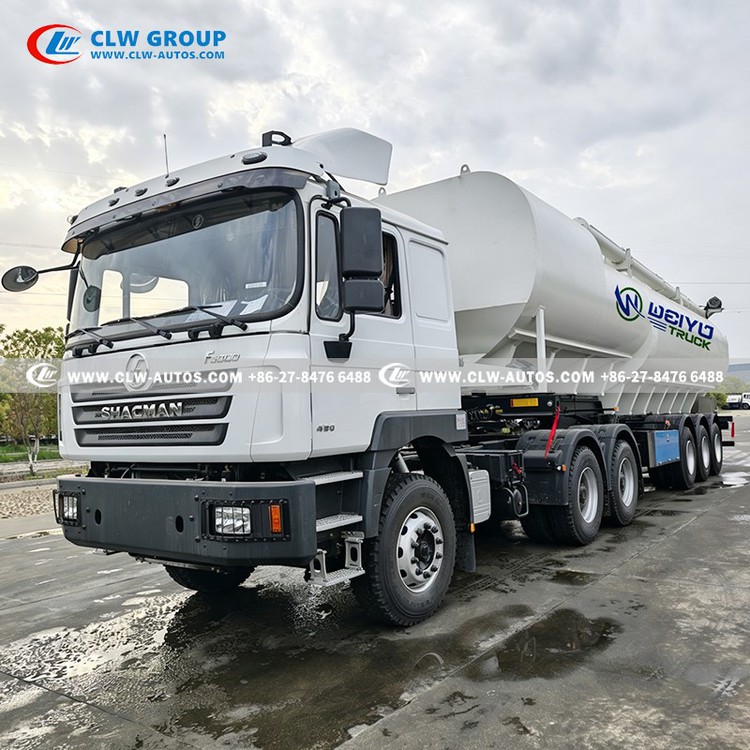

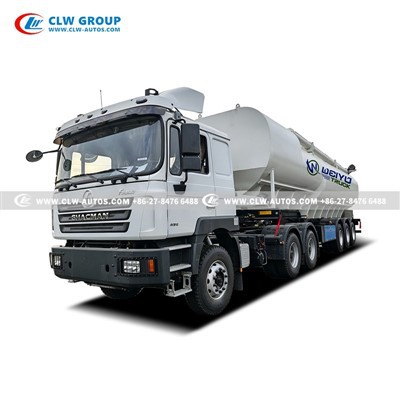

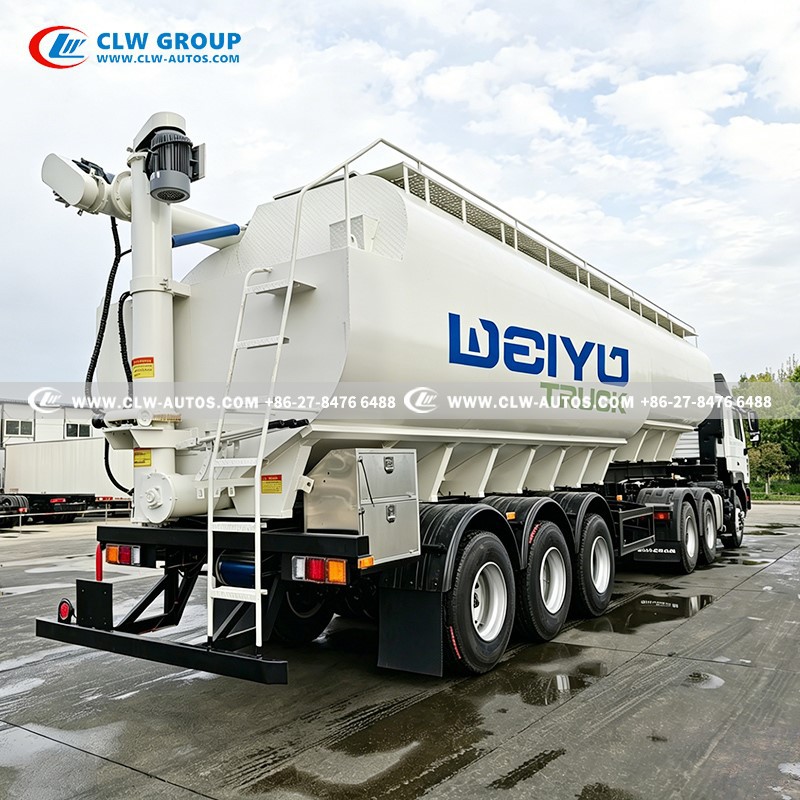

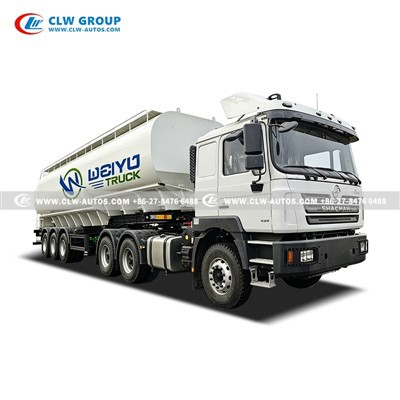

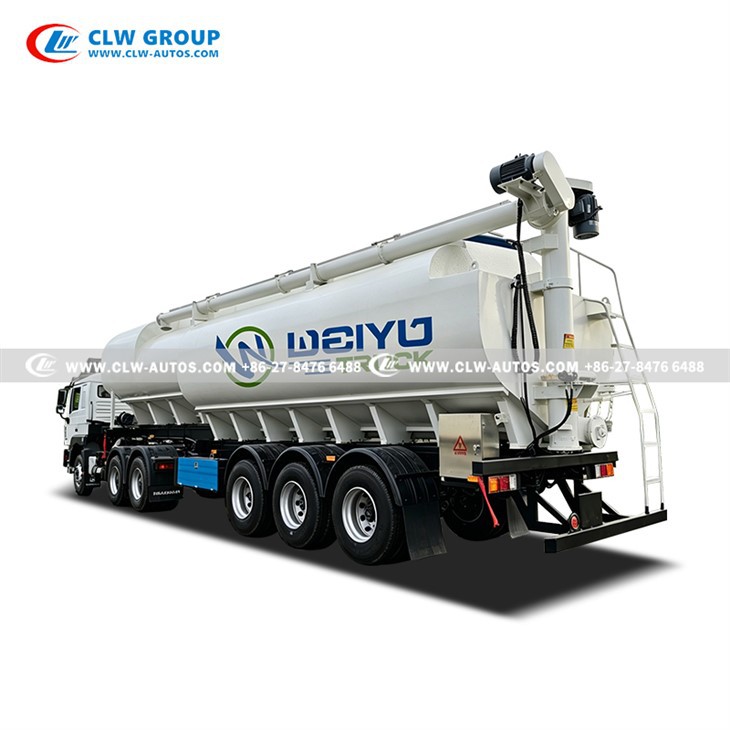

--60m3 bulk feed semi trailer with shacman F3000 6x4 truck head 430HP

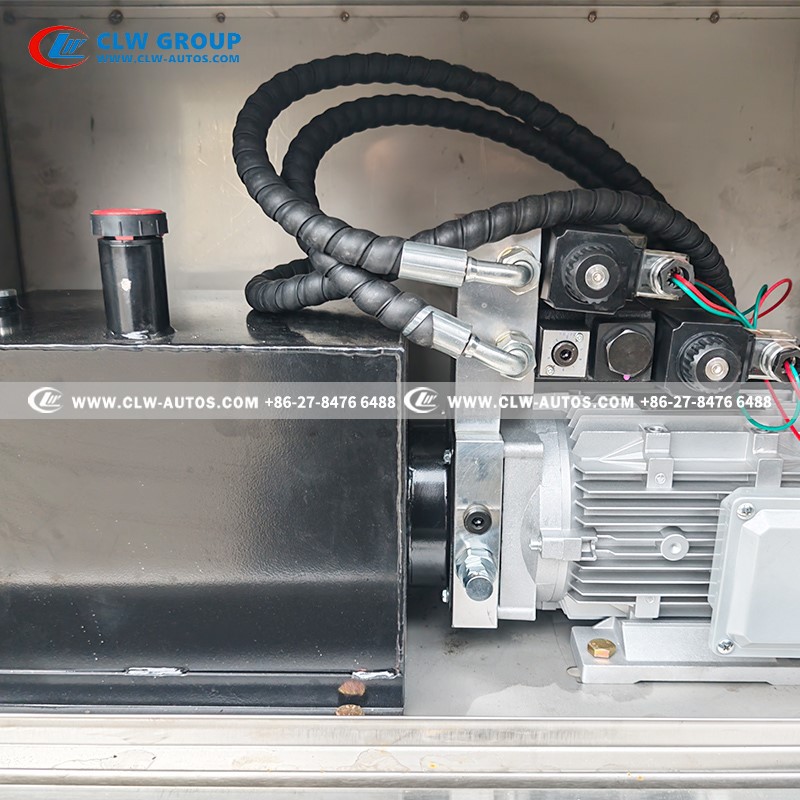

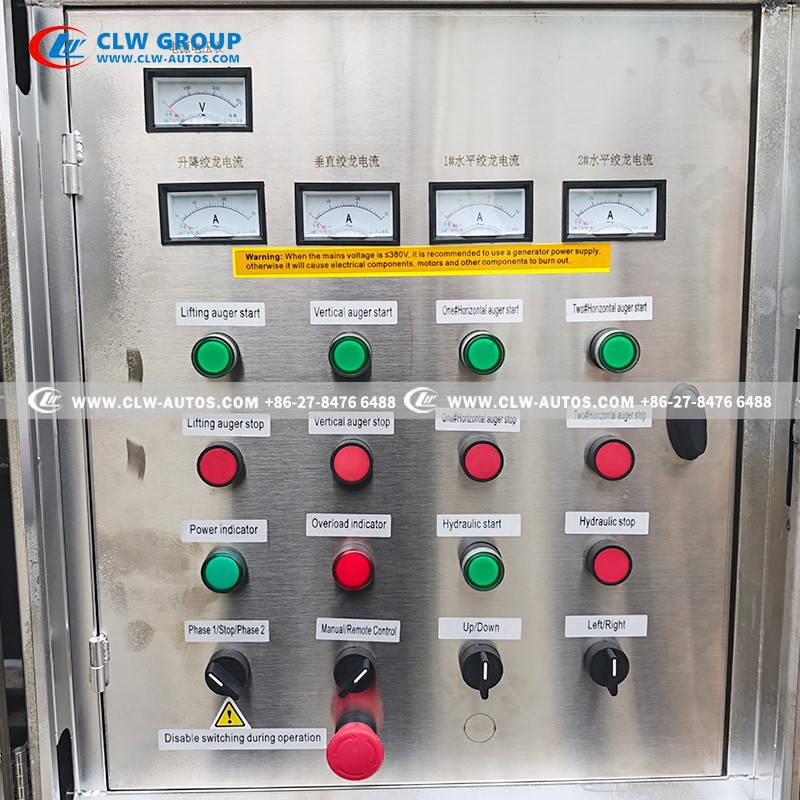

-- control system of bulk feed truck trailer 30tons
Customization & After‑Sales
- Export packaging: Standard shipping with wax coating or shrink wrap for sea freight.
- Documents: Commercial invoice, packing list, bill of lading, certificate of origin, chassis VIN, testing report.
- Spare parts: We recommend a minimum spare parts kit (auger sections, seals, bearings, air chambers) for long‑term operation.
- Warranty: 12 months for structural defects; wear parts excluded.
Contact us for Quotation, Drawings & Video
To receive the full specification PDF, CAD drawing, and real operation video, please send your inquiry with your required discharge system (electric 380V or hydraulic PTO) and any optional items (generator, backup pump, extended auger).
For customers in Saudi Arabia, Senegal, Ghana, Bangladesh, Kenya: We offer port‑side delivery (CIF to Jeddah, Dakar, Tema, Chittagong, Mombasa) and technical support via local partners.
