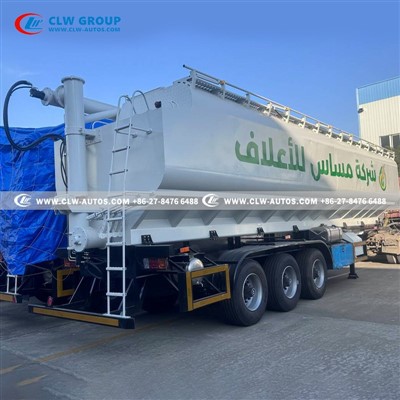

3-Axles Bulk Feed Semi-trailer
Volume Capacity:60,000litrs
Tank Dimension:13750*2550*4000mm
5/6 Partition
Gross weight:40,000kg
3 axles:13 tons L1 brand
Suspension:16 tons FUWA air suspension
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 3-axles bulk feed semi-trailer in China. If you're going to buy high quality 3-axles bulk feed semi-trailer, welcome to get more information from our factory. For price consultation, contact us.

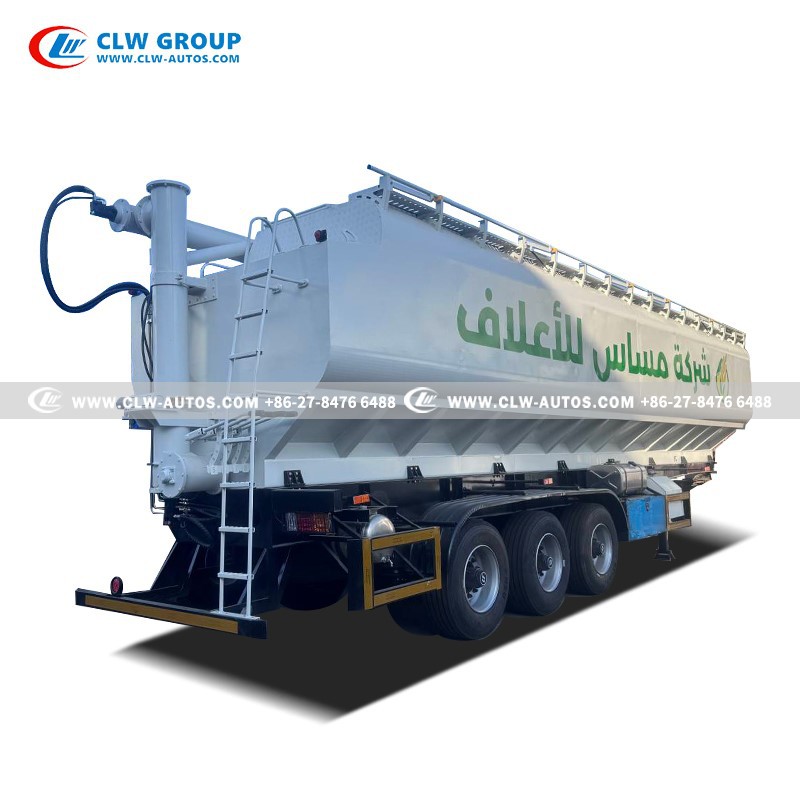

3-Axle Bulk Feed Semi-Trailer with Liftable Air Suspension to Saudi Arabia
Smart Design for Maximum Payload & Efficiency
Products Description
- In the competitive world of agricultural logistics, every kilogram and every liter of fuel counts. We are proud to introduce our innovative 3-Axle Bulk Feed Semi-Trailer, engineered with a game-changing single-axle air suspension system. This trailer redefines efficiency by masterfully balancing robust load capacity with intelligent weight management. Designed for high-volume transport from feed mills to farms, it addresses the core challenges of modern transporters: maximizing legal payload and minimizing operational costs. Whether navigating strict national weight regulations or long-haul routes, this trailer delivers tangible economic advantages from the first mile to the last.
- Introducing the Ultimate Solution for Modern Farm Feed Logistics: Our 60-Cubic-Meter, 6-Compartment Bulk Feed Semi-Trailer is engineered for maximum efficiency, flexibility, and reliability in delivering vital nutrition to livestock operations.
- Bulk feed trucks/semi-trailers are mainly used to transport feedstuff finished products or feed raw materials like soy bean meal from feed mills to livestock farms, poultry farms and feed processing users, and at the same time it is also available to transport some of the non-corrosive powder and granular materials, such as liquor-making materials, pharmaceutical raw material powsers as well as grain.
- This heavy-duty tri-axle bulk feed semi-trailer boasts a significant 60 cubic meter capacity, intelligently divided into six independent compartments. Constructed from high-strength, corrosion-resistant steel, it features a robust pneumatic conveying system powered by an onboard air compressor and blower. Designed for smooth over-the-road travel and precise on-farm discharge, it ensures feed arrives fresh, uncontaminated, and ready for consumption.
Core components
How it works
Filling: The trailer is positioned under a feed mill's bulk load-out spout. Each compartment is filled sequentially with the designated feed type via gravity or pressure.
Discharge:
The driver selects the desired compartment using internal valves.
Compressed air is introduced into the compartment's discharge cone/auger system, fluidizing the feed.
The fluidized feed is conveyed pneumatically through the discharge hose into the farm's storage bin.
The process repeats for each compartment as needed.
Completion and Clean-Out: Once discharged, residual air clears the hose. Compartments can be inspected and cleaned as necessary before the next load.
Key Features and Unmatched Advantages

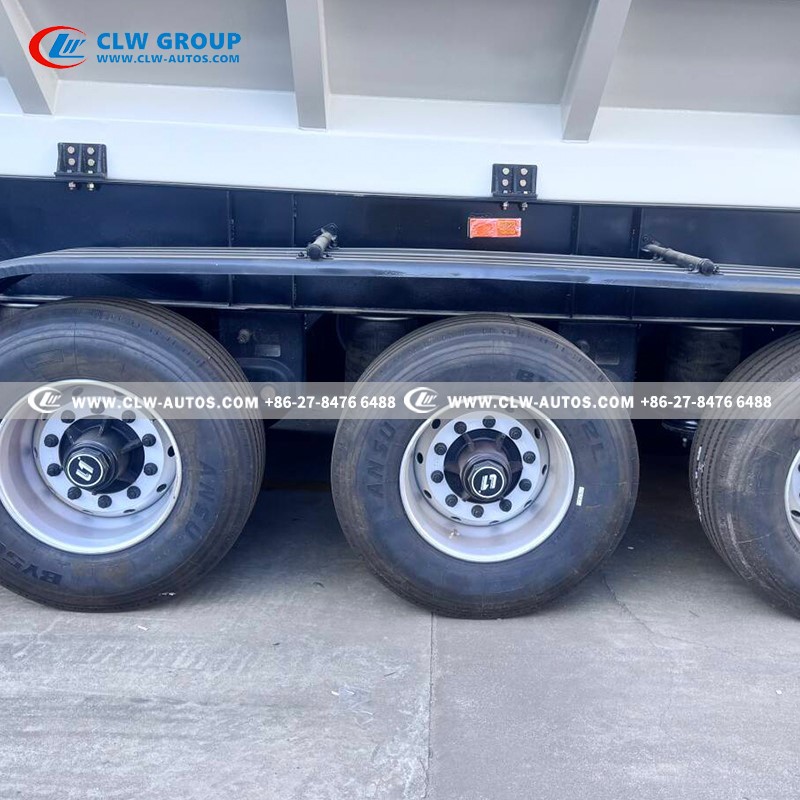

This is the heart of our innovation. The dedicated liftable air suspension axle provides a dual strategic advantage:
Maximizes Payload: By utilizing lighter air suspension components on one axle, the trailer's overall tare weight is reduced. This crucial saving translates directly into increased legal payload capacity, allowing you to transport more feed per trip in regions with stringent weight regulations.
Reduces Running Costs: When the trailer is empty or lightly loaded, this air suspension axle can be fully raised off the road. This decreases rolling resistance and tire wear, leading to significant fuel savings and reduced maintenance costs on return journeys.

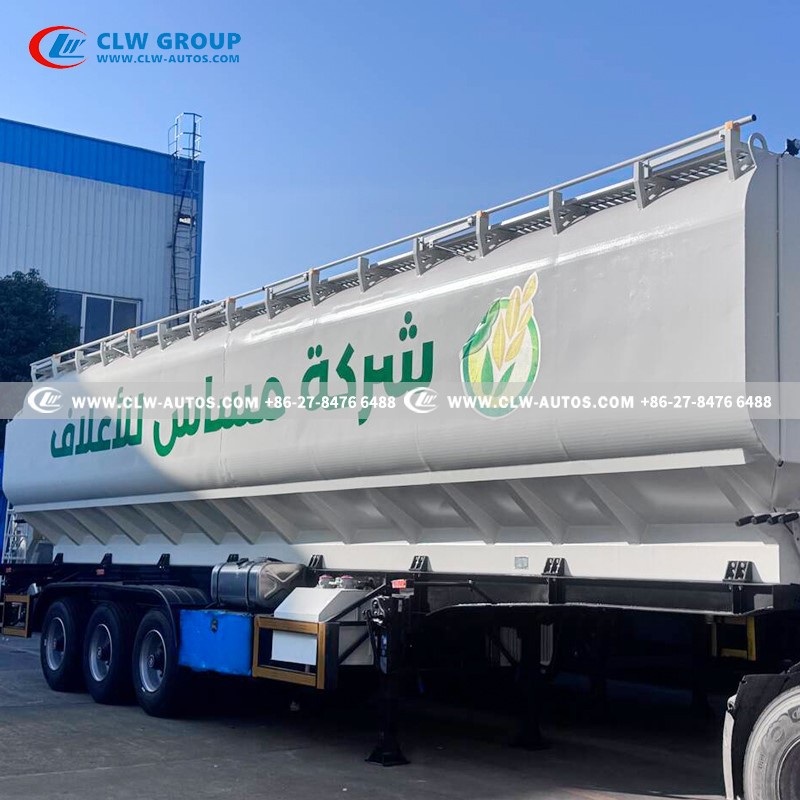

The trailer features a large-volume, cylindrical hopper tank constructed from high-strength, corrosion-resistant steel. The interior is smooth and treated with food-grade coatings to ensure feed hygiene and prevent residue buildup. The tank can be customized with multiple internal compartments (2, 3, or 4 compartments) to allow for the simultaneous, uncontaminated transport of different feed types or raw materials in a single trip, offering unparalleled flexibility.
Powered by the tractor's PTO, a robust hydraulic system drives the discharge mechanism. It operates twin horizontal and vertical augers (discharge screws) that run the length of the compartments. This system ensures a consistent, powerful, and rapid unloading rate (e.g., up to X tons per hour), reaching heights sufficient for filling silos. The roof-mounted swivel discharge auger can rotate 360 degrees and be elevated for precise, dust-minimized delivery.
Integrated ladder and safety walkways provide secure access to the top fill hatches.
Electronic weighing system options offer onboard load monitoring.
High-visibility lighting and reflective markings ensure road safety.
Primary Applications
Transporting bulk feed from production facilities to
- Large Feed Mills: Transporting finished feed to integrated livestock, poultry, or fish farms.
- Agricultural Cooperatives: Serving multiple member farms with different feed requirements.
- Contract Haulers: Operating in countries with strict axle load laws, where maximizing payload per trip is critical to profitability.
- Raw Material Transport: Also suitable for hauling non-corrosive granular materials like grain or soybean meal between processing facilities.
- Secondary use for non-corrosive granular/powdered materials (e.g., pharmaceutical ingredients)
- Large-Scale Poultry & Livestock Farms – Delivers feed directly to chicken houses, pig farms, or cattle feedlots.
- Feed Mills & Distributors – Efficient bulk transport to customers.
- Aquaculture Farms – Safe, contamination-free feed delivery for fish/shrimp farming.
- Cooperative Farming Hubs – Reduces manual handling and ensures consistent supply.
Industry Significance
Bulk feed trucks are essential infrastructure in modern agriculture, enabling cost-effective, hygienic, and efficient material transport from production facilities to end-users.
Products Specification
|
Technical specification |
|
|
Product |
60,000liters bulk feed transportation semi-trailer |
|
Capacity |
60cbm/ 60,000litres |
|
Loading medium |
Bulk feed, grain,powder,bran, plastic particle,etc |
|
Dimensions |
13750*2550*4000mm |
|
Wheelbase |
7080+1310+1310mm |
|
Gross vehicle weight |
40,000kg |
|
Rated loading weight |
27,290kg |
|
Curb weight |
12,710kg |
|
Tyre |
11R22.5 14PR |
|
Axle number |
Three axle |
|
Axel loading weight |
13tons FUWA axle per one, 16ton brake pad |
|
Suspension |
16 ton L1 air suspension |
|
Lifting leg |
28tons JOST lifting leg |
|
Tractor |
50# JOST traction pin |
|
Tool box |
2 pcs |
|
Tank body thickness |
4mm, high-quality titanium steel plate |
|
Partition |
Optional 6 compartments for different kinds of feed |
|
Average discahrge rate |
400~500kg/m |
|
Discharge system rotation angle |
±180 degree |
|
system elevation angle |
60° |
|
Discahrge type |
electric screw; optional for hydraulic screw |
|
Discharging parts |
3 augers, 1 unit horizontal auger, 1 unit vertical auger, 1 unit lifting auger |
|
Transmission distance |
maximum horizontal distance: 6.1m; vertical distance:8m |
|
Residual rate |
≤0.10 |
|
Painting and logo |
As customer's request |
Factory Real Shot Video for You
Gentle and Efficient Discharge: The pneumatic system uses air pressure to fluidize and gently convey feed directly into farm storage bins at controlled rates, minimizing dust and feed degradation.
Durability and Low Maintenance: Heavy-duty construction, quality components (axles, suspension, steel), and corrosion protection ensure a long operational lifespan and reduced downtime.
Access Ladders and Walkways: Secure access for inspection and maintenance.
Dust Control: Minimizes airborne particles during discharge.
Fully Automated Auger System – Includes vertical auger, horizontal auger, and lifting mechanism for flexible feed discharge.
Adjustable Conveyor Reach – Horizontal auger extends up to 12m, allowing feed delivery directly into silos or troughs.
Dust-Free & Weatherproof – Sealed system prevents contamination and moisture damage.
Easy Operation & Low Maintenance – Hydraulic controls, quick-clean access ports, and wear-resistant screw flights.
Loading – The trailer is positioned under a feed mill's bulk load-out spout. Each compartment is filled sequentially with the designated feed type via gravity or pressure.
Completion and Clean-Out: Once discharged, residual air clears the hose. Compartments can be inspected and cleaned as necessary before the next load.
