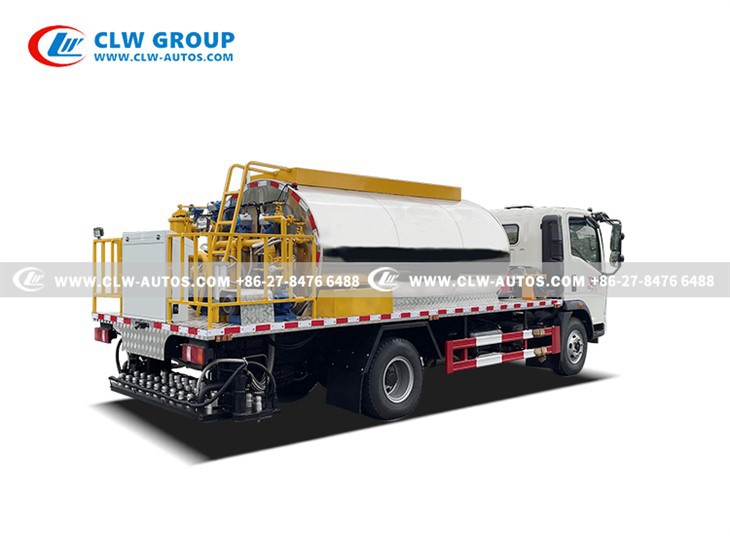

Sinotruk HOWO 6m3 Binder Spreader

Name: China Sinotruk HOWO 6m3 Binder Spreader Manufacturers, Suppliers, Factory - Good Price - Chengli
Brand: CLW GROUP
SKU: 266670095

Sinotruk HOWO 4x2 Chassis
Engine: Cummins 115 kW / 154 HP
GVW: 10 Tons
Asphalt Tank Capacity: 6m³

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk howo 6m3 binder spreader in China. If you're going to buy high quality sinotruk howo 6m3 binder spreader, welcome to get more information from our factory. For price consultation, contact us.

Sinotruk HOWO 6m3 Binder Spreader

Products Description

The Intelligent Bitumen Sprayer (also known as a Bitumen Distributor Truck, Asphalt Sprayer Truck, or Bitumen Sprayer Machine) is a professional road construction vehicle designed for high-precision and efficient asphalt spraying.

Equipped with a German Infineon intelligent control system and full-pipeline heating technology, it ensures uniform spray volume at variable speeds. Suitable for all types of bitumen, including emulsified asphalt, hot bitumen, and modified bitumen, this machine is ideal for highway construction, municipal roadworks, and large-scale infrastructure projects in South Asia, the Middle East, and Africa.

Built on a Sinotruk HOWO chassis with strong mobility, our Intelligent Bitumen Sprayer offers high durability, flexible operation, and high spraying efficiency performance. It is the perfect solution for contractors seeking reliable road construction bitumen sprayers with advanced smart functions.

Key Features

Smart control, accurate spraying, speed-independent.

Full pipeline heating, supports all asphalt types.

34 nozzles, individually controlled, flexible spraying.

Eco-friendly design, safety-enhanced system included.
Compact size, ideal for urban narrow roads.

Products Video

Products Parameter

Chassis Model	Sinotruk HOWO 4x2 154HP
Overall Dimensions	mm	738023502750 mm
Wheelbase		3800 mm
Tank Capacity	m³	6m³
Curb Weight	kg	6,370 kg
Gross Vehicle Weight (GVW)		10,000 kg
Engine	Power	115 kW / 154 HP
	Displacement	3,760 mL
	Max Torque	500 N.m
Max speed	km/h	90 km/h
Tire specification	8.25R16 6 tires with 1 spare
Steering Position	LHD / RHD
Transmission	6 Speed Manual
Color	Customized
Equipment
Tanker Interior		Carbon steel
Insulation Material		50 mm rock wool insulation
Tank Exterior		1 mm stainless steel
Bitumen Pump		QGB680, Flow Rate: 680 L/min
Proportional Valve		CL-BLTS120.00
Control System		PLC Control
Asphalt Nozzles		34 pcs
Burner		Riello G20 (Italy), 200,000 kcal/h each
Thermal Oil Pump		RY40-25-160, from a well-known Chinese brand
Spray Width		4.5 m
Asphalt Spraying Rate		0.25 to 3 L/m²
Spraying Medium		Hot & emulsified asphalt (including SBS and rubber-modified types)
Optimum Construction Speed		3-6 km/h
Speed Sensor		GTS211B-N016
Temperature Controller		WZP-230

Products Show

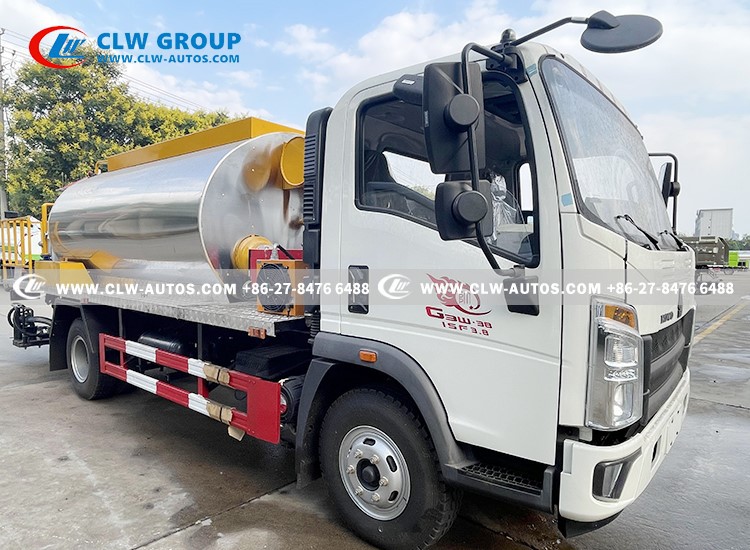

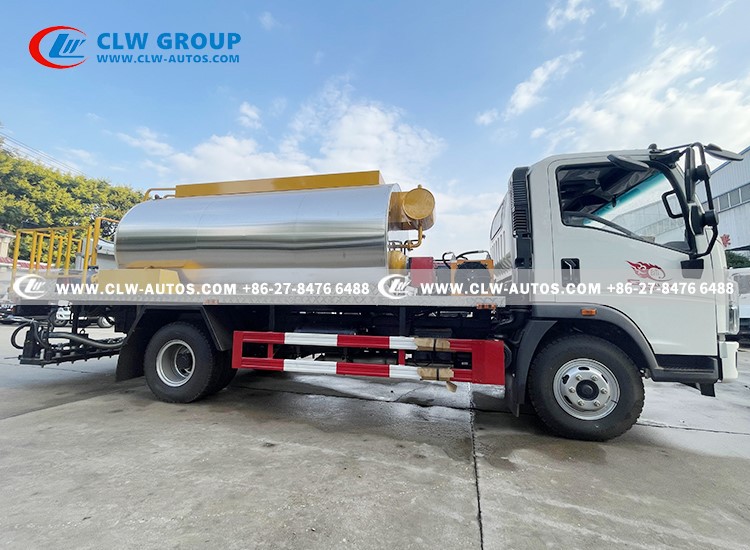

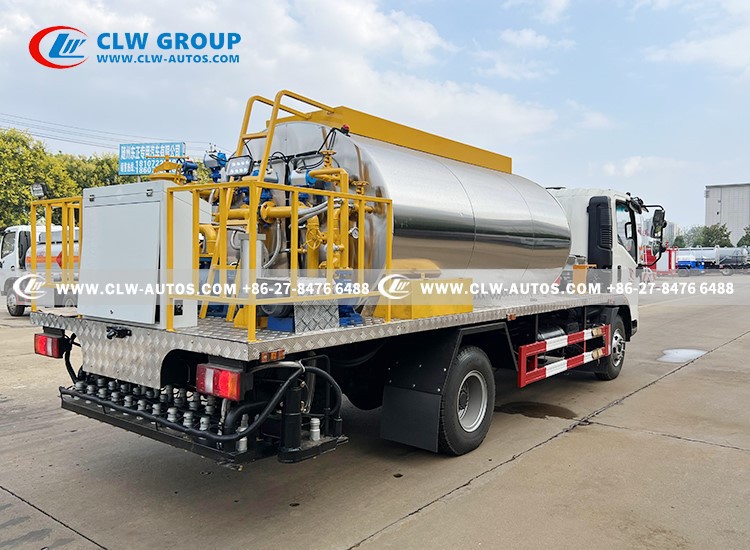

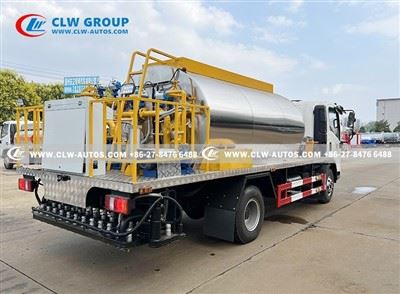

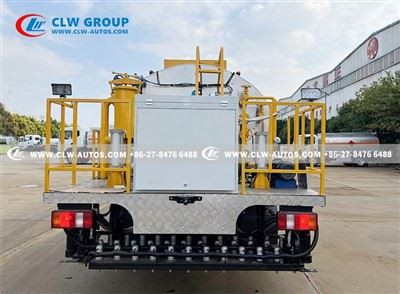

Sinotruk HOWO 4x2 6m3 Bitumen Distributor

product-750-550

Detail Photos

Generator

PLC Control

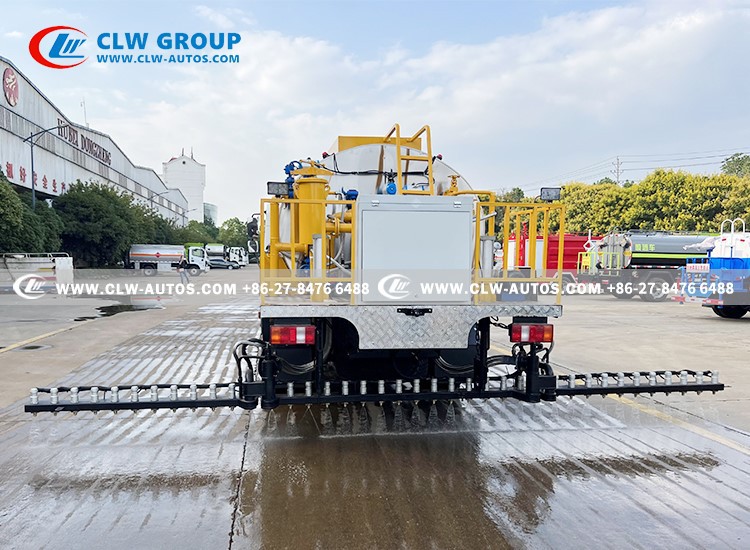

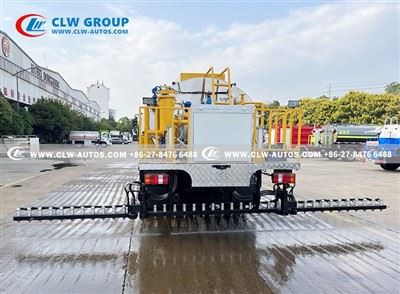

Nozzles

Batch Delivery

Meters
