28tons Folding Boom Crane Truck
SHACMAN Chassis Brand
28Tons XCMG Folding Boom Crane
Wheelbase:2100+4575+1400mm
8X4 Left Hand Drive Model
Engine:WEICHAI Brand, 380Horsepower
Cargo Material Thickness: Side 3mm, Bottom 5mm
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 28tons folding boom crane truck in China. If you're going to buy high quality 28tons folding boom crane truck, welcome to get more information from our factory. For price consultation, contact us.

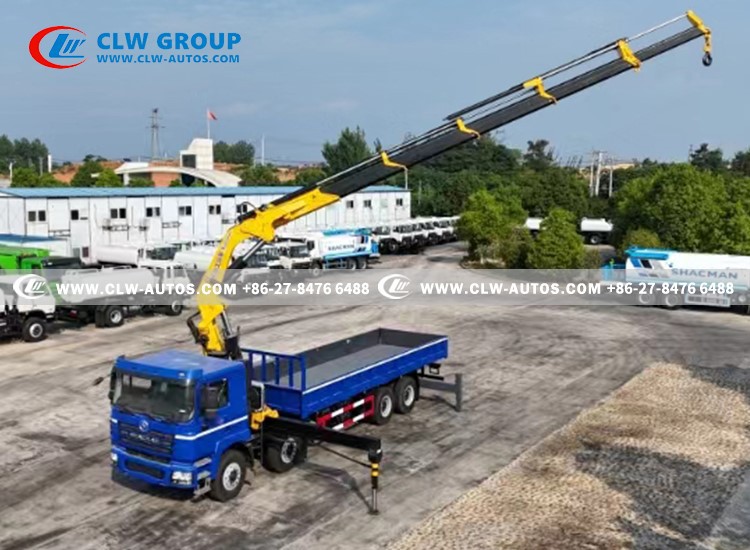

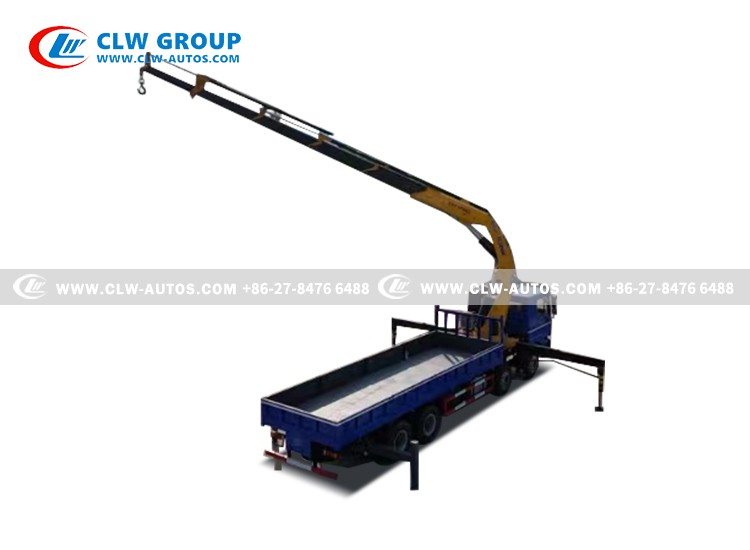

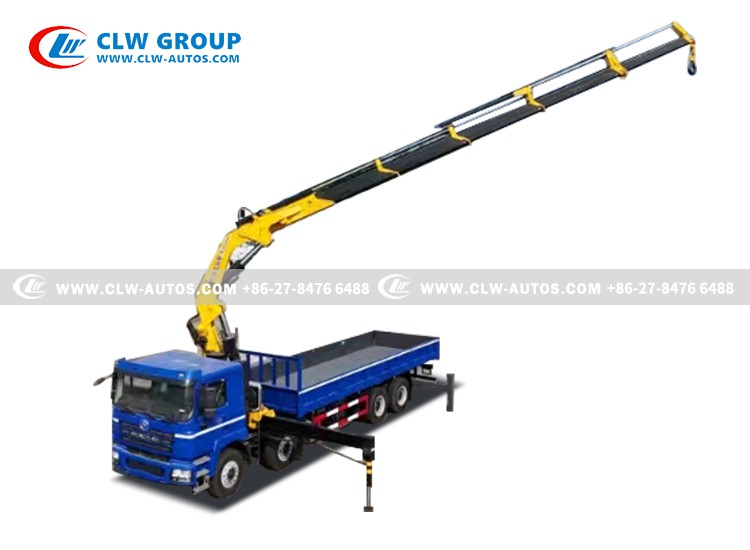

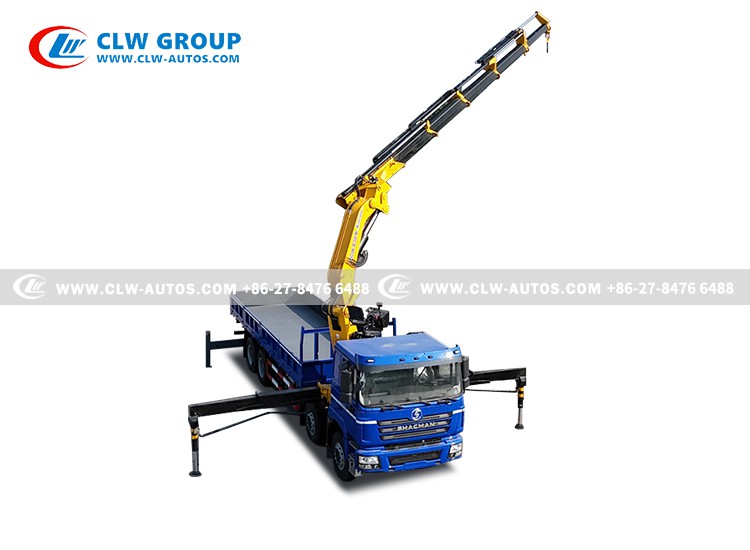

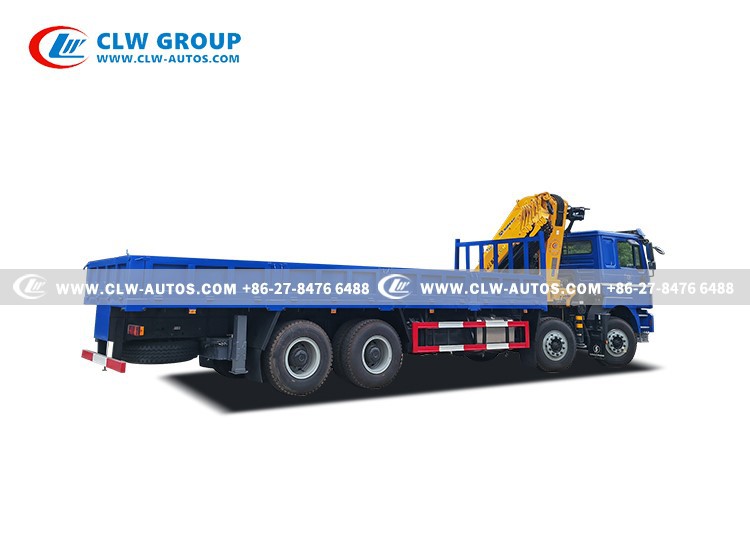

8X4 SHACMAN XCMG 28Tons Folding Boom Crane Truck
Products Description
The Shacman 28-Ton Truck Mounted Crane is a robust 8x4 chassis integrated with XCMG's industry-leading 28,000kg knuckle boom crane, engineered for maximum lifting efficiency and off-road versatility. Powered by a reliable Weichai 380HP engine and built with a reinforced Q235 carbon steel cargo bed (3mm sides / 5mm floor), this all-in-one heavy hauler delivers exceptional performance in construction, logistics, and industrial lifting operations.
High Efficiency: 8x4 chassis + 28T crane enables single-vehicle load-and-lift operations.
Durability: Reinforced Q235 steel bed withstands heavy-impact loads.
Mobility: Optimized wheelbase (2100+4575+1400mm) ensures stability on rough terrain.
Cost-Effective: Eliminates need for separate crane + transport vehicles.
Versatility: XCMG knuckle boom reaches confined spaces with 360° rotation.
Core Applications
Main Scenario
Construction Sites: Material handling in confined or uneven terrain.
Utility Maintenance: Pole installation, cable handling, and equipment lifting.
Remote Logistics: Off-grid cargo transport + self-loading capability.
Disaster Relief: Rapid deployment in flooded/muddy conditions.
Industrial Yards: Machinery relocation and container loading/unloading.
Logistics Hubs: Container loading, machinery relocation
Energy Sector: Wind turbine components, transformer transport
Emergency Services: Disaster recovery operations
Key Features
Power and Drivetrain
- Weichai WP10/WP12 380HP Diesel Engine (Euro Ⅱ emission standard)
- 300L Fuel Tank for extended operation range
- 8x4 Drive Configuration with off-road capability
Chassis and Axles
- Wheelbase: 2100+4575+1400mm (Optimized weight distribution)
- Front Axle: 9.5T | Rear Axle: 16T (High-load capacity)
- Tires: 12.00R20 Heavy-Duty Reinforced
Crane System
- XCMG 28T Knuckle Boom Crane
- Max Lifting Capacity: 28,000kg
- Foldable boom design for compact transport and versatile positioning
Cargo Body
- Material: Q235 Carbon Steel
- Thickness: 3mm (Side Walls) / 5mm (Bottom)
- Anti-corrosion treatment and reinforced corners
Products Specification
|
Chassis technical specification |
||
|
Chassis brand |
SHACMAN F3000 |
|
|
Driving mode |
8X4 |
|
|
Wheelbase |
2100+4575+1400mm |
|
|
Cabin |
Left hand driving; 2~3passengers; With one sleeper. |
|
|
Engine |
Engine brand |
WEICHAI, WP10.380E22, 6 cylinders |
|
Fuel type |
Diesel |
|
|
Horsepower |
380hp |
|
|
Displacement |
12L |
|
|
Emission standard |
Euro Ⅱ |
|
|
Transmission |
FAST 10JSD180, Manuel, 10 forward gears and 2 reverse |
|
|
Front axle |
9,500kg |
|
|
Rear axle |
16,000kg |
|
|
Tyre |
12.00R20, 12 pieces with one spare |
|
|
Fuel tank |
300L |
|
|
Cargo box |
||
|
Dimension |
8000*2450*600mm |
|
|
Material |
Q235 carbon steel |
|
|
Material thickness |
Side 3mm, bottom 5mm |
|
|
Crane |
||
|
Brand |
XCMG |
|
|

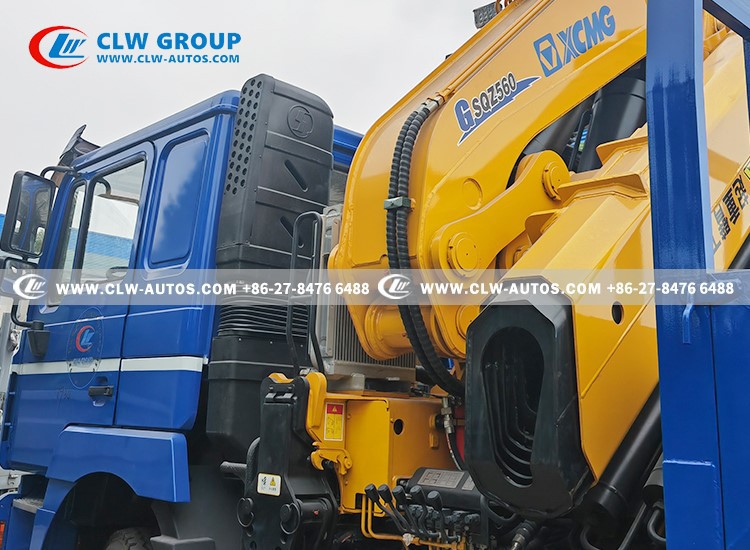

Boom crane model |
GSQZ560 |
|
|
Boom type |
Folding arm |
|
|
Max. Lifting moment |
490 KN.m |
|
|
Max. Lifting weight |
28,000kg |
|
|
Max. Hydraulic outreach |
20.8m |
|
|
Lifting capacity |
28,000kg/1.75m; 20,000kg/2.50m; 10,500kg/4.79m; 5,400kg/8.38m; 3,440kg/12.21m; 2,340kg/16.38m; 1,750kg/20.80m. |
|
|
Slewing angle |
360°continuous |
|
|
Stabilizer spread |
8216mm |
|
|
Max.operatingl pressure |
32MPa |
|
|
Recommended pump capacity |
80L/min |
|
|
Oil tank capacity |
300L |
|
|
Crane dead weight |
7,350kg |
|
Factory Real Shot Video for You
Optional Products Reference Pictures
Crane Truck with LOG Grapple Attachment
Crane Truck with Brick Clamp Attachment
Crane Truck with Drilling Rig Attachment Crane Truck with Personnel Basket
