4X4 3.2tons Folding Crane Truck

SINOTRUK HOWO Chassis Brand
302tons XCMG Folding Crane
Wheelbase:3300mm
Right Hand Drive Model
Engine:YUNNEI, 116 Horsepower
Cargo Material Thickness: Side 2mm, Bottom 3mm

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 4x4 3.2tons folding crane truck in China. If you're going to buy high quality 4x4 3.2tons folding crane truck, welcome to get more information from our factory. For price consultation, contact us.

SINOTRUK HOWO 4x4 RHD XCMG 3.2Tons Folding Crane Truck

Products Description

Engineered for extreme environments and specialized operations, the Sinotruk HOWO 4X4 chassis paired with XCMG's 3.2-ton folding boom crane delivers unmatched flexibility and power. Designed with right-hand drive for global markets, this robust workhorse combines off-road capability with precision lifting, making it ideal for logistics, construction, utilities, and remote project support.

Chassis: Sinotruk HOWO 4X4 (RHD), 3300mm wheelbase
Engine: Yunnei Diesel 116 HP, Euro II emission standard
Load Capacity: Front axle 2 tons / Rear axle 3.5 tons
Crane: XCMG 3.2-ton 3-section folding boom crane; max outreach 7.3m
Tires: 7.00R16 all-terrain
Fuel Tank: 80L capacity
Cargo Body: Q235 carbon steel, customizable side & floor thickness

Core Applications

Main Scenario

Construction Sites: Material handling in confined or uneven terrain.

Utility Maintenance: Pole installation, cable handling, and equipment lifting.

Remote Logistics: Off-grid cargo transport + self-loading capability.

Disaster Relief: Rapid deployment in flooded/muddy conditions.

Industrial Yards: Machinery relocation and container loading/unloading.

competitive advantage

Uncompromising Mobility

True 4X4 Traction: Conquers mud, sand, and steep grades where 4X2 trucks fail.
High Ground Clearance: Optimized for off-road stability with 7.00R16 tires.
Right-Hand Drive (RHD): Streamlines operations in RHD-dominant regions (ASEAN, Africa, Oceania).

Intelligent Crane Integration

XCMG 3-Section Folding Boom: Maximizes spatial efficiency – folds compactly during transit, extends to 7.3m for precision lifting.
360° Rotation & Versatile Mounting: Works in tight spaces; mounts behind cab to preserve cargo space.
3.2-Ton Capacity: Handles pipes, generators, concrete barriers, and machinery effortlessly.

Rugged Build and Customization

Heavy-Duty Axles: 2T front + 3.5T rear load capacity ensures stability under stress.
Q235 Carbon Steel Cargo Body: Customizable thickness (sides/floor) for abrasion/impact resistance.
3300mm Wheelbase: Balanced maneuverability and load distribution.

Cost-Effective Performance

Yunnei 116HP Engine: Reliable torque for heavy loads while minimizing fuel consumption.
Euro II Compliance: Lower acquisition cost vs. Tier 4/5 models – ideal for emerging markets.
80L Fuel Tank: Extended operational range in remote areas.

Products Specification

Chassis technical specification
Chassis brand		SINOTRUK HOWO
Driving mode		4X4
Wheelbase		3360mm
Cabin		Right hand driving, 2~3passengers, with one sleeper
Engine	Engine brand	YUNNEI, YN4102QBZL; 4 cylinders, vertical in line
	Horsepower	116hp
	Displacement	3.76L
	Emission standard	Euro Ⅱ
Transmission		WLY6TS40, Manuel, 6 forward gears and 1 reverse
Front axle		2,000kg
Rear axle		3,500kg
Tyre		7.00R16
Fuel tank		80L, aluminium alloy material
Suspension		11/9+7H
Cargo box
Dimension		48002450600mm
Material		Q235 carbon steel
Material thickness		Side 2mm, bottom 3mm
Crane
Brand		XCMG
Boom crane model		SQ3.2ZK2
Boom type		Folding arm, 3 section
Max. Lifting moment		68kN.m
Max. Lifting weight		3,200kg
Max. Hydraulic outreach		7.3m
Lifting capacity		3200kg/2.1m; 1300kg/4.15m; 950kg/5.8m; 650kg/7.3m
Slewing angle		370°
Stabilizer spread		3554mm
Recommended pump capacity		25L/min
Max. Pressure of hydraulic system		22MPa
Oil tank capacity		60L
Crane weight		1,215kg

Factory Real Shot Video for You

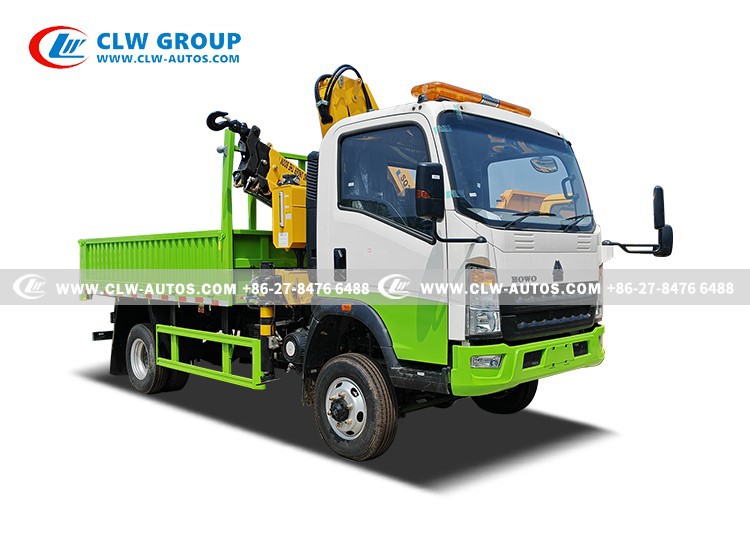

sinotruck howo Folding crane truck

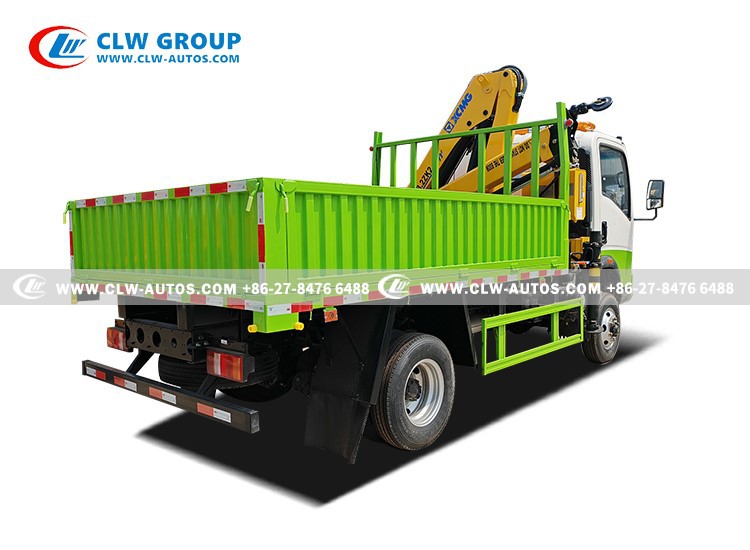

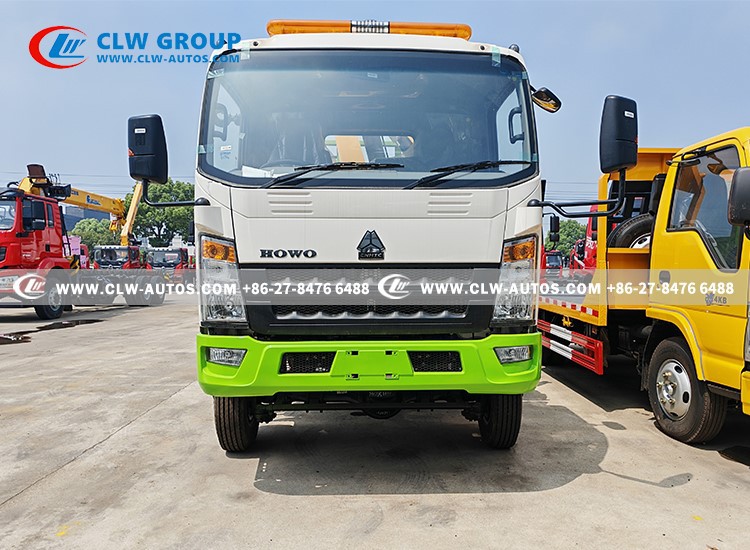

32tons Folding crane truck supplier

Optional Products Reference Pictures

Crane Truck with LOG Grapple Attachment

product-1-1

Crane Truck with Brick Clamp Attachment

product-1-1

Crane Truck with Drilling Rig Attachment Crane Truck with Personnel Basket

product-1-1
