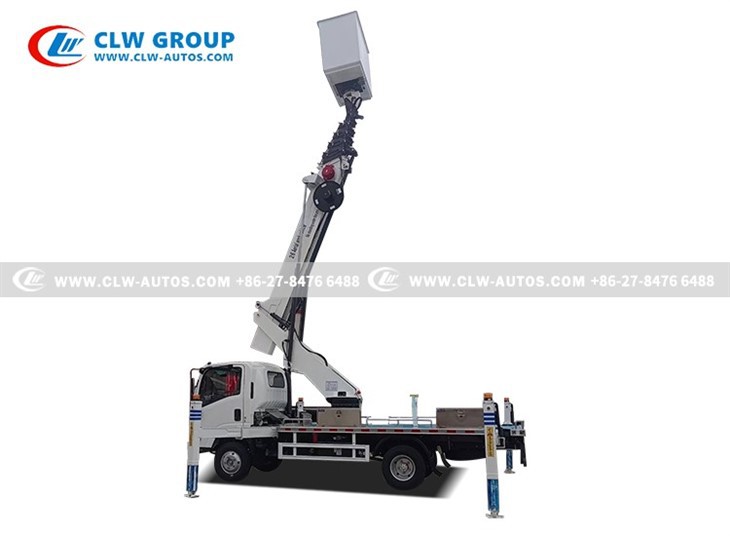

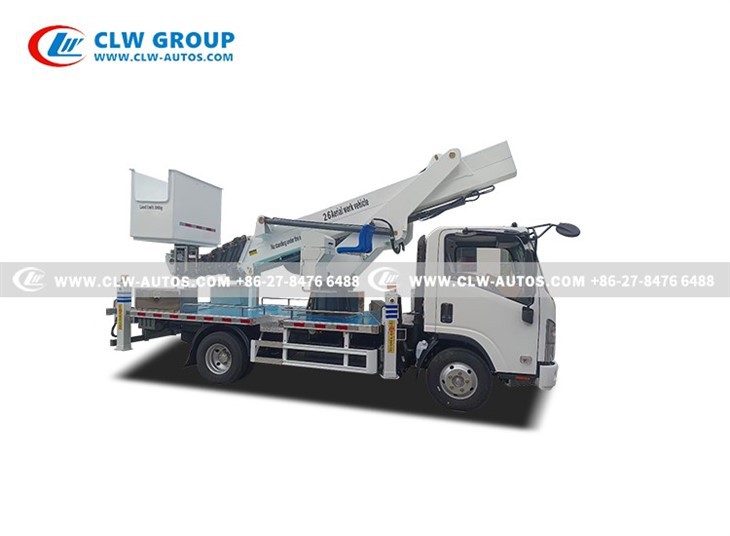

ISUZU 26m Manlift Truck

Drive Type: 4x2
Engine Power: 120 HP
Manlift Max. Lifting Length: 26meters
Basket Loading Capacity:200kg
Left Hand Drive
ISUZU KV100 Cabin
With Insulated Basket

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 26m manlift truck in China. If you're going to buy high quality isuzu 26m manlift truck, welcome to get more information from our factory. For price consultation, contact us.





ISUZU KV100 6 Wheels 4x2 26meters Aerial Work Platform Truck With Insulated Basket





product key technologies
6ISUZU 4x2 kv100 26m Manlift Truck

ISUZU KV100  Chassis



  • Efficient Load Capacity and Agile Maneuverability: The 3360mm wheelbase ensures ample cargo space while offering a smaller turning radius than longer models. This enhances flexibility for urban and intercity driving, balancing efficiency and adaptability.
  • Reliable Power and Fuel Economy: The 120 HP engine provides ample power for standard loads in its class. Renowned for durability and advanced technology, Isuzu engines deliver excellent fuel efficiency, reducing long-term operating costs.





Application Scenarios of 26-Meter Aerial Work Platforms

  • Building Exterior Construction and Maintenance
  • Municipal Facility Maintenance
  • Industrial Park and Plant Maintenance
  • Power and Line Inspection
  • Fire Rescue Support
  • Film Production and Large-Scale Events





4ISUZU kv100 26m aerial work platform Truck

Products Parameters



ISUZU KV100 26meters Aerial Work Platform Truck

Chassis Specification

Chassis Model

QL104

Driving Model

4x2

Dimension

8000 x 2400 x 3500 mm

Cab

  • Original ISUZU KV100 cabin
  • With Air Conditioner
  • Left Hand Drive

Wheelbase

3360mm

Gross vehicle Weight

4000 kg

Front Axle Loading Capacity

2500 kg

Rear Axle Loading Capacity

4800 kg

Axle Number

2

Tire

7.00R16

6pcs with 1 spare tire

Engine

  • ISUZU diesel engine
  • 4 cylinders in a line,
  • Water cooled, turbocharged, after cooled, cold start.

Model: 4KH1CN6LB

Horse power: 120 HP

Displacement: 2999ml

Emission standard: Euro 6

Transmission

Model: ISUZU

5 Forward & 1 Reverse

Fuel Tank Capacity

100L

Upper Specifications

Working Platform

Size: 1600 x 700 x 1000 mm

Material: Stainless Steel

Rated Load: 200 kg

Boom Form

Synchronization telescope

Max. Working Height

26 meters

Outrigger Span

Landscape: 4200 mm

Portrait: 4000 mm

Front "V" type, Rear "H" type

Independently adjustable (controlled)

Partition Boards & Walkway Boards

Material: Stainless Steel & Anti-slip

Rotator

360 ° of continuous rotation

Operation

Electrically controlled operation

Manual emergency operation

Control System

CAN control system, equipped with wireless remote control, realize stepless speed regulation

Chassis Pictures

6ISUZU 4x2 kv100 26m Manlift Truck
7ISUZU kv100 4x2 26m aerial work platfotm Truck
5ISUZU 4x2 26m Manlift Truck
4ISUZU kv100 26m aerial work platform Truck

Features Of Insulated Basket

ISUZU 26Meter Aerial Work Platform Truck





1. Ensures Safety for Live-Line Workers (Core Advantage)

  • Direct contact with live lines: The insulated bucket is made of high-strength insulating material, providing workers with a safe platform completely isolated from the ground.
  • Enables safe live-line work: It allows workers to perform maintenance, installation, and other operations directly on high-voltage power lines without de-energizing them, significantly reducing the economic losses and social impact caused by power outages.



2. Improves Work Efficiency and Economic Benefits

  • Avoids frequent power outages: There is no need to arrange complex power outage procedures for every operation, significantly shortening pre-work preparation time and making repairs and construction faster and more flexible.
  • Reduces outage losses: For critical users such as factories, hospitals, and data centers that require continuous power supply, the ability to perform live-line work prevents production interruptions and massive economic losses caused by outages.



3. Provides Dual Safety Protection

  • Backup protection against electric shock: Even in the event of accidental contact with energized equipment, the insulated bucket acts as a physical barrier, effectively preventing current from passing through the operator's body, forming a crucial "lifesaving layer."
  • Boosts operator confidence: It provides aerial workers with a strong sense of psychological security, enabling them to focus more on their tasks and reducing operational errors caused by distraction due to fear.



4. Coping with Complex Environments and Emergencies

  • Resists unexpected situations: During operations, if accidents such as accidental boom contact or falling branches touching lines occur, the insulated bucket can effectively prevent the escalation of electric shock incidents, buying crucial time for emergency response.
  • Adapts to humid environments: In adverse conditions like dampness, fog, or drizzle, high-quality insulated buckets maintain good insulating performance, offering a higher level of protection compared to ordinary metal buckets.
