Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 700p 6m3 asphalt distributor truck in China. If you're going to buy high quality isuzu 700p 6m3 asphalt distributor truck, welcome to get more information from our factory. For price consultation, contact us.

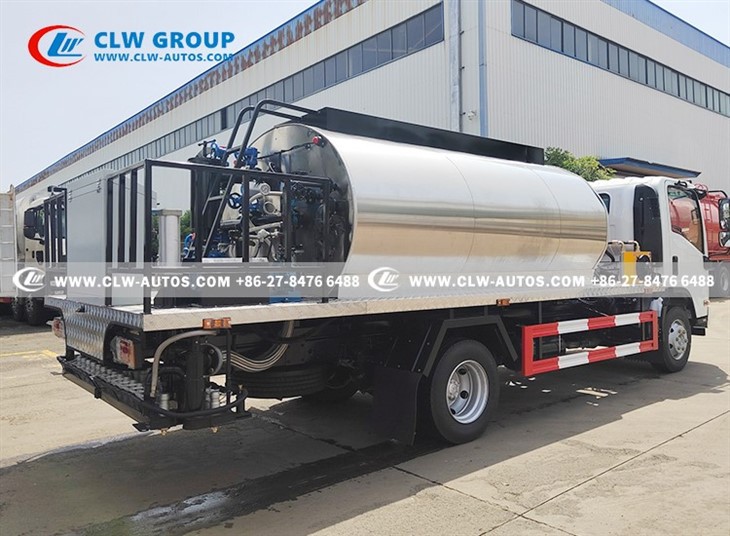

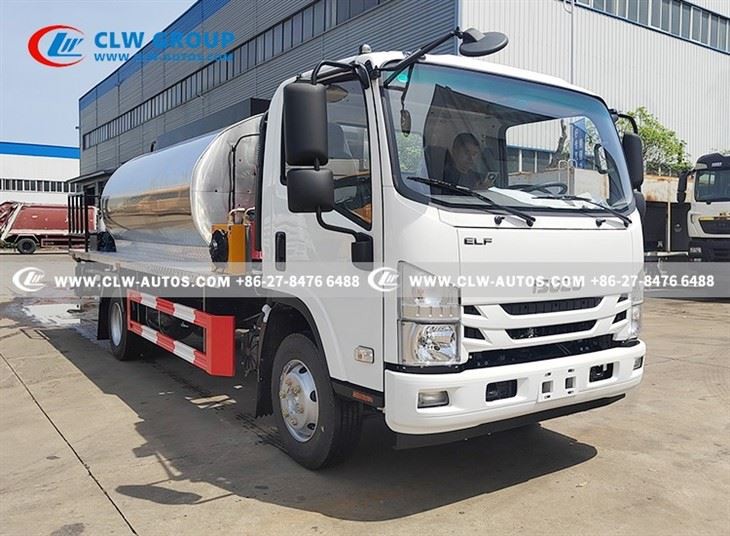

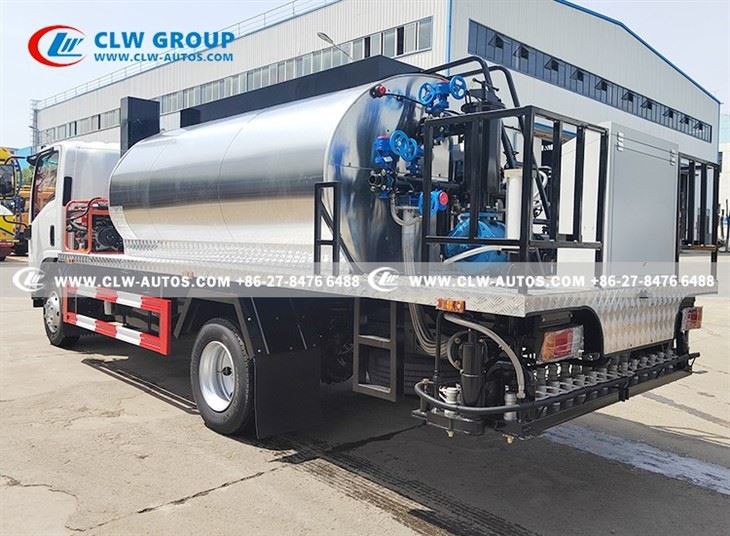

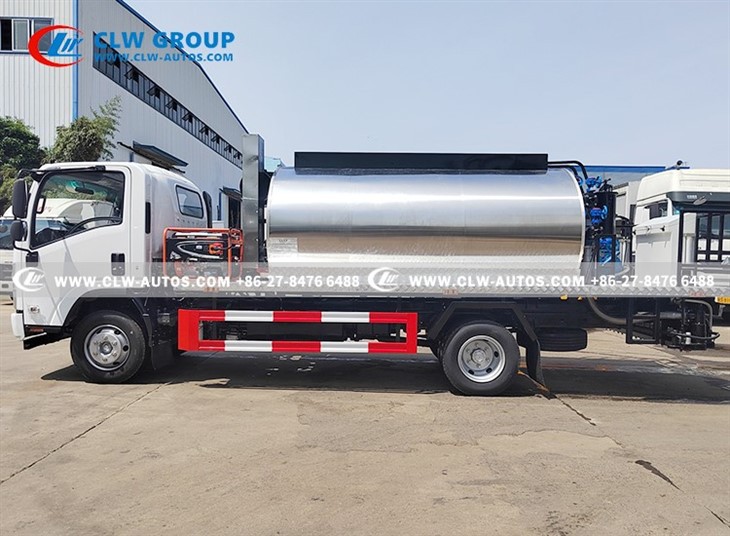

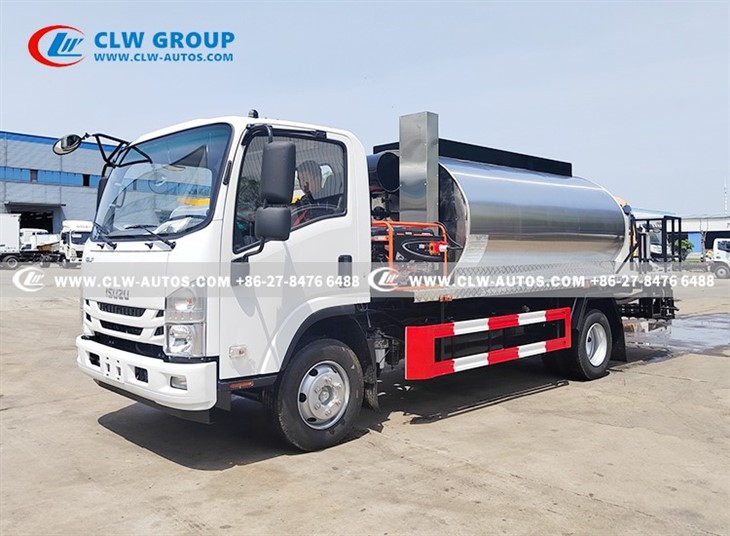

ISUZU 700P 6m3 Asphalt Distributor Truck
The ISUZU 700P 6m3, 8m3 asphalt distributor truck, bitumen sprayer, road maintenance truck, road construction equipment, asphalt spraying truck is a professional road maintenance vehicle designed for precise and efficient application of bitumen in various construction environments. It is widely used for surface dressing, tack coat, and prime coat applications on highways, urban roads, rural routes, and airport runways.
Engineered for uniform asphalt spraying, this truck enhances paving quality and construction efficiency. It supports both hot and cold bitumen, making it highly versatile for multiple project types.
Backed by the reliability and performance of the ISUZU brand, this truck ensures dependable operation, low maintenance, and strong adaptability to different terrains and climates. Whether operating in high-temperature regions or rugged mountain roads, ISUZU road maintenance vehicles deliver consistent results.
Ideal for contractors and municipal maintenance teams, this bitumen sprayer is a smart investment for any company looking for a durable and efficient asphalt distributor truck for professional roadwork.
Used before laying new asphalt layers to create strong adhesion between old and new surfaces, preventing slippage and delamination.
Applied to unbound or granular base layers to stabilize and prepare the surface for asphalt paving, ensuring better bonding and waterproofing.
Used for applying a thin layer of bitumen followed by aggregate, extending pavement life and improving skid resistance on aged roads.
Ideal for sealing cracks, patching damaged areas, or applying a bonding layer before overlaying, which enhances road durability and appearance.
Ensures smooth, high-precision spraying on long and wide runways, helping to meet strict standards of airport surface treatment.
The truck can also be used in some construction environments for bitumen-based dust suppression and waterproof coating applications.
| Chassis Model | ISUZU 4x2 190HP | ||||
| Overall Dimensions | mm | 6980*2170*2410 | |||
| Wheelbase | 3815 | ||||
| Track width | 1680/1650 | ||||
| Tank Capacity | m3 | 6m3 | |||
| Curb Weight | kg | 6,350 kg | |||
| Gross Vehicle Weight (GVW) | 12,000 kg | ||||
| Engine | Model |
ISUZU 4HK1 |
|||
| Power | 139 kW / 190 HP | ||||
| Displacement | 5,193 mL | ||||
| Max Torque | 507 N.m | ||||
| Max speed | km/h | 90 km/h | |||
| Tire specification | 235/75R17.5, 6 tires with 1 spare | ||||
| Steering Position | LHD / RHD | ||||
| Transmission | ISUZU MLD, 6 Speed Manual | ||||
| Color | Customized | ||||
| Equipment | |||||
| Tanker Interior |
Carbon steel |
||||
| Insulation Material | 50 mm rock wool insulation | ||||
| Tank Exterior | 1 mm stainless steel | ||||
| Hydraulic Motor | 05-130-BD31 | ||||
| Hydraulic pump | CBQ550-L | ||||
| Bitumen Pump | QGB680, Flow Rate: 680 L/min | ||||
| Proportional Valve | EFBG-03-160-HF | ||||
| Control System | PLC Control | ||||
| Asphalt Nozzles | 34 pcs | ||||
| Burner | Riello G10 (Italy), 100,000 kcal/h | ||||
|
Thermal Oil Pump |
RY40-25-160 |
||||
| Spray Width | 4.5 m | ||||
|
Asphalt Spraying Rate |
0.25 to 3 L/m2 | ||||
| Spraying Medium | Hot & emulsified asphalt (including SBS and rubber-modified types) | ||||
| Optimum Construction Speed | 3-6 km/h | ||||
| Speed Sensor |
GTS211B-N016 |
||||
| Temperature Controller | WZP-230 | ||||
