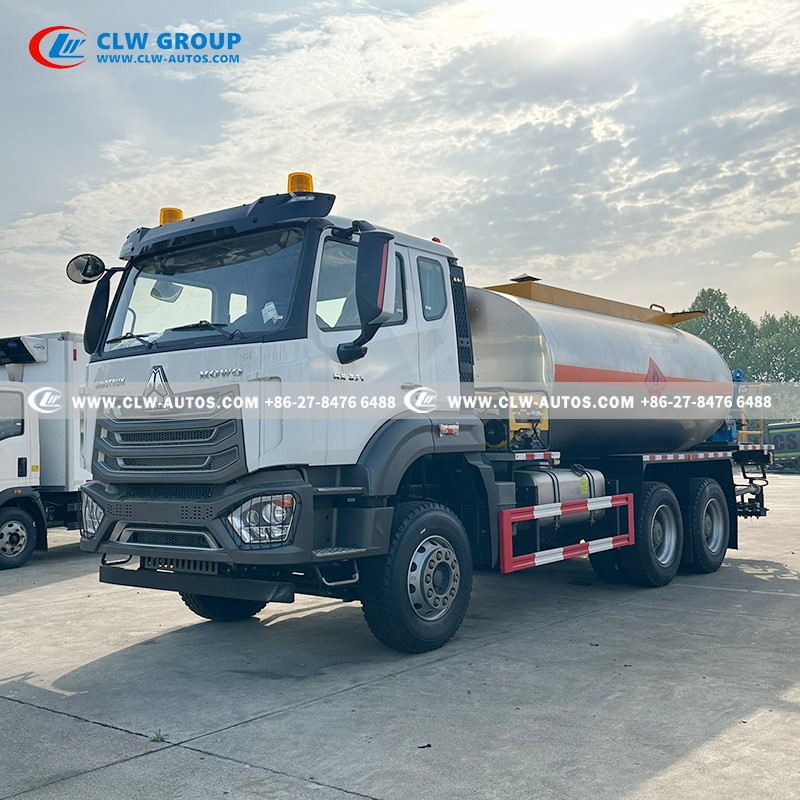

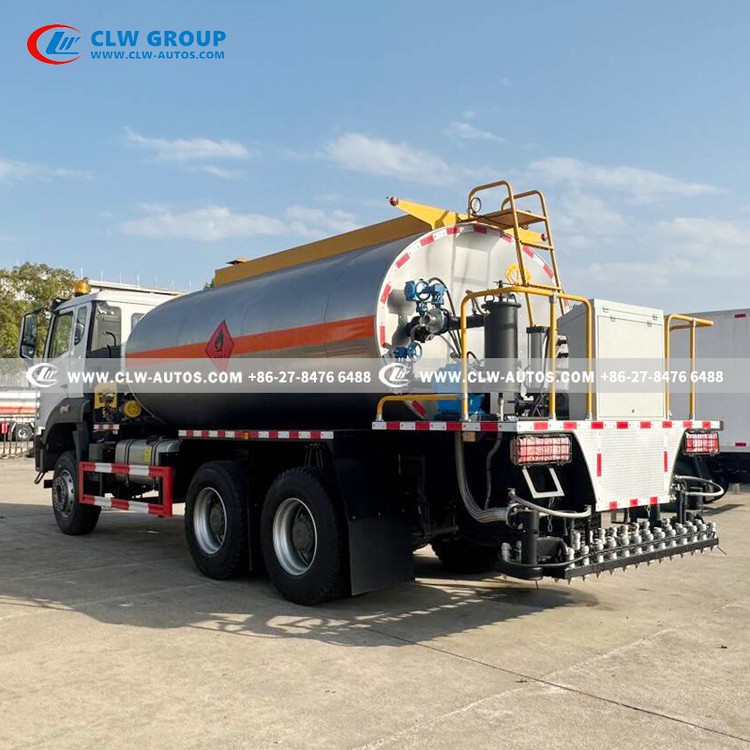

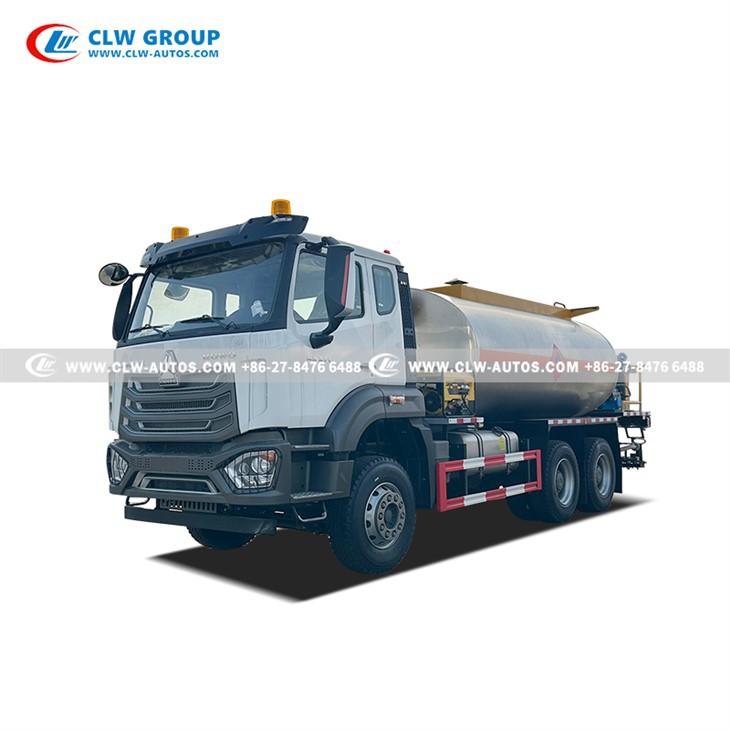

Sinotruk HOWO 6x4 NX 20m³ Asphalt Sprayer Truck
We Are 100% Straight Factory Manufacturer For Asphalt Distributor Truck Since 2004
Products Description
Engineered for professional road construction and pavement maintenance, the Sinotruk HOWO 6x4 NX Asphalt Distributor Truck is a high-performance spraying vehicle designed for uniform application of liquid asphalt, emulsified asphalt, and modified asphalt. Built on the proven HOWO 6x4 heavy-duty chassis with a 371HP WD615.47 diesel engine (Euro II), this 20,000-liter asphalt distributor features an integrated heating system, intelligent control devices, and precise adjustment of spraying temperature, pressure, and flow rate. Ideal for highway construction, asphalt overlay tack coats, chip sealing, and pavement preservation projects.
Quick inquiry
Sales Director Shirley Fu
Mobile: +86-135 4506 4324(whatsApp)
Email: shirley@clw-autos.com
Real Video Show on line
Key Features & Technical Advantages
1. Proven HOWO 6x4 Heavy-Duty Chassis: The Sinotruk HOWO 6x4 chassis is renowned for its durability, reliability, and load-carrying capacity in demanding road construction environments. The left-hand drive configuration with 4,325+1,350 mm wheelbase provides excellent stability for uniform asphalt spraying. The 7-ton front axle and dual 13-ton rear axles ensure stable handling under full load.
2. 371HP Powerful Diesel Engine: The WD615.47 inline six-cylinder turbocharged intercooled diesel engine delivers 371 horsepower (273kW) with 9,726 ml displacement, meeting Euro II emission standards for overseas markets. The HW19710 manual transmission with 12 forward and 2 reverse gears provides smooth power delivery for both highway travel and low-speed spraying operations
3.15,000-Liter High-Quality Carbon Steel Tank: The 15 cubic meter tank is constructed from high-quality carbon steel for durability and corrosion resistance. The integrated heating system maintains asphalt at optimal temperature for proper flow and adhesion, preventing material solidification during operation. The tank is suitable for liquid asphalt, emulsified asphalt, and modified asphalt.

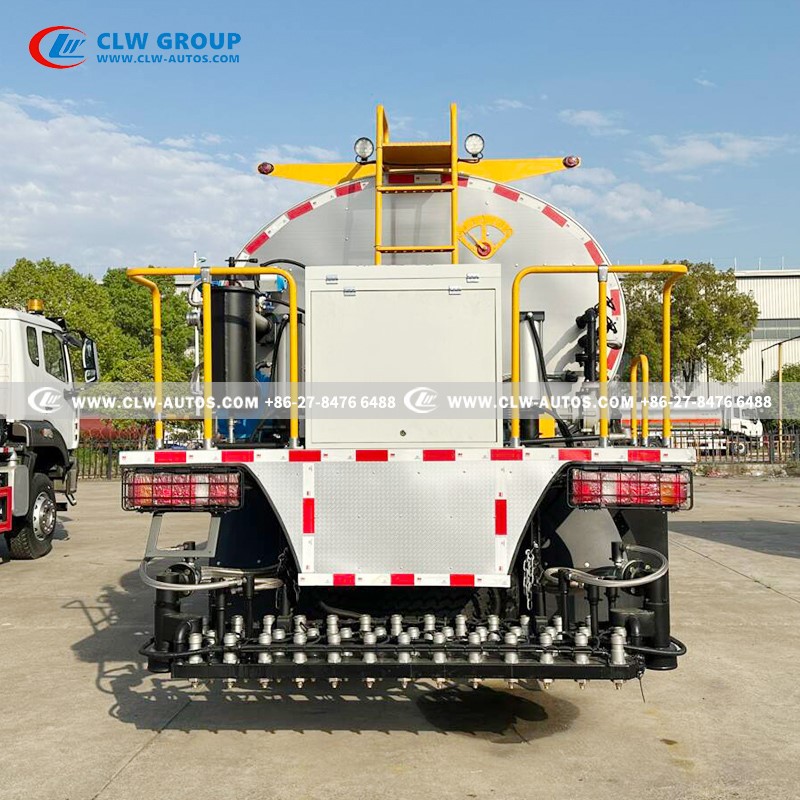

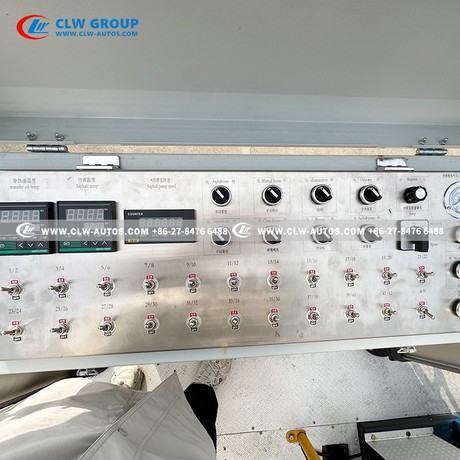

4. Intelligent Spraying Control System: The advanced control system allows operators to precisely adjust spraying temperature, pressure, and flow rate via a user-friendly interface. This intelligent control ensures uniform application across the working width, reducing material waste and meeting project specifications. Real-time monitoring of spraying parameters enables quality control.

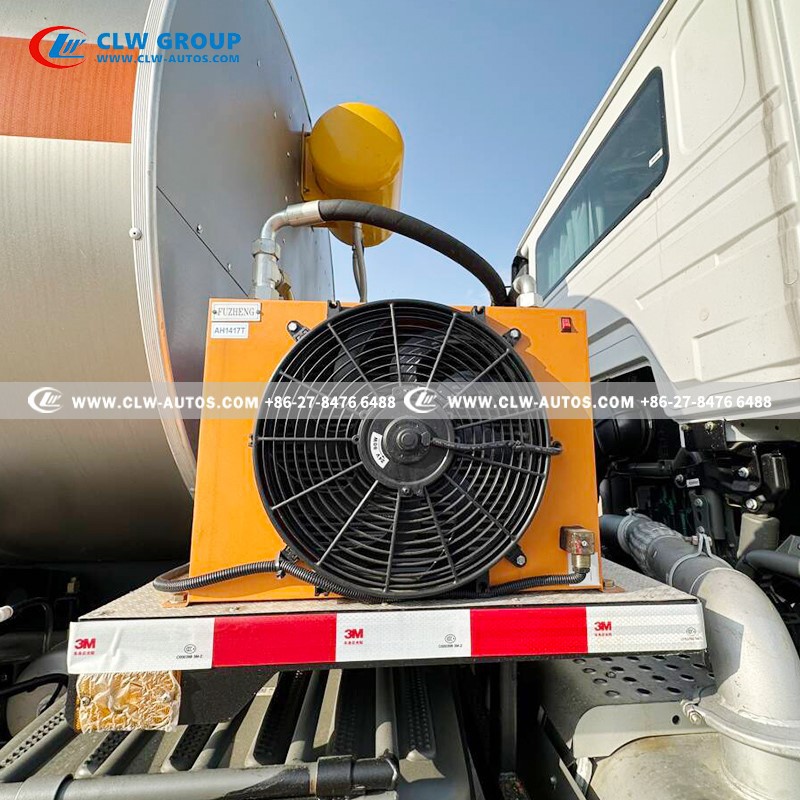

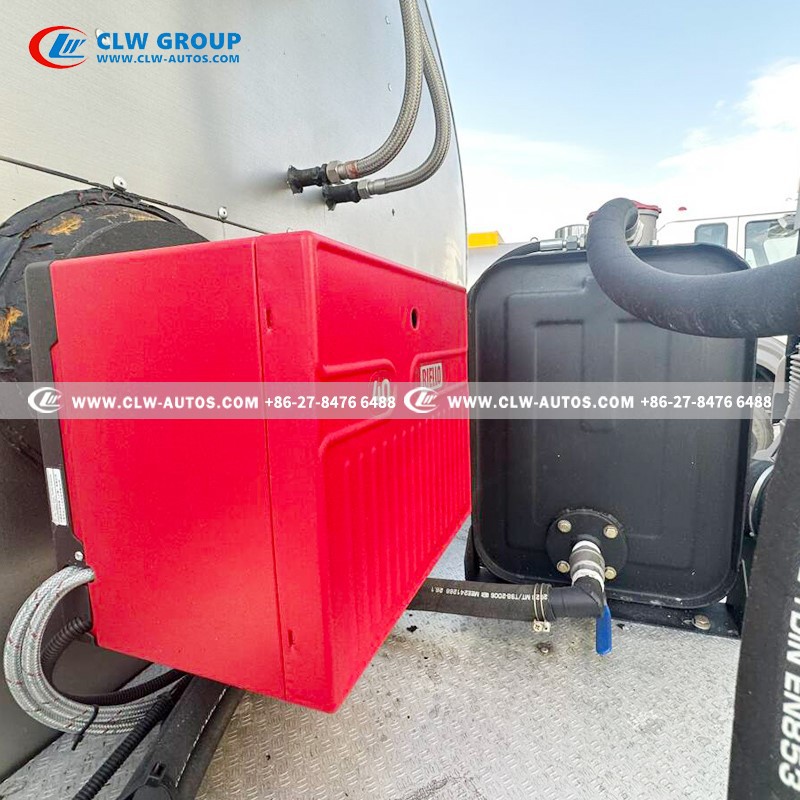

5. Integrated Heating System: The efficient heating system maintains asphalt at consistent temperature throughout the spraying operation. This prevents material solidification, ensures proper flow characteristics, and improves adhesion between asphalt layers. The heating system is designed for energy efficiency, reducing fuel consumption and operating costs.
6. High Construction Efficiency: The HOWO asphalt distributor delivers uniform spraying coverage that significantly reduces material waste compared to conventional methods. Quick setup and intuitive operation allow crews to complete more work in less time, improving overall project productivity.
7. Energy Saving & Environmental Protection: The optimized system design reduces fuel consumption and lowers emissions compared to conventional asphalt distribution equipment. This makes the HOWO asphalt distributor an environmentally responsible choice for modern road construction projects.

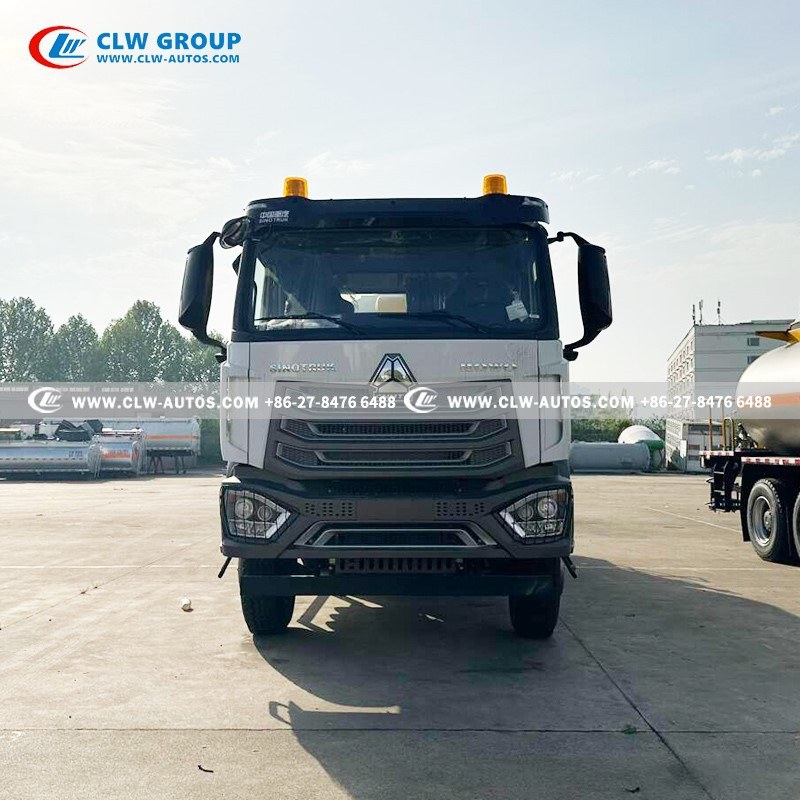

8. Comfortable HOWO NX371 Cab: The HOWO NX371 cab features air conditioning for operator comfort in hot climates. Ergonomic controls reduce operator fatigue during long spraying shifts. Good visibility of the spraying area enables precise application control.

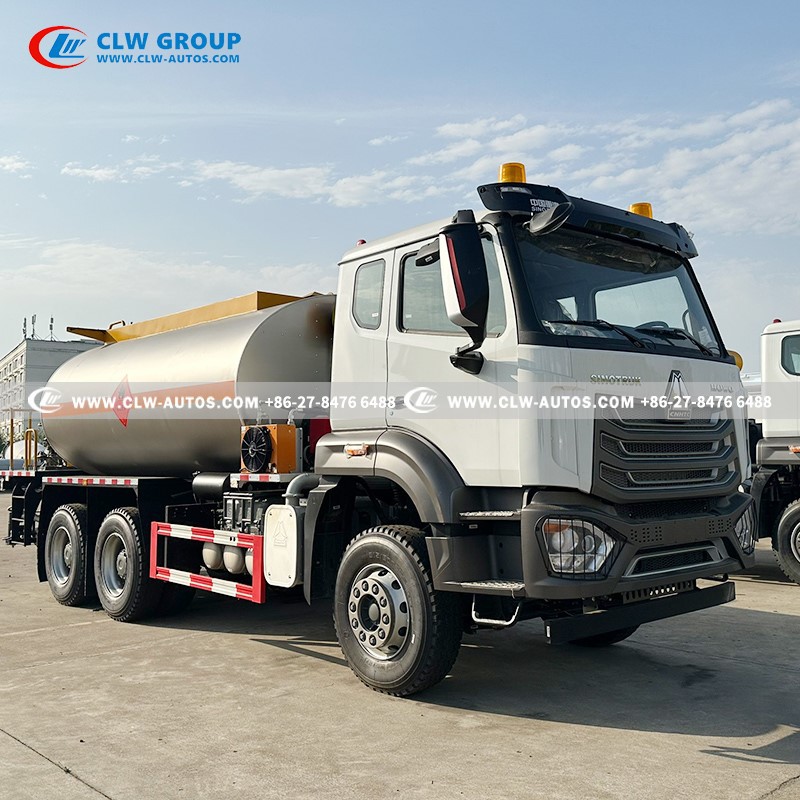

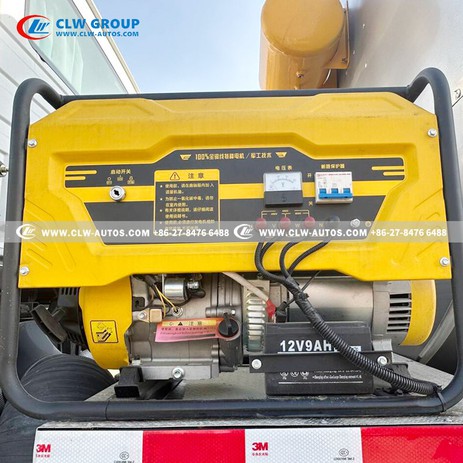

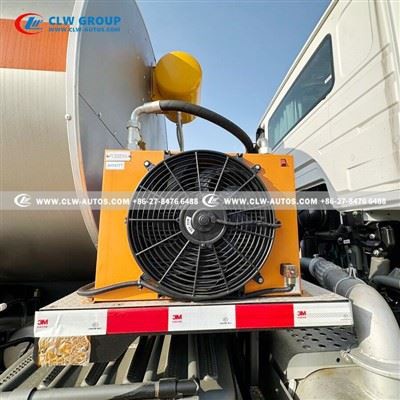

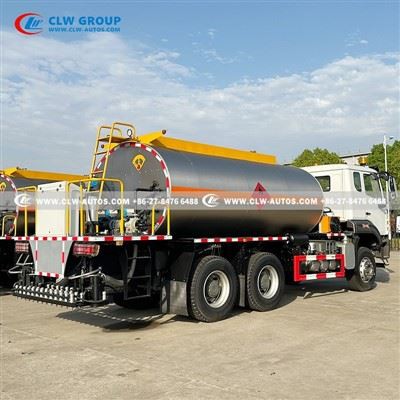

Reference pictures
Products Specification
| Specification | Details |
| Model | HOWO 6x4 NX Asphalt Distributor |
| Drive Configuration | 6x4 Left-Hand Drive |
| Engine Model | WD615.47 |
| Engine Power | 371 HP (273 kW) |
| Displacement | 9,726 ml |
| Emission Standard | Euro II |
| Transmission | HW19710, 12 forward + 2 reverse |
| Wheelbase | 4,325 + 1,350 mm |
| Front Axle | 7 tons |
| Rear Axle | 13 tons x 2 |
| Tire Specification | 12.00R20 |
| Cab | HOWO NX371 |
| Tank Capacity | 15,000 L (15 m³) |
| Tank Material | High-quality carbon steel |
| Heating System | Integrated |
| Spraying Control | Intelligent, adjustable temperature/pressure/flow rate |
| Asphalt Types | Liquid asphalt, emulsified asphalt, modified asphalt |
| Applications | Highway construction, tack coat, chip seal, pavement preservation |
Applications & Use Cases
Highway Construction: Uniform application of asphalt binder for new highway pavement construction.
Asphalt Overlay Tack Coat: Precise spraying of tack coat to ensure proper bonding between existing pavement and new asphalt overlay.
Chip Seal & Surface Treatment: Uniform asphalt application for chip seal and surface treatment projects.
Pavement Preservation: Asphalt application for preventive maintenance and pavement preservation programs.
Bridge Deck Waterproofing: Spraying asphalt-based waterproofing membranes on bridge decks.
Modified Asphalt & Emulsified Asphalt: Capable of handling specialized asphalt materials for unique project requirements.
