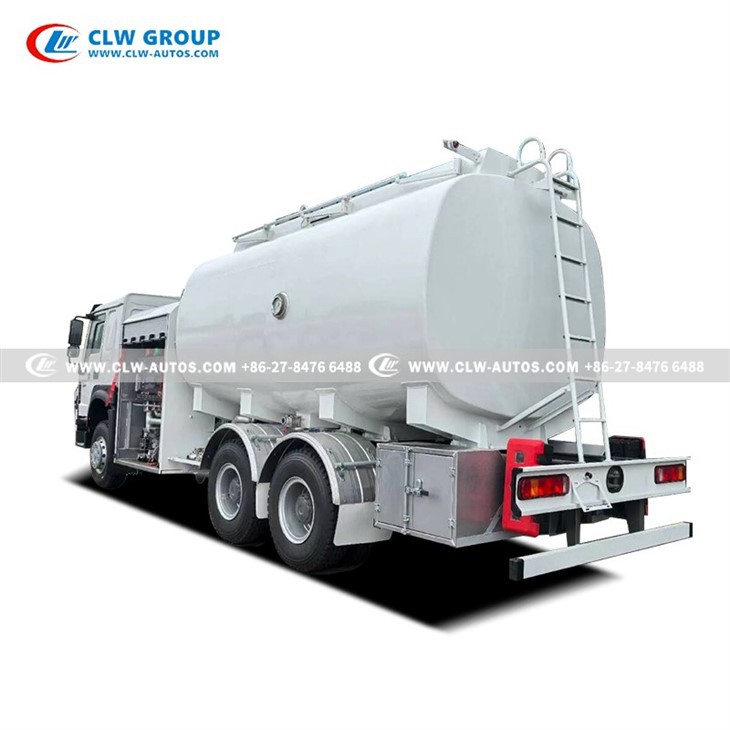

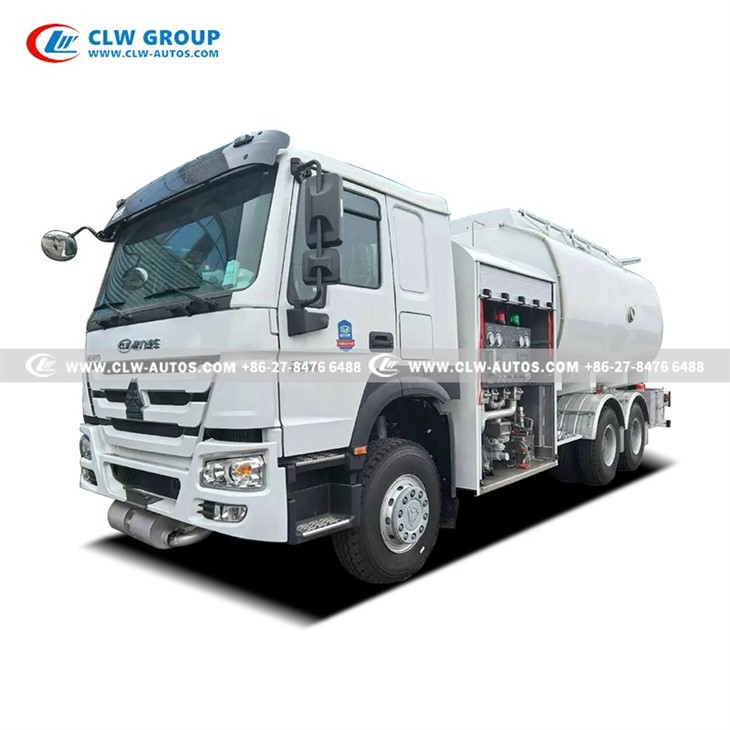

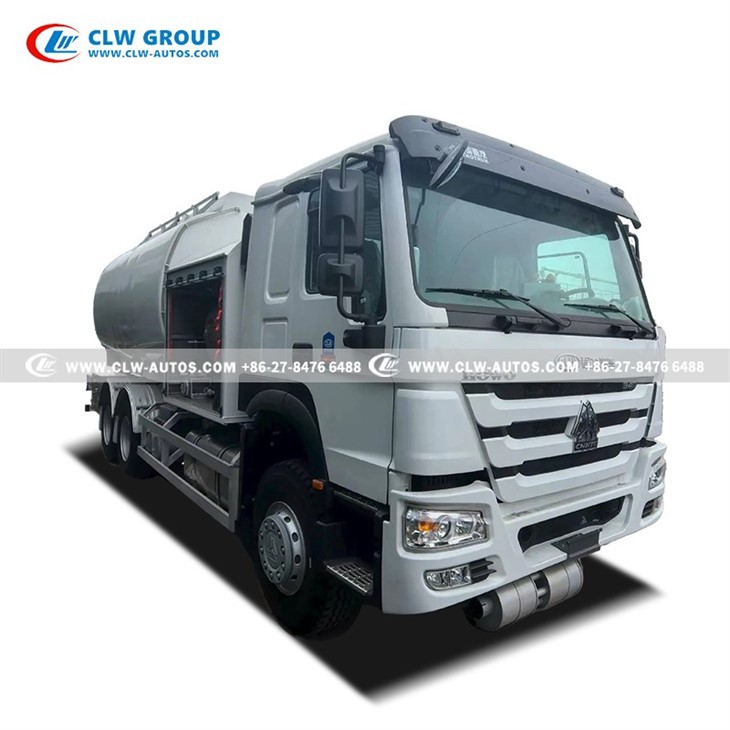

Aviation Refueling Truck 15m3

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of aviation refueling truck 15m3 in China. If you're going to buy high quality aviation refueling truck 15m3, welcome to get more information from our factory. For price consultation, contact us.

We Are 100% Straight Factory Manufacturer For Aircraft Refueling Truck Since 2004

CLW Group 20m³ (20,000-liter) JET A1 Aviation Refueling Truck is engineered to meet the rigorous demands of modern airports, from busy international hubs to regional FBOs.

Designed for the safe and efficient handling of Type 3 hazardous materials (aviation kerosene), this aircraft refueler combines cutting-edge European safety protocols with robust manufacturing to deliver unparalleled performance.

As a leading aviation fuel truck supplier, CLW Group understands that downtime is not an option. This model is not just a fuel transport vehicle; it is a complete mobile fueling solution, built to accelerate aircraft turnaround times while ensuring total fuel purity and operational safety.

high-capacity aviation refueling truck is built on a heavy-duty chassis, configured for a maximum all-up mass of 25,000 kg.

It offers a substantial payload capacity of approximately 15,000 kg, making it ideal for high-volume fueling operations.

Model: CLW Group 20m³ Aircraft Refueling Truck

Effective Volume: 20 Cubic Meters (20,000 Liters / 5,283 Gallons)

Chassis / Drivetrain: Customizable 4x2 or 6x4 Heavy-Duty Commercial Chassis

Overall Dimensions (Approx.): 9350 x 2500 x 3950 mm (Optimized for airport maneuvering)

Medium: Jet A1, Jet A, JP8, Aviation Kerosene, Aviation Gasoline

Design Standard: GB18564.1-2006 (Compliant with international hazardous material transport codes)

Sales Director Shirley Fu

Email: shirley@clw-autos.com

1. High-Purity Aluminum Alloy Tank Construction

Unlike standard carbon steel tanks that risk corrosion and fuel contamination, our tank is constructed from 5182 Aluminum Alloy . This material is the industry standard for aviation fuel because it is lightweight (reducing overall vehicle weight), naturally corrosion-resistant, and does not react with Jet A1 fuel, ensuring the fuel delivered to the aircraft wing is as pure as it was in the storage farm.

Shell Thickness: 5.6 mm

Head Thickness: 5.8 mm

Baffle Thickness: 5.7 mm

Design: Class-elliptical cross-section for low center of gravity and stable cornering.

2. High-Flow Redundant Fuel Delivery System

Efficiency is measured in gallons per minute.

This refueling truck is equipped with a PTO-driven hydraulic system powering a self-priming centrifugal pump. It features a primary DN65 hydraulic hose reel with 20 meters of hose, fitted with two aviation pressure-stabilizing couplings, achieving a single-hose flow rate of ≥1200 L/min for rapid underwing fueling of wide-body aircraft .

A secondary DN38 hydraulic reel (≥350 L/min) is available for smaller aircraft or defueling operations.

3. Advanced Filtration & Defueling Capabilities

Fuel cleanliness is critical. This unit is equipped with a coalescer / separator vessel designed to remove free water and solid particulates from the fuel stream at a rate of 2500 L/min.

Pre/post filter sampling points allow for quality control checks before and during fueling.

Closed-circuit samplers and a custom sample recovery tank ensure environmental compliance and fuel testing integrity.

4. Redundant Safety & Deadman Control Systems

Safety is paramount in aircraft refueling. This truck features multiple layers of protection:

DeadMan Control System: Hydraulic and pneumatic controls automatically return to neutral and stop fuel flow if the operator releases the controls .

High-Level Sensor Control: Magnetically controlled fueling programmer with a high-level sensor on the aircraft tank automatically shuts off the flow to prevent overfills and spills.

Emergency Vents & Valves: Equipped with 4 x aluminum breather valves and an 8-inch safety valve (emergency valve) located at the tank outlet. If a drive-away occurs, the shear section breaks, sealing the tank .

Pressure Monitoring: Includes vacuum gauge, pressure gauge, differential manometer (for filter monitoring), and venturi pressure gauge to give the operator a complete picture of system status in real-time.

5. Operational Precision & Control

Metering: A high-accuracy register (Class 0.2) provides precise flow measurement for transactional integrity.

Overwing/Underwing Options: While designed primarily for underwing (single-point) refueling, the system supports overwing operations via the secondary hose.

Tank Access: Features a rear-mounted ladder, internal/external tank access, and a segmented liftable guardrail on the top walkway for safe top-loading inspections.

• Commercial Airports (Large Hubs): Ideal for supplementing hydrant systems or servicing remote stands where pit systems are unavailable .
• Regional Airports & FBOs: Perfect for General Aviation (GA) operations, servicing business jets, cargo planes, and private fleets with high efficiency .
• Military & Remote Bases: The robust aluminum construction and reliable mechanical systems are well-suited for rugged conditions and military logistics .
• Helicopter Operations: The precise flow control allows for safe refueling of rotary-wing aircraft

Choosing the right Ground Support Equipment (GSE) manufacturer is critical for operational readiness. Here is why CLW Group stands out in the aviation fuel truck market:

1. Proven Industry Expertise & Customization: With over 30 years of experience in special-purpose vehicles, CLW Group doesn't just build trucks; we engineer solutions. Whether you need a specific chassis brand, a unique paint scheme, or modifications for Sustainable Aviation Fuel (SAF) compatibility, our factory can deliver customized tankers tailored to your exact airport specifications .

2. Compliance with International Standards: We adhere to strict safety protocols. Our trucks are designed in compliance with international regulations for dangerous goods transport. Features like grounding systems, emergency shut-offs, and spill containment are standard, ensuring your operation meets global safety audits.

3. Rapid Global Delivery & After-Sales Support: We understand that airport logistics run on tight schedules. CLW Group offers fast vehicle delivery worldwide. Our support doesn't end at the tarmac; we provide comprehensive technical support and spare parts availability to keep your fleet in the air, not in the shop .

4. Cost-Effective Premium Quality: You don't have to compromise quality for price. By integrating European design concepts (like the DeadMan system and redundant valving) with efficient Chinese manufacturing, CLW Group offers a cost-effective alternative to Western manufacturers without sacrificing the durability or safety required for critical aviation tasks.

5. A Holistic Airport Partner: Beyond fuel trucks, CLW Group manufactures a full line of airport support vehicles-from water and lavatory service trucks to aircraft tow tractors. This means you can standardize your fleet, simplify maintenance, and rely on a single partner for multiple GSE needs

CLW Group 20m³ JET A1 Aviation Refueling Truck is more than just a tank on wheels; it is a high-precision instrument designed to keep modern aviation moving. With its durable aluminum construction, redundant safety systems, and high-flow pumping capabilities, it ensures that your fueling operations are safe, fast, and efficient.

Contact CLW Group today to customize your aircraft refueling truck and experience the difference of true engineering partnership.

Jet A1 refueler truck

Jet A1 refueler truck

Aircraft filling truck

Aircraft filling truck
