Name: China ISUZU Self Loading Truck With Crane Manufacturers, Suppliers, Factory - Good Price - Chengli
Brand: CLW GROUP
SKU: 268062536

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu self loading truck with crane in China. If you're going to buy high quality isuzu self loading truck with crane, welcome to get more information from our factory. For price consultation, contact us.

ISUZU Giga 16Tons Flatbed Tow Truck With 5Tons Stragiht Boom Crane

Products Description

This specialized towing unit is built on a flatbed carrier chassis equipped with a hydraulic crane, typically fitted with XCMG lifting systems.

As implied by its designation, it may be referred to as:

Flatbed Carrier with Integrated Crane
Crane-Enabled Recovery Vehicle

Key Functional Advantages

1. Dual-Mode Operation

Capable of conventional towing (via tow bar or wheel-lift)
Direct vehicle loading onto the flatbed using the crane (ideal for severely damaged vehicles).

2. Multifunctional Design

Combines flatbed transport and crane-assisted recovery in one unit.
Eliminates the need for separate equipment.

Products Keytures

High-Performance Towing Capability – Heavy-duty 16-ton capacity for commercial trucks.
Integrated Lifting Mechanism – Built-in 5-ton hydraulic crane for effortless disabled vehicle loading and unloading.
Reinforced Flat Platform – Heavy-gauge steel bed with non-slip surface ensures safe cargo transport.
Dependable ISUZU Underbody – 6x4 chassis provides superior traction and off-road recovery performance.
Precision Hydraulic Controls – Seamless winch and crane operation with industrial-grade hydraulic system.
User-Friendly Interface – Wireless remote and optimized cab layout streamline recovery procedures.
Eco-Conscious Powertrain – ISUZU Euro 6-compliant diesel engine delivers optimal fuel efficiency with reduced emissions.
Configurable Features – Optional wheel lift adapters, auxiliary toolboxes, or expanded deck sizes.
Durability Optimized – Weather-resistant construction and premium components minimize service requirements.

Products Parameters

ISUZU 16Tons Flatbed Tow Truck With 5Tons Straight Boom Crane
Chassis Specification
Chassis model	QL1251
Driving model	6X4
Dimension	12000×2500×3950 mm
Cab	Original ISUZU FVZ/5X cabin Single Row Left Hand Driving with air conditioner Central lock Steer Assistance Electric Window
Overall Weight	25000 kg
Net Weight	21550 kg
Wheelbase	5800+1370 mm
Axle loading (front / rear)	7000 / 10000 x 2 kg
Engine	ISUZU, diesel engine 6 cylinders in a line, Water cooled, turbocharged, after cooled, cold start.
	Model: 6HK1
	Horse power: 300 HP, 221 KW
	Displacement: 7790 ml
	Emission standard: Euro 6
Transmission	Manual type, 9 Forward & 1 Reverse
Upper Parameters
Flatbed	Ground Clearance: 1200 mm
	Flatbed Plate Size(length*width): 8500x2550 mm
	Min. Tilt Angle: 8°
	Moving Range: 3760 mm
	Max. Loading Capacity: 16000 kg
Crane Parameters
Model		SQS125
Working Platform		360°turning (left or right), H-shape legs 360°
Extendable Boom Section		1 main boom + 5 extendable boom
Crane Type		Straight Boom Crane
Max. Lifting Capacity		Effectively: 5000 kg at 2.5 meters
Max. Working Radius		11.2 meters
Max. Lifting Height		13 meters
Max. Lifting Moment		125 T.m
Max. Oil Flow of Hydraulic System		40~63 L/min
Max. Pressure of Hydraulic System		22 Mpa
Crane Weight		2200 kg
Landing Leg		4 Pcs hydraulic handing leg
Crane Rated Lifting Road Photos

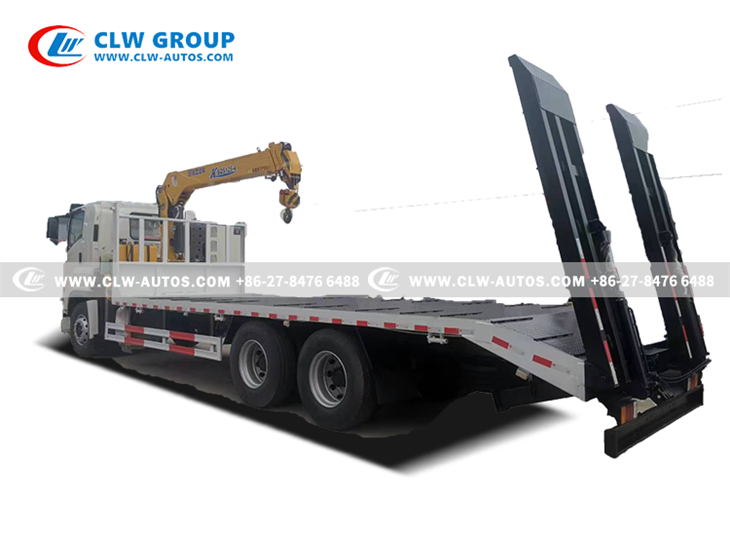

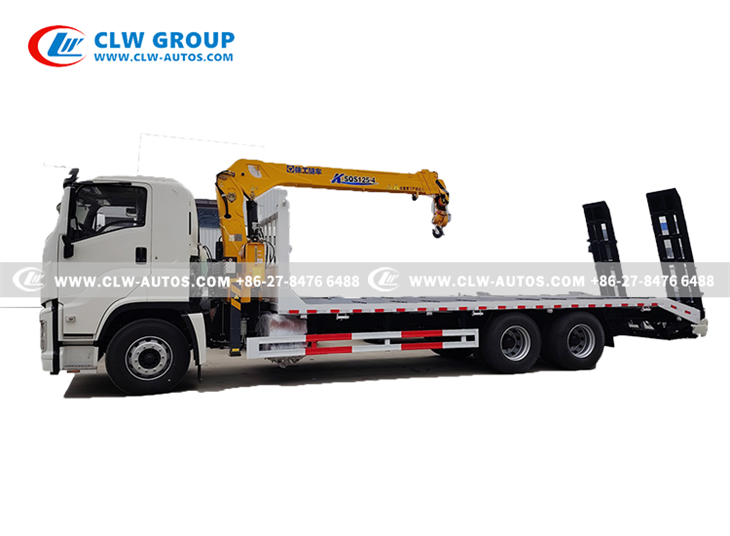

Products Photos

ISUZU 16Tons Flatbed Tow Truck with 5Tons Straight Boom Crane

Tail with climbing ladder

1isuzu giga flatbed tow truck with crane

3isuzu 6x4 fvz flatbed tow truck with crane

4isuzu flatbed tow truck with 5tons crane

ISUZU 16Tons Recovery Truck with 5Tons Folding Boom Crane

4isuzu 16tons recovery truck with 5tons crane

If you have any need or questions about products.
For quick inquiry, please contact Ms. Hedy He:

WhatsApp/ Wechat: +86 188 2740 1066
Email: hedy@clw-autos.com.

Company Profile

Hubei ChengLi Special Automobile Co.,Ltd, one of branches of CLW group, which was appointed by the Development and Reform Committe of China. Hubei Chengli is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Our advantage
- Certificate: ASME, ISO, BV, SGS, CCC etc.
- More than 30 independents workshops for different trucks.
- 1000 sets of equipment, 25 assemble lines.
- 8000 staffs including 300 senior engineers and technicians.
- 800 kinds of trucks and semi-trailers covering different industry.
- 20 years wholesale experience.
- Export to 90 countries.
Cooperates with DONGFENG, SINOTRUK, I-SUZU, FOTON, FAW, BEIBEN, etc.
Welcome to visit Hubei Chengli Special Automobile Co.,Ltd in Suizhou City, Hubei Province,China.The nearest airport is WUHAN TIANHE INTERNATIONALAIRPORT, 2 hours from Beijjing, Shanghai or Guangzhou.
