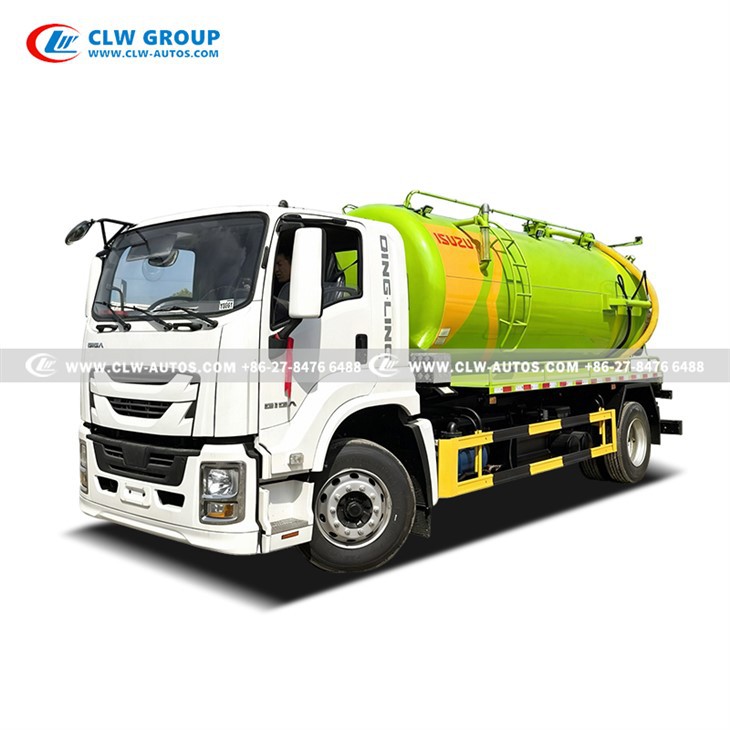

UAE ISUZU FTR 12CBM Sewage Truck
Wheelbase: 4500mm
Engine Power: 205hp
Tank Capacaity;12CBM/12,000Liters
Left Hand Drive
With Chinese Water-circulating Pump
For United Arab Emirates
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of uae isuzu ftr 12cbm sewage truck in China. If you're going to buy high quality uae isuzu ftr 12cbm sewage truck, welcome to get more information from our factory. For price consultation, contact us.

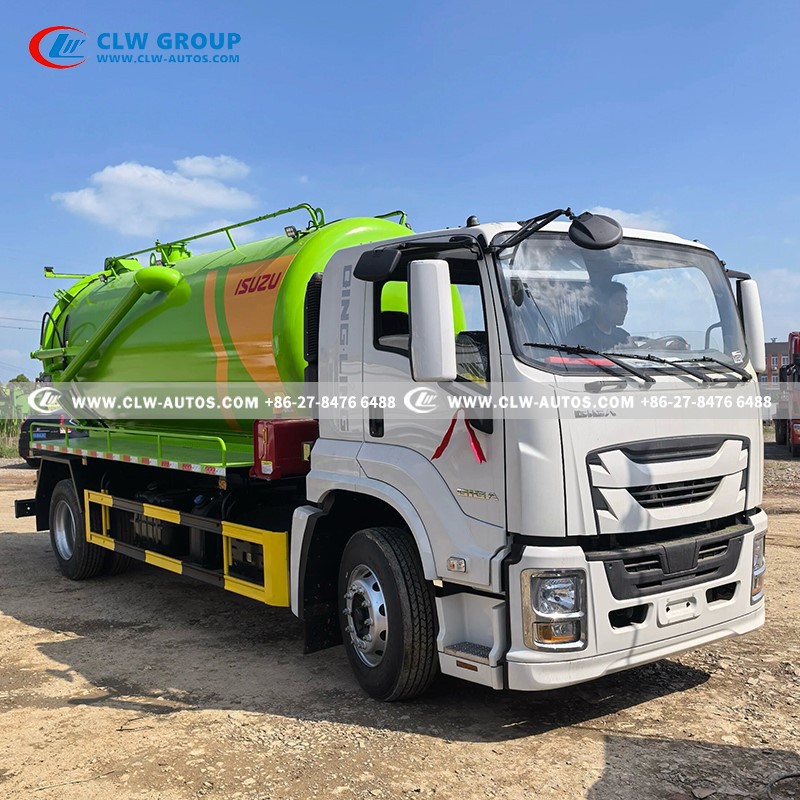

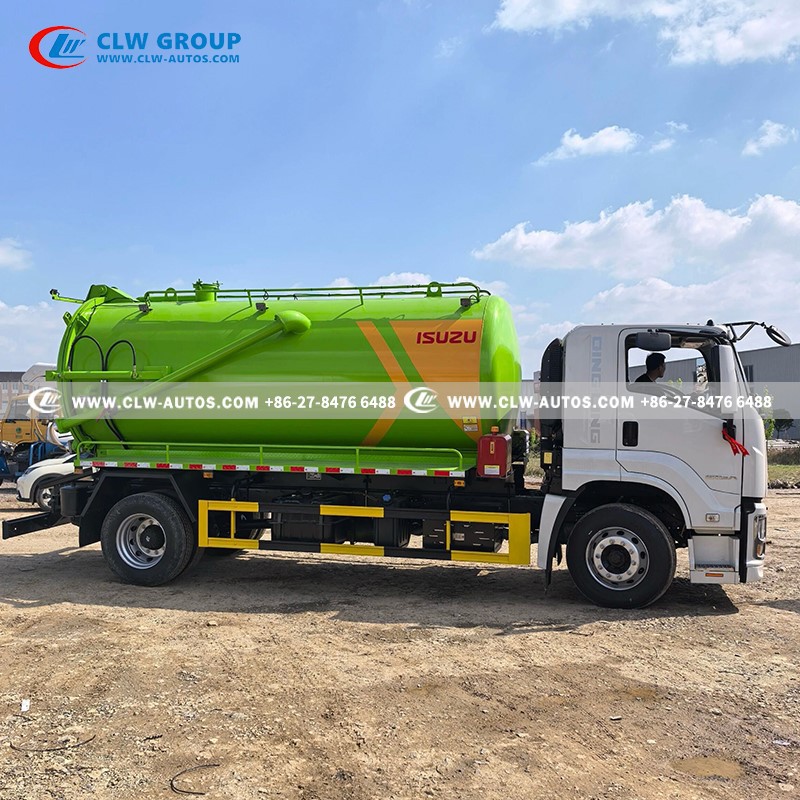

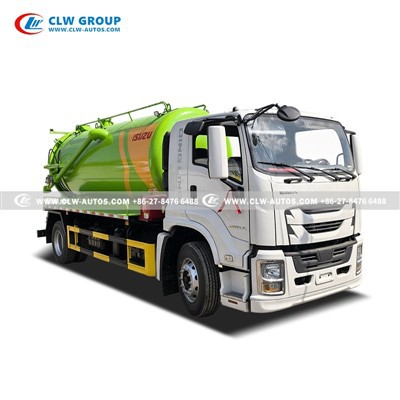

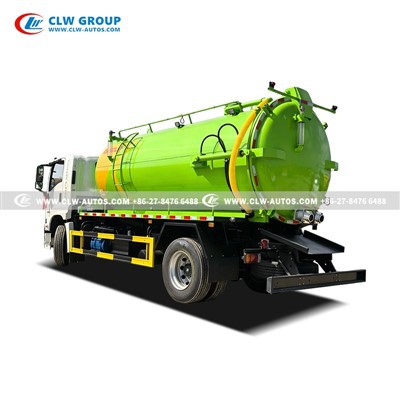

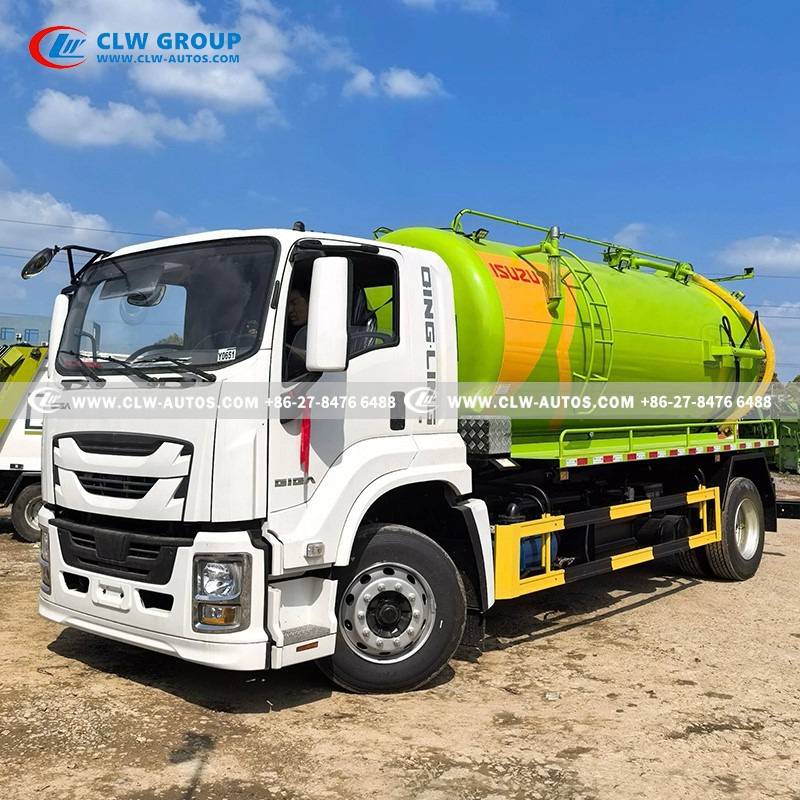

ISUZU 4X2 FTR 12CBM Vacuum Sewage Suction Truck
With Chinese Water-circulating Pump For United Arab Emirates
Products Description

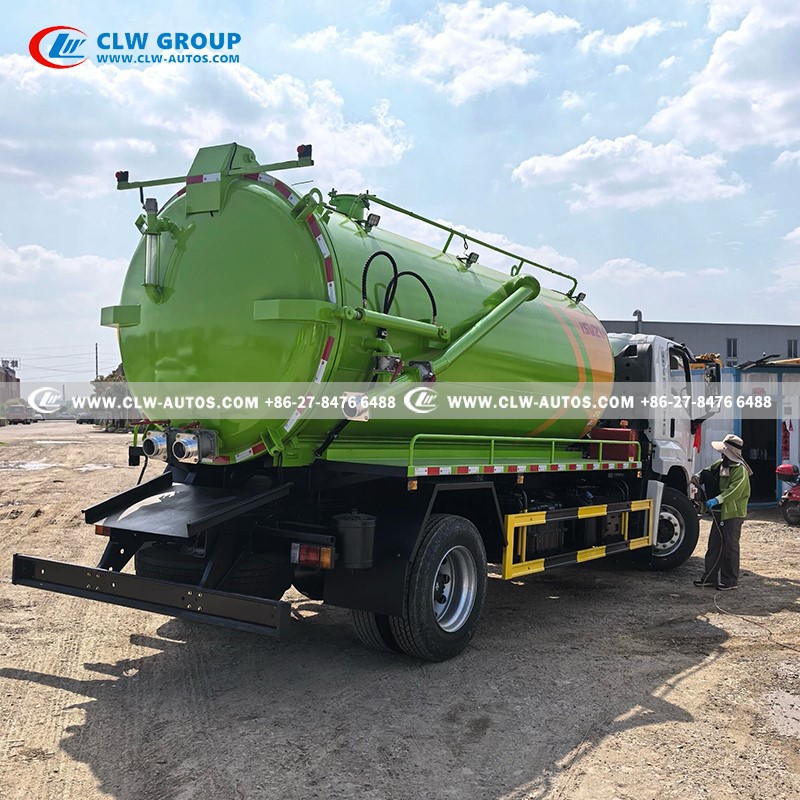

ISUZU FTR 205HP 12m³ vacuum sewer truck, with a volume of approximately 12 cubic meters. The tank body is made of Q235 carbon steel plate, with a barrel thickness of 6mm and head thickness of 6mm. The tank is of a round cylindrical shape, equipped with 4 reinforcing ribs on the tank body. The vacuum pump is model 2BE-204 water ring type. The tank body is equipped with a lifting mechanism, and the rear head can be hydraulically opened. The truck includes a vacuum pressure gauge, positive and negative pressure safety valves, a DN100 inlet port on the rear head, and a DN150 gravity flow port on the rear head. It comes with two 8-meter-long DN100 suction hoses. The tank body has platforms on both sides, one plexiglass sight glass tube, and a non-slip ladder welded on the driver's side of the tank. Non-slip handrails are installed on both sides of the top of the tank, and a non-slip plate is mounted on the top. Guardrails are installed on both sides and the rear of the tank body, along with metal fenders, LED side marker lights, and reflective tape. The tank body color is green, the cab is white. The interior of the tank body is treated with epoxy resin anti-corrosion coating. Operating labels are provided in both Chinese and English.
product key technologies
I. Chassis: "Durable Frame" Customized for UAE Working Conditions
- Power & Heat Adaptation: Equipped with Isuzu 6HK1 205HP diesel engine and high-temperature cooling system, stable in 40°C+ environments; 6-speed manual transmission for smooth power delivery.
- Reliability & Compliance: 4×2 drive, 4500mm wheelbase, heavy-duty tires for rough roads; anti-corrosion coating on key parts; meets UAE emission and safety standards for legal operation.
- Durability for High Frequency: Isuzu chassis has large market share in the Middle East with sufficient repair networks and spare parts, reducing maintenance costs and ensuring high availability.
II. Top Mount: Core Configuration Strengthened for UAE Wastewater Characteristics
- Tank & Anti-Corrosion: 12m³ tank made of thickened Q235 carbon steel or stainless steel, acid and alkali resistant inner coating; sealed structure prevents leakage, meeting local environmental standards.
- Vacuum System Enhancement: High-flow imported/domestic vacuum pump with strong suction; secondary filter and anti-overflow device to prevent clogging and extend service life.
- Operation & Safety Optimization: Hydraulic lifting and rear-door self-discharge system; pressure relief valve, pressure gauge, and audible/visual alarms; corrosion-resistant rubber pipes for high-temperature use.
III. Application Scenarios: Covering Main UAE Wastewater Treatment Needs
- Municipal Sanitation: Sewer unclogging and septic tank cleaning in Dubai, Abu Dhabi, etc., for residential, hotel, and commercial waste collection.
- Industrial & Energy: Industrial wastewater and oily water collection for oil/gas facilities, manufacturing zones, supporting industrial environmental management.
- Construction Sites & Temporary Facilities: Sewage collection for large infrastructure projects, labor camps, portable toilets, ensuring site hygiene and compliance.
- Emergency & Special Operations: Rapid pumping and cleanup for flooding, pipe leaks, serving as key equipment for municipal emergency response.
IV. Details: Exclusive Optimization for the UAE Market
- Climate Protection: Reinforced AC in cab; high-temperature resistant wiring and waterproof connectors to prevent sand/dust and humidity failures.
- Anti-Corrosion & Sand Protection: Galvanizing + painting on chassis, tank bottom, pipe brackets; dust covers on key parts.
- Localized Operation & Marking: Supports Arabic/English bilingual operation labels; customizable colors and livery.
- Compliance & Safety Details: Reflective markings, warning lights, reversing radar and camera as per local regulations; reinforced welding points to meet vehicle inspection strength requirements.
Products Parameters
|
ISUZU FTR 4x2 12CBM Sewage Suction Truck |
||
|
Chassis Specification |
||
|
Chassis Model |
QL118 |
|
|
Driving Model |
4X2 |
|
|
Cab |
|
|
|
Dimension |
9000 x 2500 x 3200 mm |
|
|
Wheelbase |
4500 mm |
|
|
Gross vehicle Weight |
18000 kg |
|
|
Curb Weight |
8765 kg |
|
|
Front Axle Loading Capacity |
6300 kg |
|
|
Rear Axle Loading Capacity |
13000 kg |
|
|
Axle Number |
2 |
|
|
Engine |
ISUZU diesel engine 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start. |
|
|
Model: 4HK1-TC60 |
||
|
Horse power: 205 HP |
||
|
Displacement: 5193 ml |
||
|
Emission standard: Euro 6 |
||
|
Transmission |
Model: Manual Type |
|
|
6 Forward & 1 Reverse |
||
|
Tire |
295/80R22.5 |
|
|
6 Pcs with one spare tire |
||
|
Upper Specifications |
||
|
Tank |
Capacity: 12m3 |
|
|
Thickness: 6mm |
||
|
Suction Pipe |
8meter φ102 |
|
|
Number: 2pcs |
||
|
Drain Ball Valve |
150mm |
|
|
Suction Port |
100mm |
|
|
Pump |
Chinese water-circulating pump |
|
|
Other |
The tank can be lifted |
|
|
Equipped with a hand-washing device |
||
|
A rear self-flowing outlet |
||
|
A sewage suction and fecal viewing window, and a pressure gauge |
||
|
The interior of the tank is treated for anti-corrosion |
||
Products Detailed Pictures
Safety Device

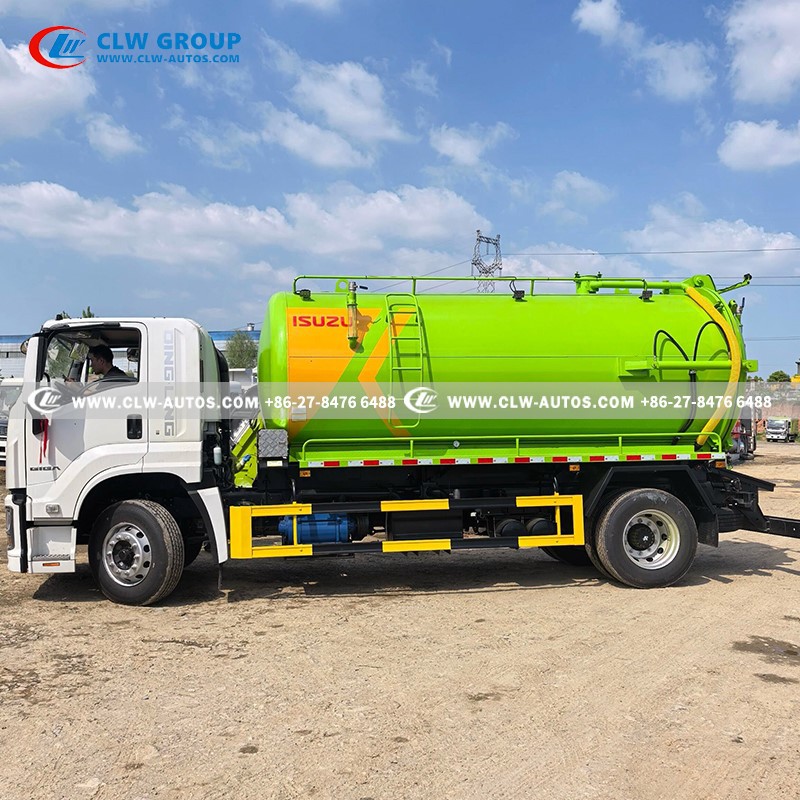

Anti-slip Ladder
- Welded on the left side (near cab) for safe access to tank top for inspection, valve operation, and maintenance.
Tank Top Anti-slip Plate
- Textured surface provides grip in wet, oily, or sandy conditions to prevent slipping.
Side & Rear Guardrails (Yellow frame)
- Side guardrails: Protect tank from scratches/impacts and prevent access to high-pressure parts.
- Rear guardrail: Prevents direct rear-end collision damage to tank, pipes, or valves.
- Extra: Acts as temporary protection for workers around the tank.

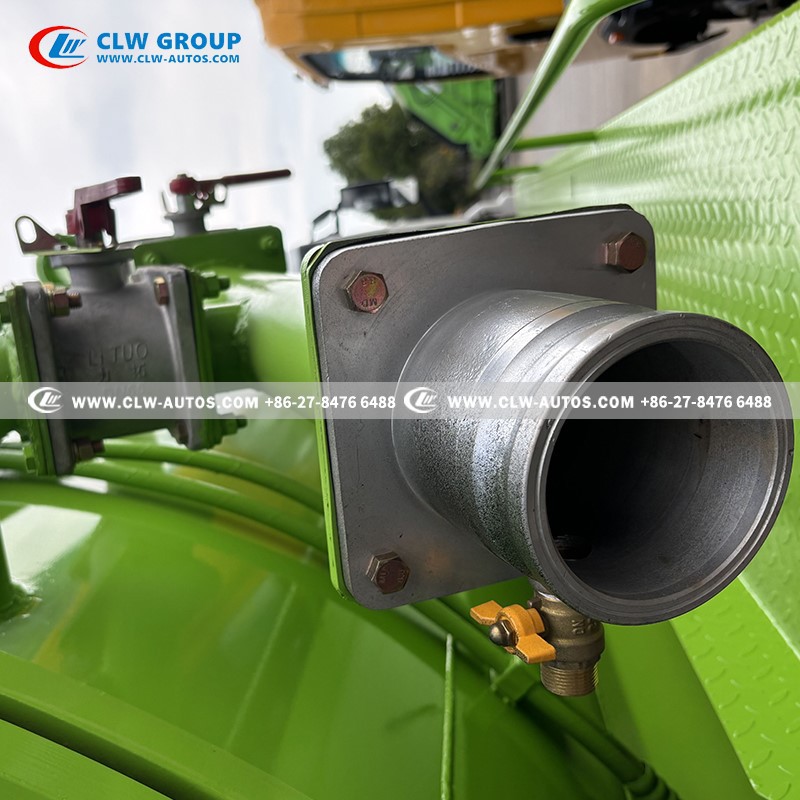

Quick Coupling Interface (Main Component)
Function
- The silver cylindrical part is a standard DN100/DN150 quick coupler (common for sewer trucks), used to connect suction/discharge hoses.
- It features anti-slip ridges for fast connection, serving as the core link between the truck and the operation hose.
- The coupler is fixed to the tank via a square flange and four bolts, ensuring sealing and structural strength under high pressure.
Bottom Air Release / Drain Valve
- Used to release air before operation and establish vacuum pressure.
- Drains residual wastewater after operation to prevent corrosion and freezing.
- Can also serve as a backup for low-flow discharge or pressure relief.

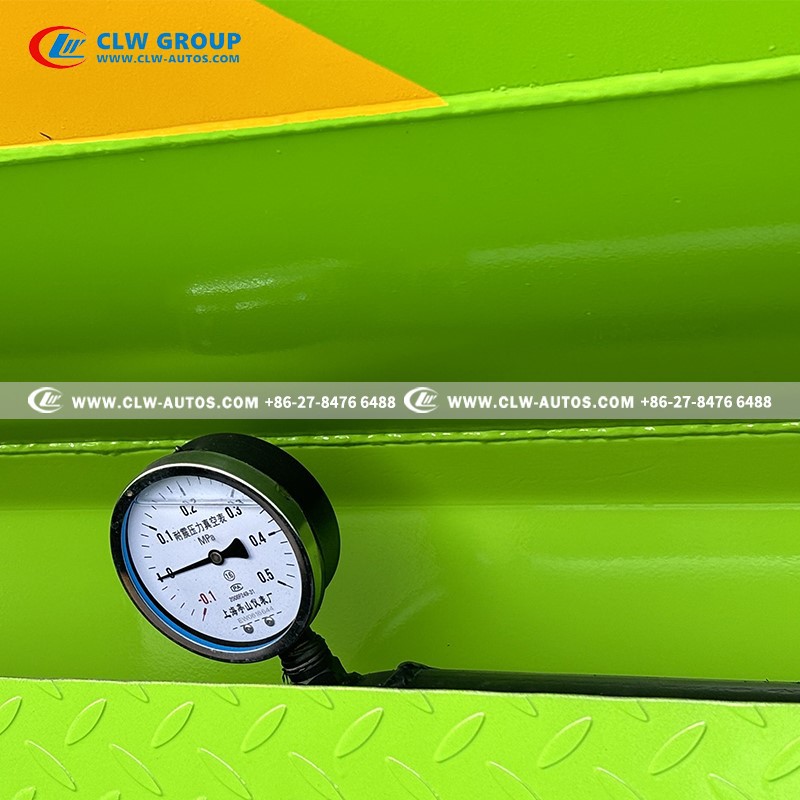

Vibration-Resistant Pressure Vacuum Gauge
Operation Monitoring
- During suction: Check negative pressure (typically -0.05 to -0.08MPa) to verify vacuum level. If pressure fails to build, quickly identify leaks, pump issues, or poor sealing.
- During discharge: Monitor positive pressure to ensure stable flow and prevent pipe burst or tank stress.
Safety Alert
- Prevents tank deformation/damage from abnormal pressure (overpressure or excessive vacuum).
- Detects fill level via pressure drop (rising liquid reduces vacuum), avoiding overflow.
