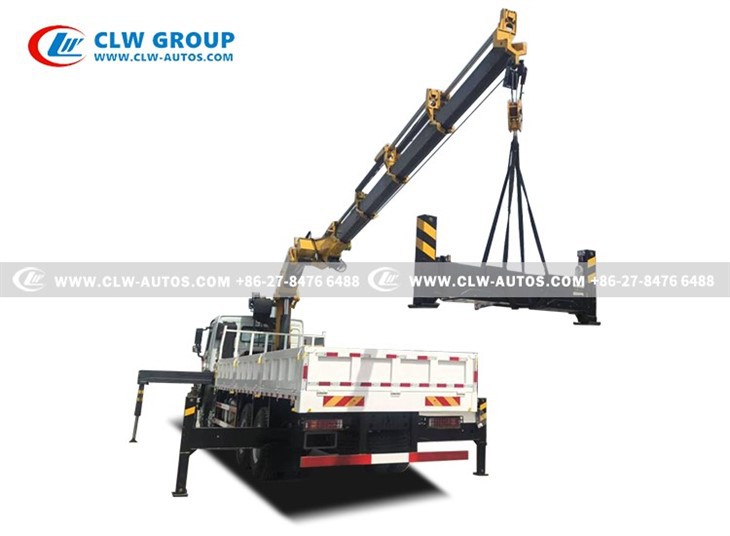

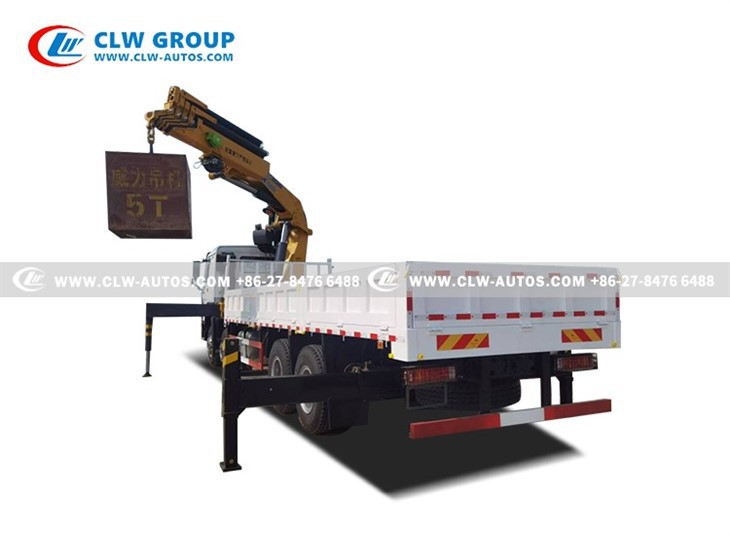

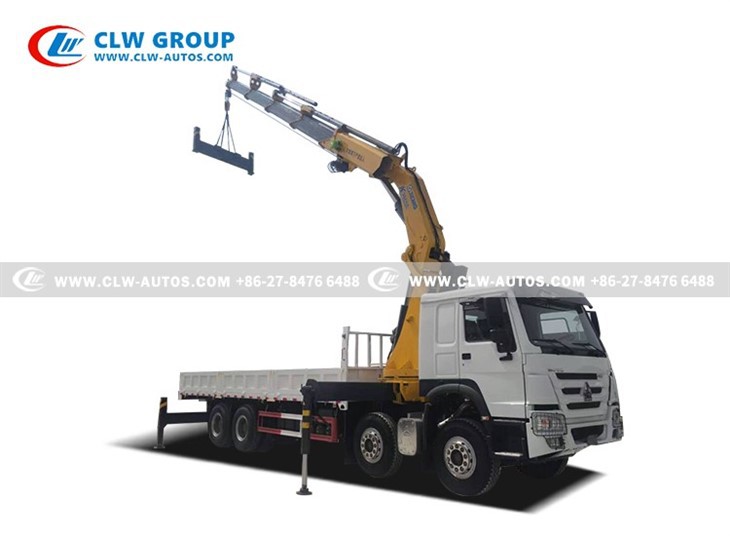

Sinotruk HOWO 8X4 20-Tons Knuckle Boom Crane Truck
Crane truck is a kind of hydraulic lifting and telescopic system to realize the cargo lifting, turning, lifting equipment, usually assembled on the truck. Generally by the truck chassis, cargo compartment, extractor, crane composition. The arm of the truck crane is divided into straight arm truck crane and folding arm truck crane. The advantages of the truck-mounted crane are good mobility, rapid transfer, can set the lifting and transportation functions in one, and improve the utilization of resources.
1. Folding boom design
2. Multi-functional adaptability
3. High-efficiency power system
4. Application Scenario
|
HOWO Crane Truck With 20Tons Folding Boom Crane |
|
|
Chassis Specification |
|
|
Chassis Model |
ZZ1317 |
|
Driving Model |
8x4 |
|
Cab |
|
|
Dimension |
12000 x 2500 x 3900 mm |
|
Wheelbase |
1800 + 4600 + 1350 mm |
|
Gross vehicle Weight |
31000 kg |
|
Curb Weight |
10350 kg |
|
Front Axle Loading Capacity |
9500 x2 kg |
|
Rear Axle Loading Capacity |
16000 x2 kg |
|
Axle Number |
4 |
|
Tire |
12.00R20 18PR |
|
12pcs with 1 spare tire |
|
|
Engine |
Weichai diesel engine 6 cylinders in a line, Water cooled, turbocharged, after cooled, cold start. |
|
Model: WP12S4 |
|
|
Horse power: 400 HP |
|
|
Displacement: 11596 ml |
|
|
Emission standard: Euro 2 |
|
|
Transmission |
Model: HW19710 |
|
10 Forwards & 2 Reverses |
|
|
Fuel Tank Capacity |
400L |
|
Upper Parameters |
|
|
Cargo Box |
|
|
Size (L*W*H) |
7500 X 2400 X 550 mm |
|
Loading Capacity |
30 Tons |
|
Bottom Thickness |
5 mm |
|
Side Thickness |
3 mm |
|
Material |
High quality Q235 carbon steel |
|
Crane |
|
|
Model |
SQZ400 |
|
Working Platform |
360°turning (left or right), H-shape legs 360° |
|
Extendable Boom Section |
1 main boom + 5 extendable boom |
|
Crane Type |
Folding Boom Crane |
|
Max. Lifting Capacity |
Effectively: 20000 kg at 2.0 meters |
|
Max. Working Radius |
11.81 meters |
|
Max. Lifting Height |
14 meters |
|
Max. Lifting Moment |
400 T.m |
|
Max. Oil Flow of Hydraulic System |
63 L/min |
|
Max. Pressure of Hydraulic System |
31.5 Mpa |
|
Crane Weight |
5420 kg |
|
Landing Leg |
4 Pcs hydraulic handing leg |
|
Optional |
|
|
|
|
|
|
|
| Crane Rated Lifting Load Image | |
Crane Truck with Log Grapple Attachment
Crane Truck with Brick Clamp Attachment
