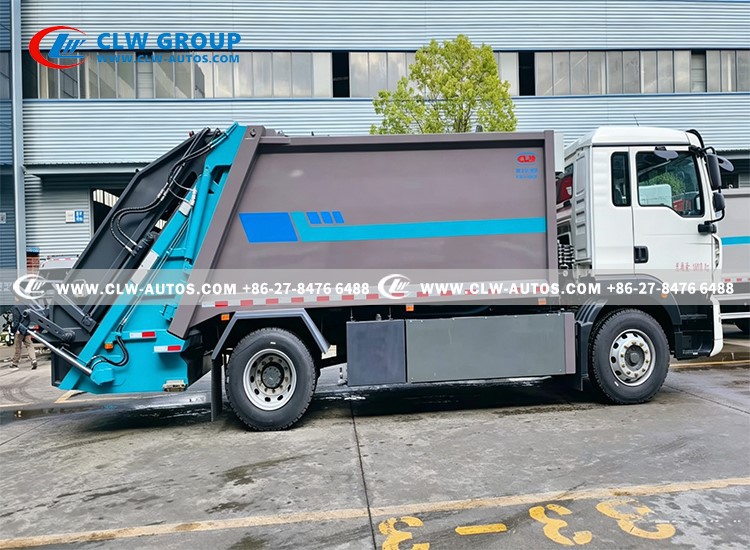

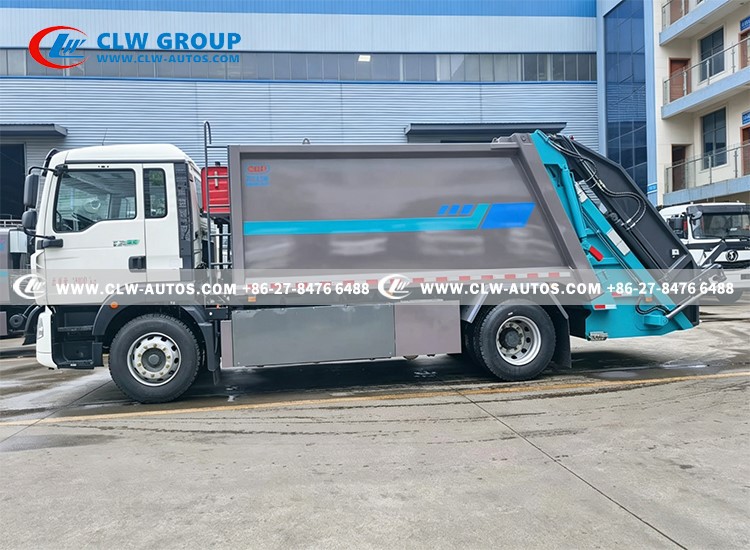

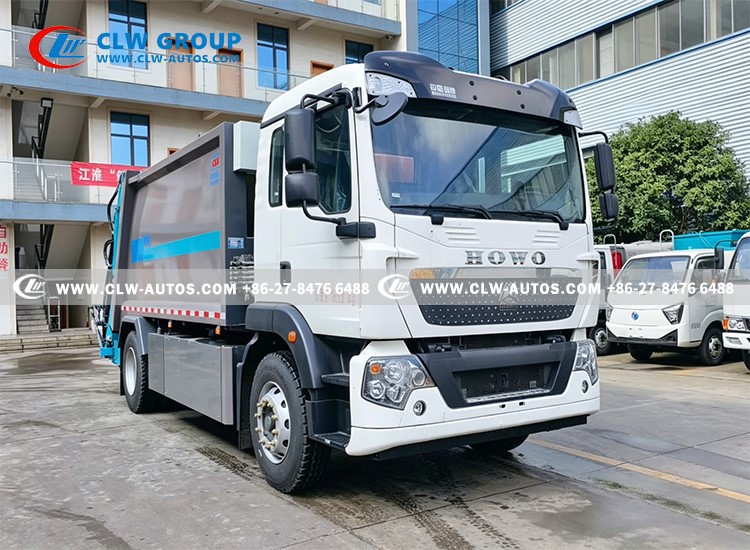

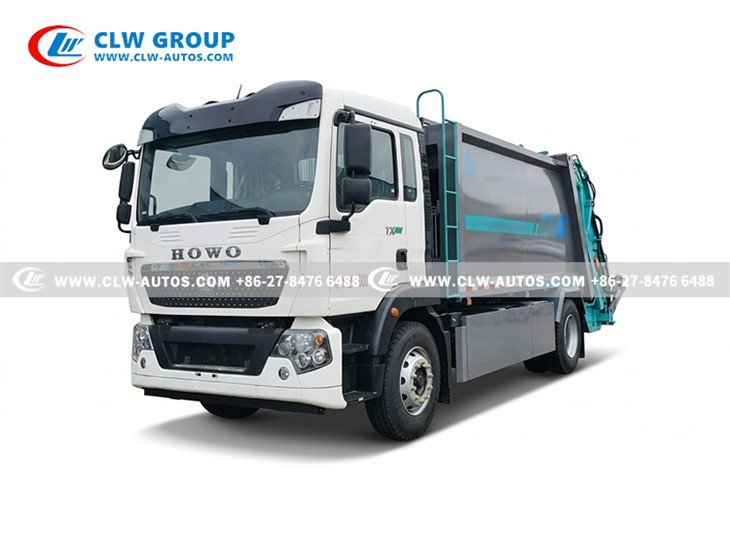

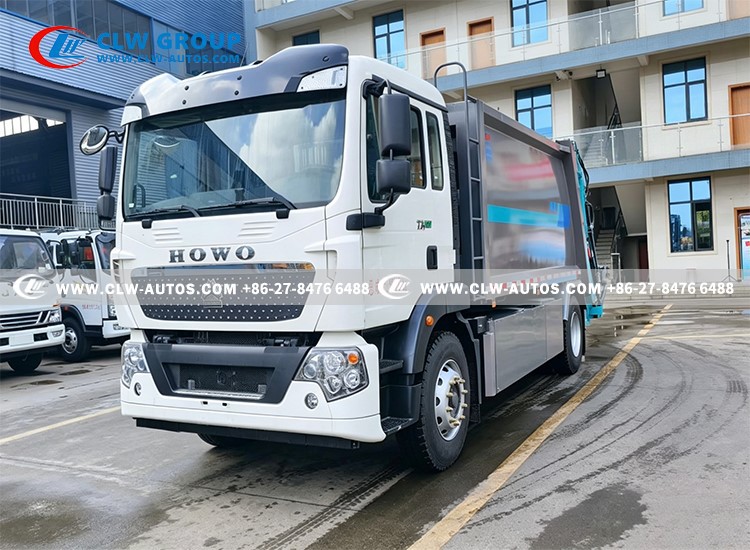

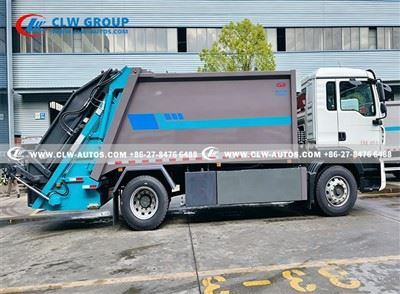

15cbm Electric Garbage Compactor Truck

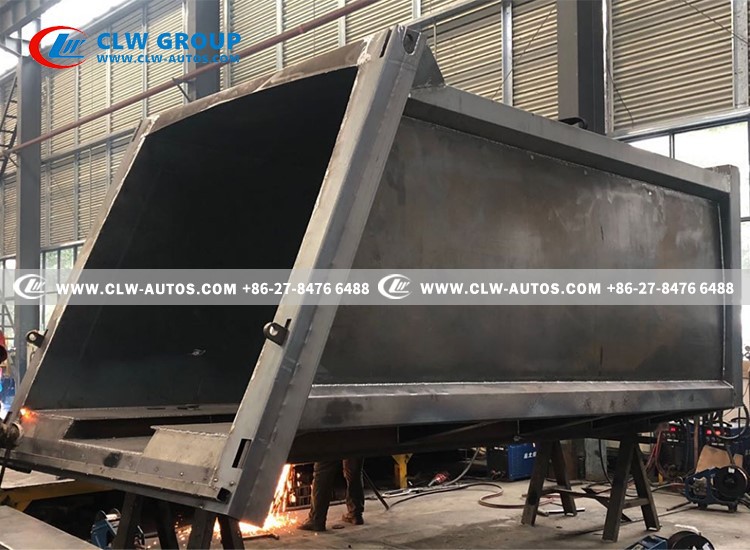

High-Strength Reinforced Body Structure

1. Heavy-Duty Frame: The compactor body features a robust skeleton frame structure welded with heavy-duty reinforcement beams and high-tensile steel plates.

2. Premium Material: Constructed from WISCO (Wuhan Iron and Steel) certified Q355 high-strength structural steel.

3. Thickness & Profile: Engineered with a 5 mm floor and 4 mm side walls (5mm bottom / 4mm side) featuring an arc-shaped profile for superior stress distribution and structural anti-deformation performance.

4. Maximized Capacity: Equipped with a 4-stage telescopic ejector cylinder to minimize interior footprint and maximize net garbage loading volume.

5. Integrated Storage: A high-capacity side-mounted leachate sewage tank is built into the body profile.

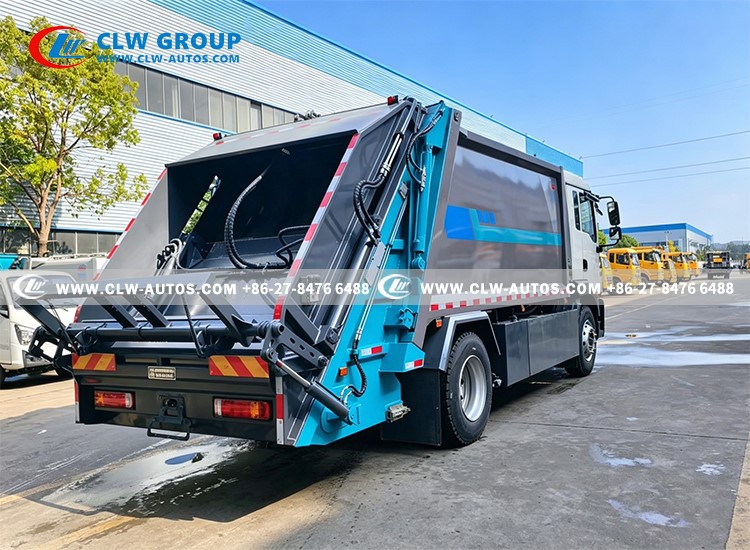

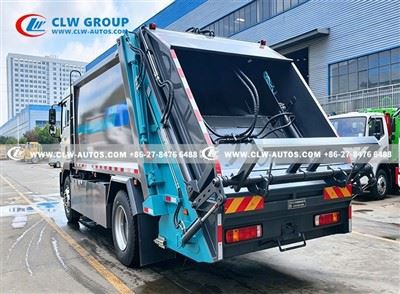

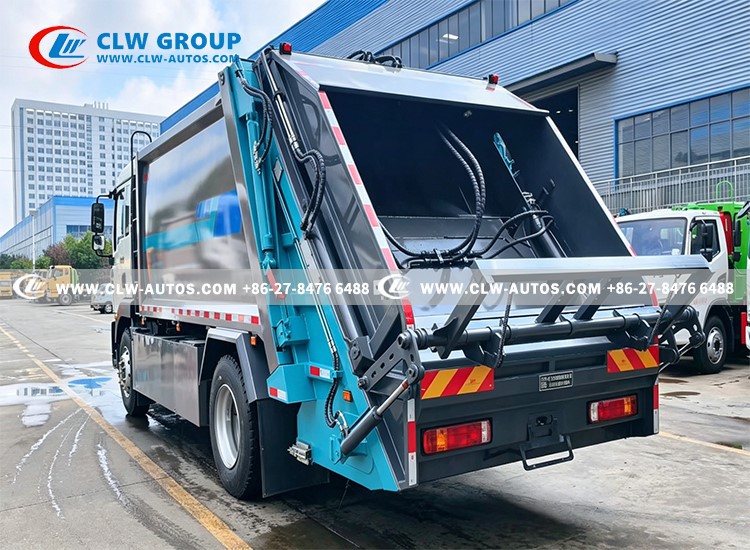

Hopper & Packing Assembly

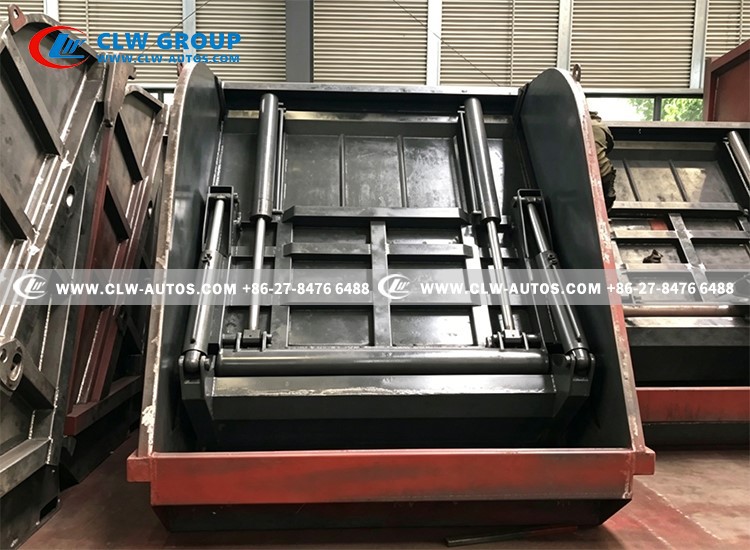

1. Premium Compactor Anatomy: The tailgate assembly comprises a heavy-duty hopper shell, sliding plates, and scrapers.

2. Low-Friction Slide Tracks: The slide tracks are cold-formed from ultra-high-strength, wear-resistant steel. The sliding plates utilize integrated heavy-duty nylon blocks on both sides, offering excellent self-lubricating properties, silent operation, and ease of maintenance.

3. External Cylinder Design: Features an externally mounted sliding plate cylinder layout. This layout provides an obstruction-free internal space, delivering faster cycling speeds, greater compaction ratios, and extremely simple maintenance access.

4. Structural Reinforcement: Critical stress points on the scraper plate are reinforced with localized stiffeners.

5. Advanced Drainage & Sewage Containment: The bottom curved hopper floor is pressed from high-strength anti-wear steel and features precision-machined drainage slots. This allows wastewater inside the hopper to drain rapidly into the large-capacity lower sewage collection tank, completely preventing spillages during transit. The sewage tank features large-diameter galvanized discharge valves on both sides for rapid draining.

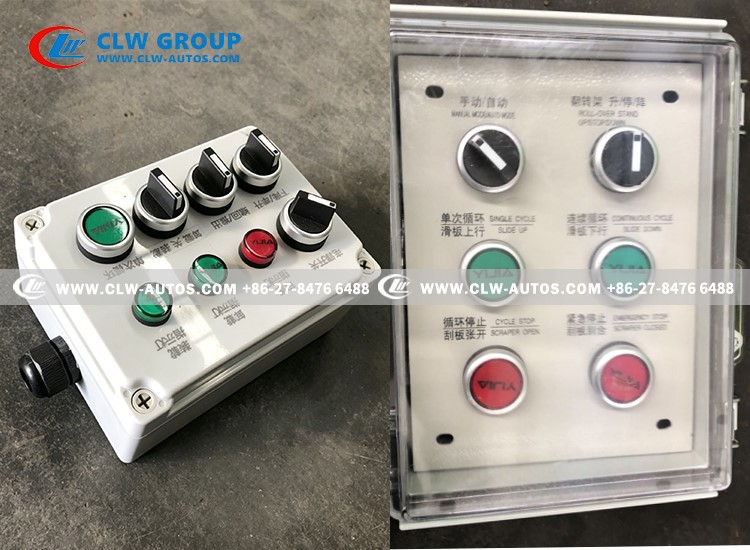

Intelligent Dual Control Interfaces

1. Multi-Station Control: Operations can be executed via three convenient interfaces: a driver's cabin control box, a rear-right tailgate control box, a rear-left emergency stop button, and a wireless handheld remote.

2. Cabin Station: The in-cab control station enables full management of the ejector plate discharge sequence and allows the driver to toggle between operational modes (e.g., Automatic / Manual / Emergency).

3. Tailgate Station: The rear external control box manages the packing cycle, compaction sequence, and container lifting mechanics.

4. Zero-Contact Discharge: Sanitation operators can complete full refuse discharging and wastewater draining at the landfill directly from inside the driver's cabin, eliminating the need to step out into harsh environments.
