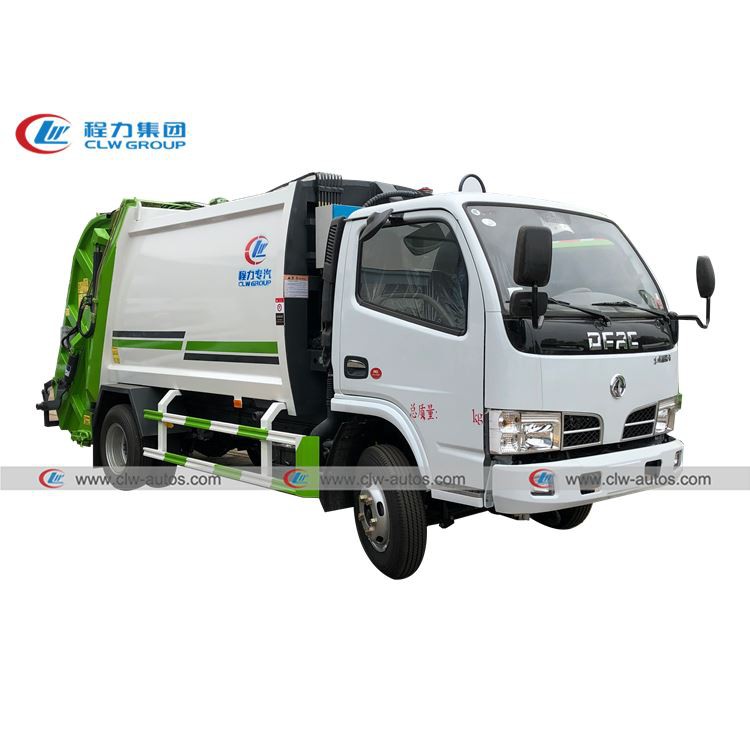

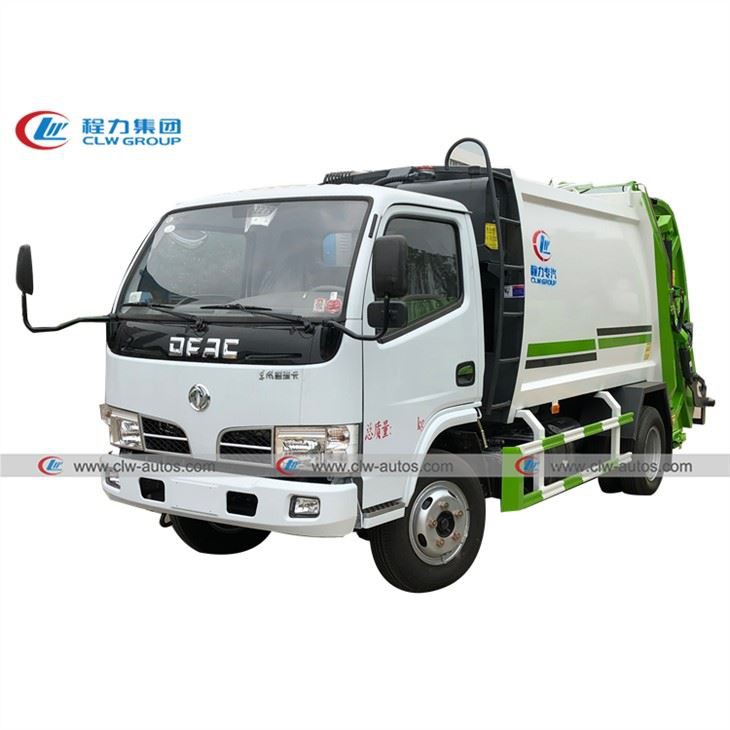

Dongfeng 6m3 Rear Loader Garbage Truck
4tons/5tons garbage truck
Cheap garbage truck
6cbm/5cbm garbage truck
Thickness:Bottom 4mm and Side 4mm
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 6m3 rear loader garbage truck in China. If you're going to buy high quality dongfeng 6m3 rear loader garbage truck, welcome to get more information from our factory. For price consultation, contact us.
Production Introduction
Dongfeng 6cbm rear loader garbage truck(also called 4 tons garbage compactor truck,6m3 garbage truck,5tons compactor garbage truck,compactor garbage truck,refuse compactor truck,rear loading garbage truck,waste truck,recycling truck) is combined with truck chassis,a sealed garbage box, a hydraulic system and an operating system.
Rear loader garbage trucks are suitable for waste management companies which using for city garbage collection,recycling & transport, the loaded garbage can be compressed and crushed to increase the density and reduce the volume, which greatly improves the efficiency of garbage collection and transportation. Garbage truck from CLW group hubei chengli special automobile co., ltd is with advantage of reliable quality, low failure rate, convenient maintenance and low operating cost.
Why do you choose CLW group for garbage trucks?
Chinese top brand oil cylinders;
British DLI seal ring;
Chinese top brand multi-way valves'
Chinese top brand hydraulic oil pump
Compensates misalignment and deflections
PLC or CAN operation contral model for option;
Capable to deliver batch order in short time;
Brand New, 4X2 Drive,small&mobile chassis;
No overhaul within 100,000 km.
English Manual( Other language is available)
Two-way compression and the loading efficiency is high;
Optional post-installation monitoring system is convenient
to realize visual loading and unloading operations in the cab.
Double insurance system, the operation system has dual
functions of automatic control and manual operation,
which greatly guarantees and improves the utilization rate of the vehicle.
Name | 6m3 garbage truck | Gross Weight | 7360kg |
Overall dimensions | 6470*2050*2570mm | Curb Weight | 5400kg |
Wheelbase | 3300mm | Approach angle | 20° |
Front Track | 1503mm | Departure Angle | 18° |
Rear Track | 1494mm | Front Overhang | 1040kg |
Number of axles | 2 | Rear Overhang | 2122kg |
Max speed | 99km/h | Number of Tires | 6 |
Traction system | 4×2 | Tyre | 7.00R16 14PR |
Transmission | manual | Allowable Cab Passengers | 2 |
Engine (Motor) | |||
Brand | Chaochai/Yuchai | Type | Diesel |
Model | CY4100Q/YC4FA120-33 | Displacement | 3707/2982ml |
Horse power | 82hp/120hp | Emission standard | Euro III/V/VI |
Equipment | |||
Tanker Capacity | 6CBM | Material | Q345 |
Gearbox | 5 forwards & 1 reverse | Steering Gear | Power steering |
Clutch | Reinforced diaphragm clutch | Brakes | Dual circuit compressed |
Pre sale service
--- Technical communication with engineer --- Factory and workshop visit --- Designed drawings
After Sale Service --- Overseas installation and commissioning --- Overseas and spare parts support --- Technical and spare parts support
Truck According to your request, choose good chassis and refit it to truck.
Upper Body Supply only upper body without chassis. According to your chassis drawing,design function parts.
Customization Communicate with engineer,making drawings and produce customized products.
Spare Parts Supply all kinds of spare parts on chassis and upper body,replace main parts on trucks as tank and box. |
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the truck has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
