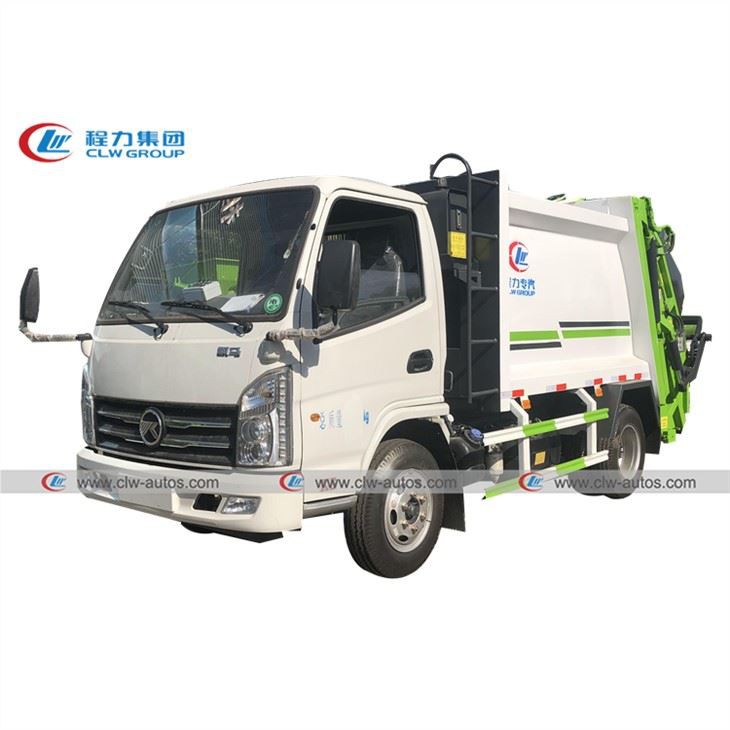

KAMA 4CBM Rear Loading Garbage Truck
3tons/4 tons garbage truck
Steering:LHD/RHD garbage truck
4cbm/3cbm garbage truck
Thickness:Bottom 4mm and Side 4mm
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of kama 4cbm rear loading garbage truck in China. If you're going to buy high quality kama 4cbm rear loading garbage truck, welcome to get more information from our factory. For price consultation, contact us.
Production Introduction
KAMA 4cbm rear loading garbage truck(also called 3 tons garbage compactor truck,4m3 garbage truck,3tons compactor garbage truck,small compression garbage truck,4tons refuse compactor truck) is combined with a sealed garbage box, a hydraulic system and an operating system.
Rear loading garbage trucks are suitable for waste management companies which using for city garbage collection & transport, the loaded garbage can be compressed and crushed to increase the density and reduce the volume, which greatly improves the efficiency of garbage collection and transportation.Our garbage truck is with advantage of reliable quality, low failure rate, convenient maintenance and low operating cost.
Why do you choose CLW group for garbage trucks?
Chinese top brand oil cylinders;
British DLI seal ring;
Chinese top brand multi-way valves'
Chinese top brand hydraulic oil pump
Compensates misalignment and deflections

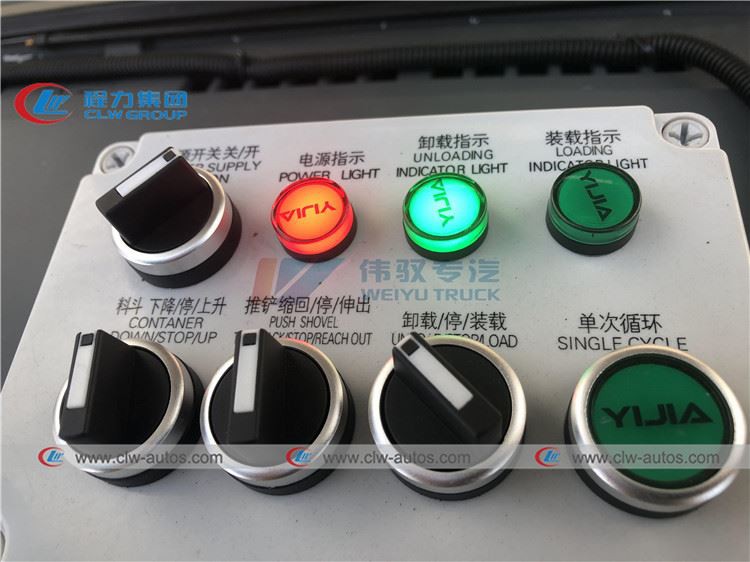

PLC or CAN operation contral model for option;
Capable to deliver batch order in short time;
Brand New, 4X2 Drive,small&mobile chassis;
No overhaul within 100,000 km.
English Manual( Other language is available)
Two-way compression and the loading efficiency is high;
Optional post-installation monitoring system is convenient
to realize visual loading and unloading operations in the cab.
Double insurance system, the operation system has dual
functions of automatic control and manual operation,
which greatly guarantees and improves the utilization rate of the vehicle.
Overall Dimension | 5995*2050*2400 mm |
Compactor garbage Tank volume | 4000 Liters |
Curb weight | 4200 Kgs |
Approach/ Departure Angle | 20/17 degree |
Front / Rear Hanging | 1130/1820 mm |
Maximum speed | 95 Km/h |
Wheelbase | 3300 mm |
Hanging bucket size | 120L ,240 L , 660 L |
Standard Equipment | Garbage box is made of high-strength Q345 manganese steel. Two way compression structure, with double waste water tank,oil cylinder, British DLI sealing ring, w multi-way valve, gear pump, standard garbage turnover bucket or bucket turnover plate(Wireless remote control) |
Service
Pre sale service
--- Technical communication with engineer --- Factory and workshop visit --- Designed drawings
After Sale Service --- Overseas installation and commissioning --- Overseas and spare parts support --- Technical and spare parts support
Truck According to your request, choose good chassis and refit it to truck.
Upper Body Supply only upper body without chassis. According to your chassis drawing,design function parts.
Customization Communicate with engineer,making drawings and produce customized products.
Spare Parts Supply all kinds of spare parts on chassis and upper body,replace main parts on trucks as tank and box. |
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the truck has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
