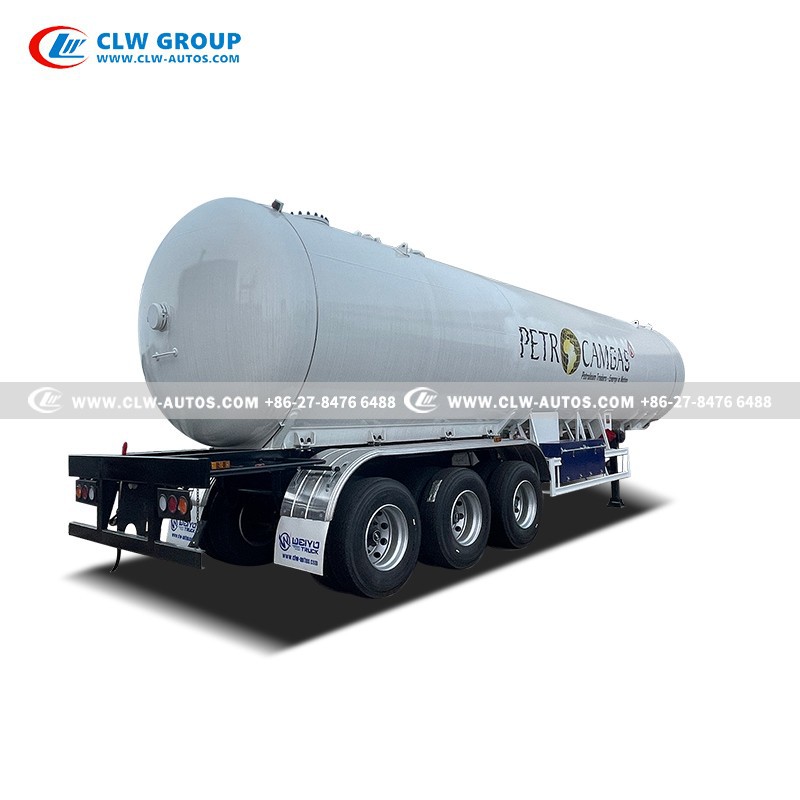

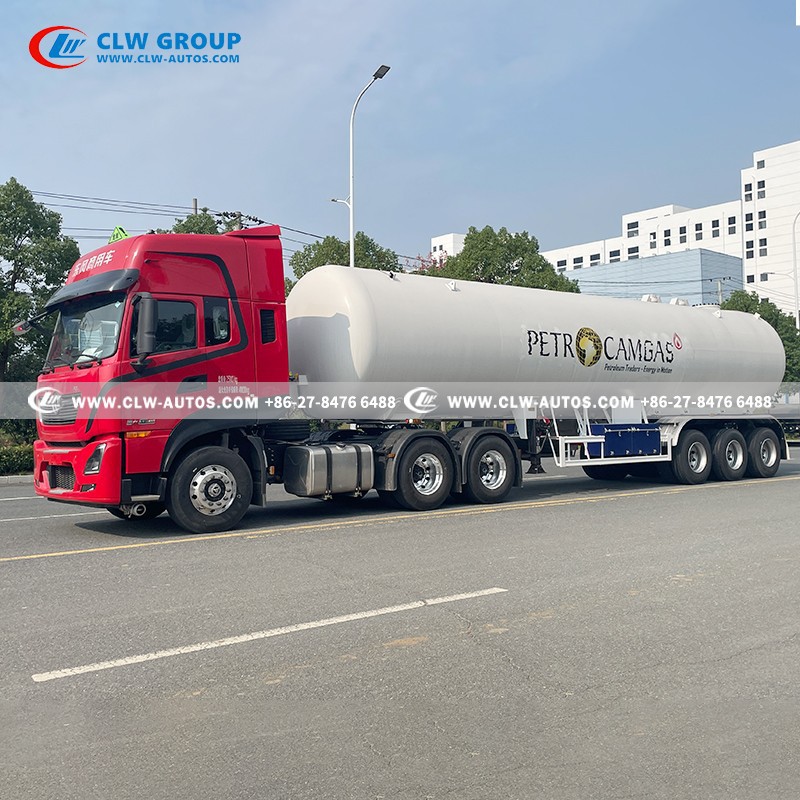

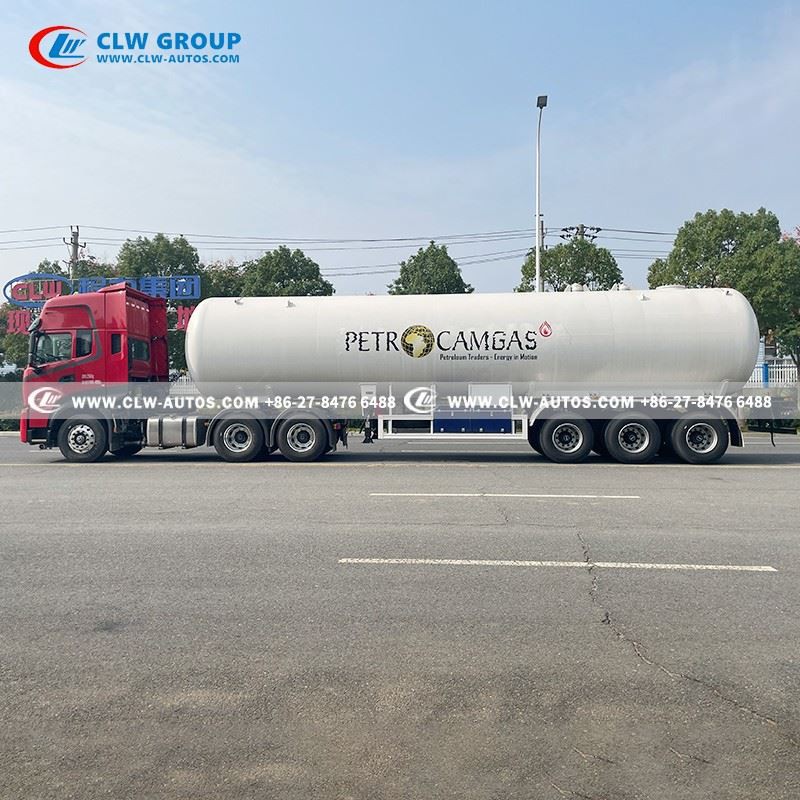

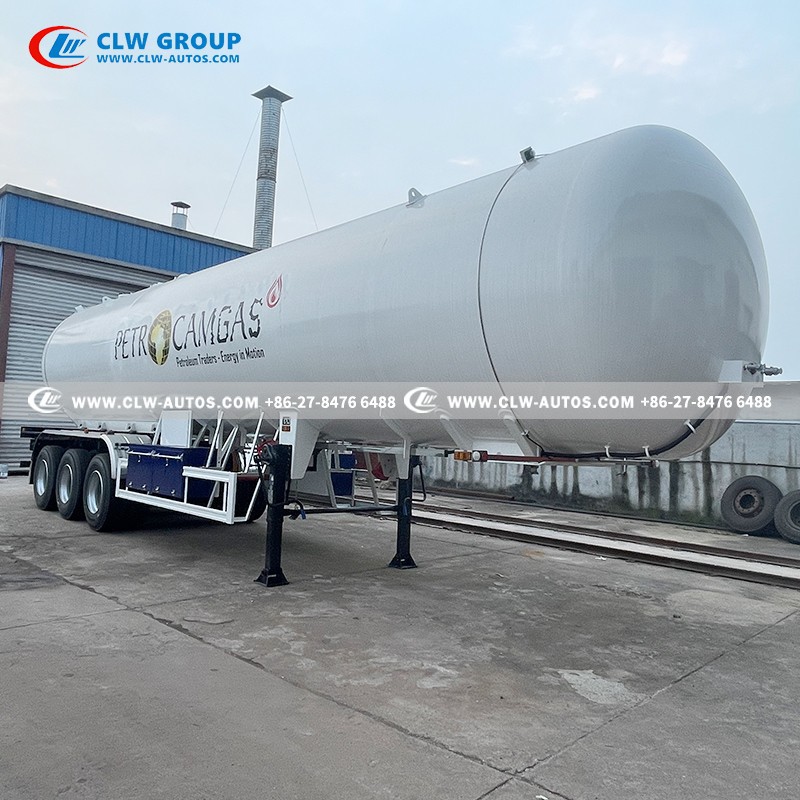

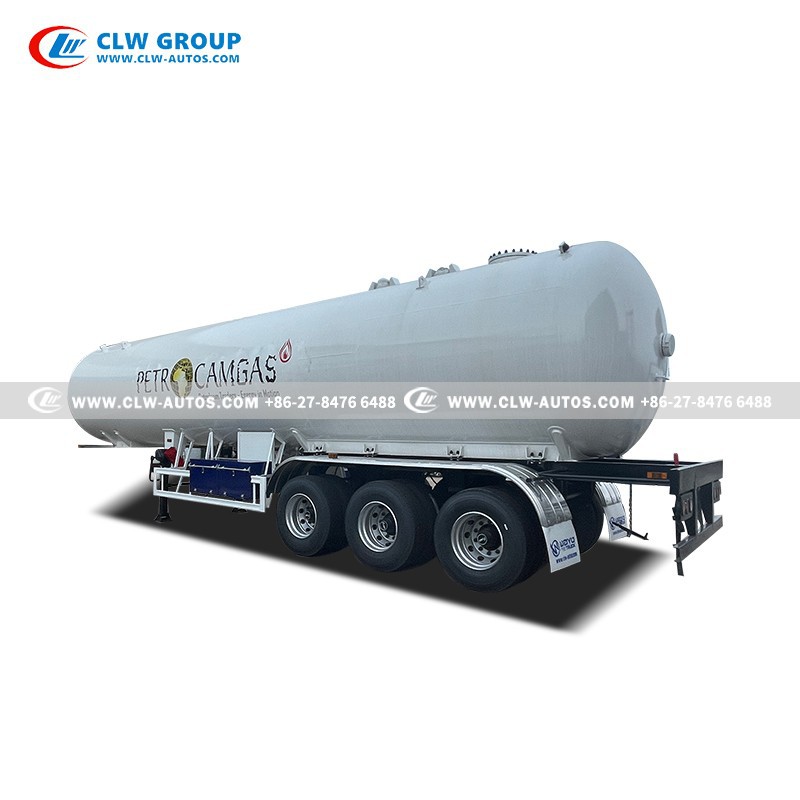

25Ton LPG Tank Trailer

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 25ton lpg tank trailer in China. If you're going to buy high quality 25ton lpg tank trailer, welcome to get more information from our factory. For price consultation, contact us.

3 axle 25 Ton LPG Tank Trailer

We are Top 3 manufacturer of special purpose truck since 2004

The 25 Ton LPG Tank Semi-Trailer from CLW Group is a robust, purpose-built transport solution designed for the safe and efficient overland delivery of liquefied petroleum gas (LPG). Built to international pressure vessel standards, this tri-axle semi-trailer combines high-strength Q345R steel construction with precision-engineered safety and monitoring systems, making it the ideal choice for energy logistics firms, gas distribution companies, and petrochemical operators seeking reliable LPG road transport.

Key Features

• Heavy-Duty Tank Construction: The tank is fabricated from Q345R pressure vessel steel, with a 12mm thick cylindrical shell and 14mm thick elliptical heads, ensuring exceptional structural integrity and resistance to pressure and impact under long-haul operating conditions.
• Tri-Axle Heavy-Duty Chassis: Equipped with Fuwa 13-ton axles, Jost kingpin and landing legs, and 12R22.5 heavy-duty tires, delivering superior load-bearing capacity, stability, and durability for 25-ton payloads across diverse road conditions.
• Comprehensive Safety System: Integrated with critical safety components including an emergency shut-off valve, spring-loaded safety valves, pressure relief device, and temperature gauge, ensuring full compliance with China GB Standard LPG transport safety regulations.
• Precise Liquid Level Monitoring: Fitted with a percentage float-type level gauge for accurate, real-time monitoring of LPG volume, enabling operators to manage load levels and prevent overfilling during loading and unloading operations.
• Efficient Loading/Unloading: Designed with dedicated pipeline systems and quick-connect fittings, paired with emergency cut-off valves to enable safe, fast loading and unloading while minimizing the risk of gas leakage.

Application Scenarios

This LPG tanker semi-trailer is engineered to serve critical energy logistics use cases:

1. Long-Haul LPG Distribution: Transport bulk LPG from refineries, storage terminals, and import terminals to regional gas depots, cylinder filling plants, and industrial hubs across highways and intercity routes.
2. Industrial & Commercial Supply: Deliver LPG to large-scale industrial facilities, power plants, and commercial operations for use as fuel in heating, manufacturing, and power generation processes.
3. Residential Gas Grid Support: Supply LPG to rural or suburban communities not connected to natural gas pipelines, ensuring reliable access to clean cooking and heating fuel.
4. Petrochemical Logistics: Serve as a mobile storage and transport link in petrochemical supply chains, facilitating the transfer of LPG between production, storage, and end-user facilities.
5. Emergency Response & Resupply: Deployed to disaster zones or areas with disrupted energy infrastructure to provide emergency LPG supplies for essential services and relief operations.

















Optional choice

Customized design based on requirement

01

LPG Vane Pump(Chinese brand)

This LPG positive displacement flow meter is used to accurately measure the volume of LPG (liquefied petroleum gas) being transferred (e.g., during loading or dispensing). It also generates printed transaction records for billing and inventory tracking, ensuring precise and reliable metering for LPG distribution and commercial operations.

02

Corken Vane Pump(US brand)

This 2-inch Corken LPG pump is a positive-displacement sliding vane pump designed to efficiently transfer liquefied petroleum gas (LPG) in pipeline systems. It provides reliable, continuous flow for LPG loading, unloading, and distribution operations, handling the high-pressure, volatile properties of LPG while ensuring stable performance in commercial and industrial applications

03

LPG Volume flow Meter(Chinese Brand)

A positive displacement flow meter for Liquefied Petroleum Gas (LPG) is a precision metering device designed to accurately measure the volume of LPG transferred during loading, dispensing, or distribution operations.

04

LPG Mass flow Meter(Chinese Brand)

This LPG Coriolis mass flow meter is used to accurately measure the mass flow rate and total mass of LPG being transferred in pipelines. It provides precise, real-time flow data for LPG loading, unloading, and custody transfer operations, ensuring reliable measurement for inventory control and commercial billing



Why Choose CLW Group?

With over 20 years of expertise in manufacturing special-purpose tank trailers, CLW Group delivers LPG transport solutions that meet the highest global standards for safety, reliability, and performance. All our LPG semi-trailers undergo rigorous pressure testing and quality inspections, and we offer comprehensive after-sales support including global warranty coverage, 24/7 technical assistance, and genuine spare parts supply. Our designs are fully customizable to meet regional regulatory requirements and client-specific operational needs.
