Why Do Bitumen Tankers Have Special Heating Systems?

When transporting bitumen - also known as asphalt - regular tanker trucks just won't do the job. Bitumen is a viscous material derived from crude oil and is widely used in road construction. But here's the catch: bitumen must be kept at high temperatures to stay in a liquid, flowable state. That's why bitumen tankers are equipped with special heating systems.

Let's break down why these systems are critical and how they work.



🔥 Why Bitumen Needs to Be Heated During Transport

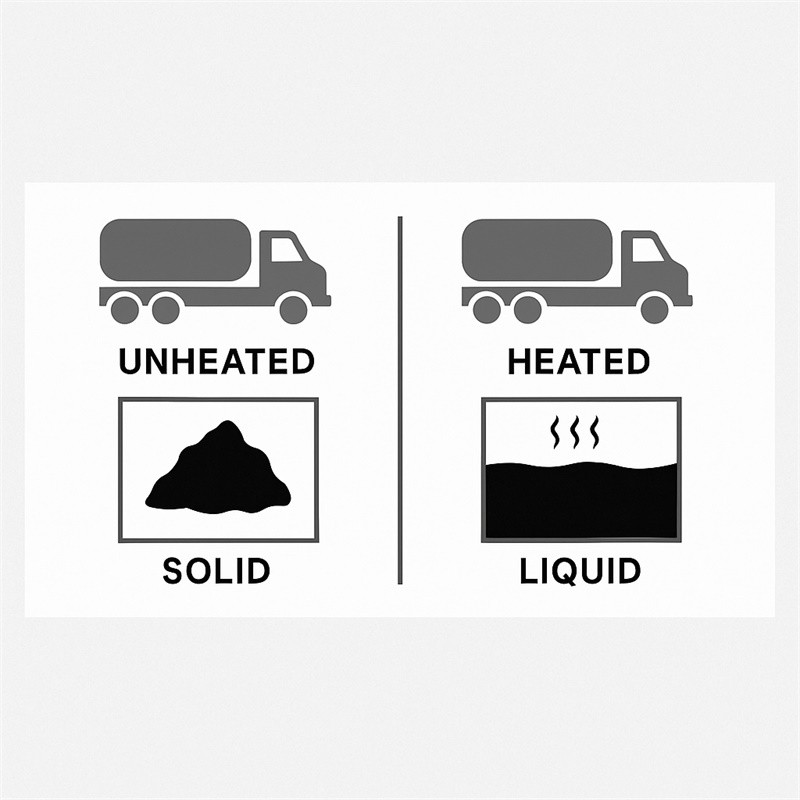

Bitumen solidifies quickly when it cools - often below 120°C. At room temperature, it turns into a thick, sticky solid that cannot be pumped or unloaded.

To keep bitumen usable during transport, the temperature must stay between 140°C and 180°C, depending on the grade. Without proper heating:

The bitumen becomes too thick to unload

It can block pipes and valves

It risks damaging pumps or causing delivery delays

That's why temperature control isn't optional - it's essential.

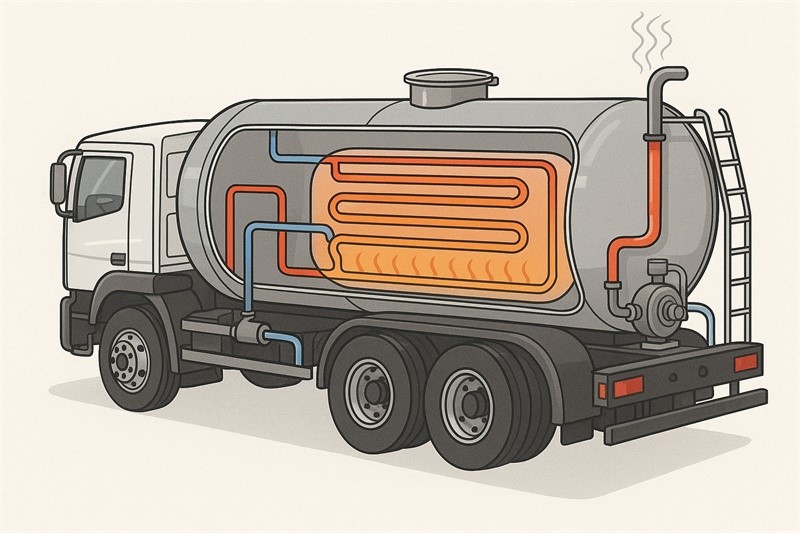

🛠️ Common Heating Systems Used in Bitumen Tankers

Burner Heating (Diesel or Gas-Fired)

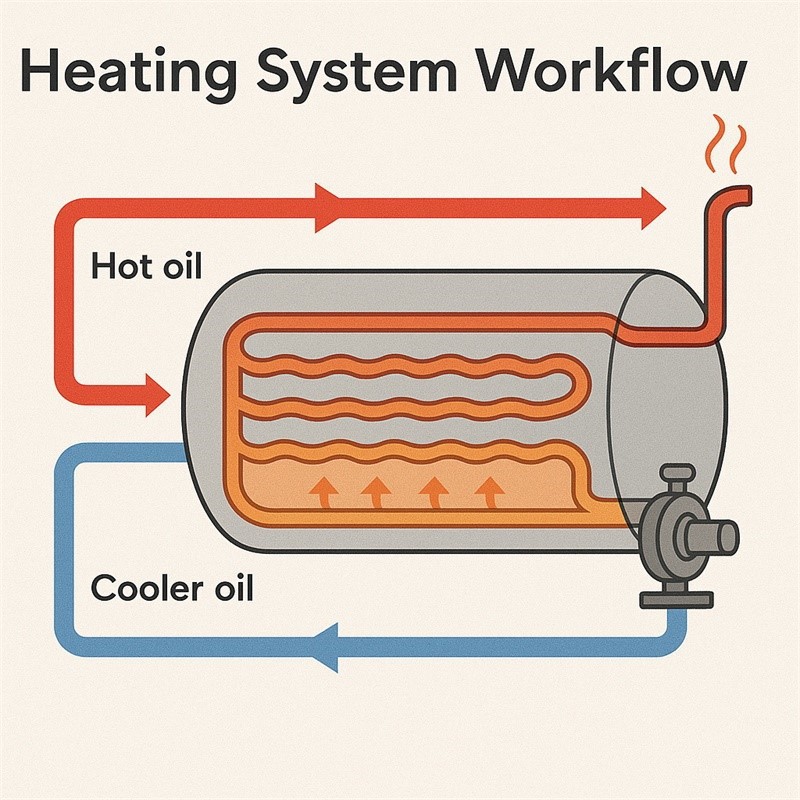

A burner heats thermal oil, which circulates around the tank to indirectly heat the bitumen.

🔄 This closed-loop system maintains stable temperature and avoids direct flame contact.

✅ Most common type for long-distance highway transport.

Electric Heating

Ideal for short-range or urban distribution.

Lower maintenance but slower heat-up.

♻️ Sometimes powered by generators or external electric grid.

Insulated Jackets

While not active heating, thermal insulation layers help retain heat for several hours.

Often used in combination with burners or electric systems.



🧪 Why Direct Fire Heating Is Avoided

Direct heating of bitumen can lead to local overheating, which causes:

Burning or charring of the bitumen

Release of harmful fumes

Damage to the tank wall

Hence, indirect heating using thermal oil systems is considered safer and more reliable.



🌍 International Transport: Heat Maintenance is Critical

In countries with long transport distances (e.g., Africa, Central Asia, Latin America), bitumen can cool too quickly if the heating system is weak or absent. That's why many importers prefer:

Thicker insulation

Double-burner systems

Auxiliary heating ports

Some even require real-time temperature monitoring systems onboard.



✅ Summary: Heating = Efficiency + Safety

Bitumen tankers are not just regular tankers with black paint. They are engineered systems designed to handle a material that behaves very differently from water, fuel, or chemicals.

Without heating, bitumen transport would be slow, dangerous, and inefficient.
With it, roads get built - on time, and to spec.
